Cheap Fast Delivery Labour Accommodation Camp

Customization:	Available
Characteristics Of Goods:	Modular Kitchen
Type:	Modular Kitchen

Send Inquiry

Product Description

Basic Information

Model NO.

SH101

Product Name

Prefab Canteen/Portable Canteen

Size

2.438m*6.058m or 2.438m*12.192m

Seismic Resistance

>Grade 8

Wind Resistance

>220km / H

Application

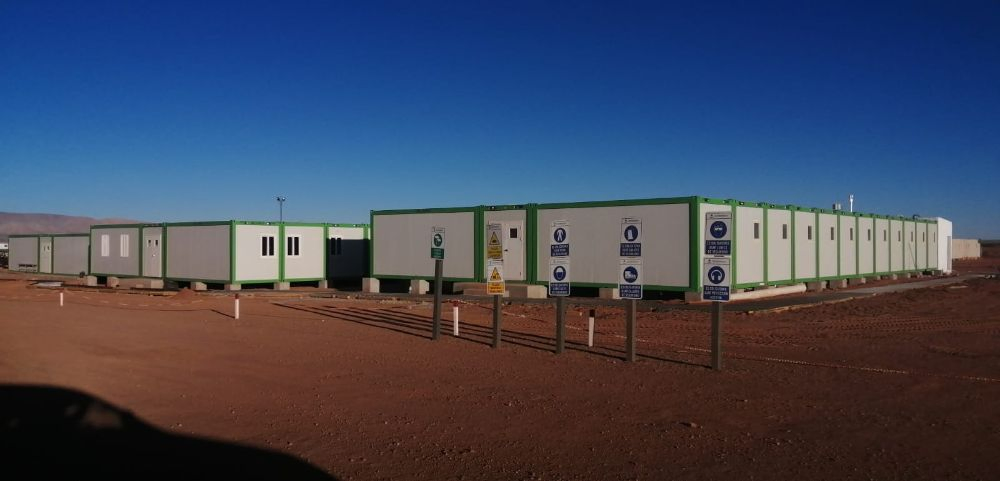

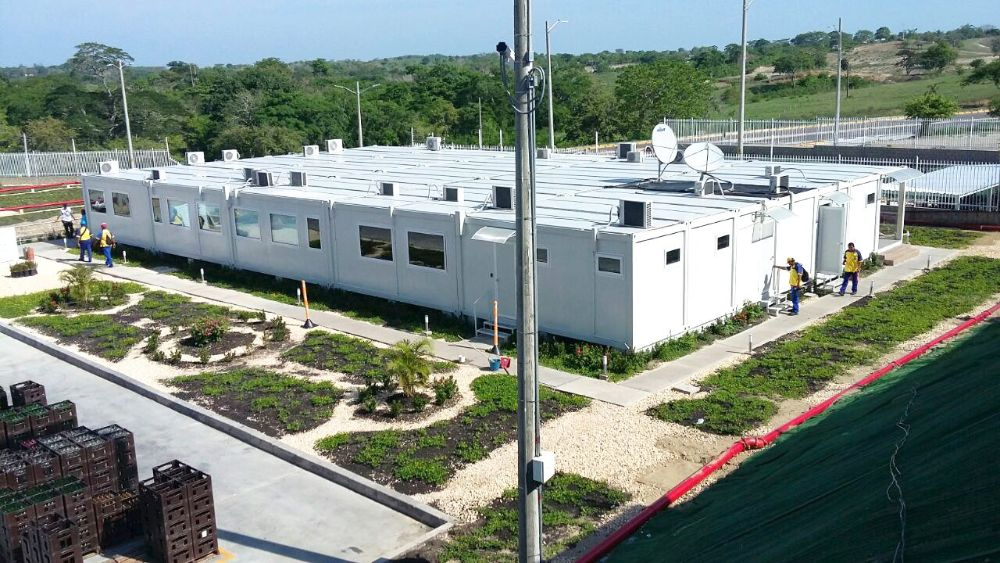

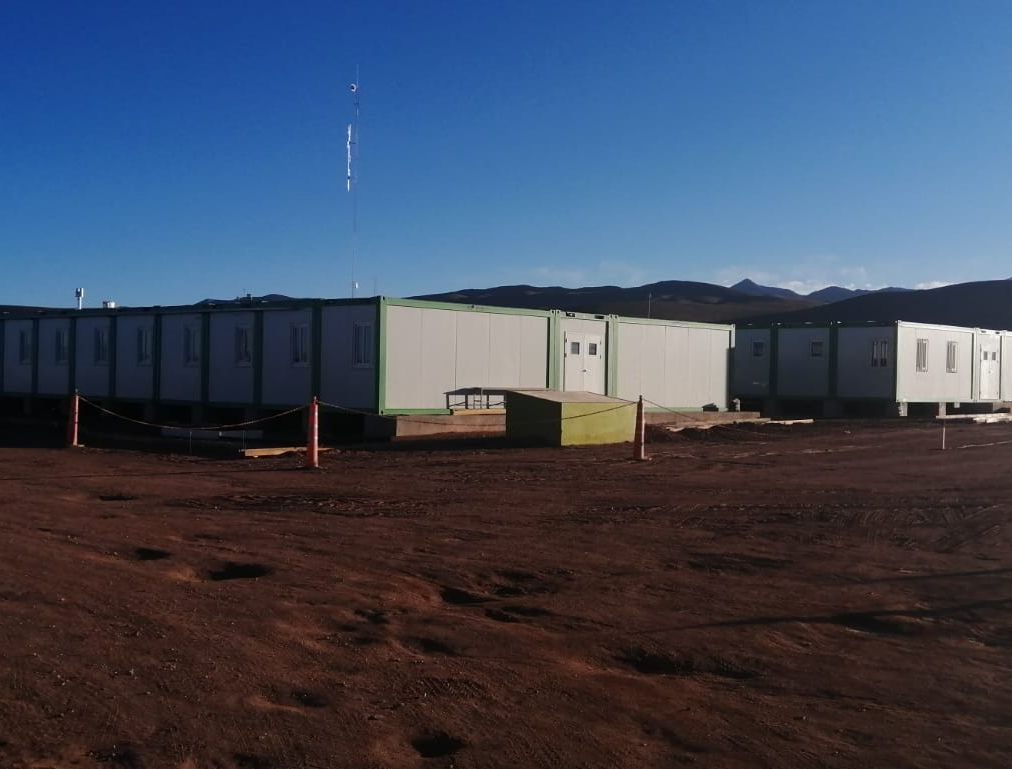

Mining Camp; Hotel; Office; Apartment; School etc

Assembly Time

Just 4 Hours to Assemble one Unit

Production Capacity

1200 Units Per Month

Technical Specification

Roof System: Integrated PU foam roof system. 70mm PU foam insulation (R 20). Ceiling finish: double side 0.42mm colour sheet steel.	Floor Structure: Cold rolled welded steel profile (4mm thick). 18mm plywood subfloor with 2mm Vinyl flooring. PU foam cavity filled (R25).
Structure: (4) Corner Posts with bolt flange, steel thickness 3mm.	Wall Panels: 100mm thick PU Sandwich Panel, double side 0.42mm colour sheet steel. PU density 40kg/cbm (R 24).

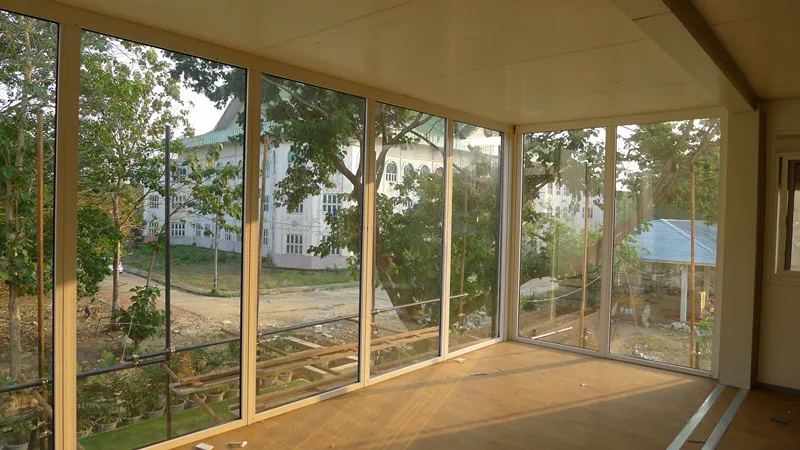

Doors: 36" x 80" Steel Insulated Entrance Door.	Windows: (2) 900mm x 1100mm horizontal vinyl sliders. Double pane filled with Low E argon gas.
Climate Control: 9,000 BTU Air Conditioner, digital control, 230V.	Electrical: 120/240V Single Phase. 60Amp load center. Ceiling mounted light fixtures. Exterior GFCI receptacle.

Packing & Delivery

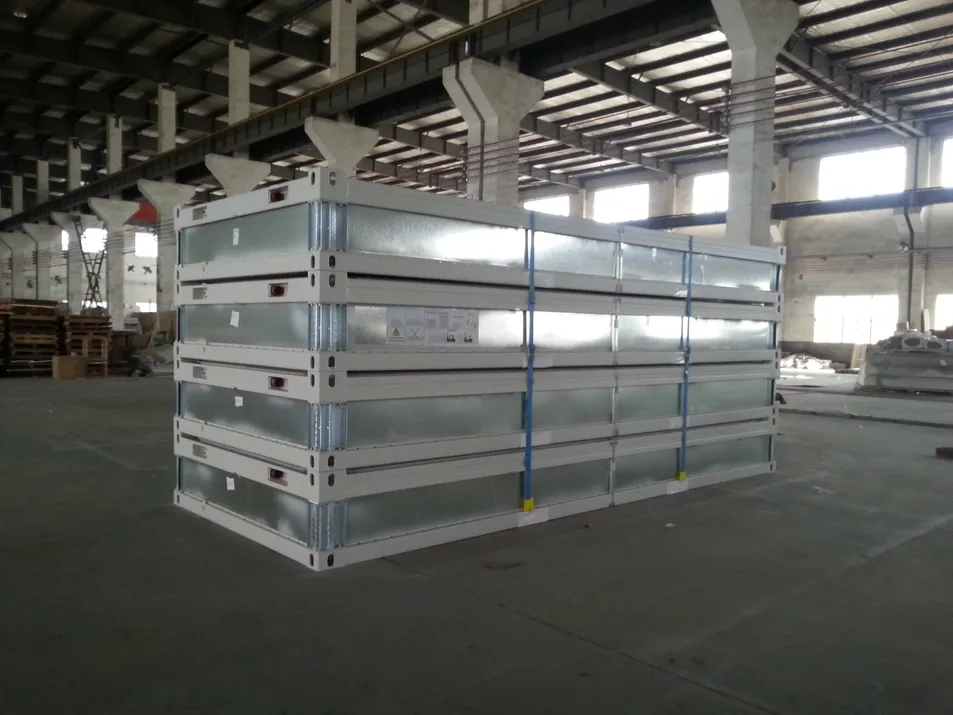

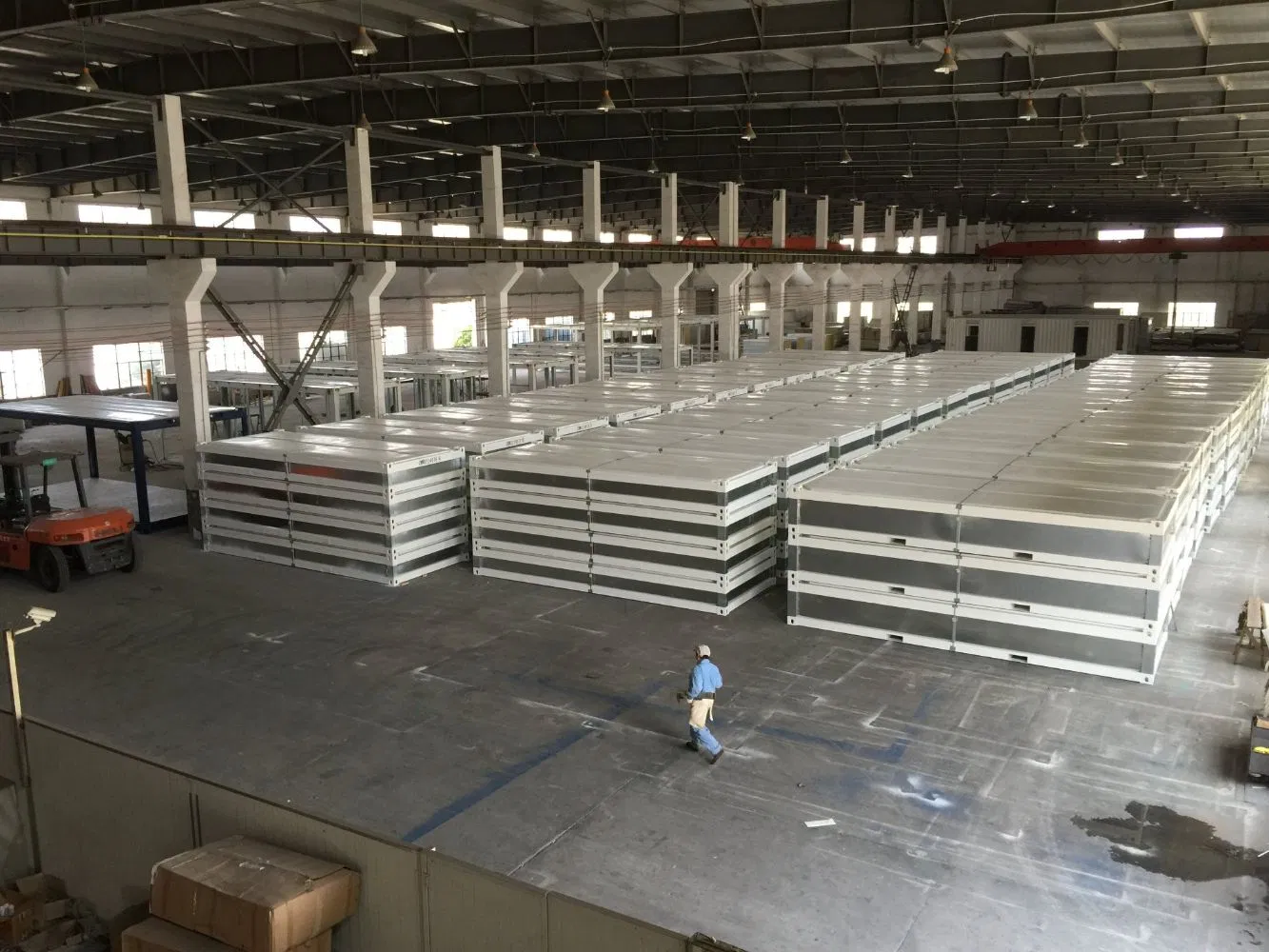

Standard Dimensions: Single 8'x20' Unit. 4 Units in One Bundle as 20GP Container for cost-effective transportation.

Manufacturing Excellence

Production Highlights

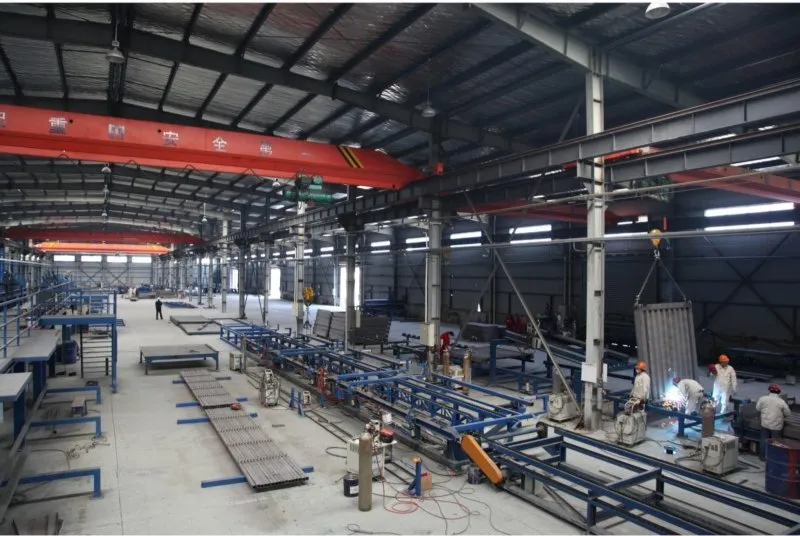

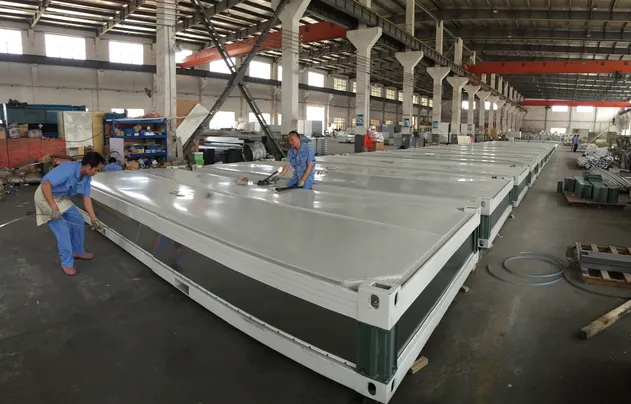

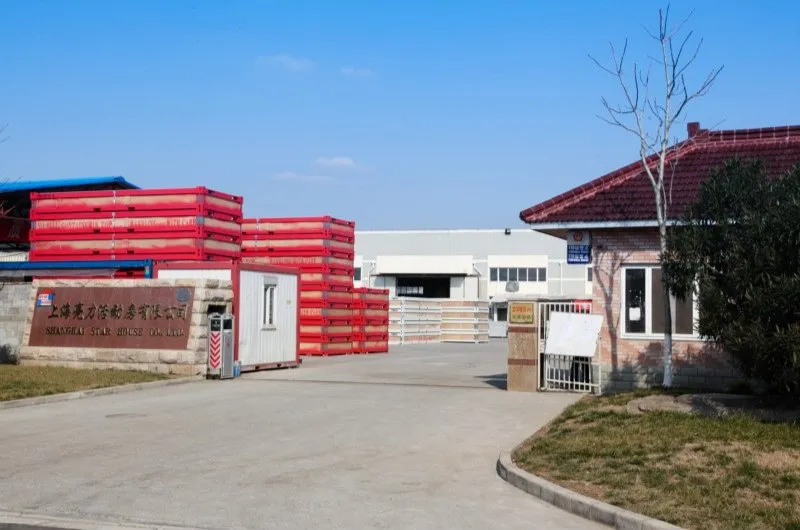

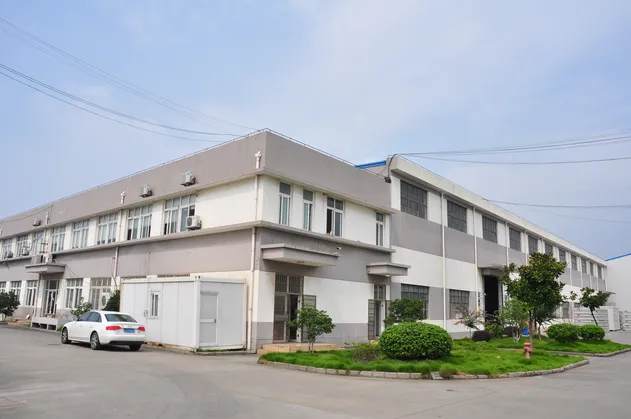

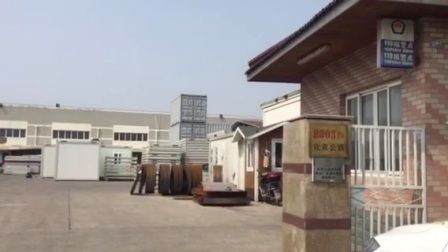

30,000+ sqm manufacturing base with specialized welding, painting, and carpentry workshops.
ISO9001:2000 certified quality management system.
Successfully delivered 900+ projects across 40+ countries.
600+ 20ft containers monthly output capacity.
Skilled team including R&D engineers and technical experts.

Frequently Asked Questions

Q1: What industries do your products cover?

Our products cover a variety of industries, including but not limited to labor camps, housing, medical facilities, offices, and education.

Q2: How do your products fulfill variety of usage?

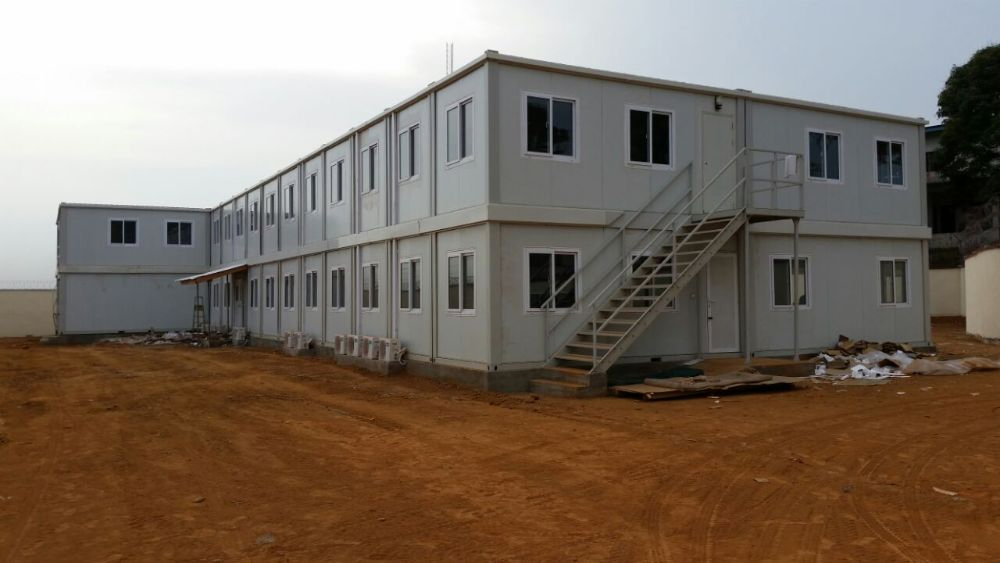

Our modular units are designed to be stackable and extendable in all directions, allowing for flexible configurations for different space requirements.

Q3: What certifications do your products have?

We use certified materials and comply with ISO9001 standards. Our products are engineered to be code-compliant globally with decades of testimonials.

Q4: How long does it take to assemble one unit?

Our prefabricated units are designed for rapid deployment; it typically takes just 4 hours to assemble one standard unit on-site.

Q5: What is your monthly production capacity?

We have a large-scale manufacturing capability with a monthly output of approximately 1,200 units.

Q6: What are the insulation features of the containers?

The units feature high-performance PU foam insulation (R20 to R25 rating) in the roof, floor, and 100mm thick sandwich wall panels for superior thermal efficiency.
