Economical Fast Assembly Office Labour Accommodation

Customization: Available
Certification: CE, ISO9001, CE, ISO, SGS
Customized Or Not: Customized

Product Description

Basic Information
Material
Sandwich Panel, Steel Structure
After-Sales Service
Perfect Service and Installation Guidance
Window
Aluminum Window, Double Glazing
Panel Thickness
55/75/100mm
Connection
Screws and Blots
Metal Surface Thickness
0.45mm, 0.5mm~0.8mm
Core Material Density
40~45kg/M3
Warranty
12 Months
Usage
Dormitories, Villa, Temporary Offices, Camp
Customized
Available
Transport Package
Bulk Shipment by 40hq Shipping Container
Production Capacity
8000 Sqm/Month
HS Code
9406900090
Product Description
🏠

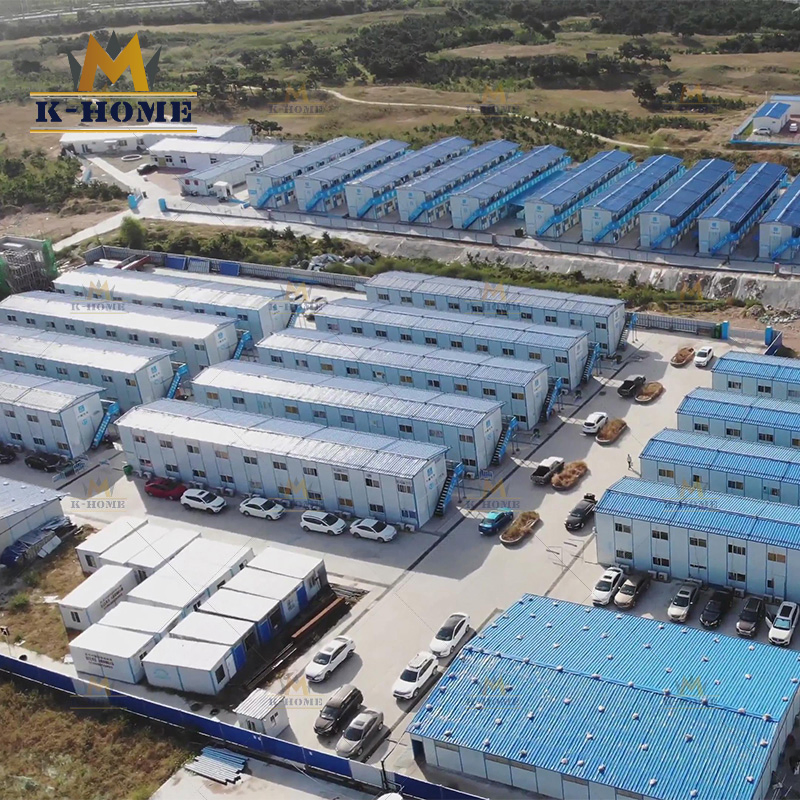

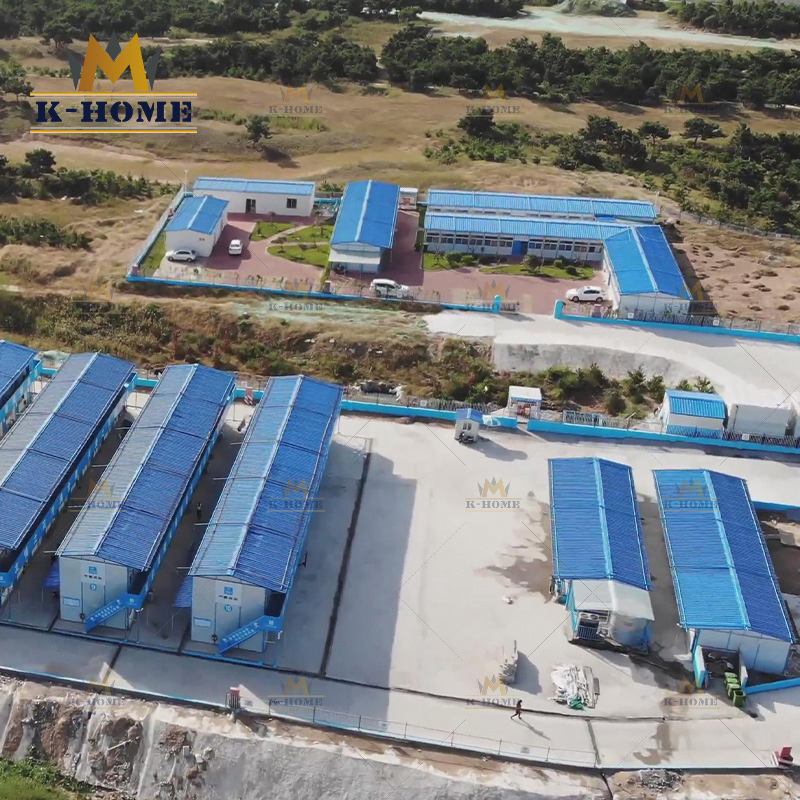

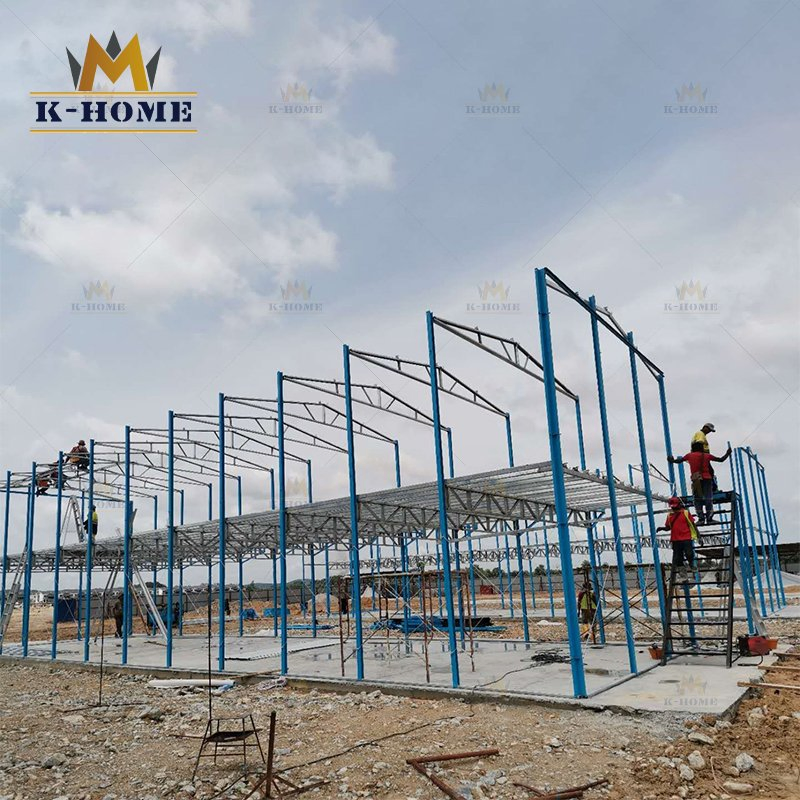

Economical Fast Assembly Office Labour Accommodation

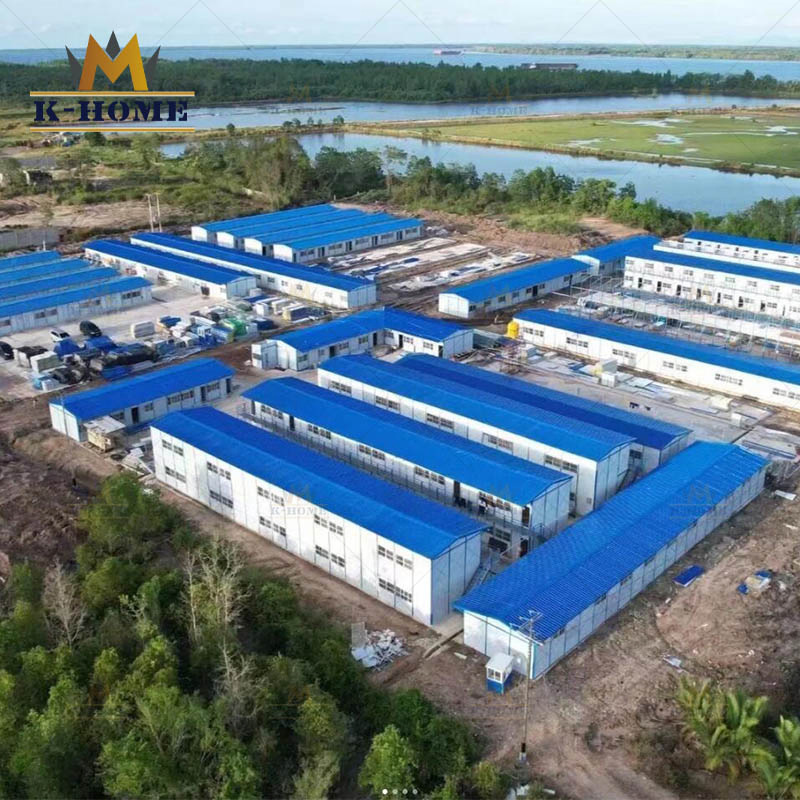

On Site Temporary Labor Accommodation Prefab Camps are pre-fabricated structures designed to provide temporary housing for workers in remote or temporary worksites. These camps are specifically designed to offer comfortable living conditions and cater to the basic needs of the workers, such as sleeping quarters, dining facilities, recreational areas, and sanitation facilities.

Prefab camps are built using modular construction techniques, meaning they are constructed off-site and transported to the location. This makes them quick to install and easy to dismantle, allowing for flexibility in adapting to changing project requirements. They are widely used in construction sites, oil and gas projects, mining operations, and disaster relief efforts.

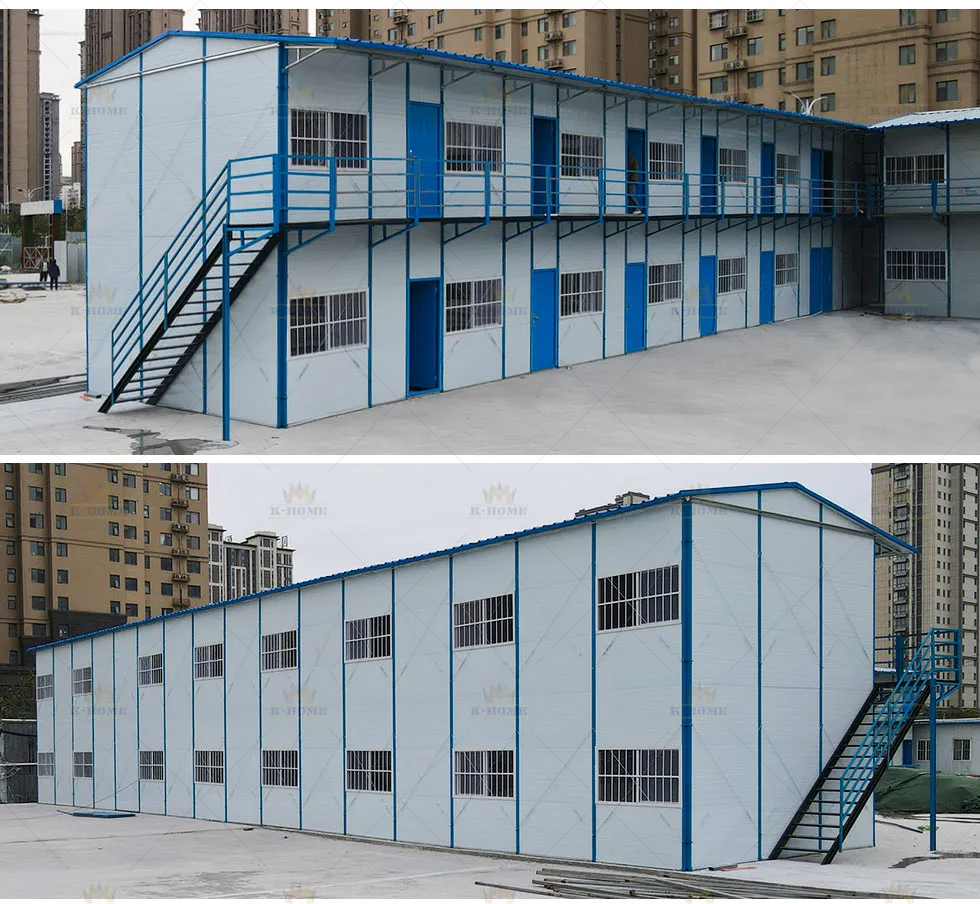

Labour Accommodation 1

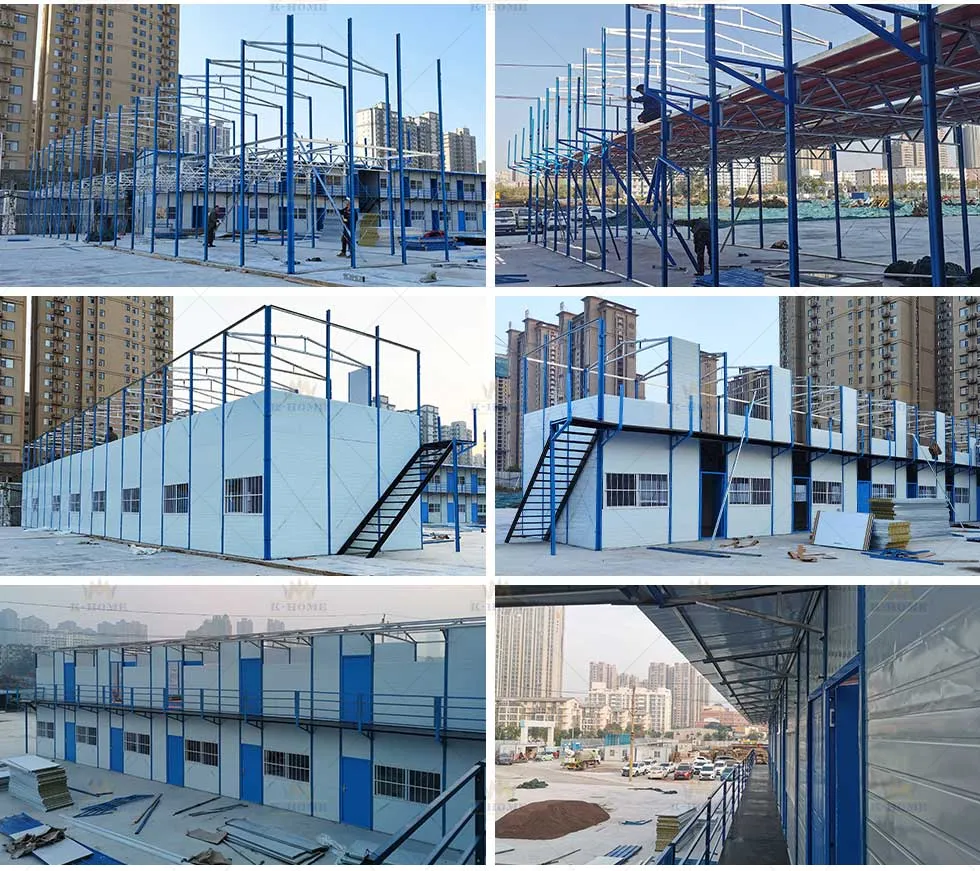

Labour Accommodation 2
K-type Prefabricated House Diagram

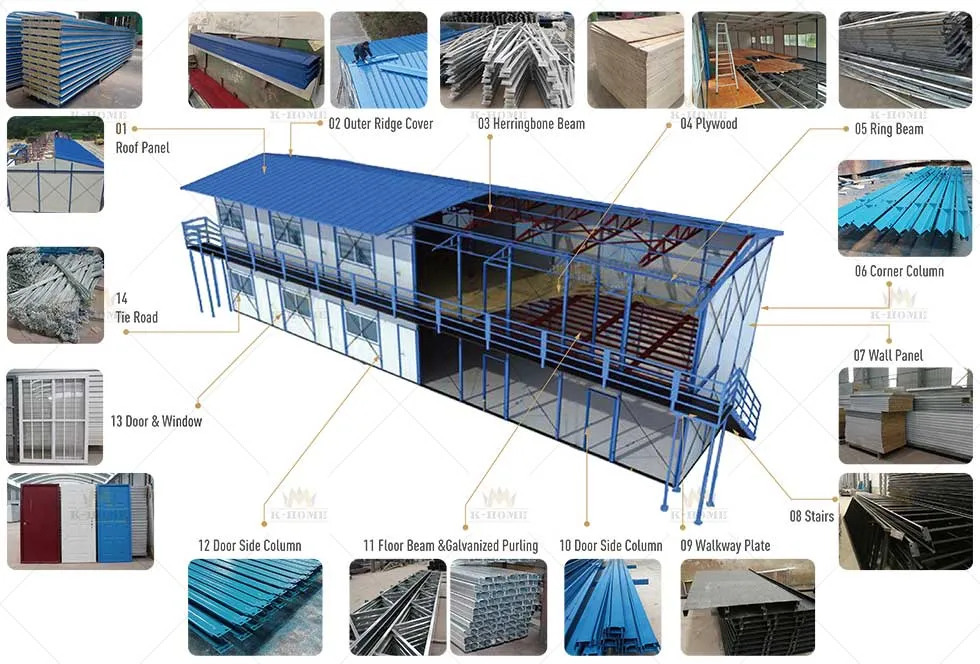

Structure Diagram
Technical Specifications
Component Details / Material Specification
Steel Column2C80*40*1.5 painting
HerringbonePre-welded C80*40*1.3/U50*35*1.3 electro-Galv.
First-floor main beamC80*40*1.5/U50*35*1.2 electro-Galv.
Roof purlinL40*3 electro-Galv.
Ground channel steelC80*40*1.3 electro-Galv.
Steel staircaseSquare tube 30*30*2.0/40*40*2.0, 2.5mm checkered plate painting
Roof panel50mm/75mm/100mm Fiberglass/Rockwool/EPS sandwich panel
Wall panel50mm/75mm/100mm Fiberglass/Rockwool/EPS sandwich panel
First-floor board18mm plywood board
Appearance & Customization Options

K-type prefabricated houses are flexible in appearance selection. Whether it is the height, shape, or selection of enclosure materials, you can adjust it according to your own needs. This diversity meets the needs of different groups and makes the structure more personalized.

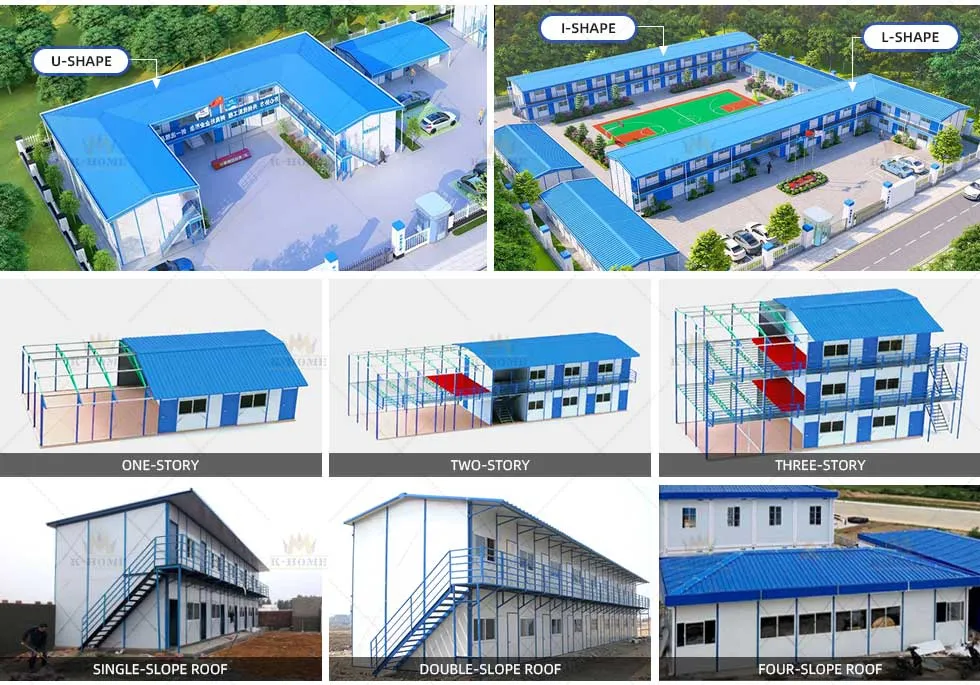

Appearance Options

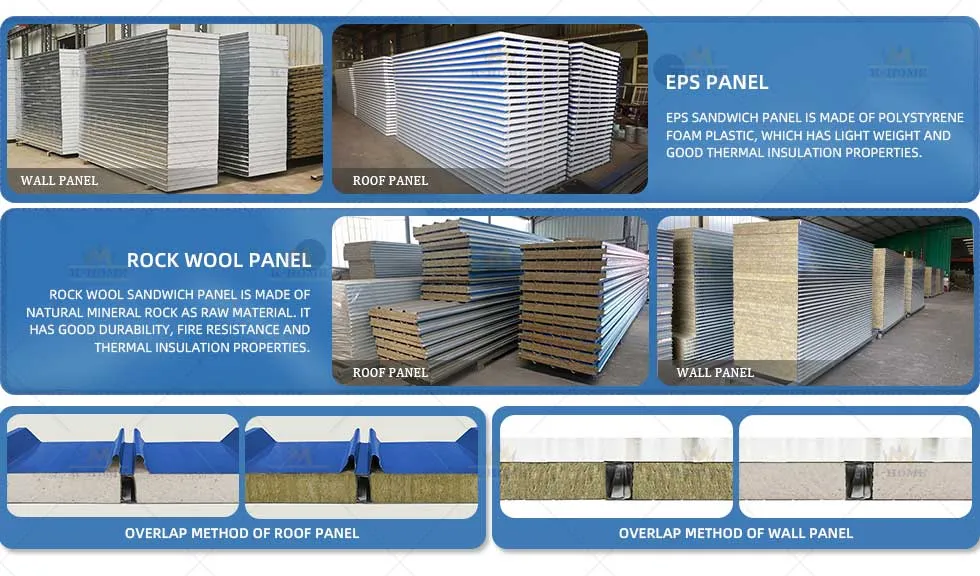

Wall and Roof Panel Material
🛡️

Rock Wool Sandwich Panels: Excellent thermal insulation, fire prevention, and sound insulation. High compression resistance.

Foam Sandwich Panels: Lightweight, easy to construct, and cost-effective thermal insulation properties.

Panel Options

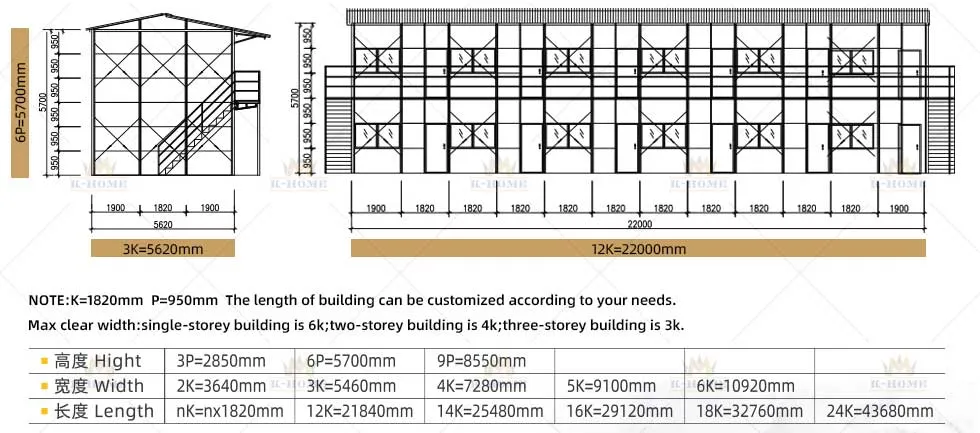

Reference Size & Scalability

Customization is available based on project needs. For stability and safety, it is recommended that the height does not exceed three floors. Floor plans can be optimized for maximum space efficiency.

Size Reference
Professional Engineering & Design

Utilizing advanced design software, we provide customized solutions including floor plans and 3D scene maps. Our professional team ensures the design is practical, aesthetically pleasing, and remains within budget.

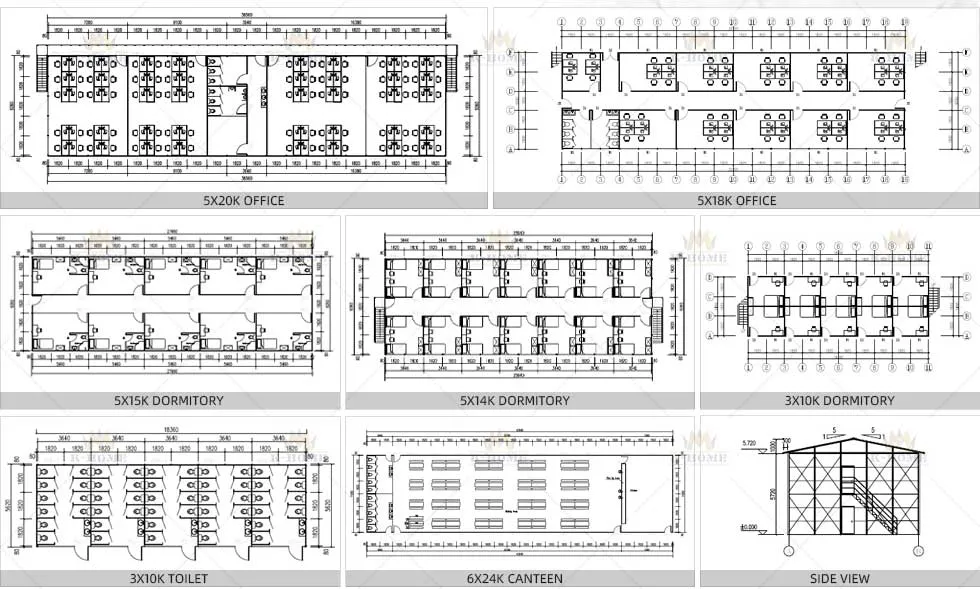

Design 1
Design 2

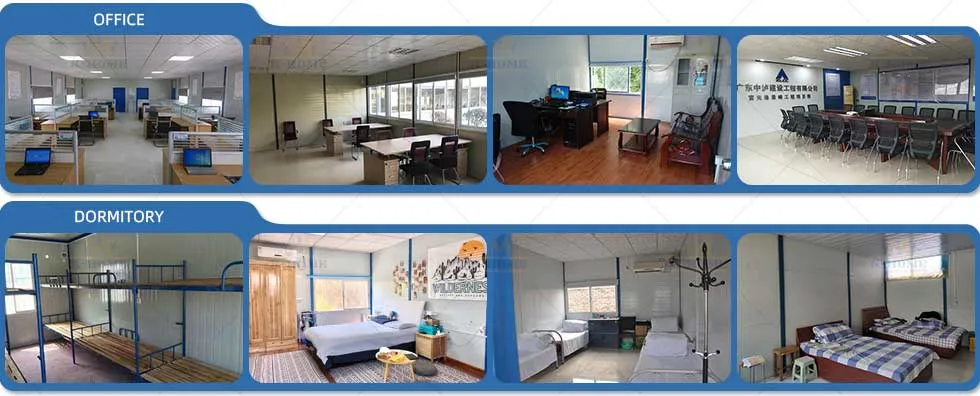

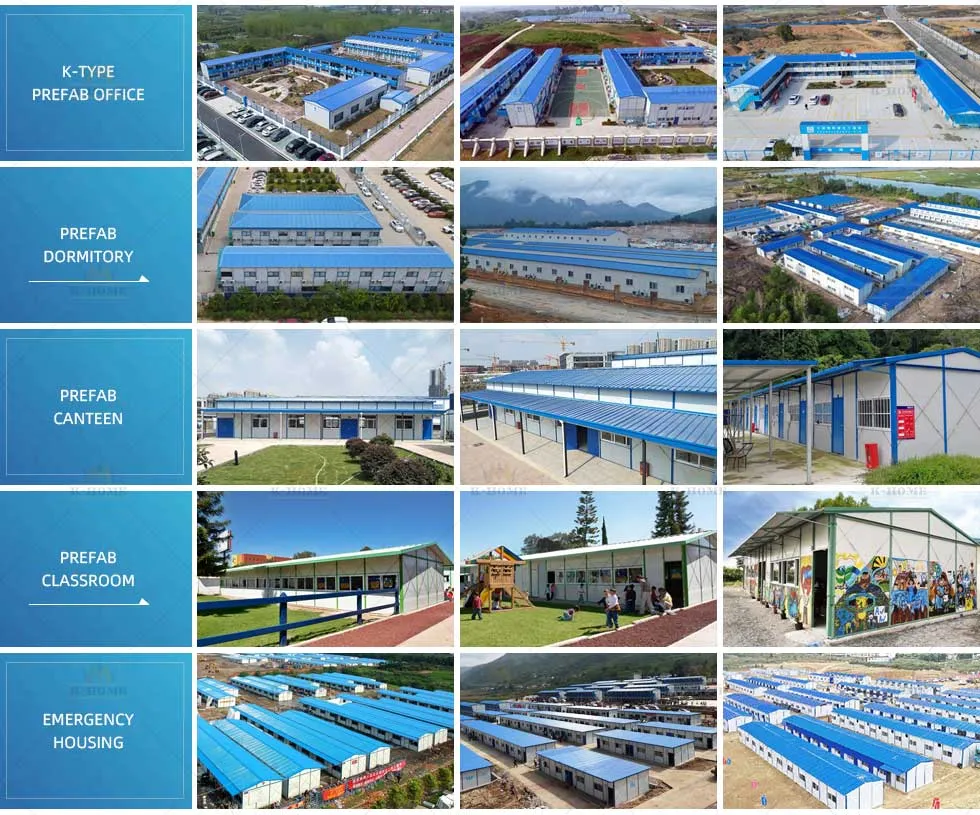

Versatile Applications

The components can be flexibly combined to meet various functions, including dormitories, offices, conference rooms, and warehouses.

App 1
App 2

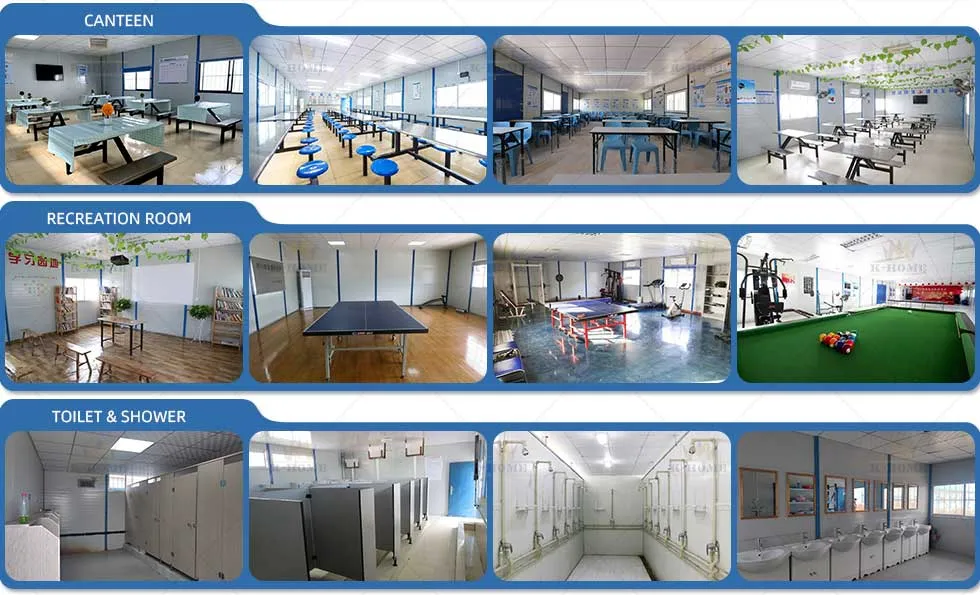

App 3
Manufacturing Capabilities

The facility integrates design, project budgeting, production, and installation. Main products include sandwich panels, prefab houses, container houses, and light steel structures. The production process involves precision shearing, stamping, assembly, welding, and painting by experienced technicians.

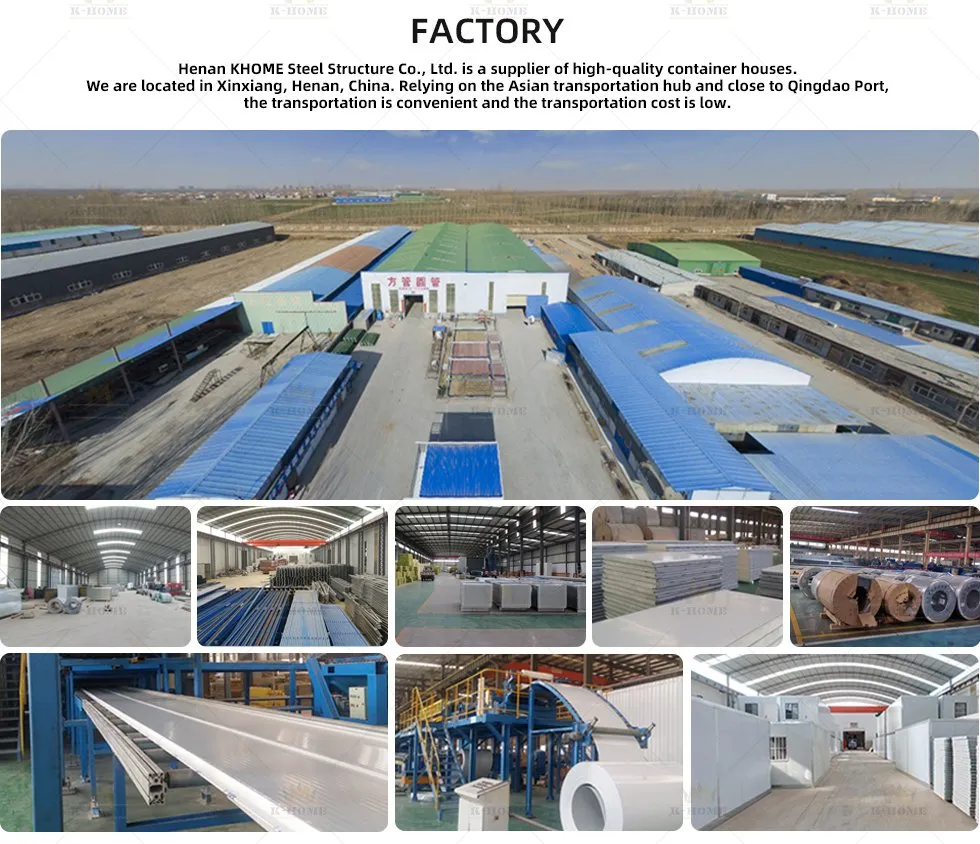

Factory Overview
Frequently Asked Questions
What materials are used for the wall and roof panels?
We typically use 50mm, 75mm, or 100mm Fiberglass, Rockwool, or EPS sandwich panels depending on your insulation and fire rating requirements.
How is the prefab house connected and installed?
The components are connected using high-strength screws and bolts. This allows for fast assembly on-site and the ability to dismantle the structure if needed.
Is the design of the prefabricated house customizable?
Yes, we provide professional free design services. You can customize the size, layout, and appearance to suit your specific project needs.
What is the maximum recommended height for these structures?
To ensure maximum stability and safety, we recommend that K-type prefabricated houses do not exceed three floors in height.
What are the primary applications for these prefab camps?
They are widely used for labor dormitories, temporary site offices, conference rooms, warehouses, and disaster relief housing.
How are the products shipped?
Components are shipped in bulk via 40HQ shipping containers to maximize space efficiency and reduce transport costs.
