Using modular container housing offers several advantages, especially in remote or challenging environments. Modular units can be manufactured off-site and transported to the location, significantly reducing construction time compared to traditional methods.
Modular construction is cost-effective, portable, and highly customizable. Units can be tailored for offices, accommodation, or medical facilities, offering durability and security in harsh conditions.

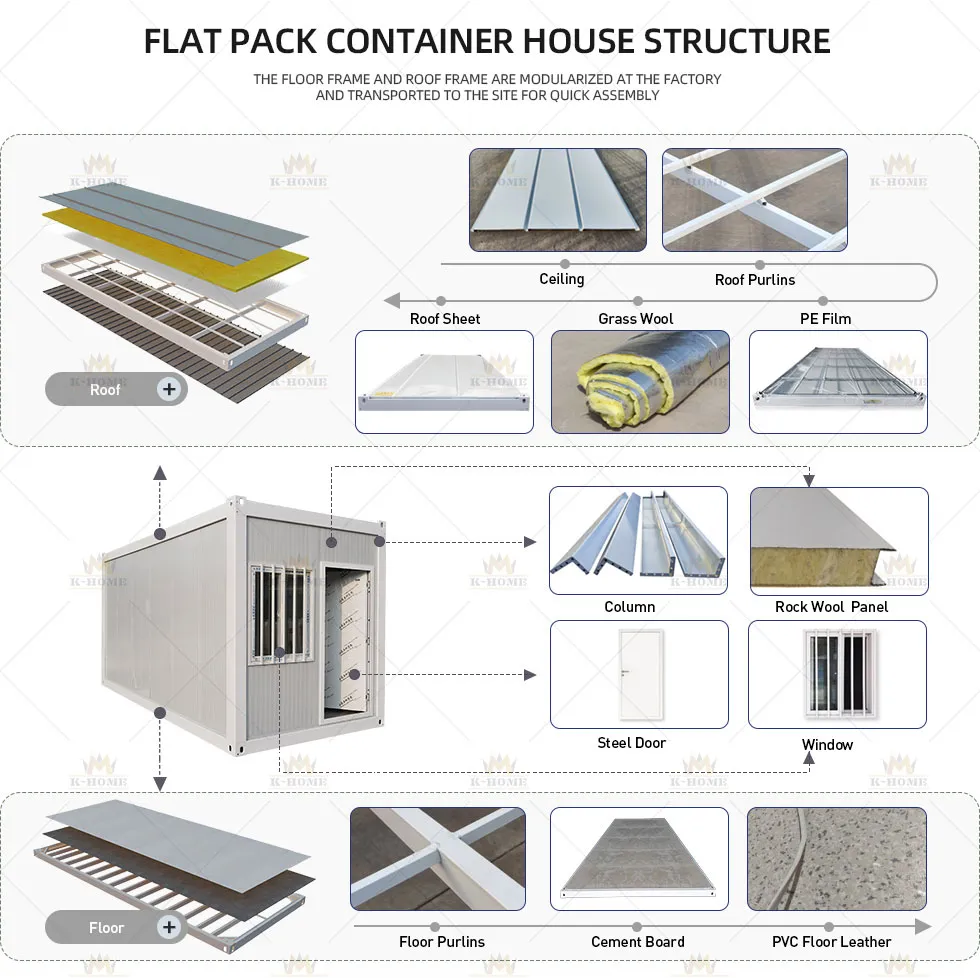

| Component | System | Detailed Specification |
| Part 1 | Roof System | Q235 galvanized fitting; 50mm glass wool insulation; 0.4mm steel pre-coated sheet. |
| Part 2 | Floor System | 3mm Galvanized Steel main structure + 15mm chipboard + PVC leather floor. |
| Part 3 | Column System | 2.3mm Shaped Galvanized Steel. |
| Part 4 | Wall System | 50mm EPS Foam Sandwich Panel (0.35mm thickness steel). |
| Part 5 | Door & Window | Steel door (2000*980mm); Aluminum alloy double hollow glass sliding window. |
| Part 6 | Electric System | LED light, double sockets, air-switches, and electrical box with safety protection. |

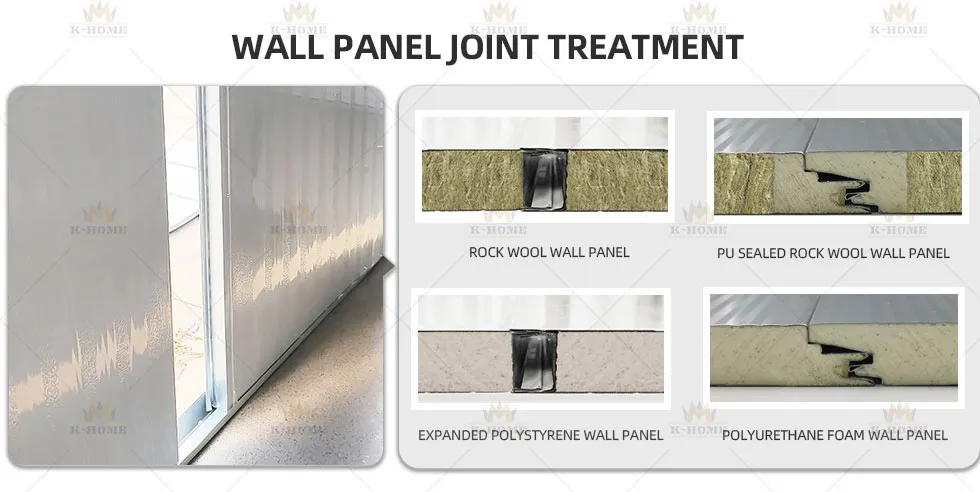

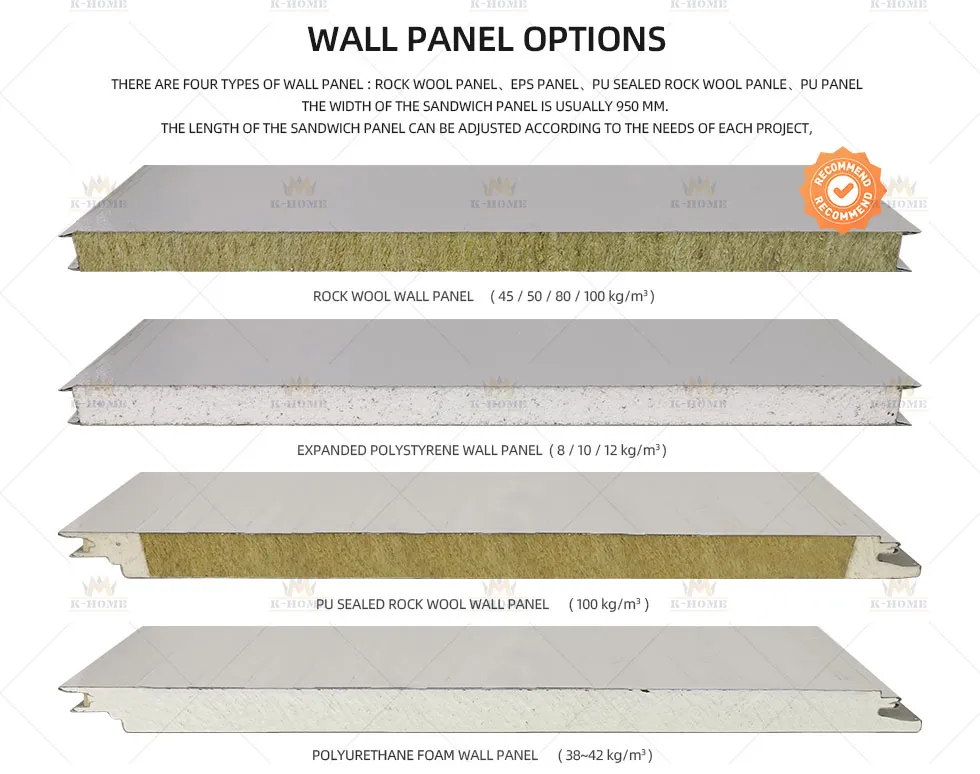

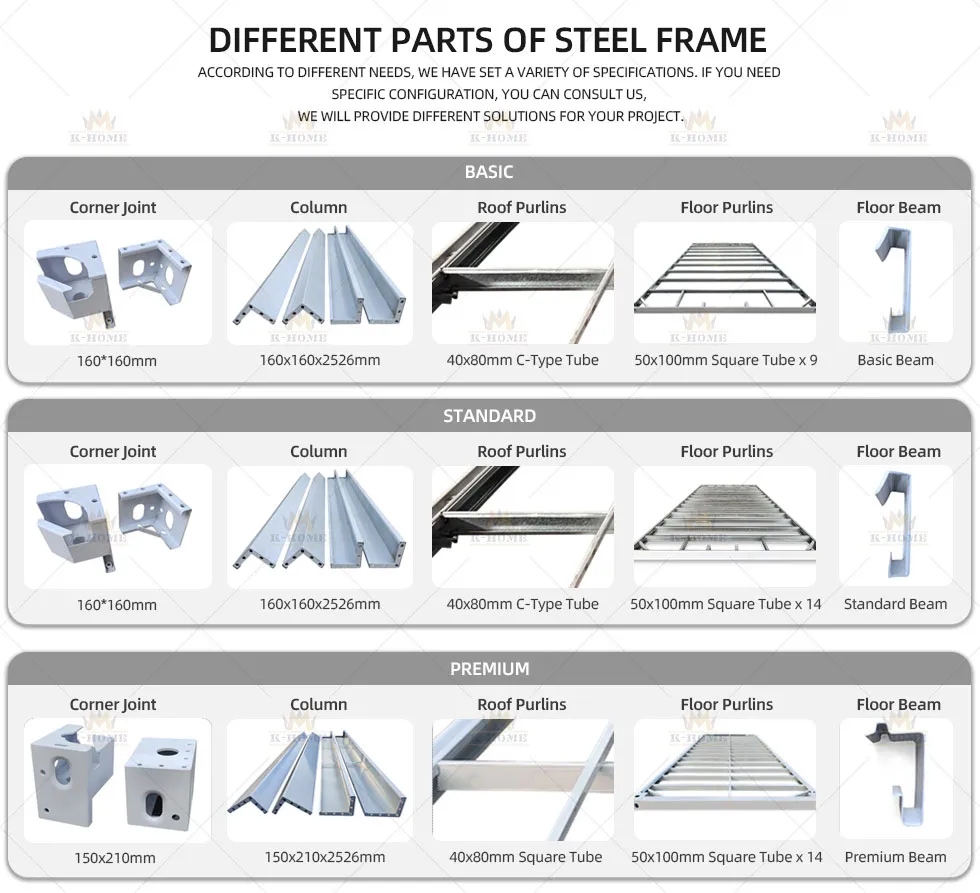

We offer three different specifications for the steel frame to meet various budget requirements. For wall panels, options include EPS sandwich, Rock wool sandwich, PU panel, and PU sealed rock wool panels.
Features refined basalt as raw material. Excellent adiabatic performance, sound insulation, and high-temperature resistance (up to 600°C).

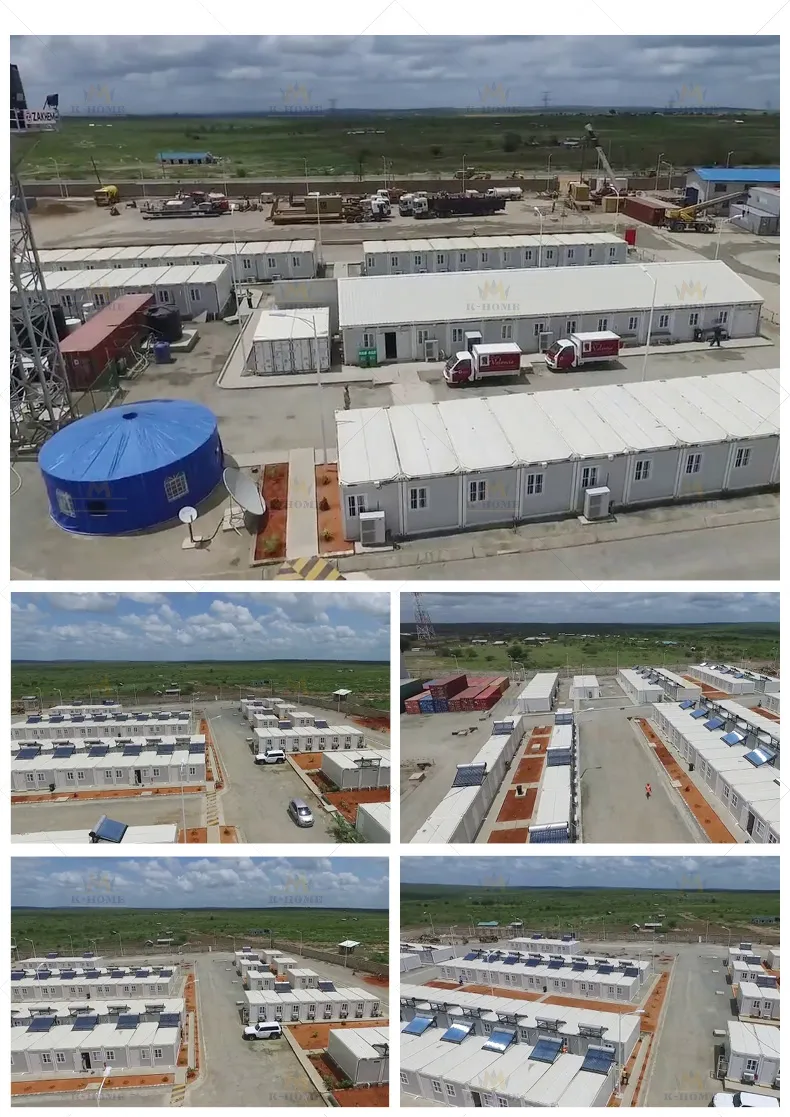

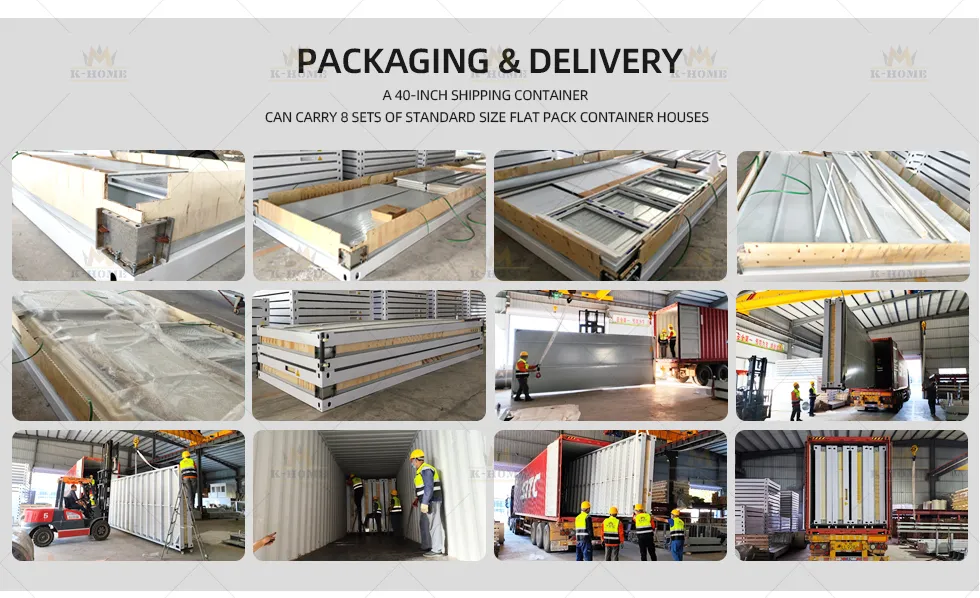

Modular units are prefabricated off-site, which significantly reduces construction time compared to traditional methods. They can be quickly transported and assembled on-site to meet tight timelines.
Yes, they are designed with durable steel frames and high-quality sandwich panels that provide excellent insulation and resistance to environmental factors common in remote mining or construction sites.

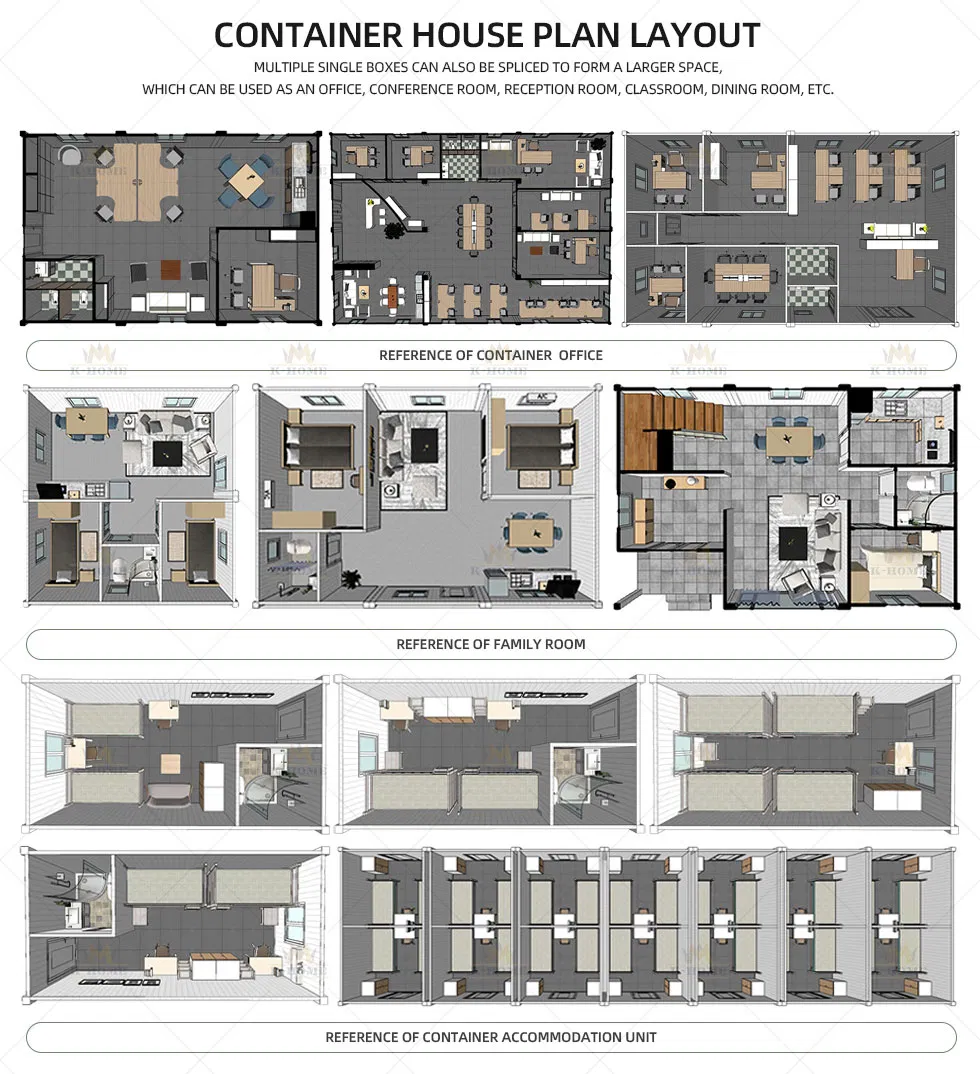

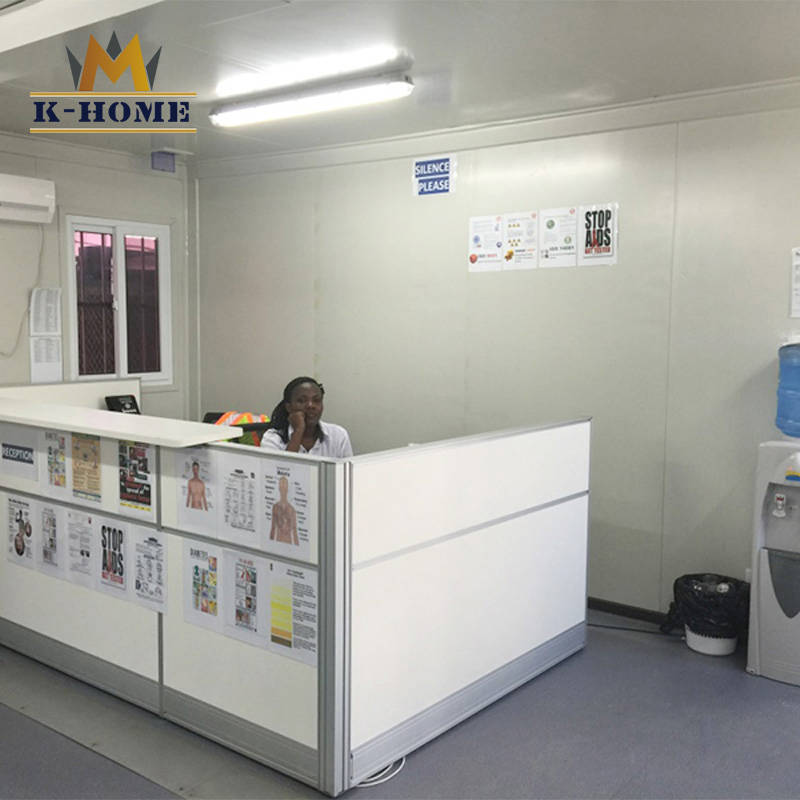

Absolutely. The interior space can be freely configured to include bedrooms, offices, kitchens, or specialized facilities like clinics and schools according to your requirements.
Rock wool panels offer superior fire resistance (up to 600°C), excellent sound absorption, and great adiabatic performance, making them ideal for safe and quiet living spaces.

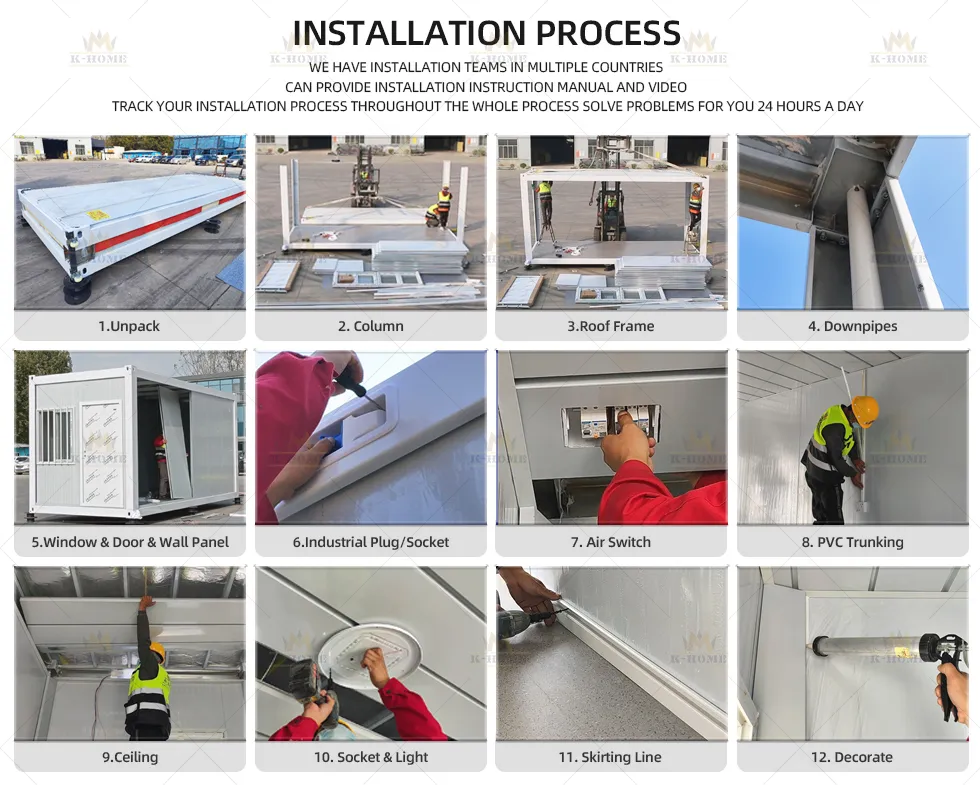

No, the installation is simple. It requires a basic foundation of cement blocks. The units are then lifted into place and connected. We provide detailed guidance and manuals for the process.

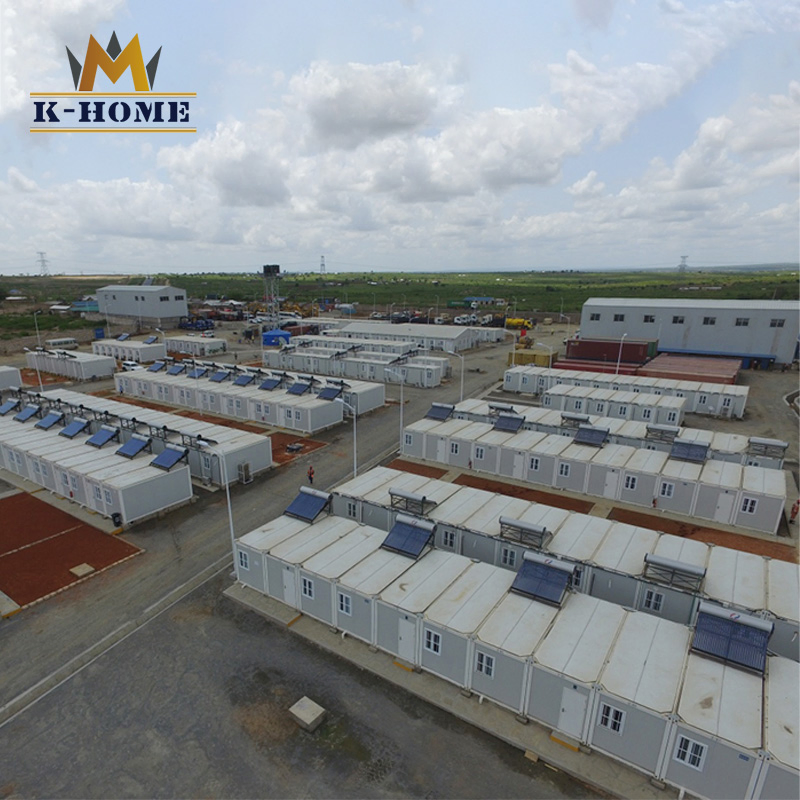

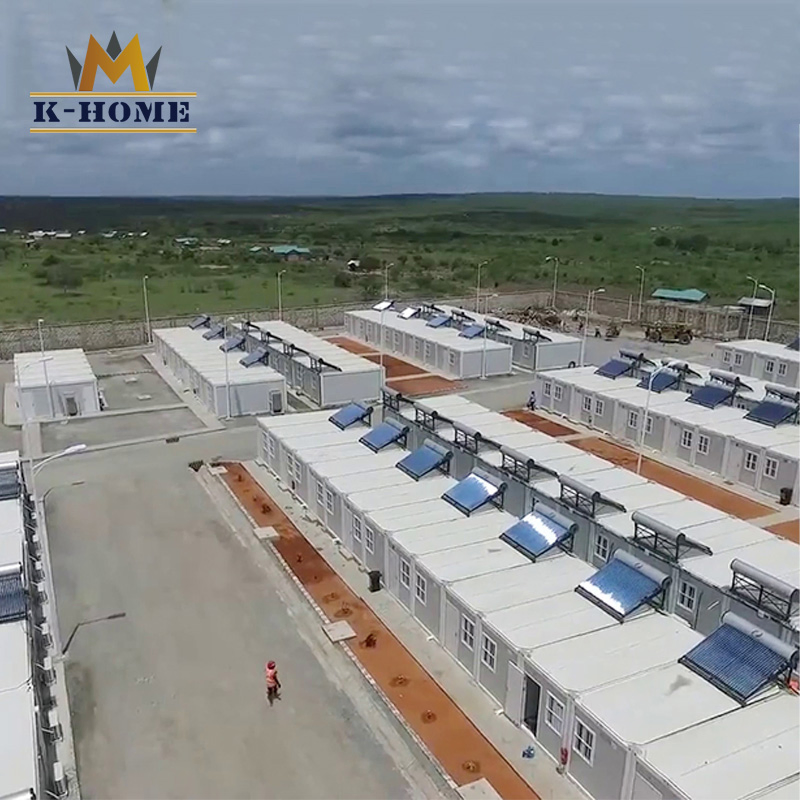

Yes, they can be designed with energy-efficient features including thick insulation, LED lighting, and options for solar panel integration to reduce operational costs in remote areas.
