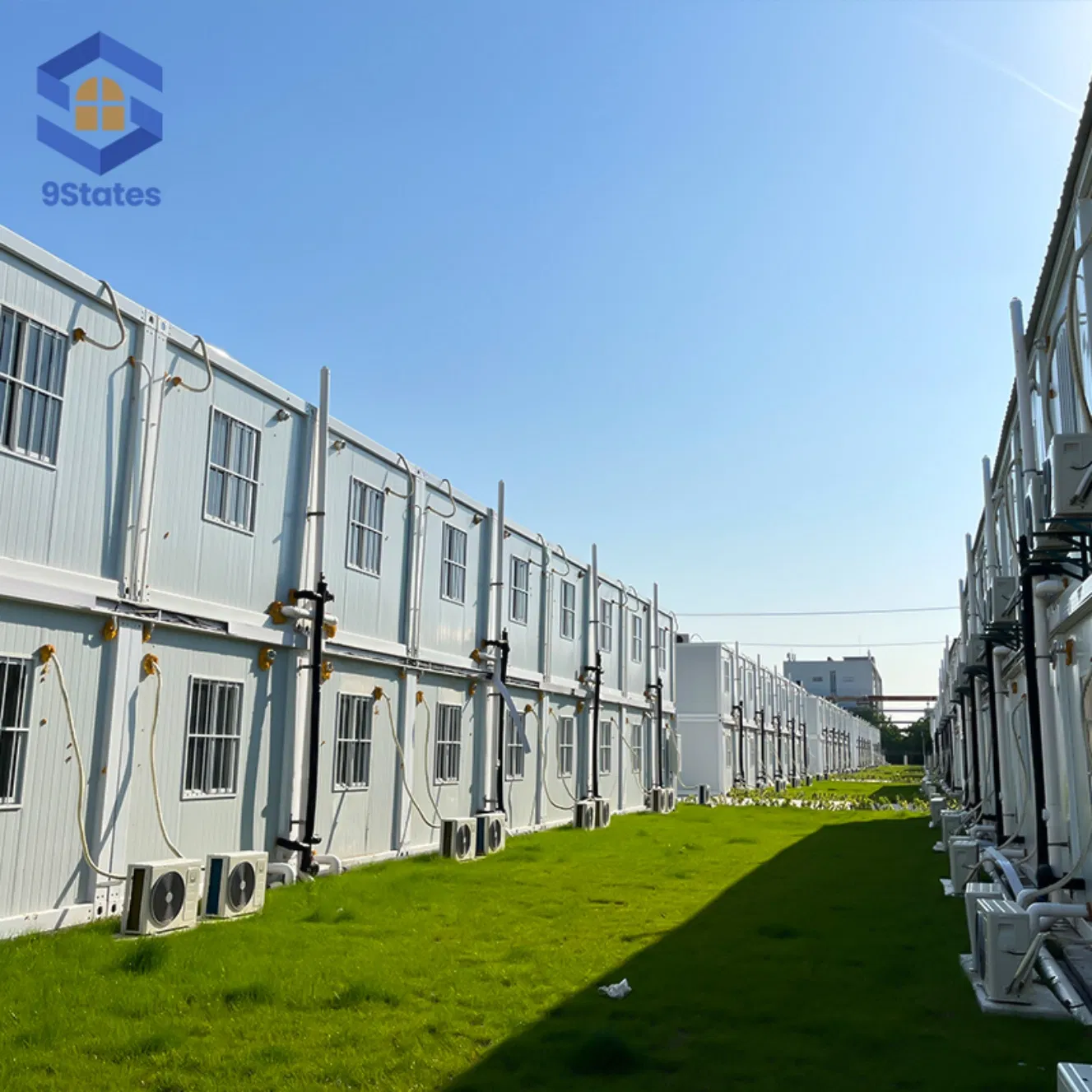

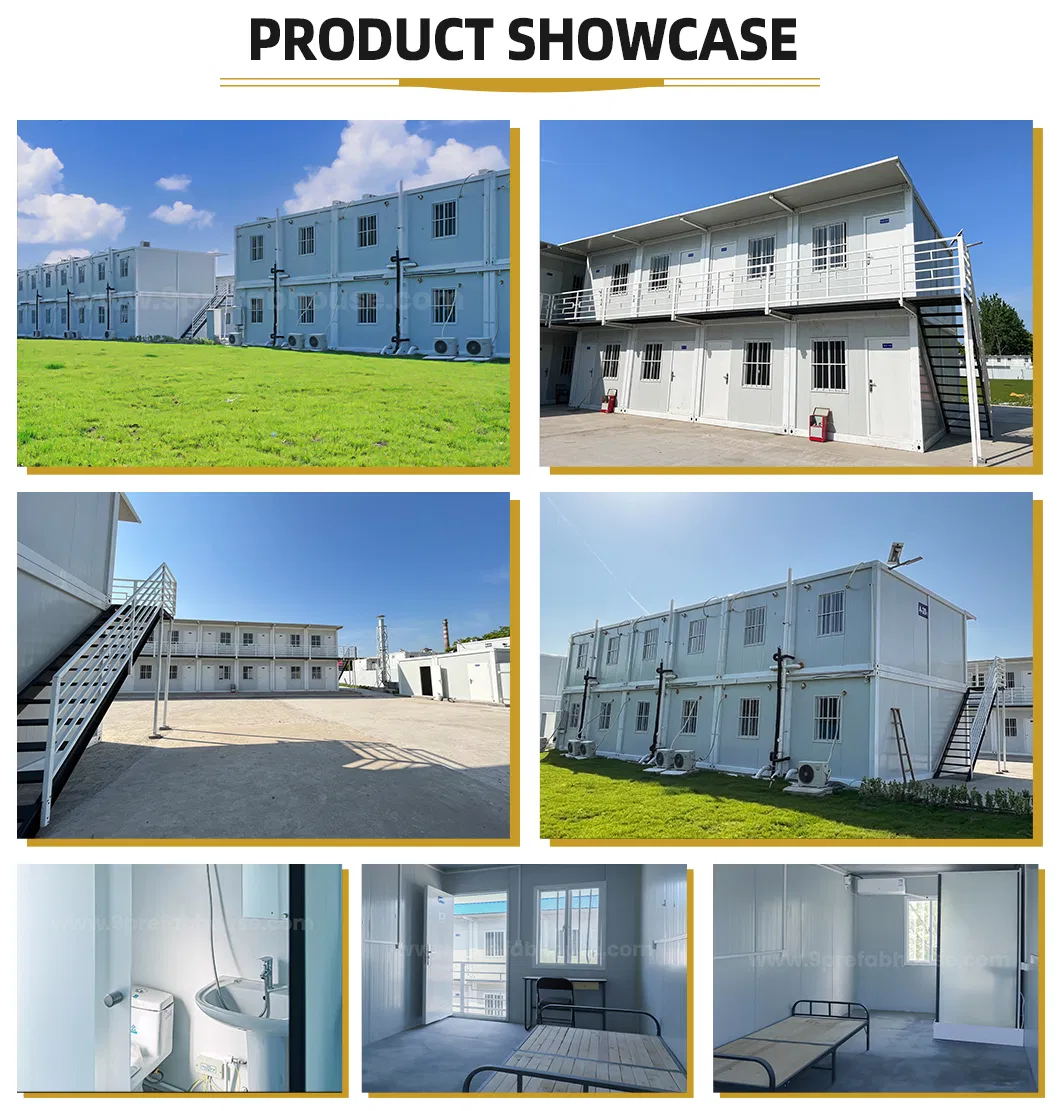

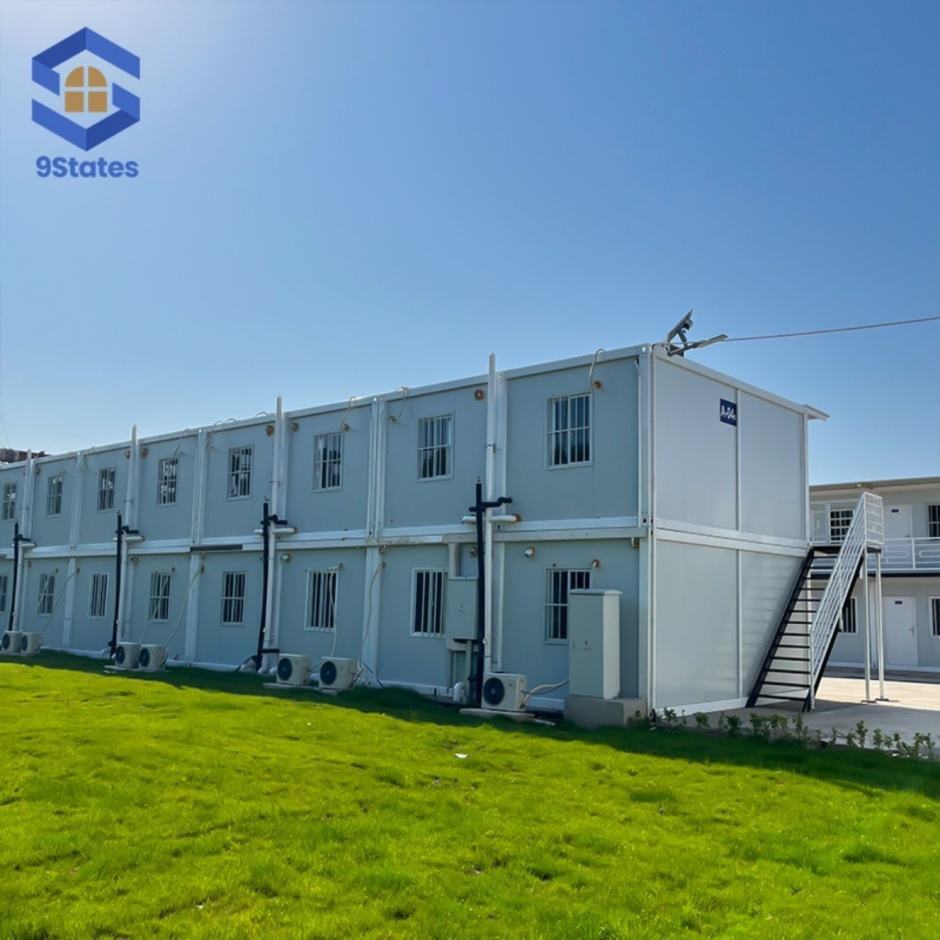

1. Modular and Standardized Design: The main structure uses custom modular units. Dimensions are standardized (e.g., 20-foot container). Multi-story buildings can be constructed, and units can be used individually or combined freely to meet various space requirements.
2. Robust and Durable Structure: Made of Q235B steel with a fully welded frame. It can withstand wind forces of up to 10-12 levels and seismic forces of 6-8 levels. Corrosion-resistant design is adaptable to marine environments.

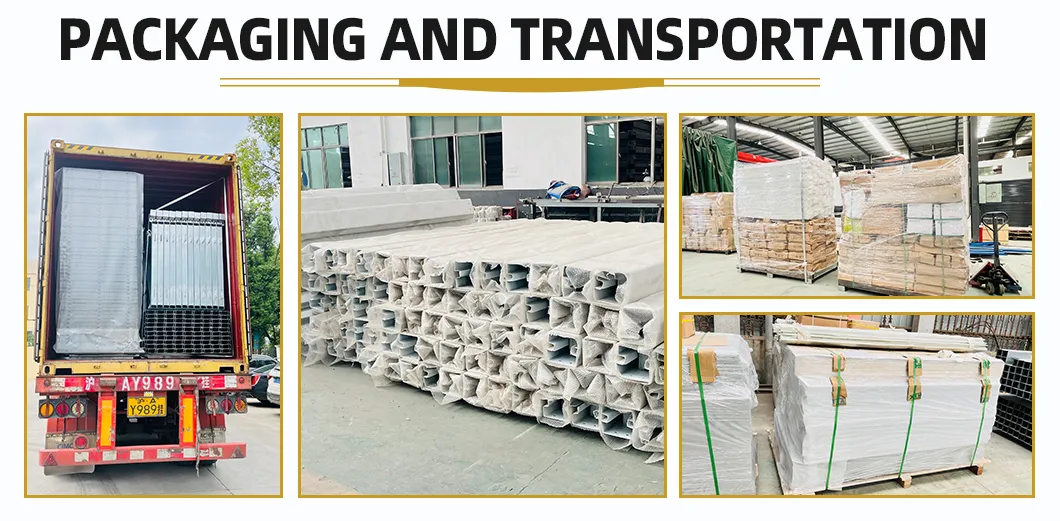

3. High Mobility: The entire structure is an integrated steel unit and can be transported as a whole by forklift or trailer without disassembly. Reusable after relocation.
4. High Degree of Customization: Interior can include partition walls, pre-installed plumbing/electrical systems, kitchen/bathroom facilities, and thermal insulation. Exterior can be customized with various decorative panels.

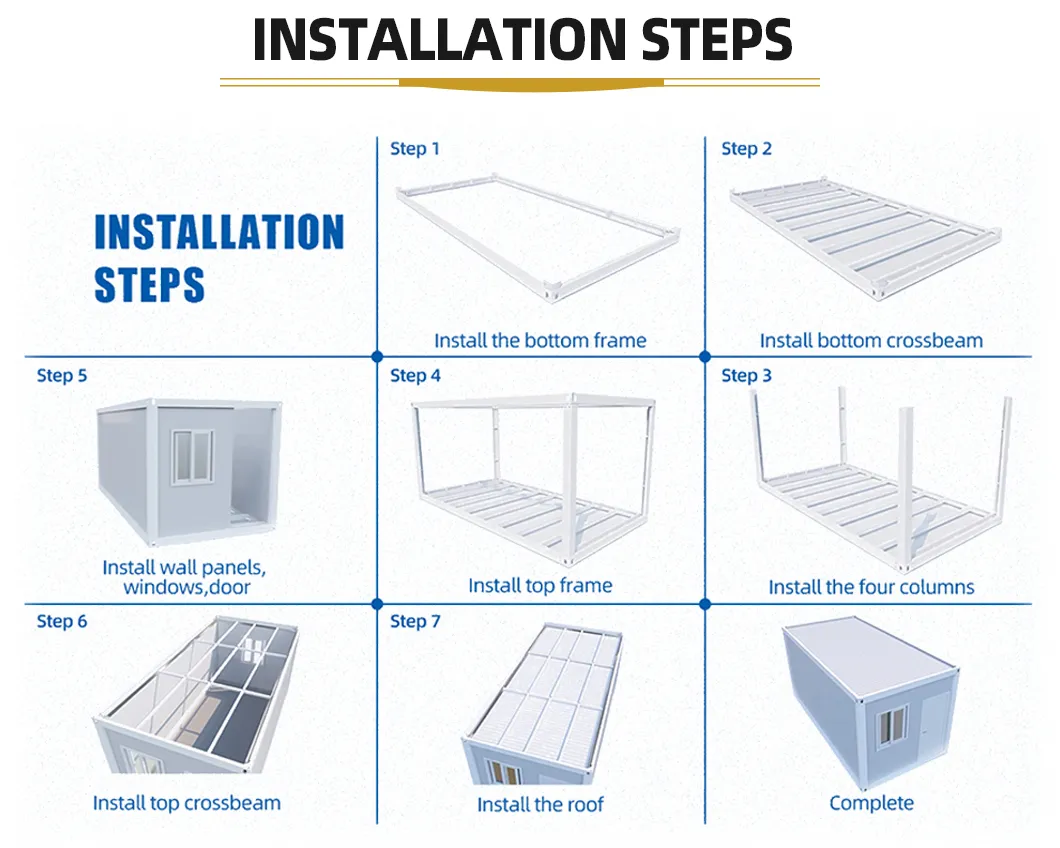

5. Short Construction Period: Factory prefabrication means on-site work only requires splicing and utility connection. Three people can install a unit in 3 hours, saving 70% of traditional construction time.

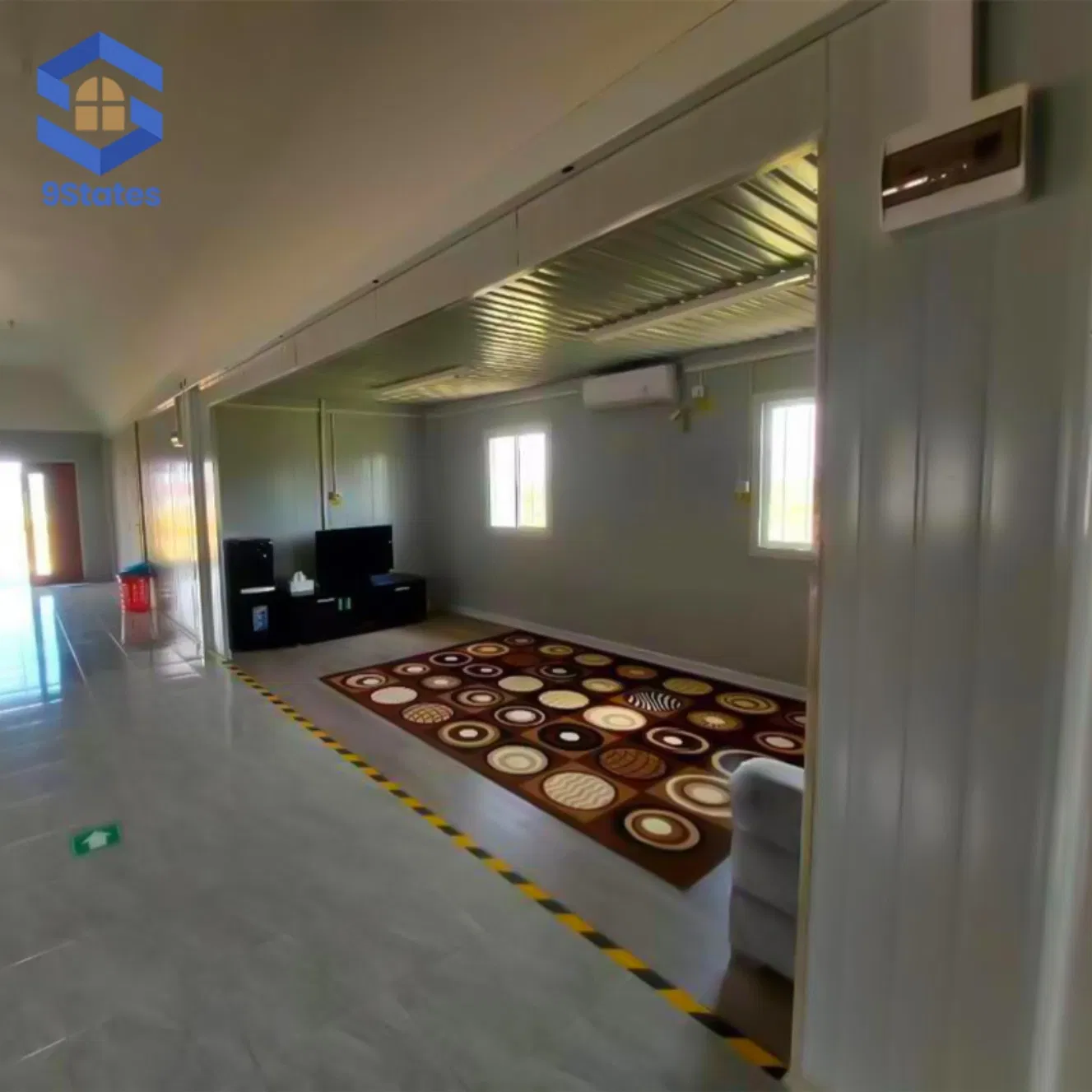

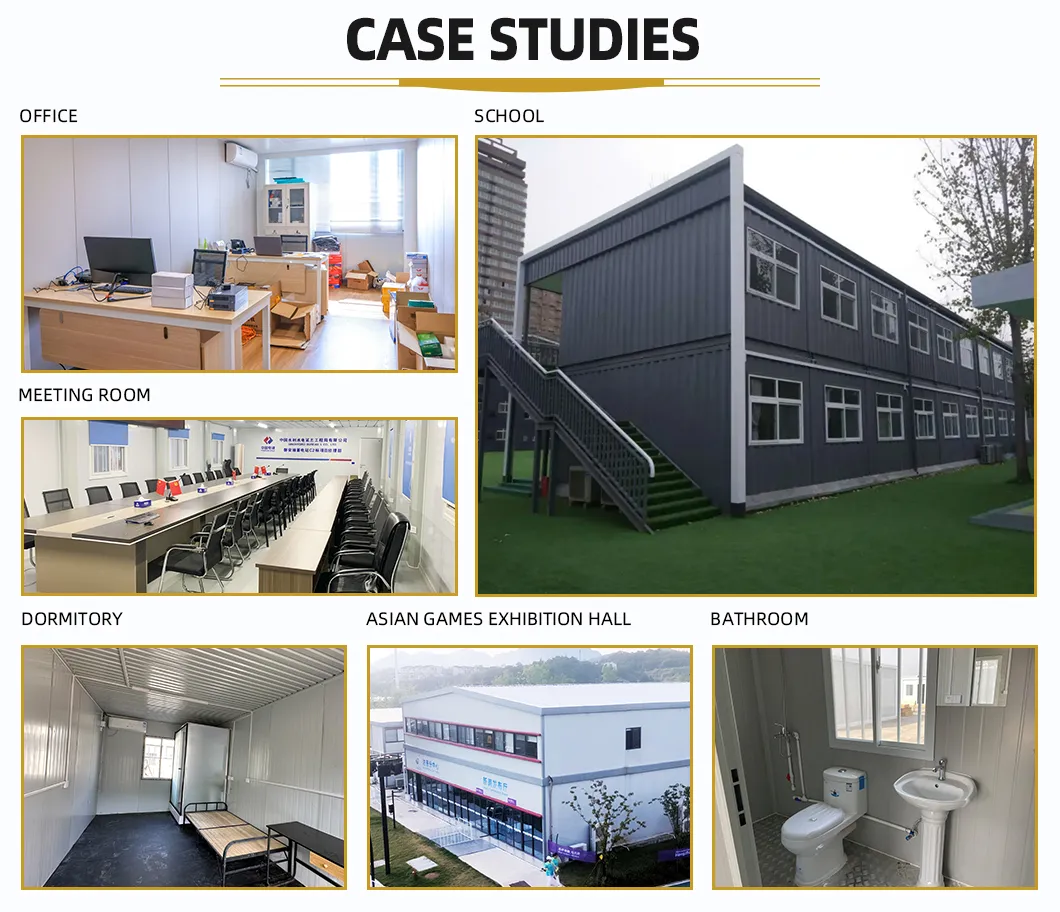

1. Residential: Complete living system including bedroom, living room, kitchen, and bathroom, meeting long-term residence needs.
2. Office: Open-plan or partitioned spaces equipped with power, network, and lighting for corporate or project offices.
3. Commercial: Transformable into convenience stores, coffee shops, or ticket booths with display windows.
4. Public Supporting: Suitable for guard booths, sanitation rest rooms, or express delivery stations.
5. Emergency Response: Rapidly deployable for disaster relief housing, medical stations, or isolation points.

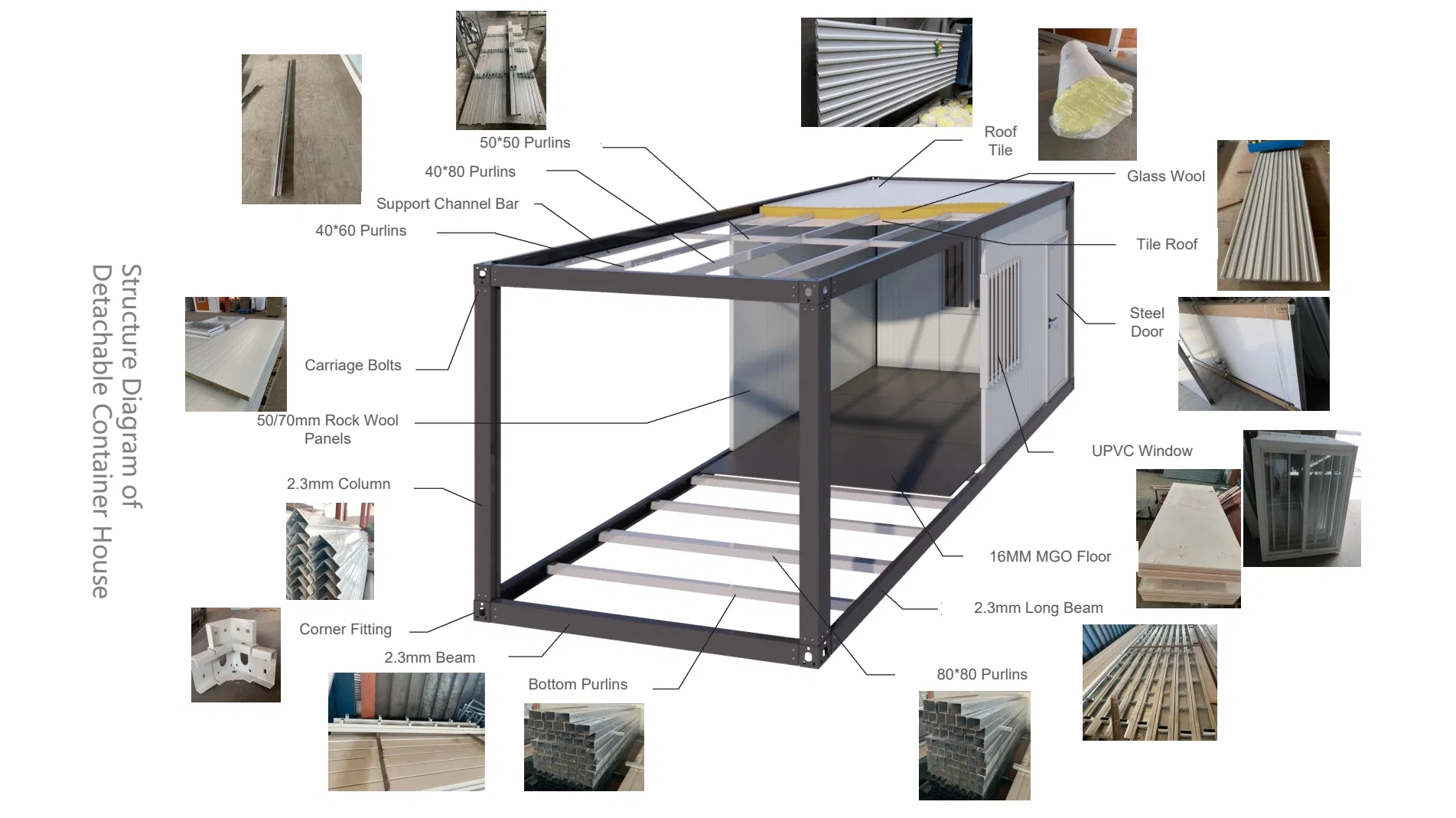

| Component | Specification Details |
|---|---|
| Size | 5950*3000*2800mm (L*W*H) |
| Wall panel | 0.3mm color steel 50mm rock wool sandwich panel |
| Door | Steel fireproof door, W840mm x H2035mm |
| Window | UPVC sliding window (1120x1100mm) x 2pcs; Double hollow glass with screen |
| Roof | 0.4mm Thickness, 980 Type Color Steel pressure tile |
| Floor | 18mm cement fiberboard + 1.6mm PVC floor leather |
| Frame | Galvanized roller beam (2.5mm); Column (210*150mm) |
| Temperature Resistance | -20°C to 50°C |
| Wind Load | Grade 11 |
| Earthquake Resistance | Grade 7 |
