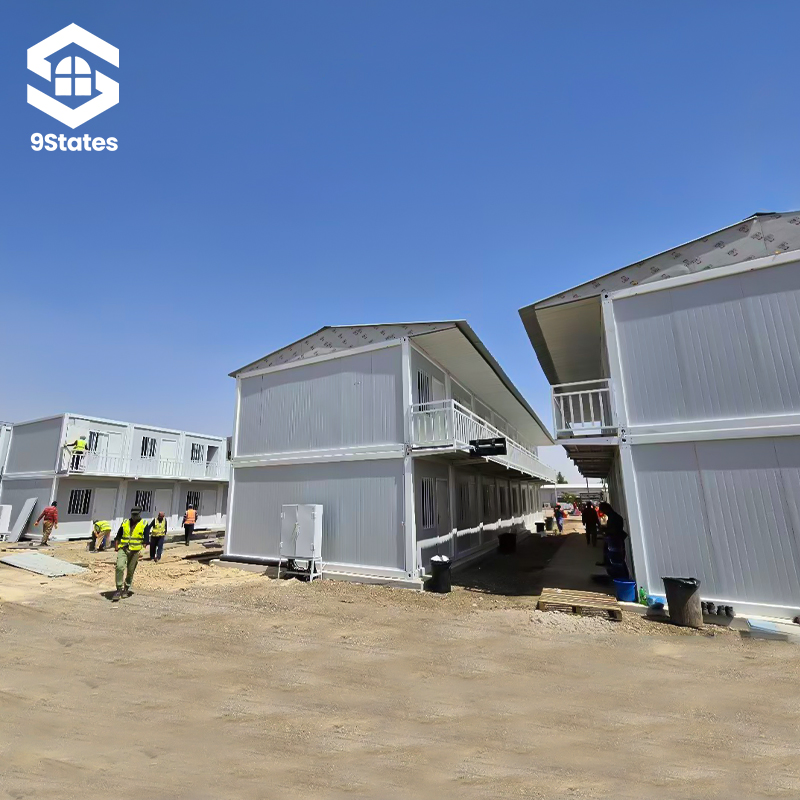

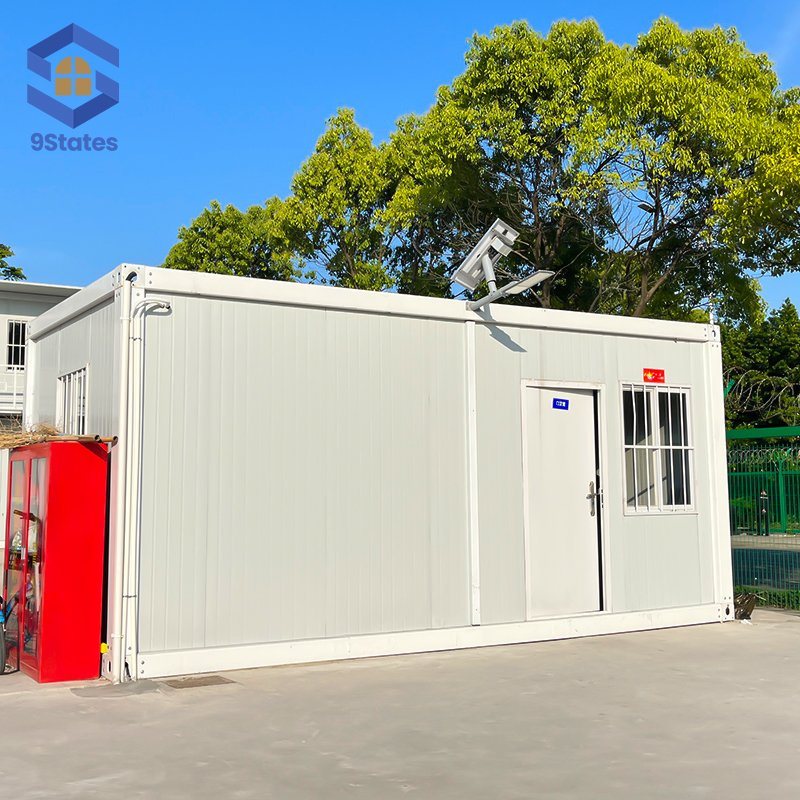

Low-Cost Prefabricated Construction Economic Modular Building for Small-Scale Projects

Customization: Available
After-sales Service: 1 Year
Application: Apartment

Product Description

Overview & Basic Info
Installation
Fast Installation
Feature
Earthquake Resistant, Eco-Friendliness, Waterproof, Wind Resistance
Material
Steel + Sandwich Panel
Lifespan
20 Years
Door
Fire-Proof Steel Door
Window
Plastic Steel Window
Color
Customized Color
Keyword
Modular Container Apartment
Product Description
I. Core Features

1. Modular Design: Standardized units (20ft/40ft) can be combined horizontally or vertically.

2. Robust Structure: Q235B steel frame, wind resistant (level 10-12), seismic resistant (level 6-8).

3. High Mobility: Integrated steel unit, easily transported by forklift or trailer without disassembly.

4. Customization: Customizable interiors including plumbing, electrical, and thermal insulation (rock wool/polyurethane).

5. Rapid Construction: 3 people can install a unit in 3 hours, saving 70% of traditional labor time.

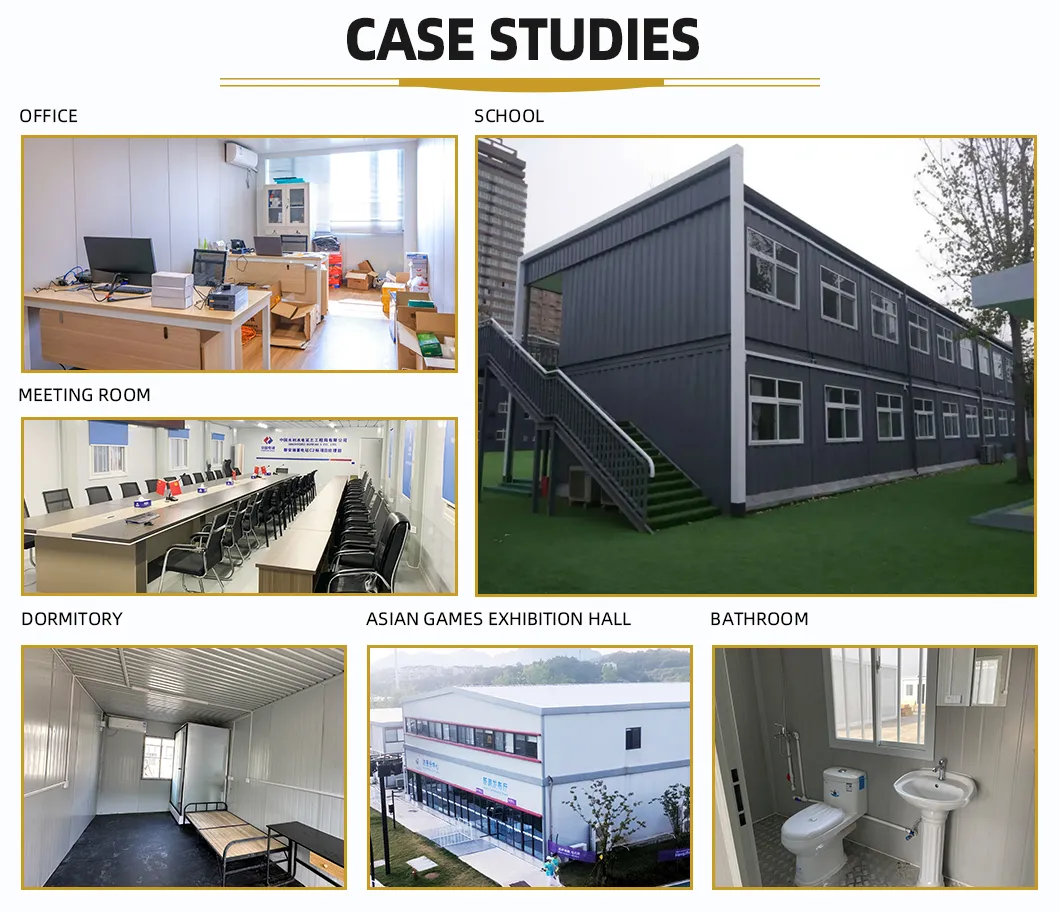

II. Core Functions

1. Residential: Fully configurable living systems with kitchen, bathroom, and air conditioning.

2. Office: Suitable for open-plan or partitioned offices with pre-installed network and power.

3. Commercial: Perfect for kiosks, coffee shops, and ticket booths with display windows.

4. Public Service: Ideal for guard booths, sanitation rooms, and express delivery stations.

5. Emergency: Rapidly deployable for disaster relief or medical isolation points.

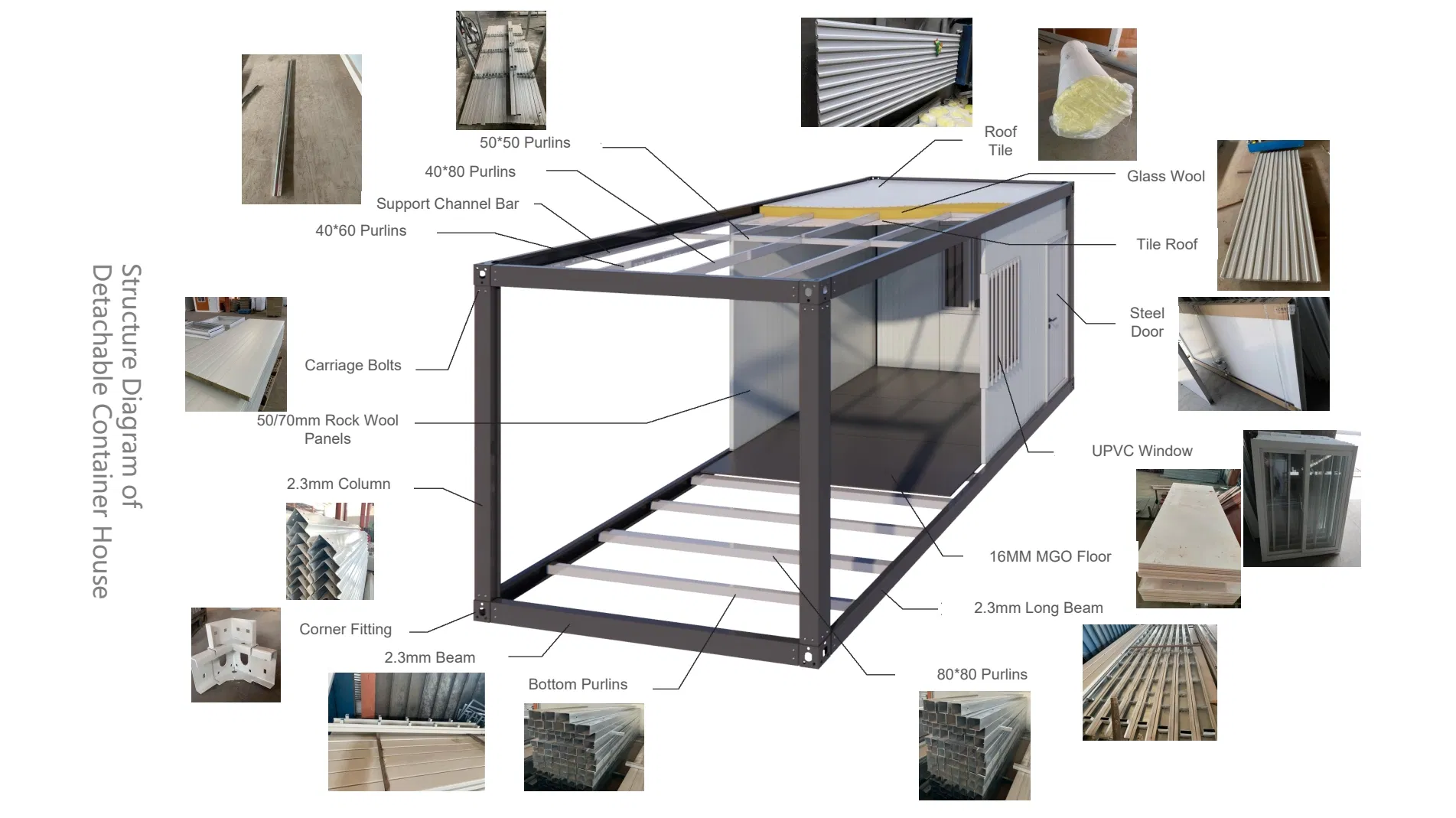

Technical Specifications
ComponentSpecification Details
Size5950*3000*2800mm (L*W*H)
Wall Panel0.3mm color steel + 50mm rock wool sandwich panel
DoorSteel fireproof door, W840mm x H2035mm
WindowUPVC sliding window, double glass (5+9+5) with anti-theft rods
Roof0.4mm Thickness color steel pressure type tile
Floor18mm cement fiberboard + 1.6mm PVC floor leather

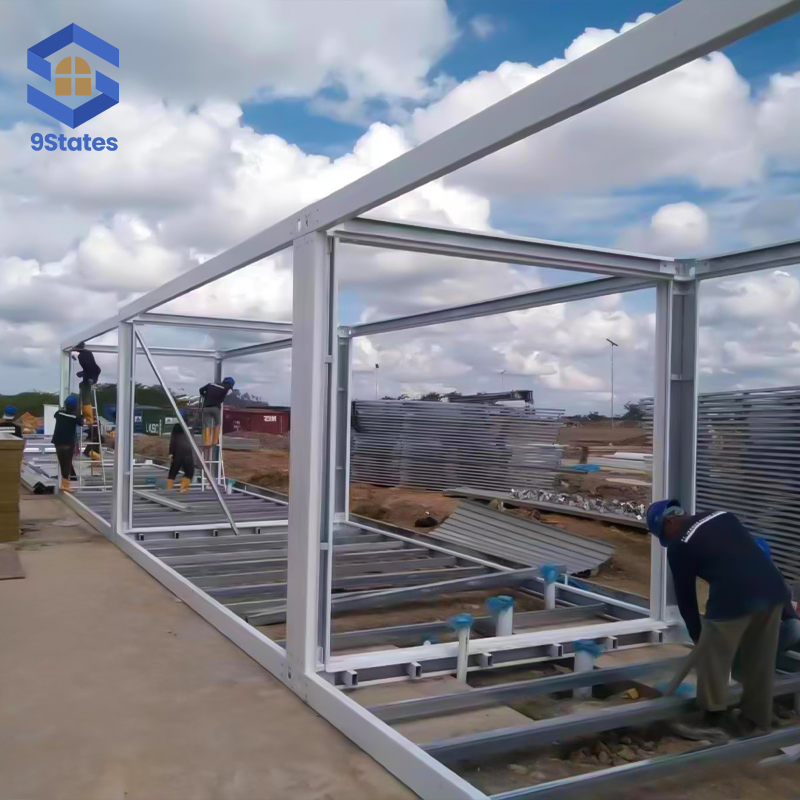

FrameGalvanized roller beam (2.5mm) & C-type steel (1.8mm)
Temperature Range-20°C to 50°C
Wind LoadGrade 11
Earthquake GradeGrade 7

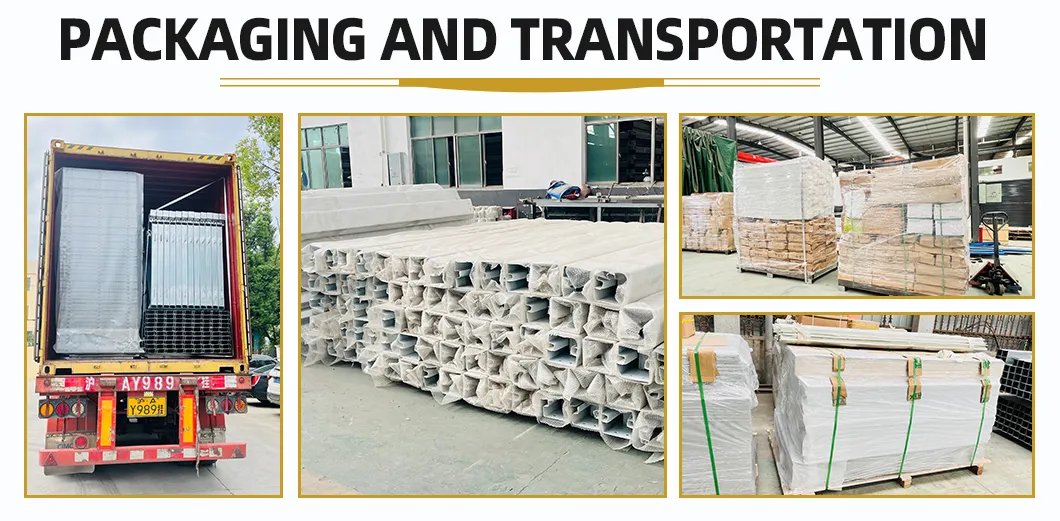

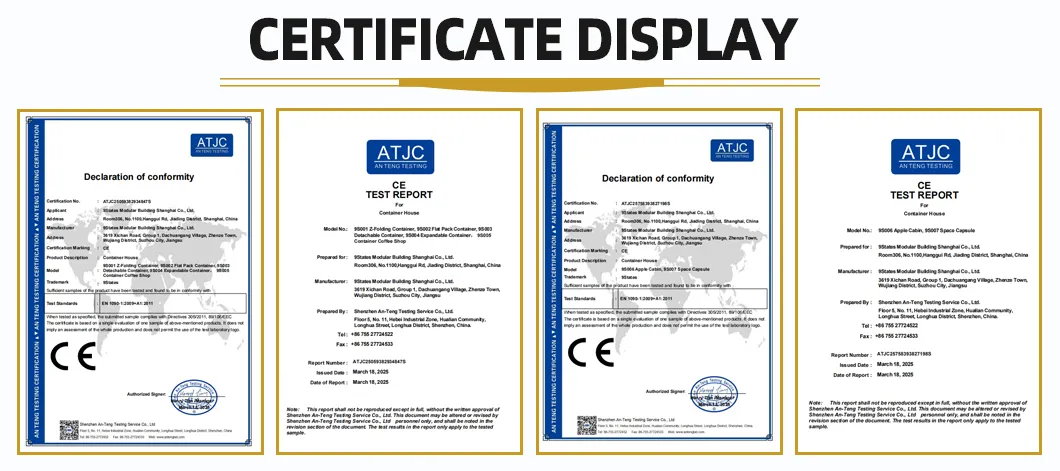

Packaging, Delivery & Certifications
Frequently Asked Questions
Do you provide on-site installation service?
We provide detailed installation drawings and videos for every project. For large-scale projects, we can provide on-site installation workers and supervisors upon negotiation.
What is your standard delivery time?
Normally, delivery takes 15 days after the deposit is received. For large volume orders, the schedule is negotiated based on production capacity.
How is product quality controlled?
Quality is managed through high-standard design solutions, selection of qualified raw materials, precise manufacturing techniques, and strict final quality inspections.
What is the warranty and how are quality problems handled?
The warranty period is 2 years. We are responsible for all quality problems caused by our production processes within this period.
What is the expected service life of the modular buildings?
Under conventional climate and environmental conditions, the service life of the container house steel frame is approximately 20 years.
How do products adapt to different extreme climates?
For strong wind regions, we reinforce the internal structure. In cold regions, we increase wall thickness or use superior insulation. In high-corrosion areas, we use specialized corrosion-resistant materials or coatings.
