Quick Installation Multifunction 20FT 40FT Remote Camp Accommodation

Customization: Available
Fast Installation: Fast Installation
Feature: Earthquake Resistant, Easily Movable, Eco-Friendliness, Flexibly Combinable, Leak Proof, Moisture Proof, Safe, Thermal Insulation, Waterproof, Wind Resistance

Product Description

Basic Specifications
Model NO.
KHCH
Material
Sandwich Panel, Container
Service Life
1 Year Warranty
Wall Panel
EPS, Rock Wool, PU, Pir
Roof System
75mm Glass Wool + Steel Sheet
Steel Frame
Hot DIP Galvanized Steel with Plastic Spraying
Usage
Dormitories, Warehouse, Temporary Offices, Workshop, School, Hospital, Toilet
Certification
CE, ISO
Transport
20/40FT Shipping Container
Specification
3000*6000*2800mm or Customized
Capacity
8000sqm/Month

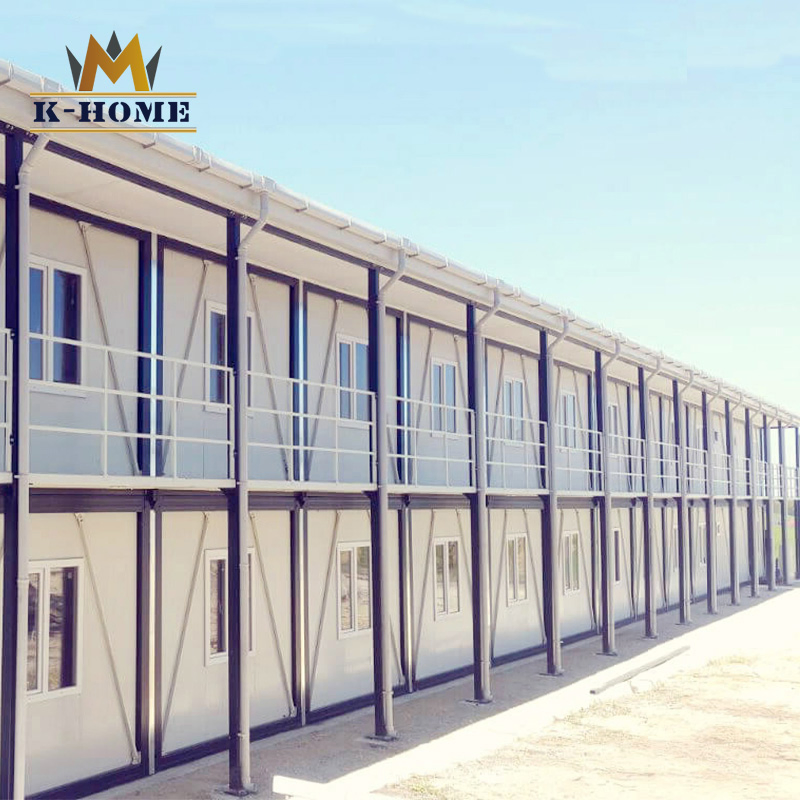

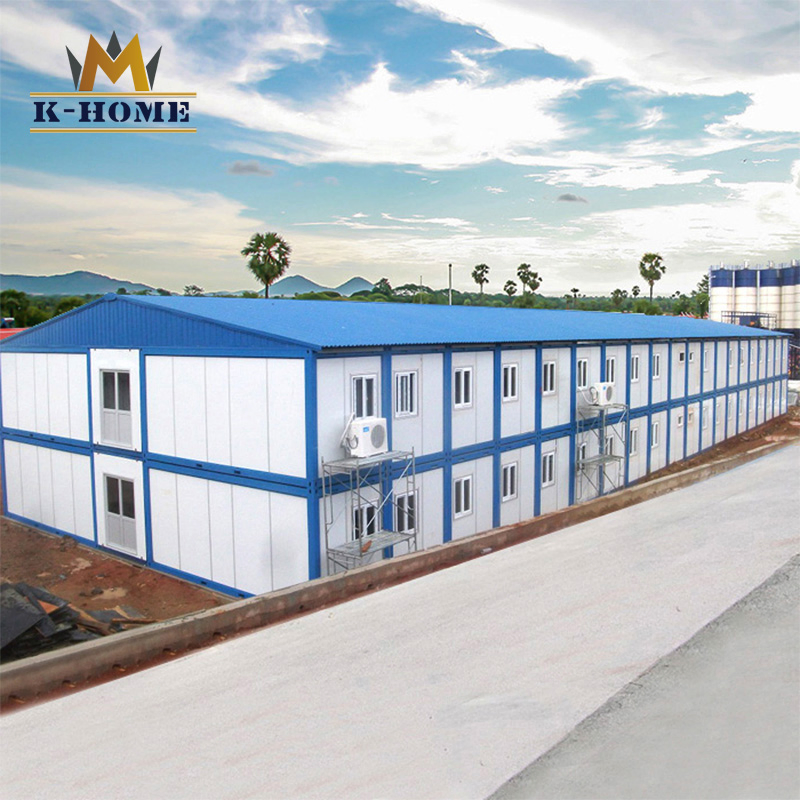

Quick Installation Remote Camp Accommodation

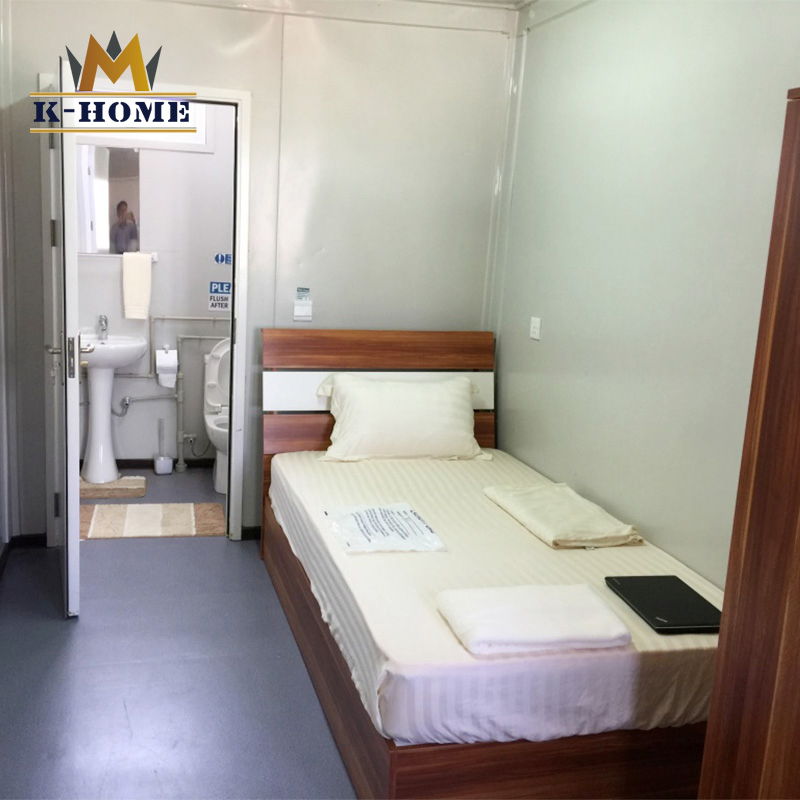

Container house is a completely new house building system that uses containers as the main material and transforms them into simple houses with doors and windows. These renovated units include internal outlines, compartments, and can be equipped with furniture such as sofas and beds, as well as home appliances.

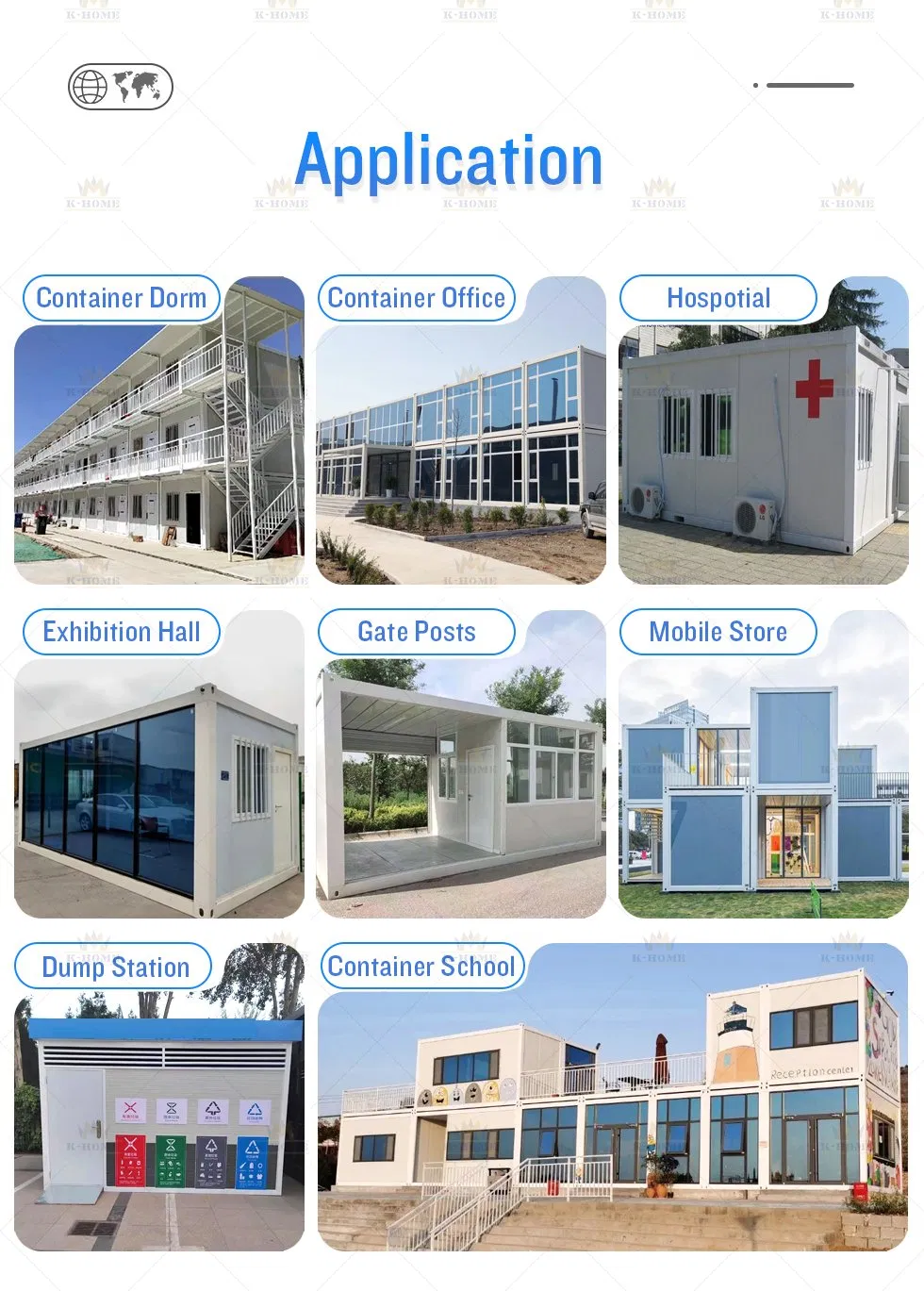

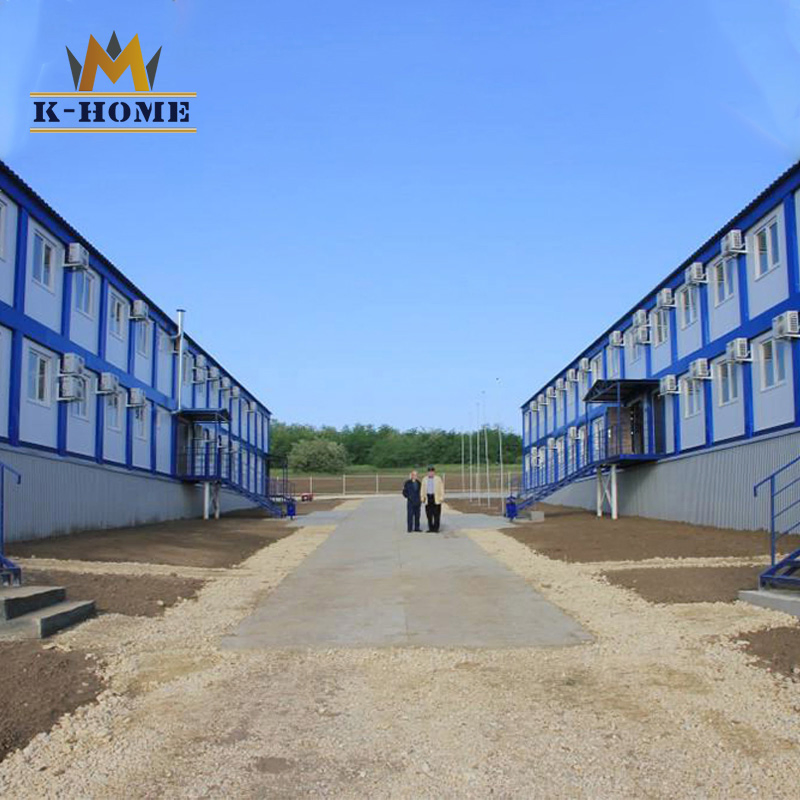

Widely used in various fields such as construction sites, private homes, offices, remote camp accommodation, temporary hotels, bars, cafes, clinics, and more. Container blocks and container cities are becoming widely established and accepted globally.
Technical Specifications
System Component Detailed Specification
Roof System Steel frame Q235 galvanized fitting
Insulation 0.4mm pre-coated steel sheet + 50mm glass wool
Ceiling Shaped steel plate with different patterns

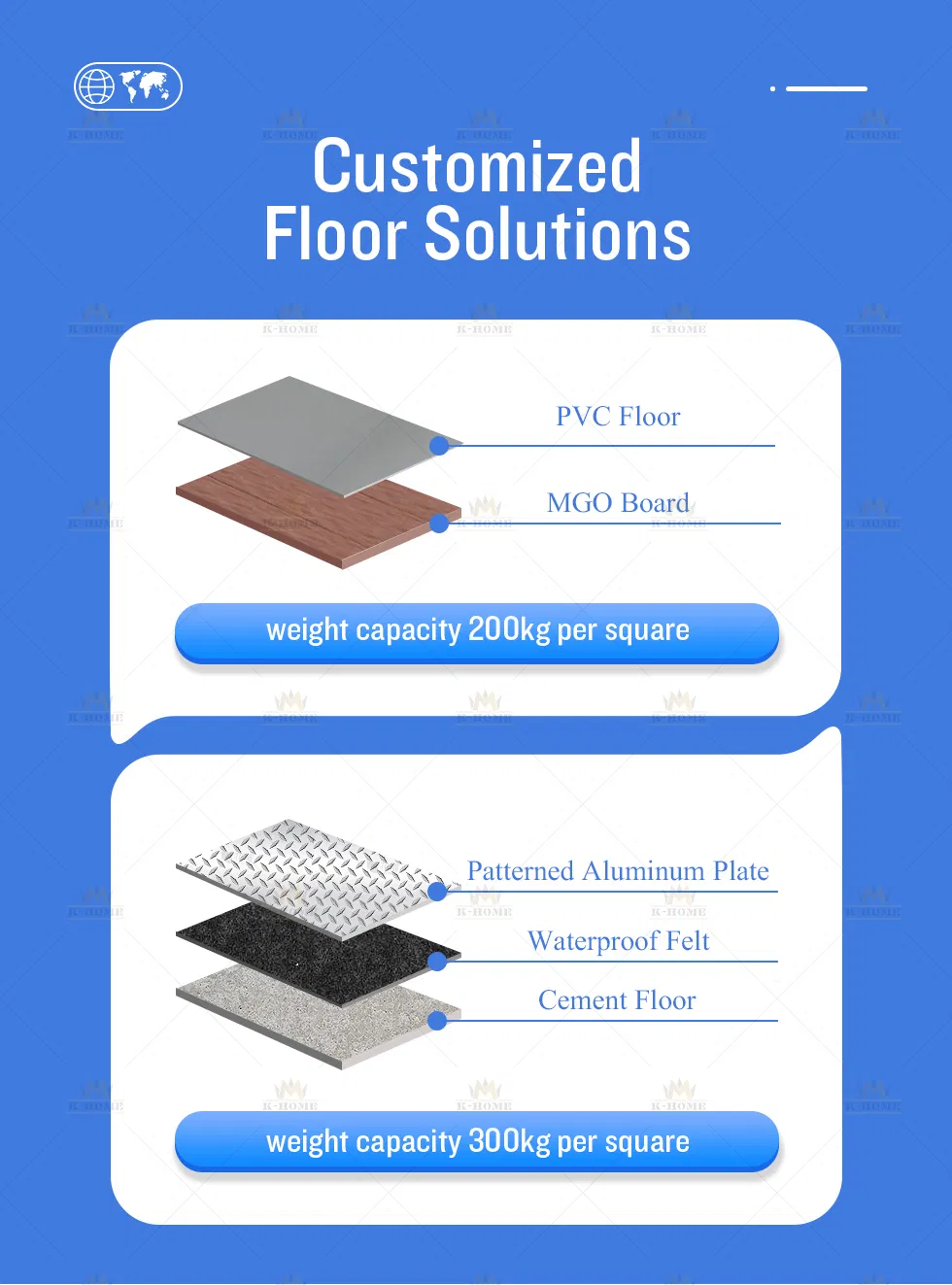

Floor System Frame 3mm Galvanized Steel structure + 1.5mm secondary beam
Finish 15mm chipboard + PVC leather floor
Wall System Wall Panel 50mm EPS Foam Sandwich Panel (0.35mm thickness steel)
Doors & Windows Door Steel door (2000*980mm)
Window Aluminum alloy double hollow glass sliding window (1200*1000mm)
Electric System LED lights, double sockets, air-switch, and safety protection device
Core Advantages
⭐ High Convenience Easy to disassemble and transport, minimizing relocation costs. Ideal for units that frequently change construction sites.
🛡️ Strong & Sturdy Structure Made of galvanized steel, stable, firm, and shockproof. Features integrated roof sinks and downspouts in columns to prevent water leakage. Sealing strips ensure no air leakage.

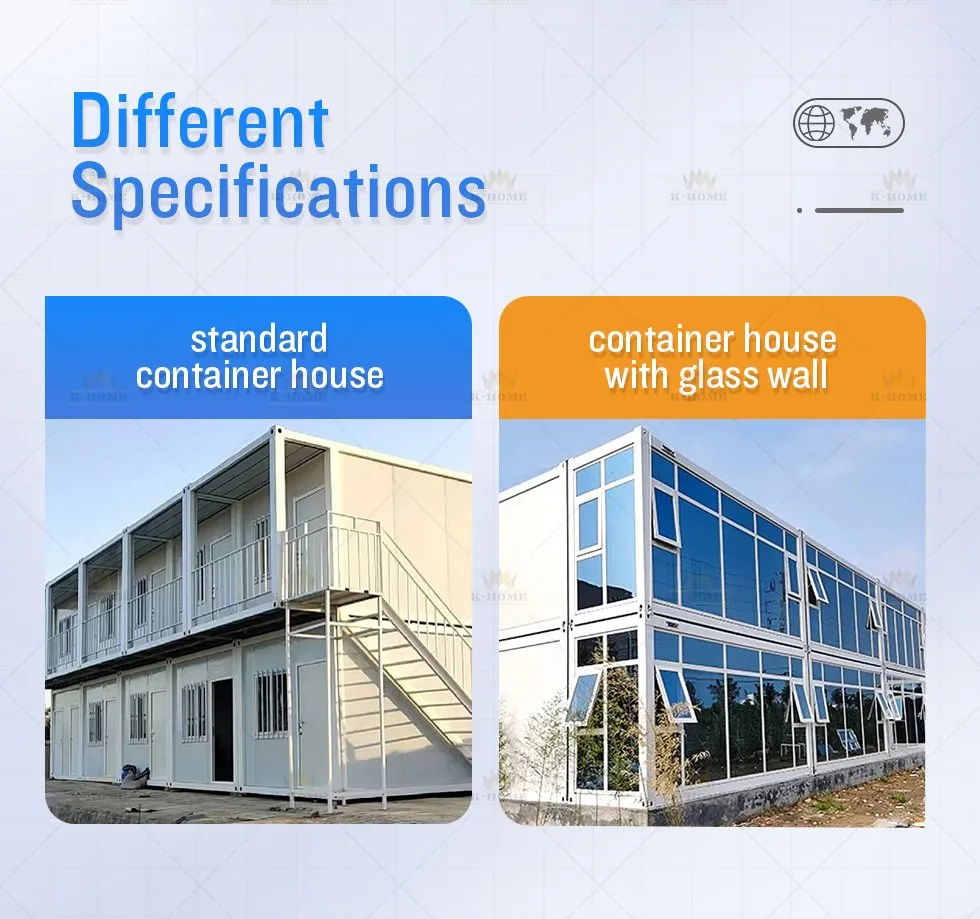

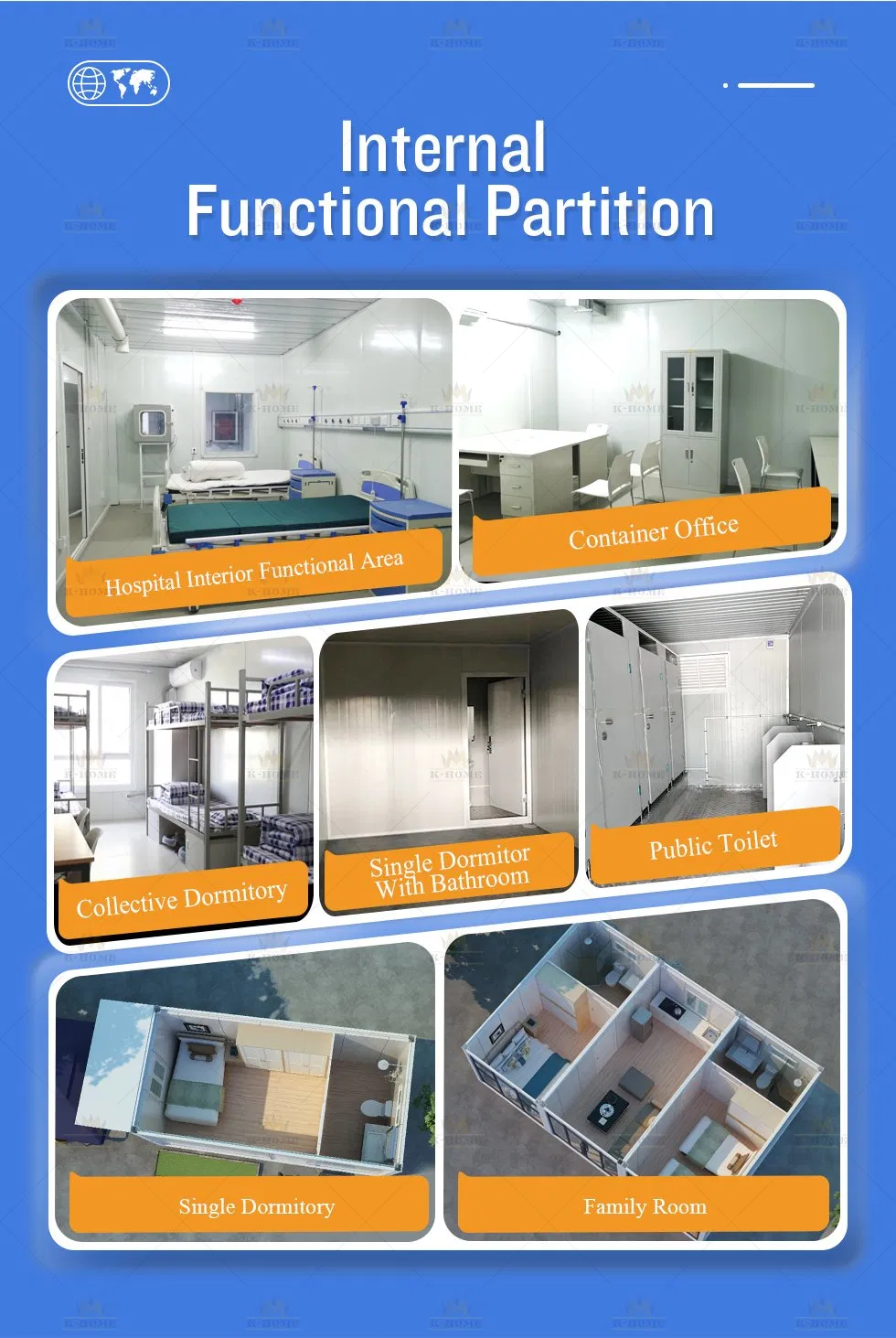

💡 Creative Space Combination Based on a single box, multiple configurations can be derived: offices, conference rooms, bathrooms, shops, and more.
Frequently Asked Questions
What materials are used for the wall insulation?
We offer multiple options for wall panels, including EPS (Polystyrene), Rock Wool, PU (Polyurethane), and PIR, catering to different fire rating and insulation requirements.
Are these container houses waterproof and leak-proof?
Yes. The roof is designed with an integrated sink, and the columns contain downspouts for drainage. Additionally, sealing strips are added to all interfaces to prevent water and air leakage.
What is the standard size of a container unit?

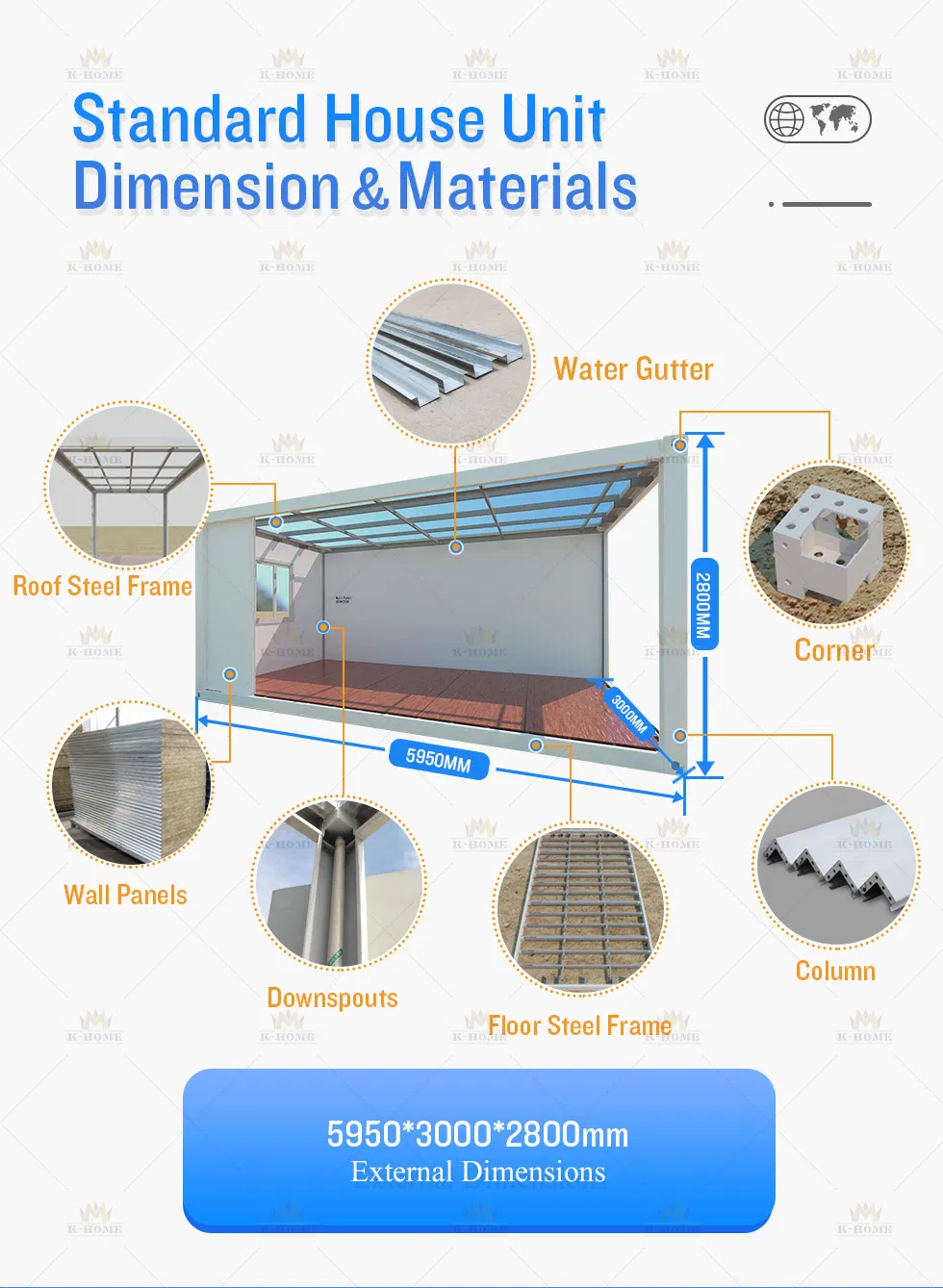

The standard specification is 3000mm x 6000mm x 2800mm, but sizes can be fully customized based on project requirements.
Can these units be used for medical or educational purposes?
Absolutely. These modular units are highly versatile and are commonly used for clinics, schools, temporary hospitals, and dormitories.

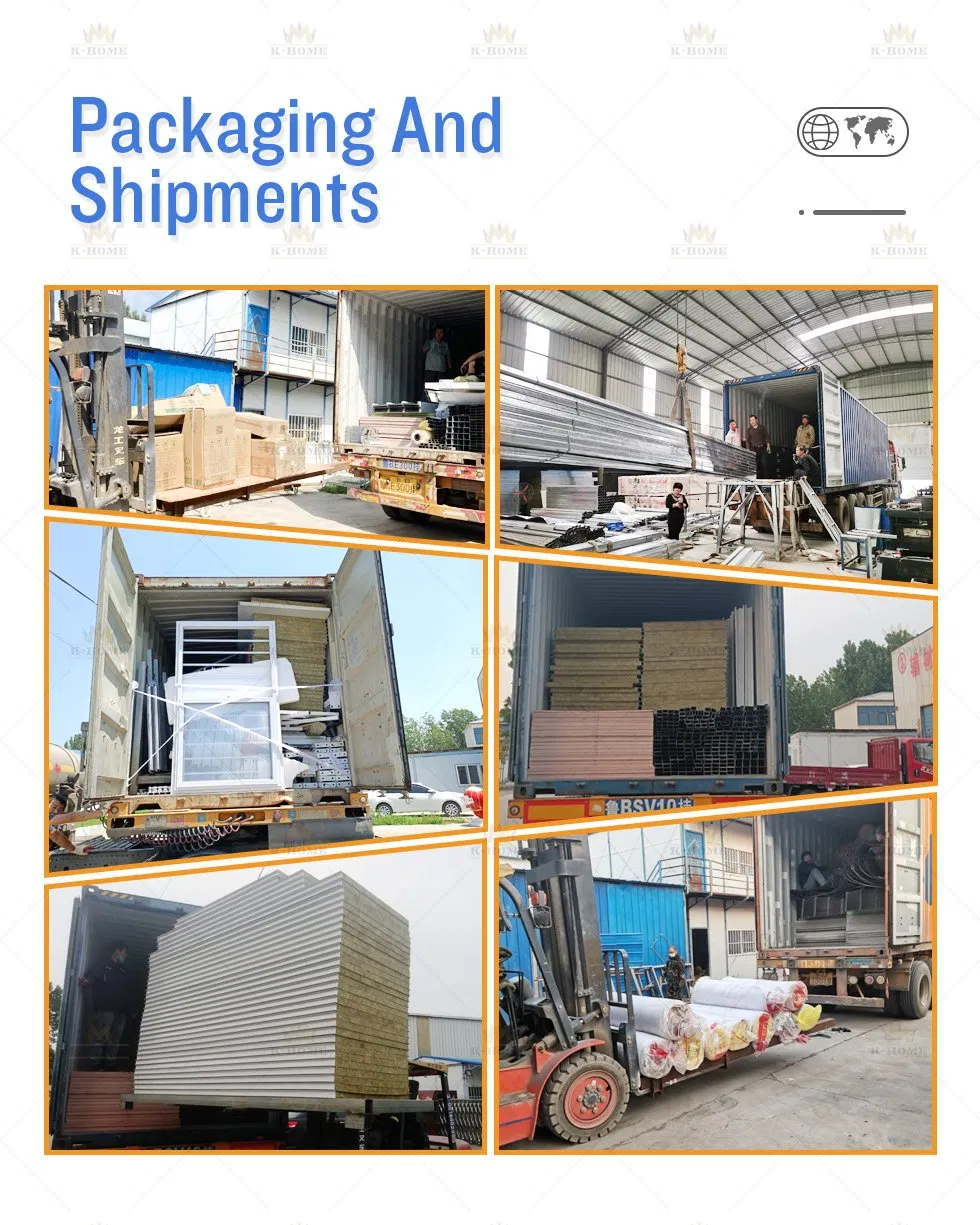

How are the units transported?
They are designed for easy transport via 20ft or 40ft standard shipping containers, which helps minimize logistics costs.
Is the electrical system included?
Yes, each unit includes a complete electric system featuring LED lights, double sockets, air-switches, and a safety protection device.
