Product Description

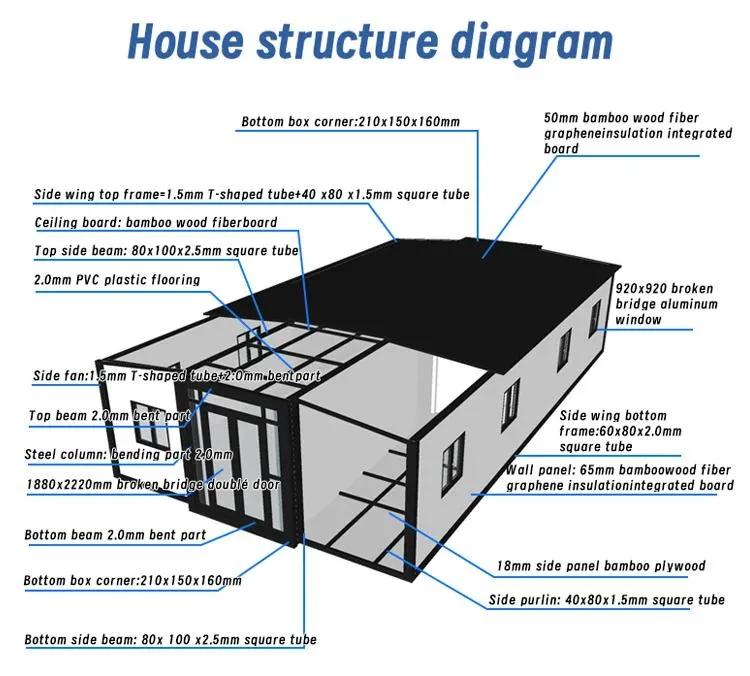

| Expandable Container House Technical Parameters |
| Framework |
Main beam |
Galvanized square tube 80*100*2.5MM Q235 |
| Integrated column head |
Galvanized folding piece 150*210*2.0MM Q235 |
| Sub-frame |
Galvanized square tube 40*60*1.0MM Q235 |
| Hinges |
Galvanized thickened hinge Q235 |
| Frame color |
Painting process White frame |
| Floor |
Middle/Both sides floor |
18mm glass magnesium board (does not contain asbestos) |
| Floor leather |
Floor leather Palm wood |
| Wall panel |
70mm sandwich panel (wood grain color), EPS material |
| Electrical |
Parameters |
Australian standard wires; 6² incoming, 4² AC sockets, 2.5² ordinary; 6 LED ceiling lights. |

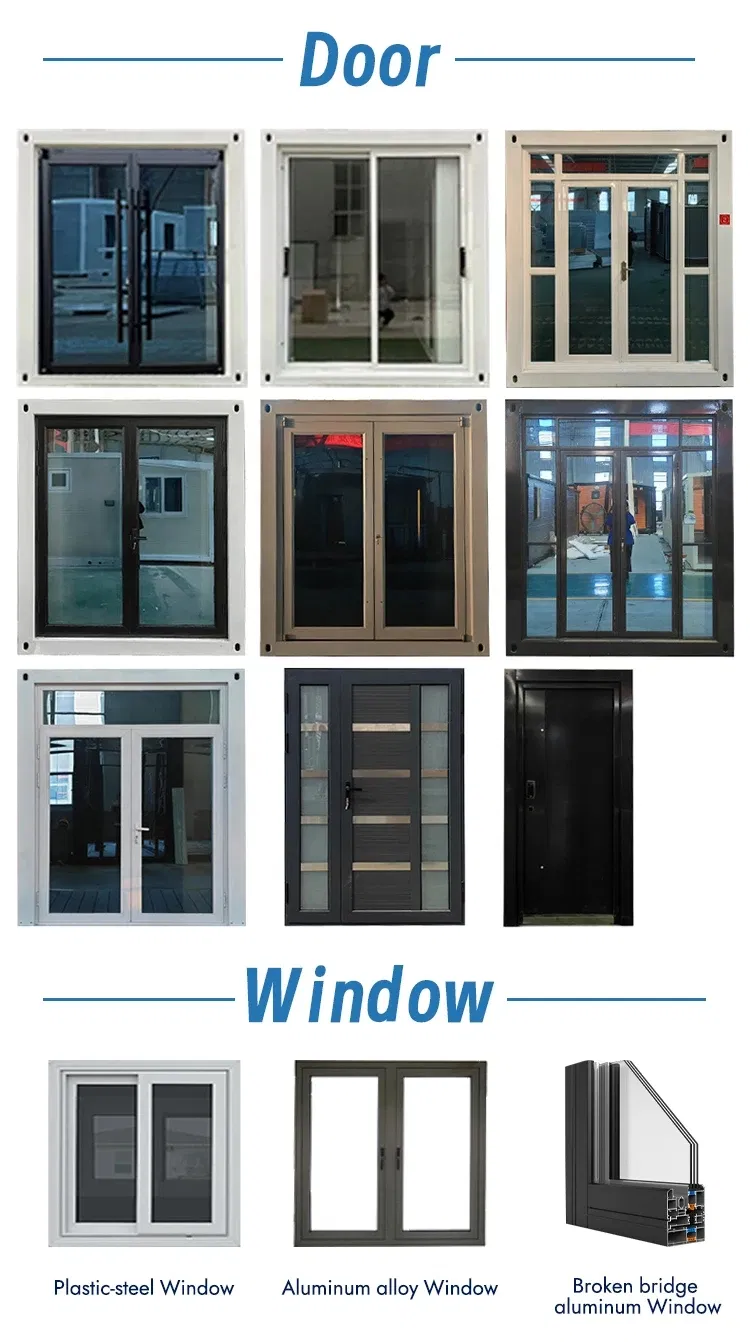

| Doors & Windows |
System |
Aluminum doors (double-glazed tempered glass); Sliding window with diamond mesh. |
Key Design Philosophy
"Flat-base + flat-top" combines practicality with innovation, offering a balance of stability, functionality, and sustainability for modern modular architecture.
1. Commercial Exhibition
The double-wing expandable house serves as an excellent exhibition space for product launches and events, attracting attention with its novel design.
2. Cost & Efficiency Advantages
Standardized structure fits container transport, reducing logistics costs. Factory prefabrication allows for quick on-site assembly.
3. Eco-friendly Materials
Crafted from recyclable steel and environmentally sustainable panels, offering durability while aligning with green living standards.
4. Flexible Expansion
Modular assembly allows for horizontal and vertical expansion, ideal for residences, stores, or emergency facilities.
5. Tourism & Vacation Use
Quickly deployed in scenic locations to provide cozy, distinctive accommodation for tourists.
Frequently Asked Questions
How long does it take to install the expandable container house?
The house is designed for fast installation. Most of the structure is prefabricated in the factory, allowing for rapid assembly on-site within a few hours.
What materials are used for insulation?
We use high-quality 70mm sandwich panels with EPS as the standard insulation material, providing excellent thermal regulation.
Is the structure resistant to natural disasters?
Yes, the light-steel structure is specifically engineered to be earthquake-resistant and moisture-proof, ensuring safety in various environments.
Can the electrical system be customized for my country?
Absolutely. While standard configurations meet Australian standards, we can customize wires, sockets, and circuit breakers to meet specific national certification requirements.
How many units can fit in a shipping container?
A standard 40HQ shipping container is capable of holding 2 units of our expandable prefab houses.
Is the house easily movable after installation?
Yes, one of the primary design features is its mobility. It can be folded back and moved to a new location with minimal effort.
