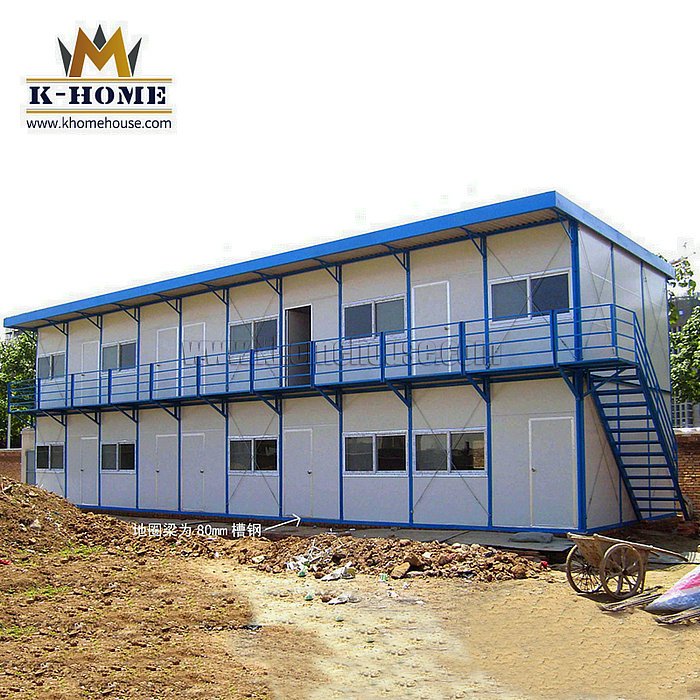

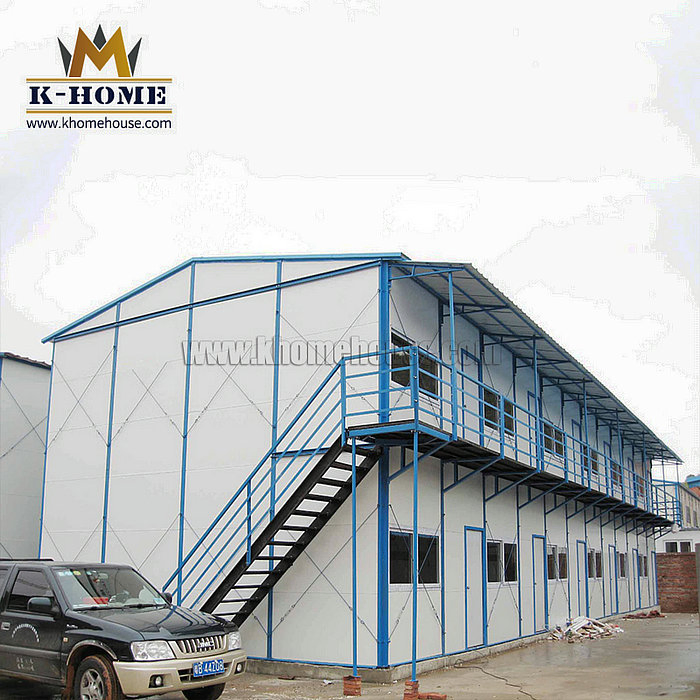

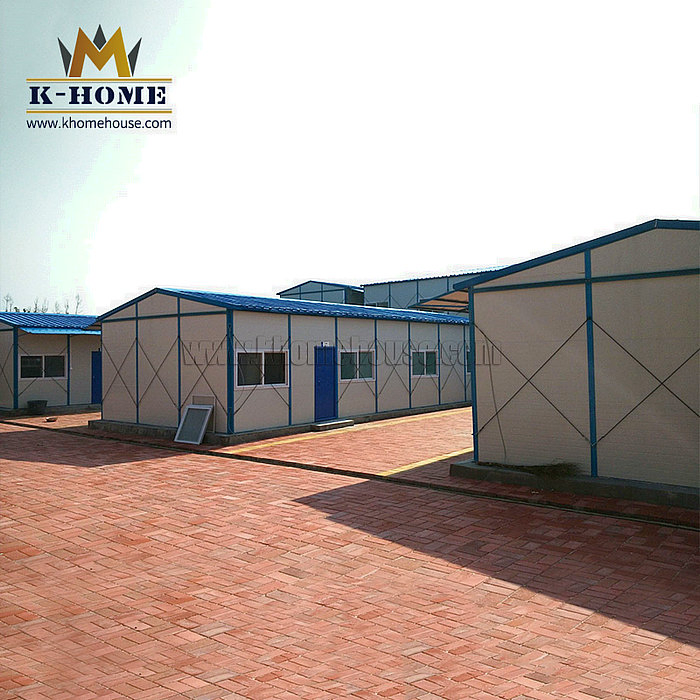

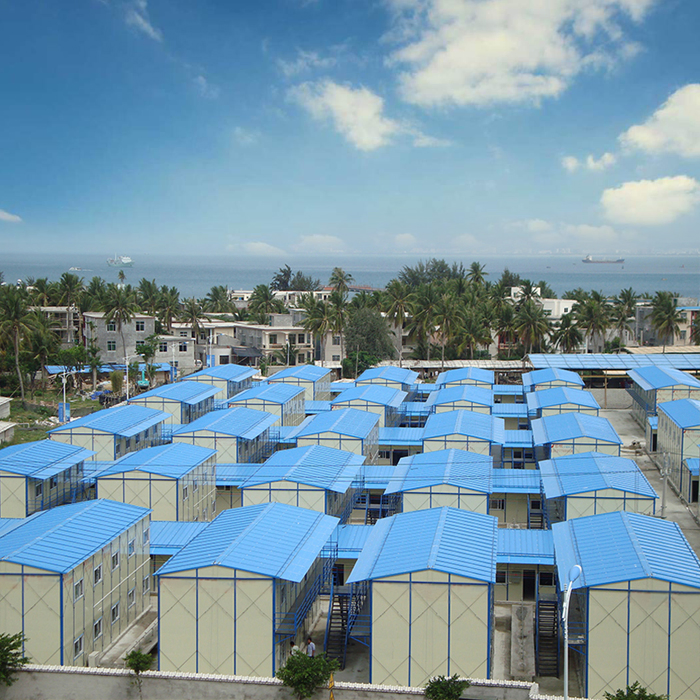

Temporary Prefabricated Sandwich Panel Worker Accommodation

Customization:	Available
Certification:	CE, ISO9001, CE, ISO
Customized Or Not:	Customized

🔹 Basic Specifications

Model NO.

KHCD

Material

Sandwich Panel, Steel Structure

Application

Accommodation, Office, Classroom, Camp etc

After-Sales

Perfect Service and Installation Guidance

Wall Materials

PU / Rock Wool Sandwich Panel

Main Structure

Light Steel Frame

Warranty

12 Months

HS Code

9406900090

Capacity

8000 Sqm/Month

Transport

40FT Shipping Container

🏢 Project Overview

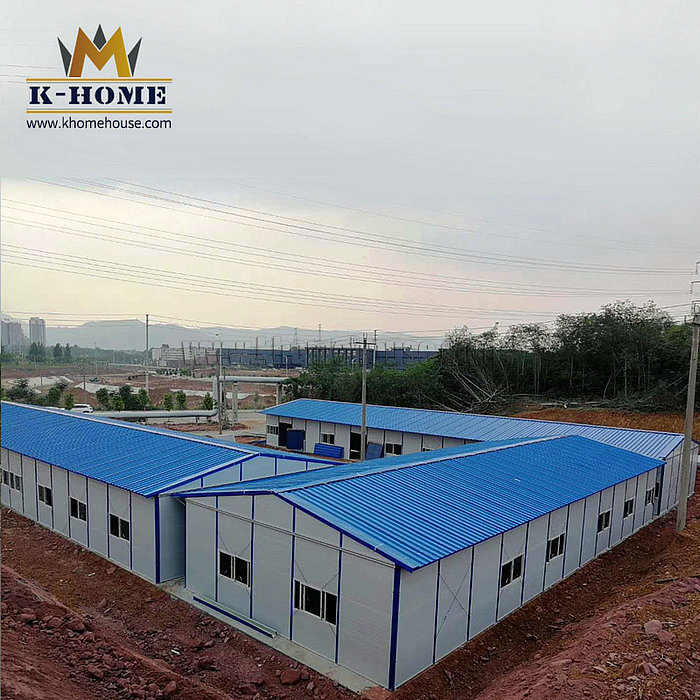

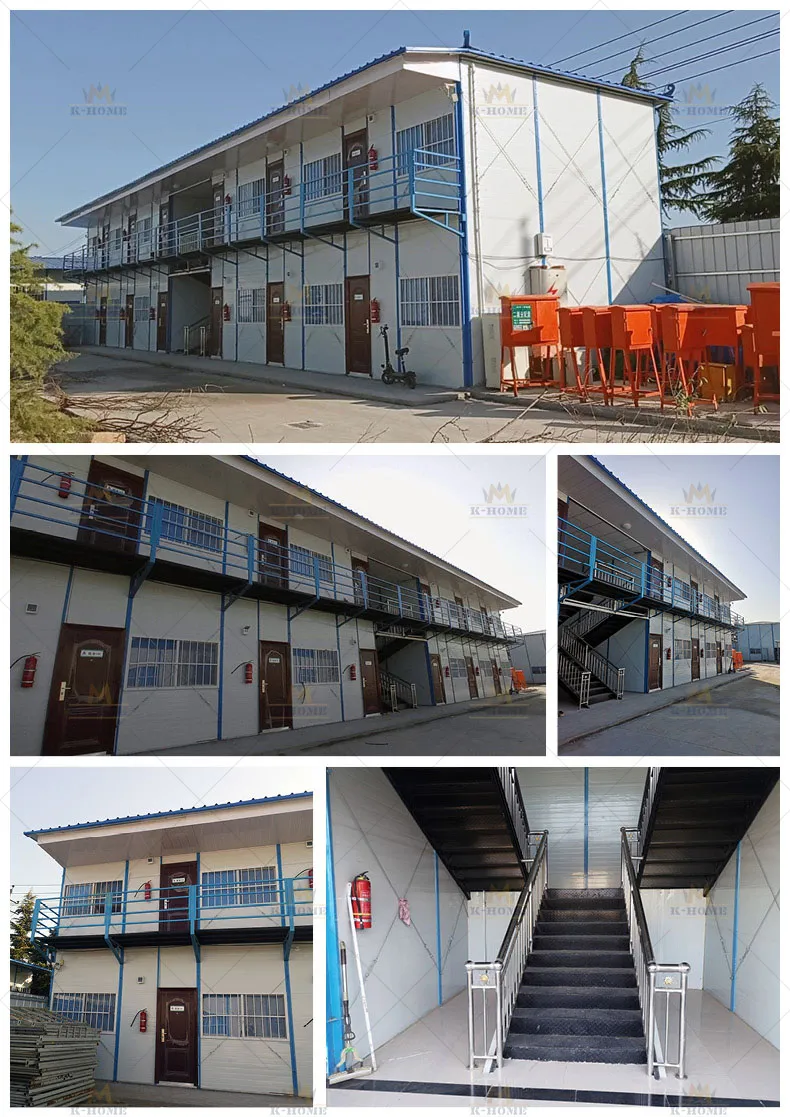

At present, temporary buildings are essential across various industries and regions. The market with the greatest demand for mobile homes is the temporary workforce housing in the construction industry and urban rail transit construction sites, used for workers' dormitories, offices, canteens, and warehouses.

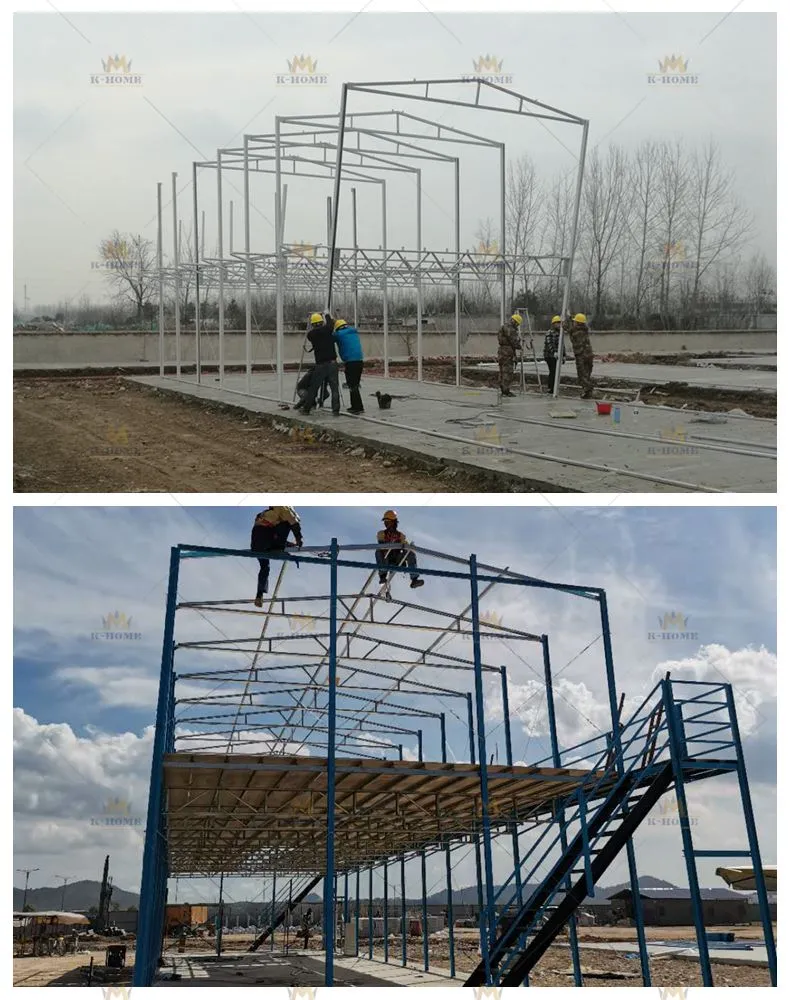

A prefabricated house is a temporary modular structure with steel as the framework, sandwich panel as the wall and bolted connection, which can be easily disassembled and assembled.

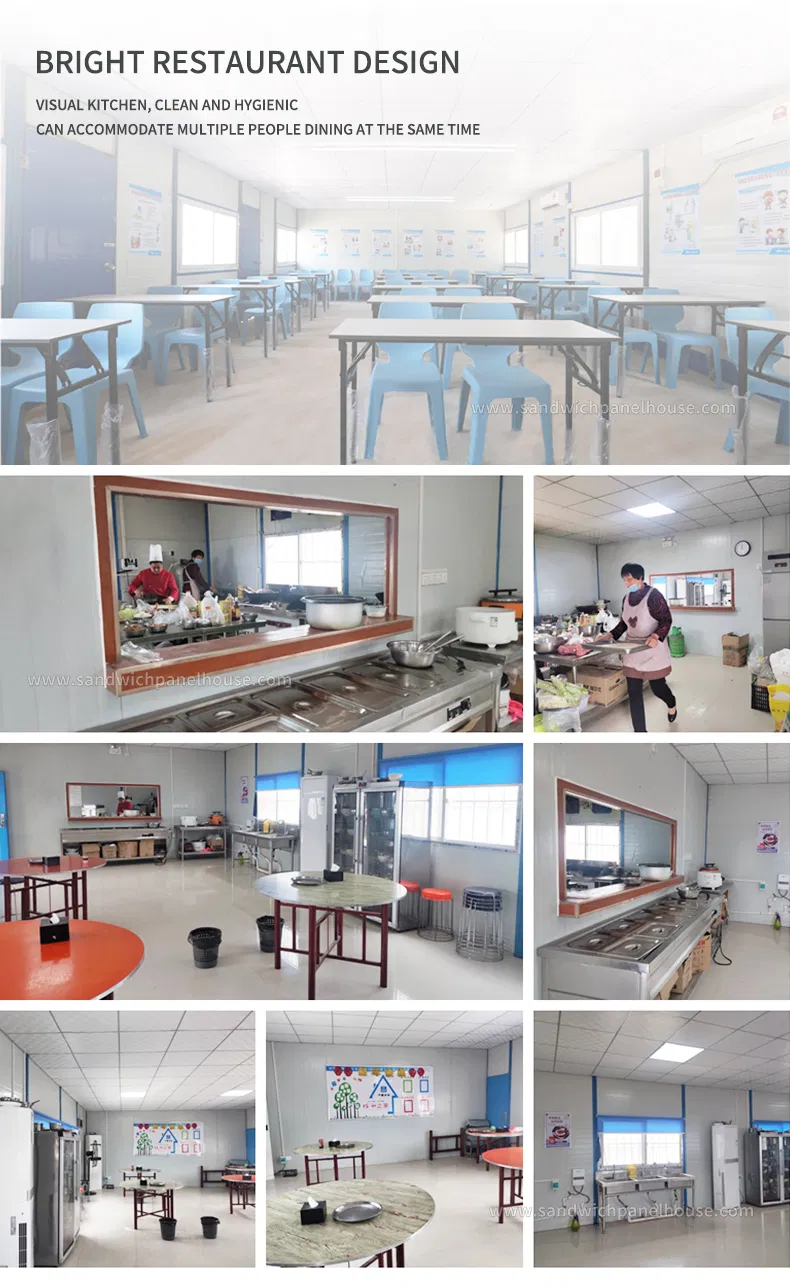

This specific project covers 150 square meters, including staff offices (27 sqm), dormitories (16 sqm), reception rooms (43 sqm), meeting rooms (16 sqm), manager rooms (16 sqm), and a kitchen/dining area (32 sqm).

🛠️ Technical Specifications

Steel Column	2C80401.5 painting
Herringbone	Pre-welded C80401.3/U50351.3 electro-Galv.
Main Beam	C80401.5/U50351.2 electro-Galv.
Roof Purlin	L40*3 electro-Galv.
Staircase	Square tube 30302.0/40402.0, 2.5mm checkered plate

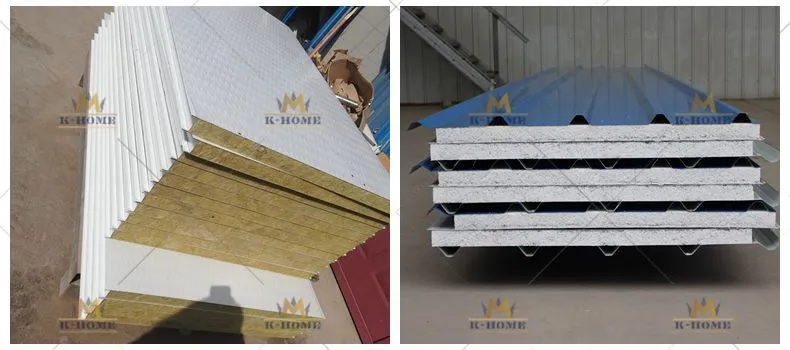

Roof & Wall Panel	50mm/75mm/100mm Fiberglass/Rockwool/EPS sandwich panel
Floor Board	18mm plywood board
Electrical System	Optional: Cable/Lights/Switch/Socket/PDB
Sanitary Facilities	Optional: Ceramic toilet/washbasin/shower

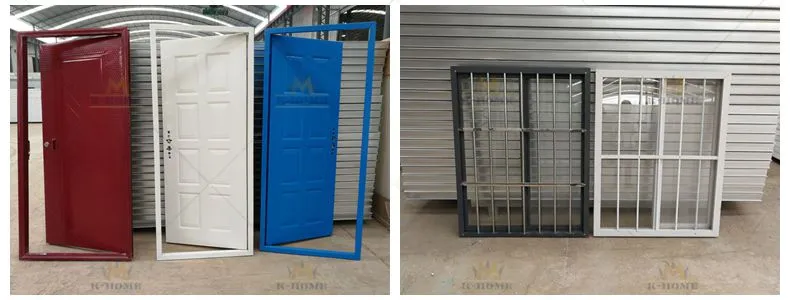

🔍 Component Details

❓ Frequently Asked Questions

What are the main advantages of prefabricated houses?

Prefabricated houses offer rapid installation through modular design. They are earthquake-resistant, provide superior heat and sound insulation, and can be demounted and relocated easily without environmental harm.

How do these houses perform in cold regions?

Exterior wall panels and roof specifications can be modified and thickened (up to 100mm) using materials like Rockwool or PU to provide optimal thermal insulation for cold climate conditions.

Can the internal layout be customized?

Yes, the houses are fully customized. You can define the number of rooms, including offices, dormitories, reception areas, and specialized facilities like kitchens or laboratories.

What maintenance is required for the steel structure?

The light steel frame is galvanized and painted to prevent corrosion. With standard use, these structures require minimal maintenance over their service life.

Are electrical and plumbing systems included?

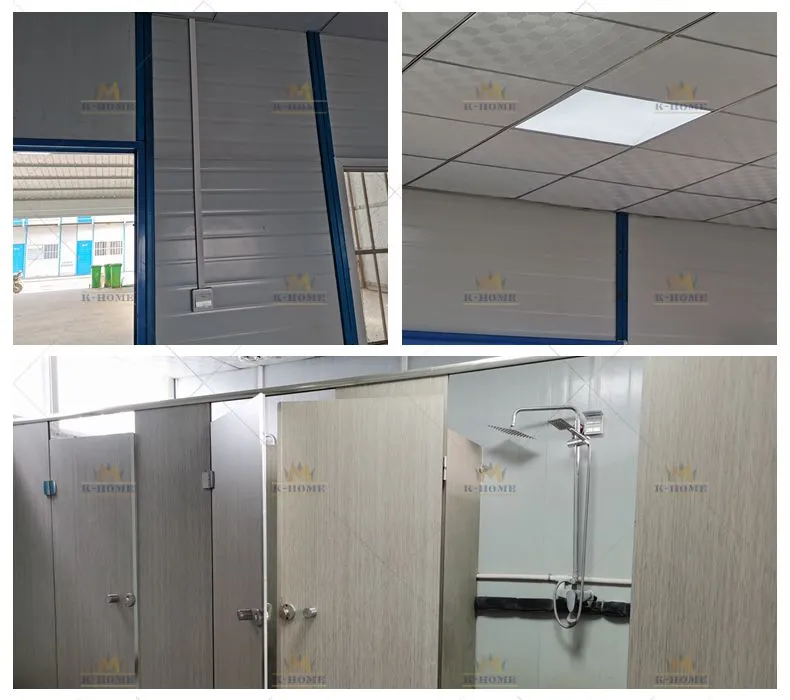

Electrical fittings (wires, sockets, lights) and sanitary ware (toilets, basins, showers) are available as optional facilities and can be integrated into the prefab units during assembly.

How are the materials transported to the site?

Materials are efficiently packed and shipped using standard 40FT shipping containers, ensuring safe delivery to domestic or international project locations.
