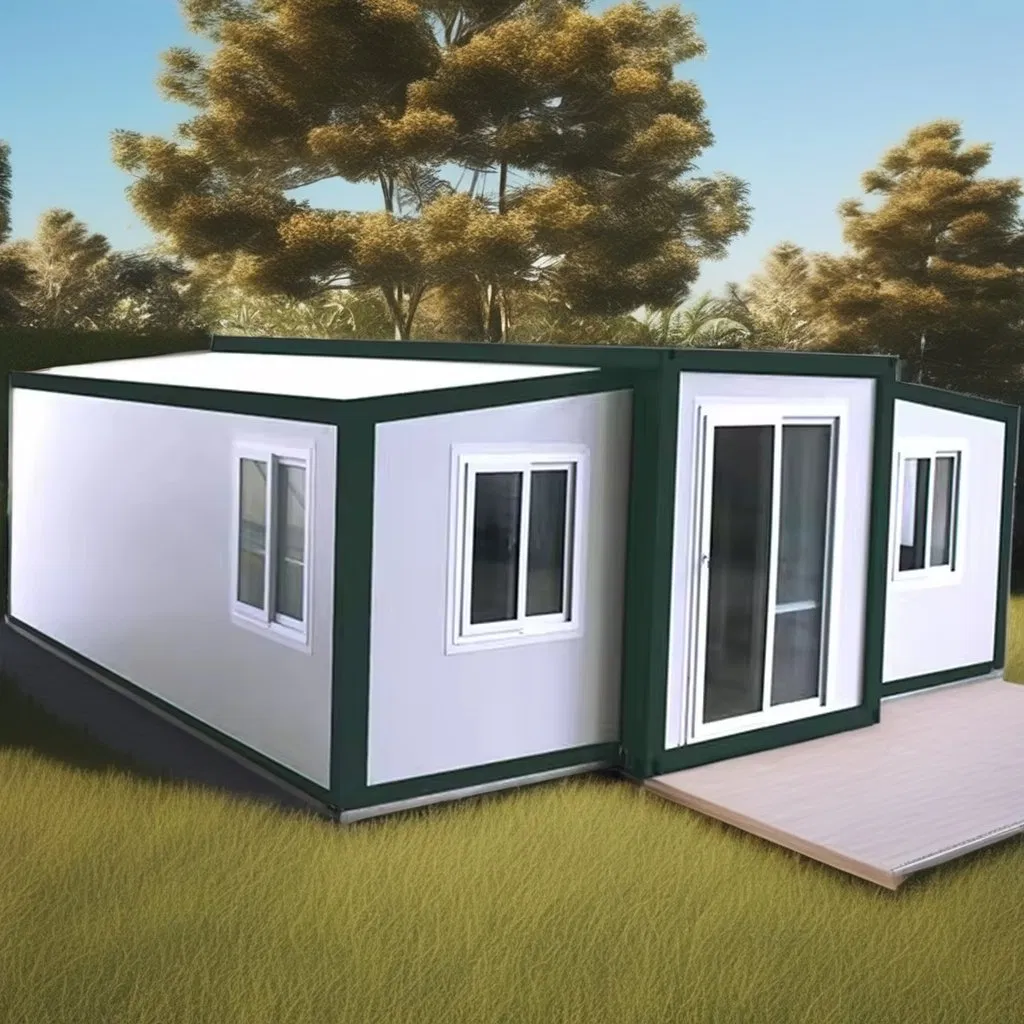

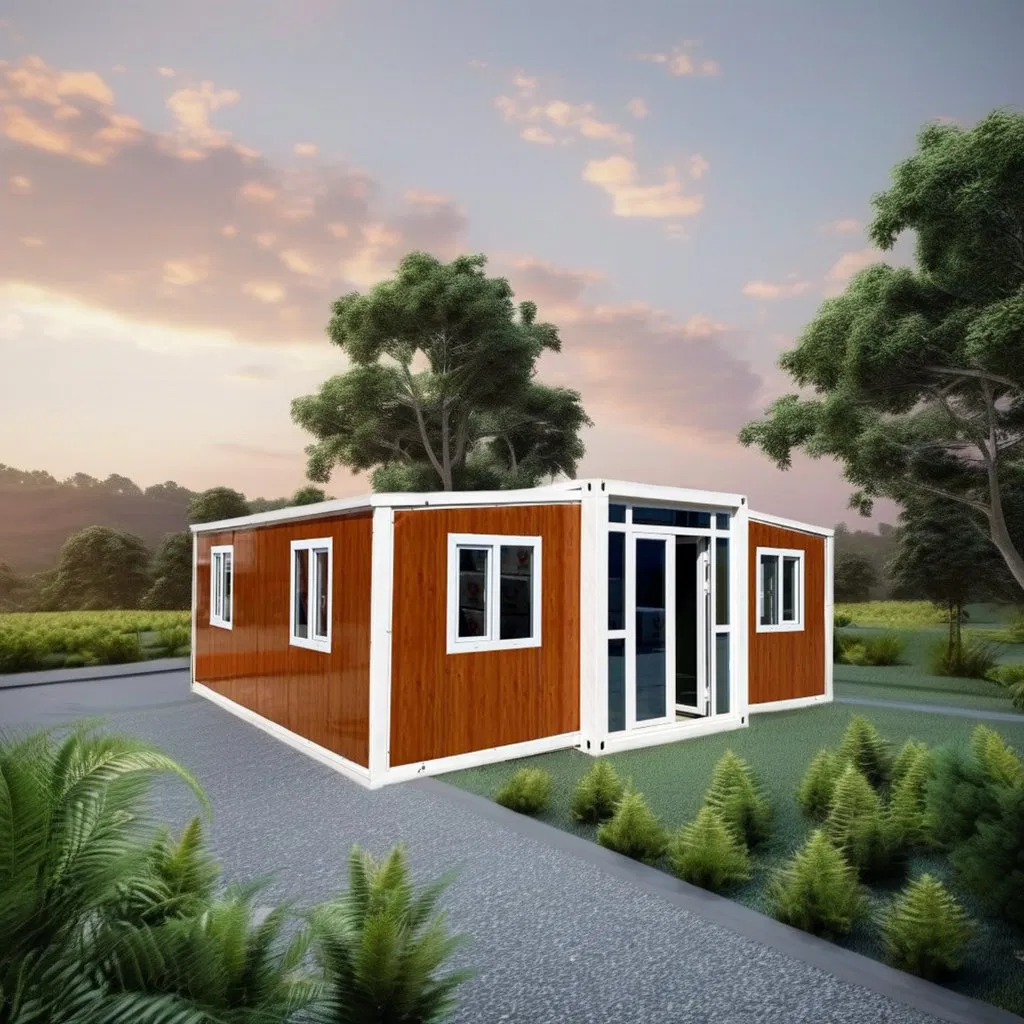

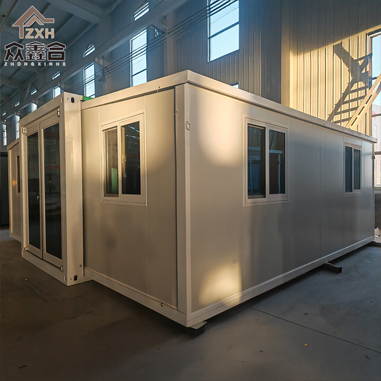

40FT Expandable 3-Bedroom Prefab Container Cabin for Home Use
40FT Expandable 3-Bedroom Prefab Container Cabin for Home Use
40FT Expandable 3-Bedroom Prefab Container Cabin for Home Use
40FT Expandable 3-Bedroom Prefab Container Cabin for Home Use
40FT Expandable 3-Bedroom Prefab Container Cabin for Home Use
1 / 5
40FT Expandable 3-Bedroom Prefab Container Cabin for Home Use
40FT Expandable 3-Bedroom Prefab Container Cabin for Home Use
40FT Expandable 3-Bedroom Prefab Container Cabin for Home Use
40FT Expandable 3-Bedroom Prefab Container Cabin for Home Use
40FT Expandable 3-Bedroom Prefab Container Cabin for Home Use

40FT Expandable 3-Bedroom Prefab Container Cabin for Home Use

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
ZXH
Installation
Fast Installation
Feature
Earthquake Resistant, Easily Movable, Eco-Friendliness, Flexibly Combinable, Leak Proof, Moisture Proof, Safe, Thermal Insulation, Waterproof
Material
Sandwich Panel
Wall Thickness
50#/65
Warranty
1 Year
Certification
ISO, CE
Customized
Customized Available
Transport
40hq Hold 2 Units
Specification
5900*6200*2480mm
HS Code
9406000090
Capacity
500,000 PCS/Month
Packaging & Delivery
Package Size
590.00cm * 220.00cm * 248.00cm
Gross Weight
3120.000kg

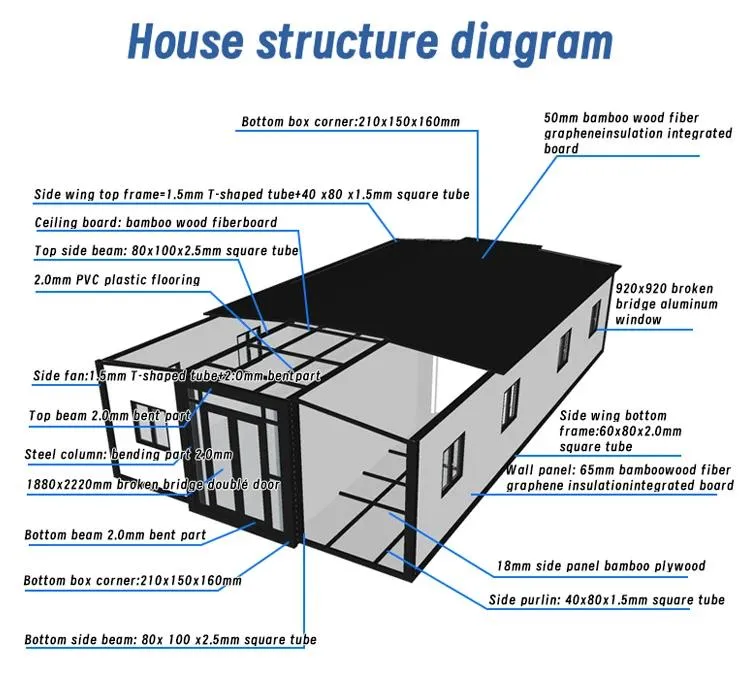

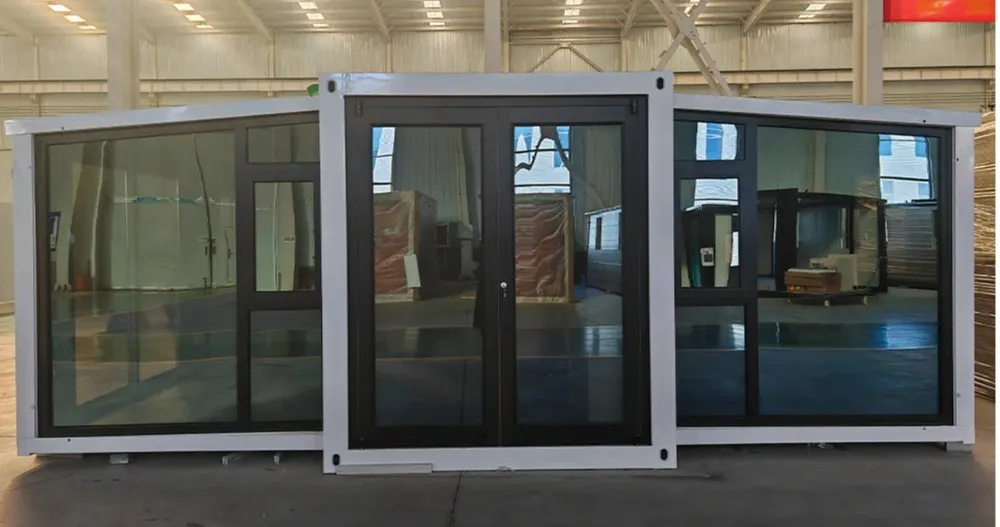

40FT Expandable Container Cabin Overview 3-Bedroom Prefab Container House

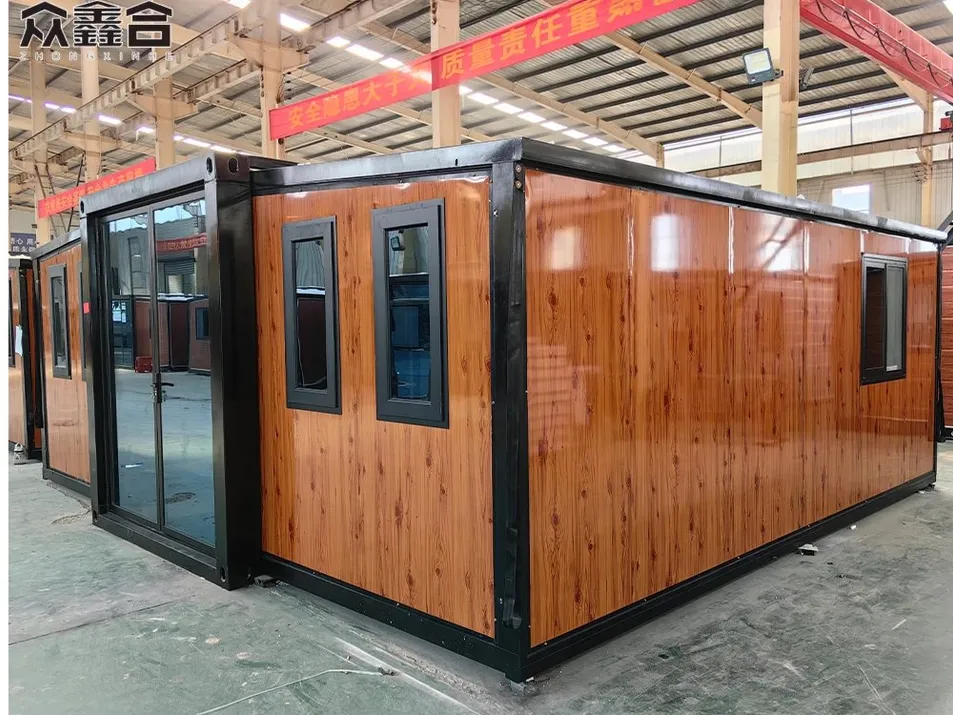

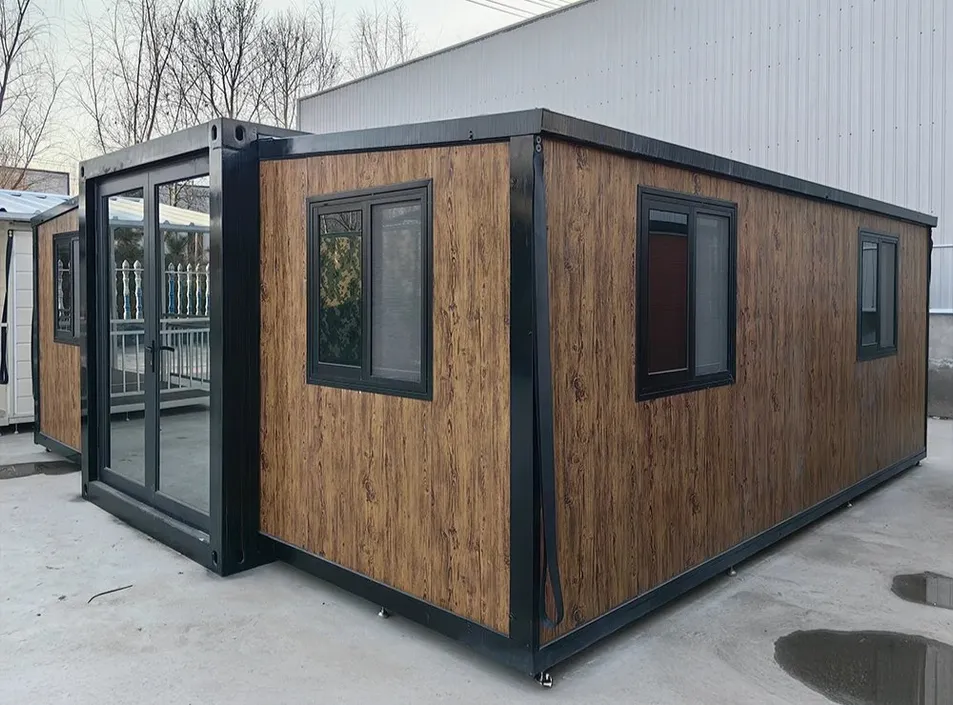

Container Interior Detail 1 Container Interior Detail 2
Technical Parameters
Category Component Detailed Specification
Framework Main beam Galvanized square tube 80*100*2.5MM Q235
Integrated column head Galvanized folding piece 150*210*2.0MM Q235
Sub-frame Galvanized square tube 40*60*1.0MM Q235
Hinges Galvanized thickened hinge Q235
Frame color Painting process White frame
Floor Middle/Both sides floor 18mm glass magnesium board (asbestos-free)
Floor leather Palm wood style floor leather
Insulated Wall Wall panel 70mm sandwich board, double-sided 0.25 color roll, EPS material
Partition 50mm sandwich panel, double-sided 0.25 insulation
Top panels 50mm sandwich panel, color steel plate base plate
Electrical System Parameters Standard Australian wires; 6² incoming, 4² AC sockets, 2.5² ordinary, 1.5² lighting. 6 LED ceiling lights.

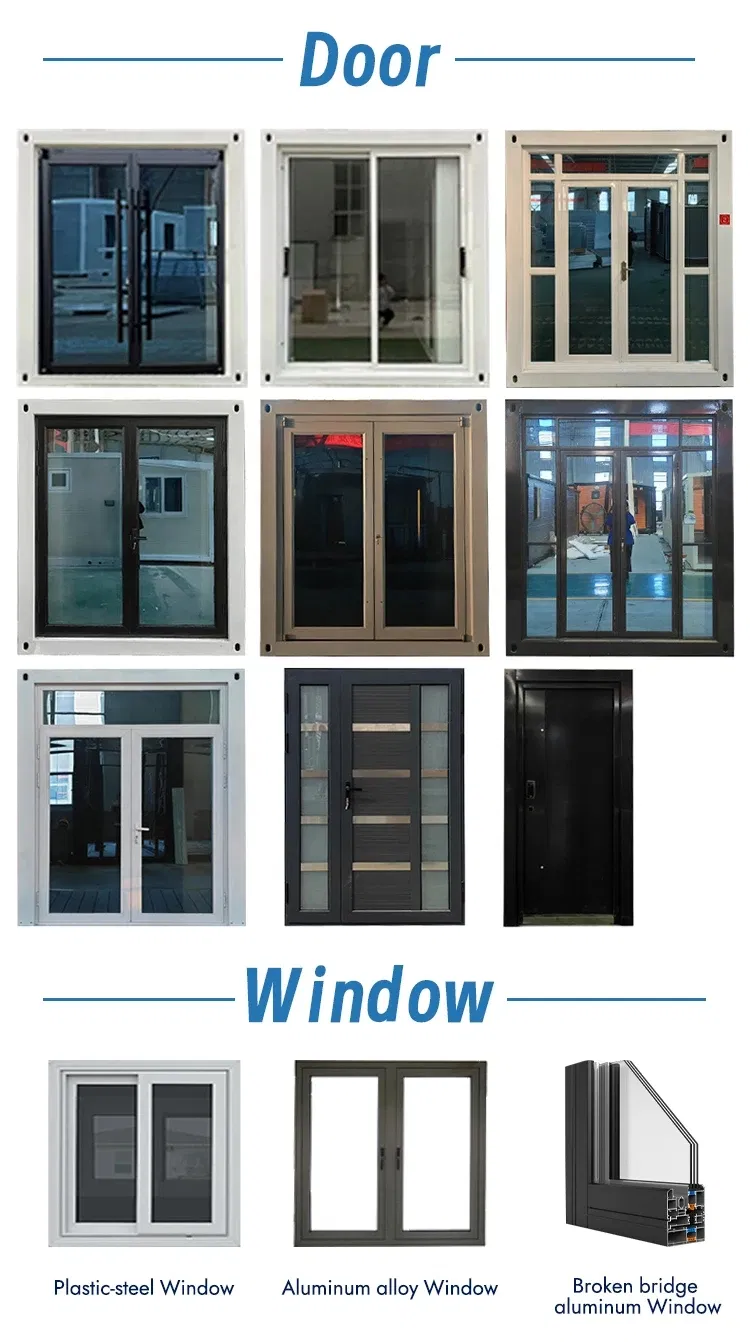

Doors & Windows Details Aluminum insulated doors (W1890*H2230) & Aluminum alloy sliding windows (920*920) with diamond mesh.
Key Design Philosophy

"Flat-base + flat-top" innovation for modern modular architecture.

🏢
Commercial Exhibition: The double-wing expandable house serves as an ideal exhibition space for product launches and commercial events, attracting attention with its novel design.
💰
Cost & Efficiency: Standardized flat-base structure fits container transport tools, reducing logistics costs. Factory prefabrication allows for rapid on-site assembly.
🌱
Eco-friendly Materials: Crafted from recyclable steel and sustainable panels, aligning with green living pursuits and providing excellent durability.
🔄
Flexible Expansion: Modular assembly allows for horizontal or vertical expansion, making it suitable for multi-story or large-area spaces.
🏖️
Tourism & Vacation: Quickly deployed in scenic locations, offering a unique and cozy accommodation experience for tourists.
Layout Plan Structure Detail
Installation Process
Section View 1 Section View 2

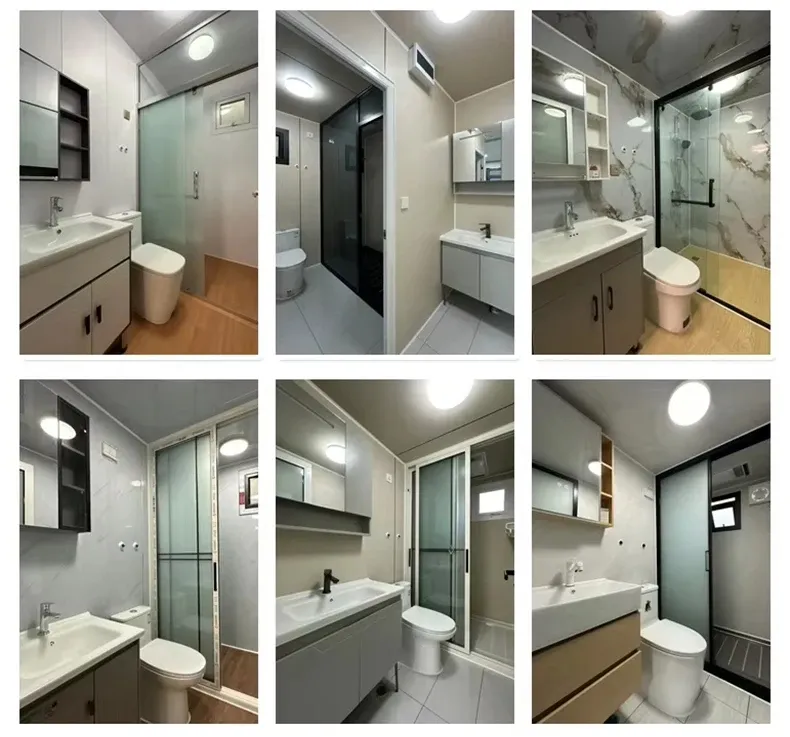

Exterior View Interior View
Technical Drawing Full
Frequently Asked Questions (FAQ)
How fast can the expandable container house be installed?
The system is designed for "Fast Installation." Since most components are prefabricated in the factory, on-site assembly is extremely rapid, significantly reducing labor and time compared to traditional construction.
What are the main safety features of this prefab cabin?
The structure is earthquake-resistant and moisture-proof. It uses Q235 galvanized steel for the framework and features leak-proof, waterproof, and thermal insulation properties to ensure a safe living environment.
Can the electrical system be customized for my country?
Yes, the electrical circuits and socket standards (currently Australian standard) can be customized according to the specific certification requirements and standards of your country.
What kind of insulation is used in the walls?
The house utilizes 70mm sandwich panels with EPS as the standard insulation material, providing excellent thermal regulation for various climates.
How is the expandable house transported?
The design is optimized for logistics. One 40HQ shipping container can hold up to 2 units of the expandable container house, which greatly reduces international shipping costs.
Is the flooring material durable and safe?
Yes, we use 18mm glass magnesium boards which are completely asbestos-free. It is then finished with high-quality palm wood style floor leather for both durability and aesthetics.
