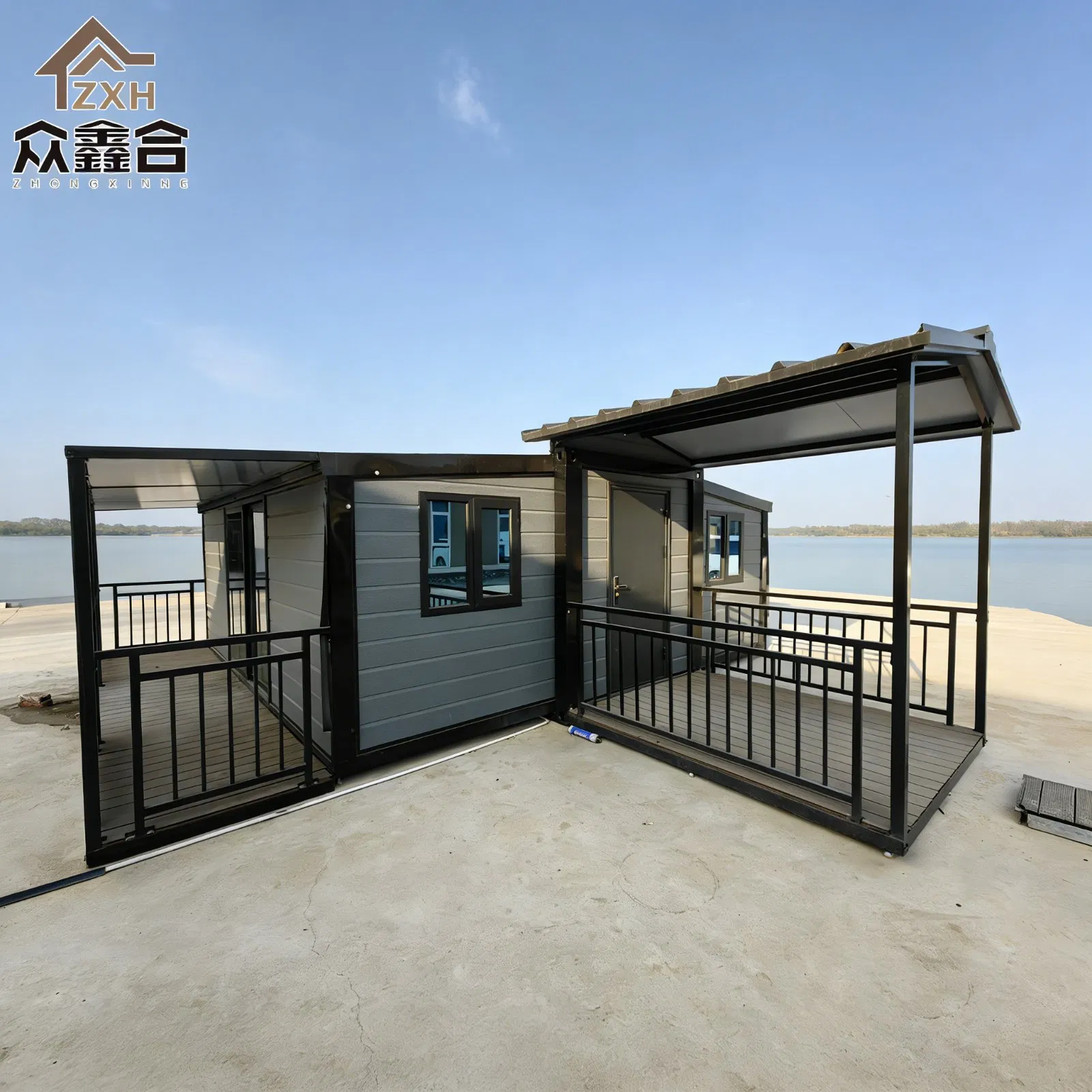

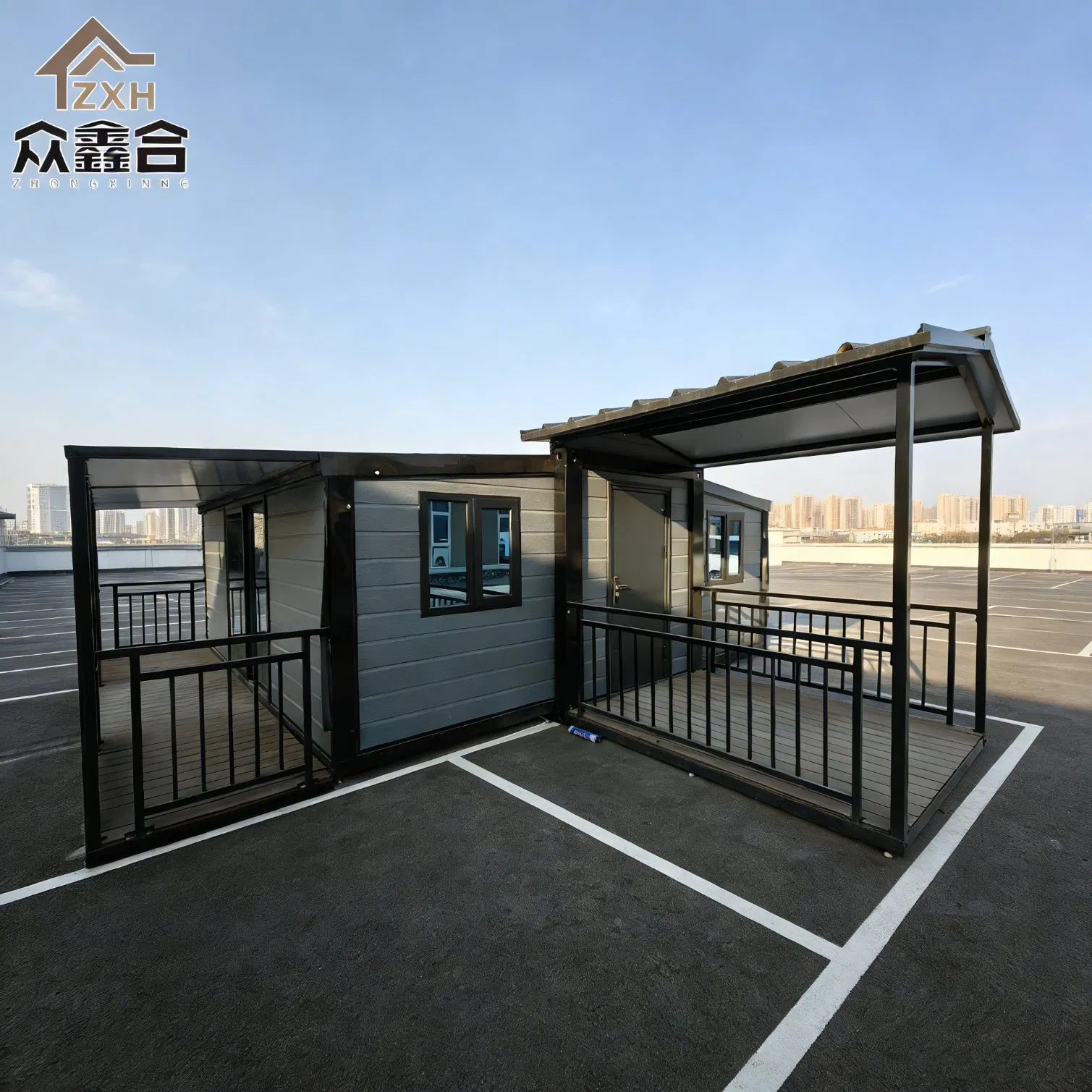

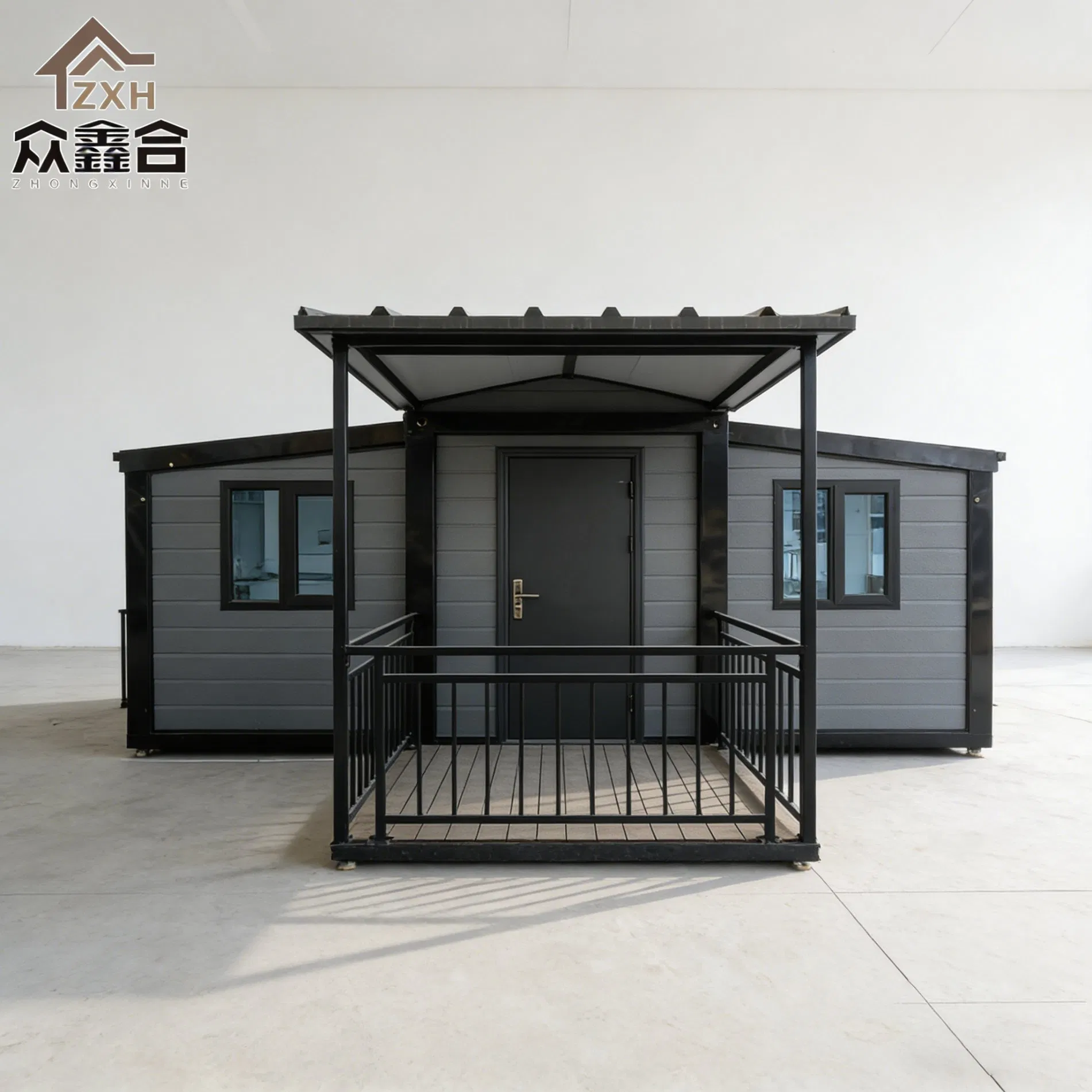

All Size Available Luxury Modular Expandable Portable Homes 1-4 Bedroom Tiny Villas

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Basic Specifications

Model NO.
ZXH
Installation
Fast Installation
Material
Sandwich Panel
Wall Thickness
50#/65
Warranty
1 Year
Certification
ISO, CE
Dimensions
5900*6200*2480mm
HS Code
9406000090
Capacity
500,000 PCS/Month
🛡️

Key Features

Earthquake Resistant, Easily Movable, Eco-Friendliness, Flexibly Combinable, Leak Proof, Moisture Proof, Safe, Thermal Insulation, Waterproof.
⚙️

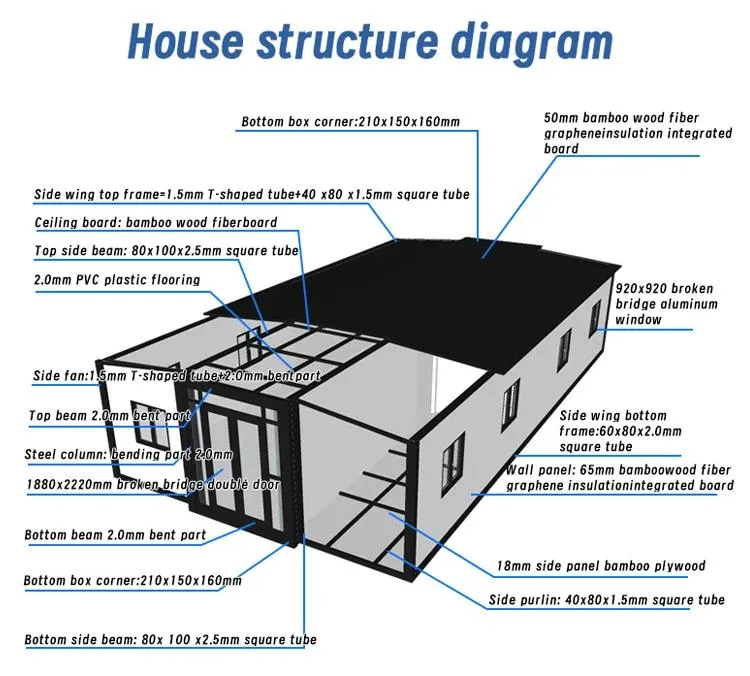

Technical Parameters

Category Detailed Description
Framework Main Beam Galvanized square tube 80*100*2.5MM Q235
Sub-frame Galvanized square tube 40*60*1.0MM Q235
Frame Color White frame (Painting process)
Floor System Board Material 18mm glass magnesium board (asbestos-free)
Finish Floor leather Palm wood pattern
Insulation Wall Panel 70mm sandwich board, wood grain color, EPS insulation
Roofing 50mm sandwich panel, color steel plate base
Electrical Standard Australian standard wires, LED ceiling lights, 2P63A main switch

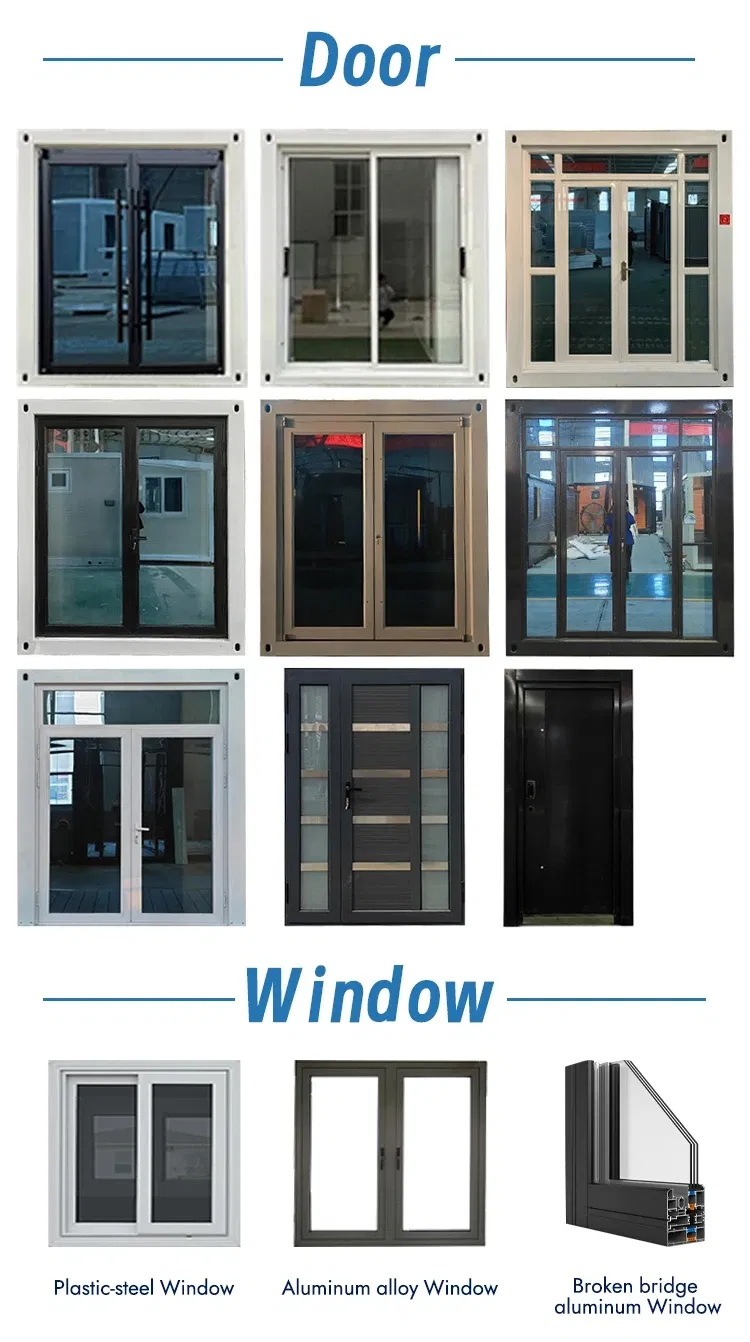

Doors & Windows Specs Thermally-insulated aluminum doors, double-glazed tempered glass windows
💡

Design Philosophy

🔹 Commercial Exhibition Use
Ideal for product launches and exhibitions. The double-wing folding mobile house serves as a novel exhibition space that attracts attention and adds brilliance to commercial activities.
🔹 Cost & Efficiency Advantages
Easy transportation via standard container tools reduces logistics costs. Factory prefabrication allows for rapid on-site assembly, significantly minimizing labor and time.
🔹 Eco-friendly Materials
Crafted from recyclable steel and sustainable panels, offering durability while aligning with green living pursuits.
🔹 Flexible Expansion
Modular assembly allows for horizontal and vertical expansion, suitable for residences, pop-up stores, and emergency facilities.
🔹 Tourism & Vacation
Quickly deployed in picturesque locations to provide tourists with a cozy, unique accommodation environment.
Full Layout
📦

Packaging & Delivery

Package Size
590.00cm * 220.00cm * 248.00cm
Gross Weight
3120.000kg
Transport
40HQ container holds 2 units

Frequently Asked Questions

1. How long does it take to install the expandable container house?
The house is designed for fast installation. With a pre-fabricated structure, on-site assembly can typically be completed in just a few hours with a small team.
2. Is the house suitable for extreme weather conditions?
Yes, the structure is earthquake-resistant, moisture-proof, and features high-quality thermal insulation and waterproofing to withstand various environmental conditions.
3. Can the electrical system be customized for different countries?
Absolutely. While standard Australian electrical components are often used, the circuits, sockets, and breakers can be customized to meet specific certification requirements of your country.
4. What materials are used for the wall insulation?
The walls utilize 50mm to 70mm sandwich panels (EPS standard) with double-sided color steel plates, providing excellent thermal and sound insulation.
5. How are these units transported?
The units are designed for easy logistics. A standard 40HQ shipping container can hold 2 units, significantly reducing international shipping costs.
6. Are the materials used environmentally friendly?
Yes, the house is built using recyclable steel and environmentally sustainable panels, minimizing the environmental footprint during production and use.
