Designed Modular Prefab Container Building for Living

Customization:	Available
Application:	Apartment
Fast Installation:	Standard Installation

Send Inquiry

Product Description

Basic Specifications

Model NO.

H0012

Feature

Earthquake Resistant, Easily Movable, Thermal Insulation

Material

Sandwich Panel

Roof&Wall

Sandwich Panels (EPS/Rockwool/Grasswool/PU)

Structure

Galvanized & Painted Steel Beams

Doors

Sandwich Panels with Aluminum Frames

Windows

Hollow Glass, Anti-Theft Window

Life Time

Over 25 years

Usage

Warehouse, Villa, Dorm, Office, Workshop

Certification

ISO, CE

Spec

Mini/20FT/40FT/Single & Mutiple storey

Capacity

100 Sets/Month

Modular Flat Packed Containers Instruction

Flat packed container is a classic element of modular building. It has gained significant popularity due to its inherent style, wide availability, rapid construction speed, and relatively low expense. Flat pack buildings such as container houses are more eco-friendly compared to traditional construction methods.

These container buildings are engineered for durability. The steel profiles are galvanized and painted, ensuring a lifespan of more than 30 years even in harsh natural conditions like high humidity and heavy rain. Various grades of insulation are available to suit different geographical areas and climates.

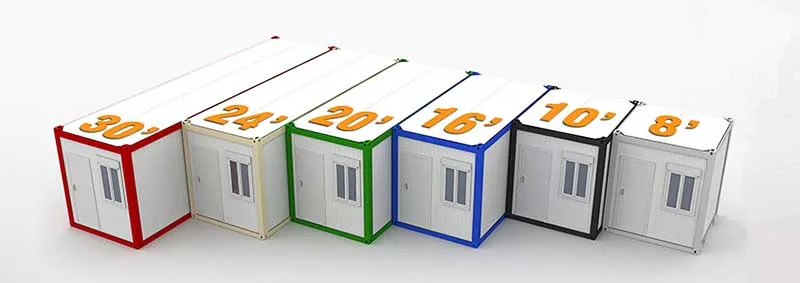

Size Introduction

Size Type	External Dimensions (mm)			Internal Dimensions (mm)			Weight
Size Type	Length	Width	Height	Length	Width	Height	Weight
8'X8'	2435	2435	2896	2235	2235	2625	950kg
10'X8'	3025	2435	2896	2825	2235	2625	1150kg
16'X8'	4885	2435	2896	4685	2235	2625	1350kg
20'X8' Standard	6055	2435	2896	5855	2235	2625	1800kg
24'X8'	7200	2435	2896	7000	2235	2625	2300kg
30'X8'	9000	2435	2896	8800	2235	2625	2450kg
20'X10'	6055	3000	2896	5855	2800	2625	2380kg

* External height of 3300mm is also available. Individual packing height: 648mm.

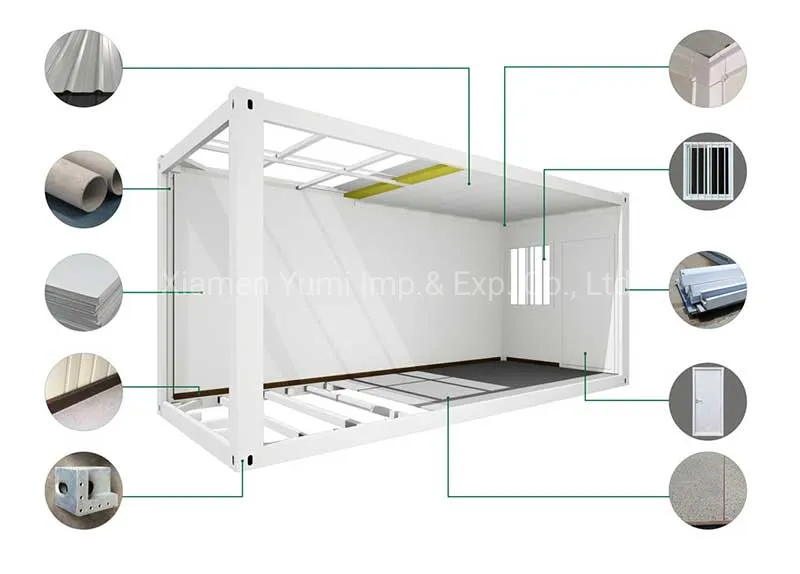

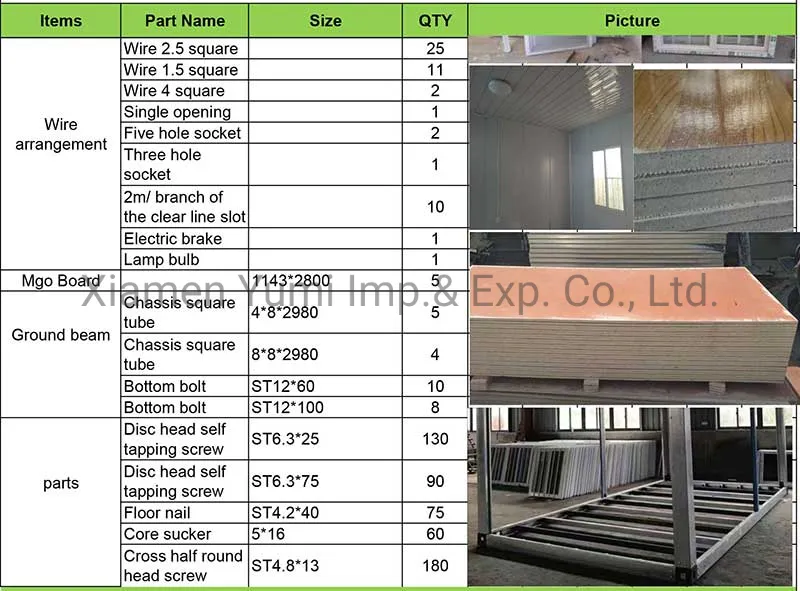

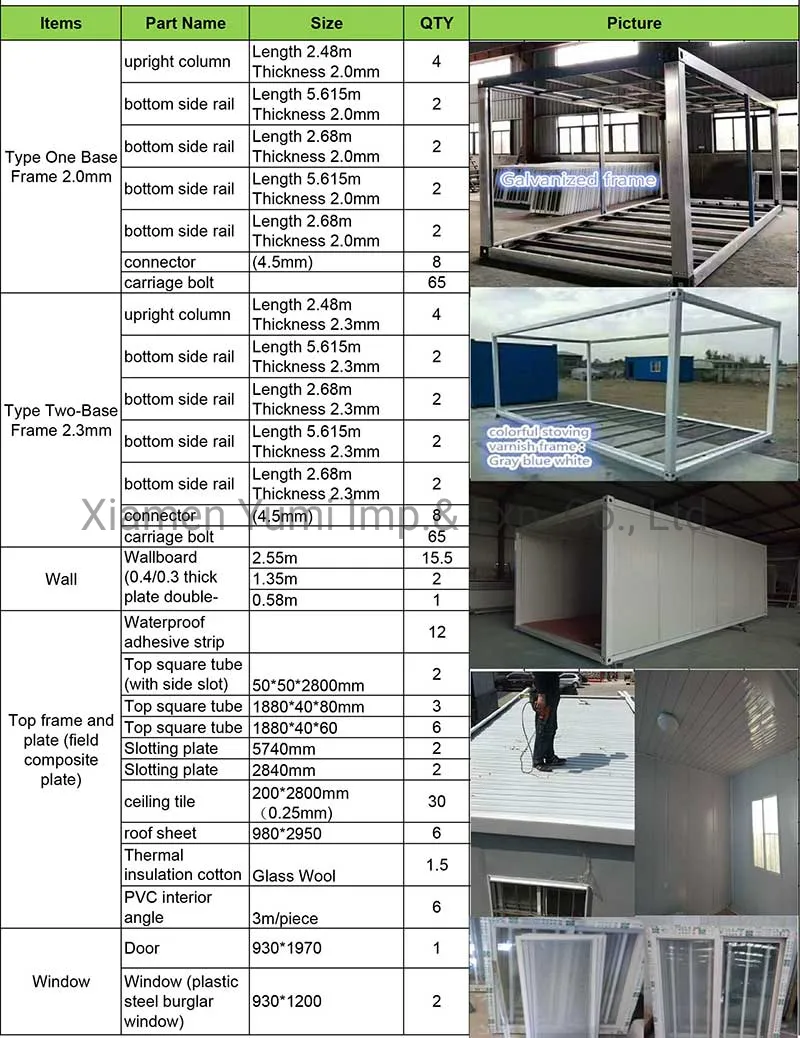

Material List & Technical Details

Core Product Advantages

🧩

FLEXIBILITY

Panelized modular units allow combining multiple units to create expandable spaces, either adjoined side-by-side or stacked vertically.

🚛

LOGISTICS

Shipped in a knock-down state, allowing 4-6 units to fit inside a single 40HQ sea freight container, providing a huge freight advantage.

🎨

DESIGN

Interchangeable structurally-insulated (SIP) wall panels. Locations for windows and doors can be moved as needed. Resistant to rot and mold.

🏗️

STACKABLE

Units are engineered to be self-supporting and can be stacked up to 3 units high for living and operational use.

🛠️

EASY ASSEMBLY

User-friendly design requiring only hand-tools and overhead lift support. Assembly takes approximately 8 man-hours.

🏢

MODULARITY

Shares dimensions with standard 20ft ISO Containers, making them a perfect vertical solution for congested jobsites.

Product Applications

Temporary on-site offices for construction and mining
Emergency refuges and disaster relief housing
Commercial buildings including coffee shops and newsstands
Modern civil buildings and residential prefab houses

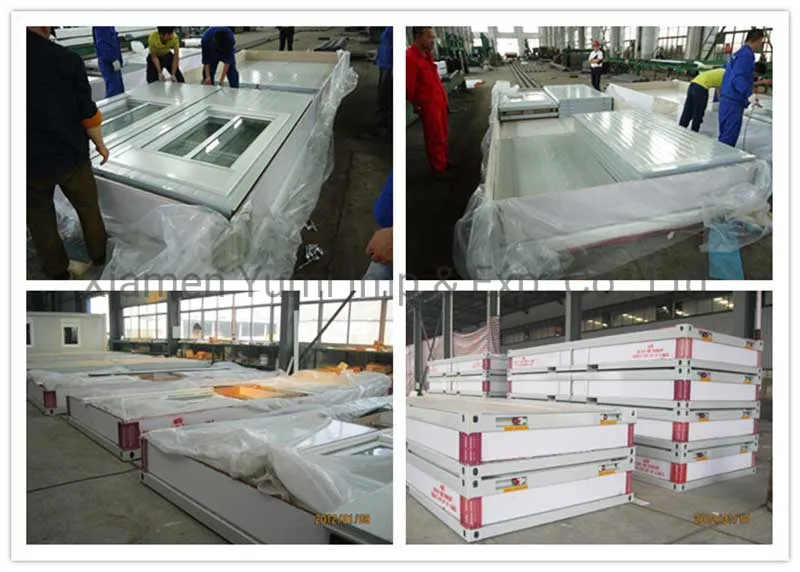

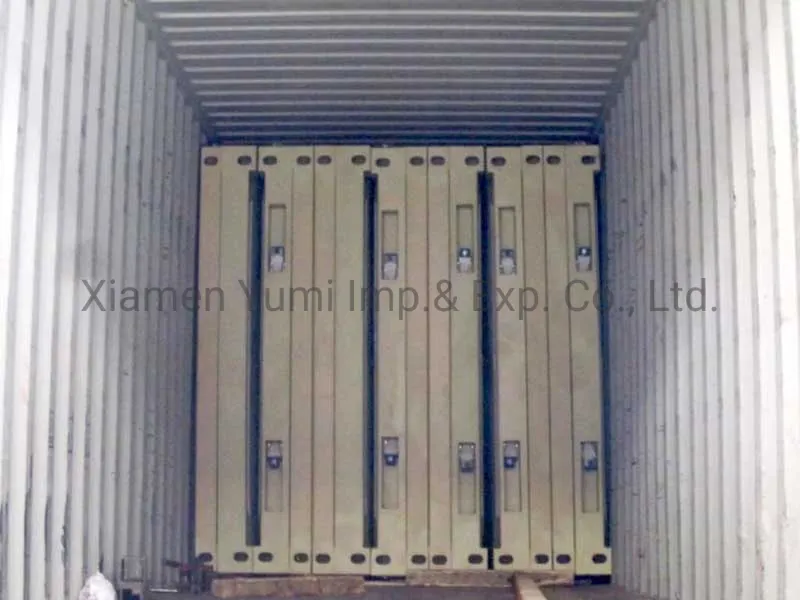

Packing & Loading

Professional Service & Support

We provide professional steel structure solutions globally. Our team ensures project success through:

One-to-one professional sales service
Competitive pricing through integrated industry and trade operations
Experienced engineering support for technical requirements
Comprehensive after-sales service

Frequently Asked Questions (FAQ)

Q: What is the expected lifespan of a flat pack container house? A: Our container houses are built with galvanized and painted steel profiles, providing a lifespan of over 25-30 years even in humid or rainy environments.

Q: How many units can be transported in a single shipping container? A: Thanks to the knock-down flat pack design, 4 to 6 units can fit inside a single 40HQ sea freight container, significantly reducing logistics costs.

Q: Can these container units be stacked? A: Yes, the units are engineered to be self-supporting and can be safely stacked up to 3 storeys high.

Q: Is the assembly process difficult? A: Not at all. The units are designed to be user-friendly. Assembly typically takes about 8 man-hours using standard hand tools and basic overhead lift support.

Q: Are the wall panels customizable? A: Yes, we use interchangeable SIP wall panels. You can move the positions of windows and doors according to your specific project needs.

Q: What kind of insulation is used? A: We offer various sandwich panel options including EPS, Rockwool, Grasswool, and PU to meet different thermal insulation requirements based on your location.
