Basic Information
Model NO.
STL-Steel Structure Building
Construction Member
H Beam and Column, Truss Structure
Grade
Steel Structure Building
Molding Method
Welded or Hot Rolled H Beam
Standard
GB, ASTM, DIN, BS, En1090
Purlin
C Section or Z Section Steel
Certification
ISO / SGS / CE/ BV
Capacity
100000sqm Per Month
Product Introduction

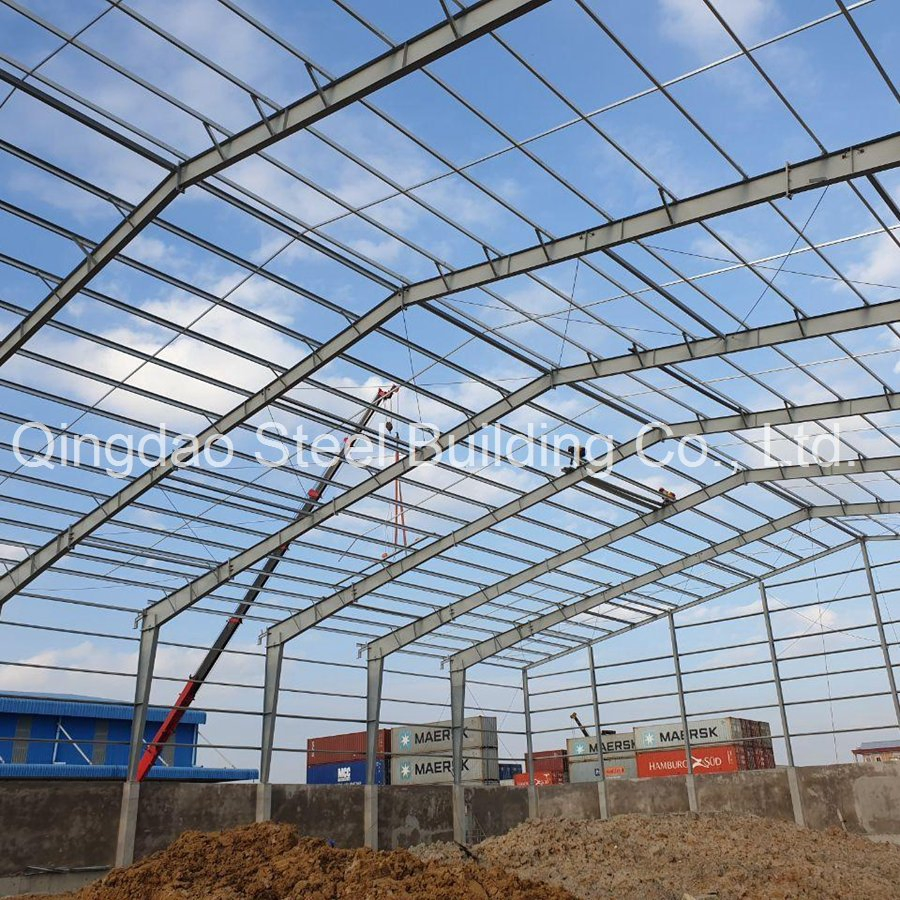

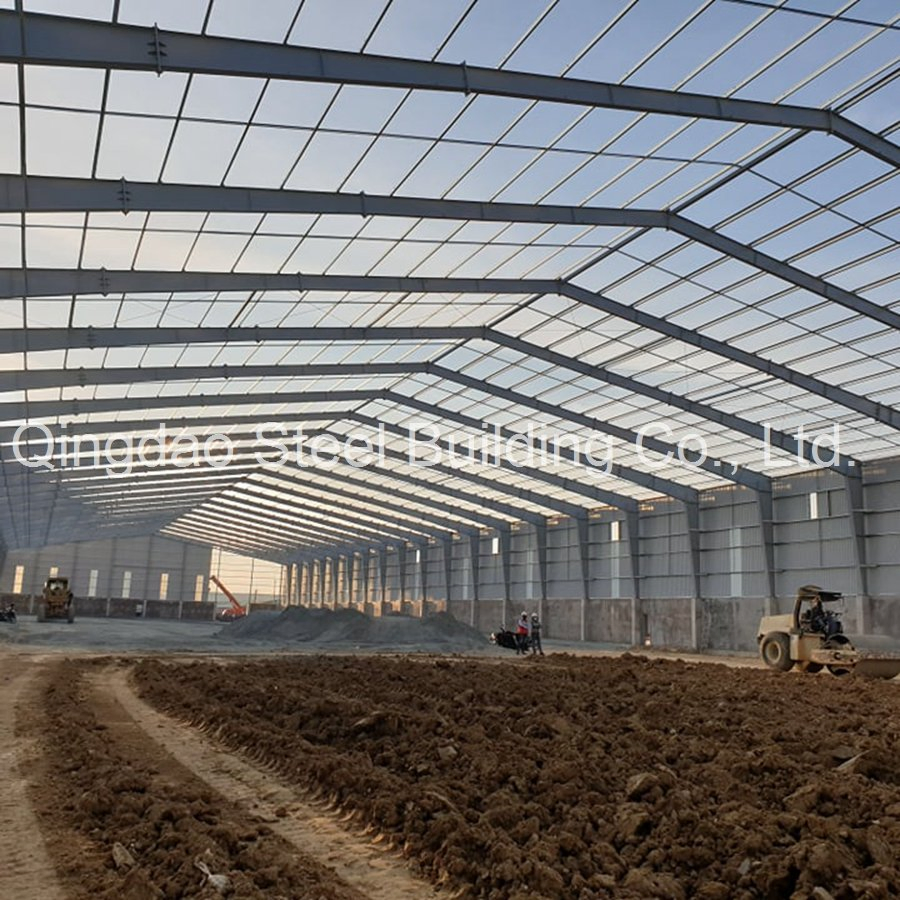

Pre-Engineered Light Steel Structure Frame Building
Comprehensive solutions for Warehouses, Workshops, Factories, Plants, Car Parks, Stadiums, Schools, Hospitals, and Storage facilities. Prefabricated industrial metal structures designed for durability and efficiency.
Key Advantages
- Free architectural drawings (2D & 3D) provided.
- Structural frame design life exceeding 50 years.
- Advanced resistance against wind, snow, and earthquakes.
- Adherence to multiple international standards: EN1090 (Europe), AS4100 (Australia), AISC-360-05 (American).
- Clear span capabilities up to 60m.
- High-strength steel materials: S355JR, Q355B, GR50.
- Bolt assembly without on-site welding for faster installation.

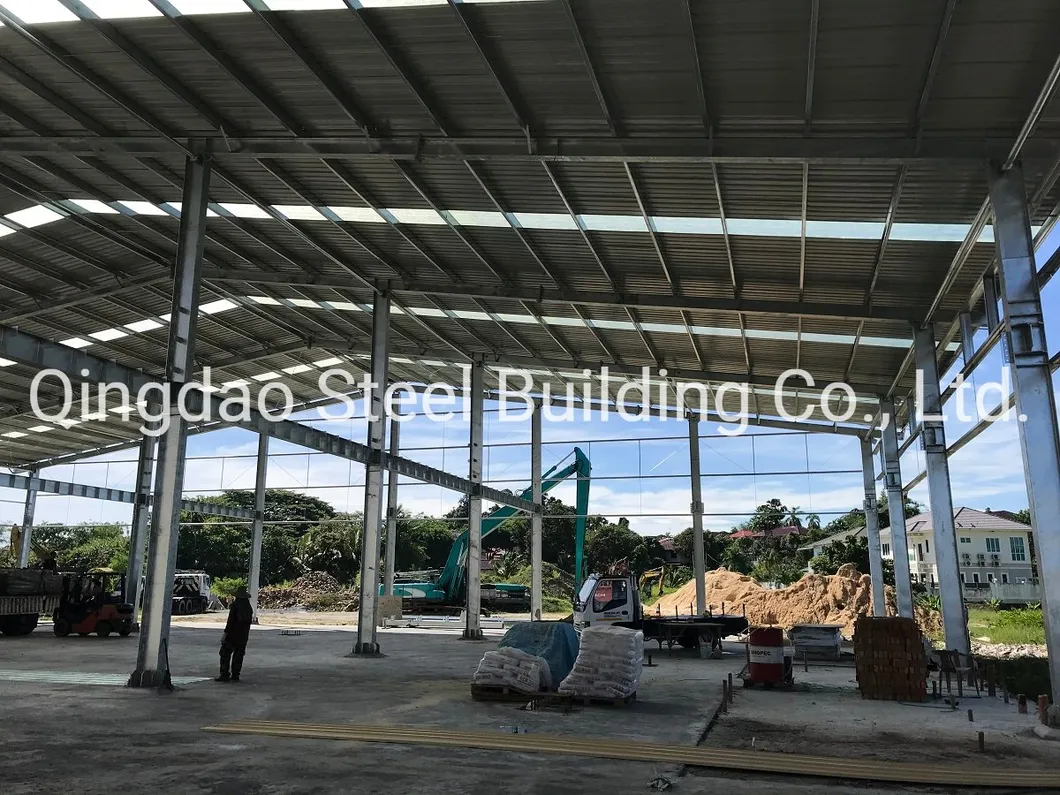

- Hot-dip galvanizing or painted options available for corrosion protection.
General Configuration & Specifications
| System |
Component |
Specification Details |
| Main Steel Frame |
Column |
Q235B, Q355B, Q345B Welded or Hot Rolled H Section Steel |
| Beam |
Q235B, Q355B, Q345B Welded or Hot Rolled H Section Steel |
| Secondary Frame |
Purlin |
Q235B, Q345B, Q355B C and Z Purlin |
| Tie Beam |
Q235B Circular Steel Pipe |
| X Brace |
Q235B Round Bar or Angle Steel |
| Maintenance |
Roof Panel |
Sandwich Panels (Fiber Glass/Rock Wool/EPS/PU) or Single Steel Sheet |
| Wall Panel |
Sandwich Panel or Corrugated Steel Sheet |
| Accessories |
Door/Window |
PVC/Aluminium Windows; Sliding or Rolling Doors |
Supply Types
Industrial
Hangar kits, steel halls, storage sheds, warehouses, workshops, processing plants.
Commercial
Logistics centers, office buildings, hotels, mezzanines, aircraft hangars, villa frames.
Agriculture
Hay sheds, poultry houses, chicken farms, cow barns, dairy farms, pig houses.
International Project Experience
- Europe: EN1090 EXC2 (CE Approved) - Norway, Iceland, France, Spain.
- Australia: AS-4100-1998 (SGS Approved) - Melbourne, Sydney, Adelaide, Auckland.
- America: AISC 360-16 - USA, Mexico, Colombia, Chile, Brazil.
- Africa/Asia: BS5950, GB Standards (BV/SGS Approved).

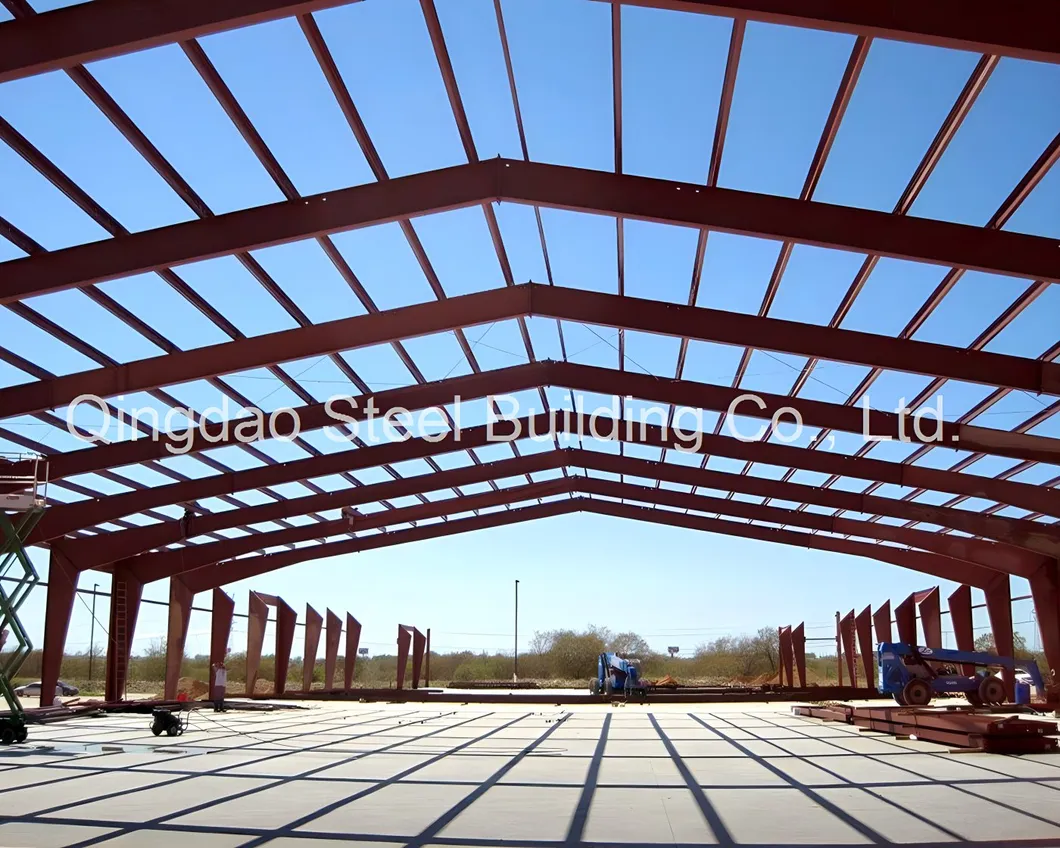

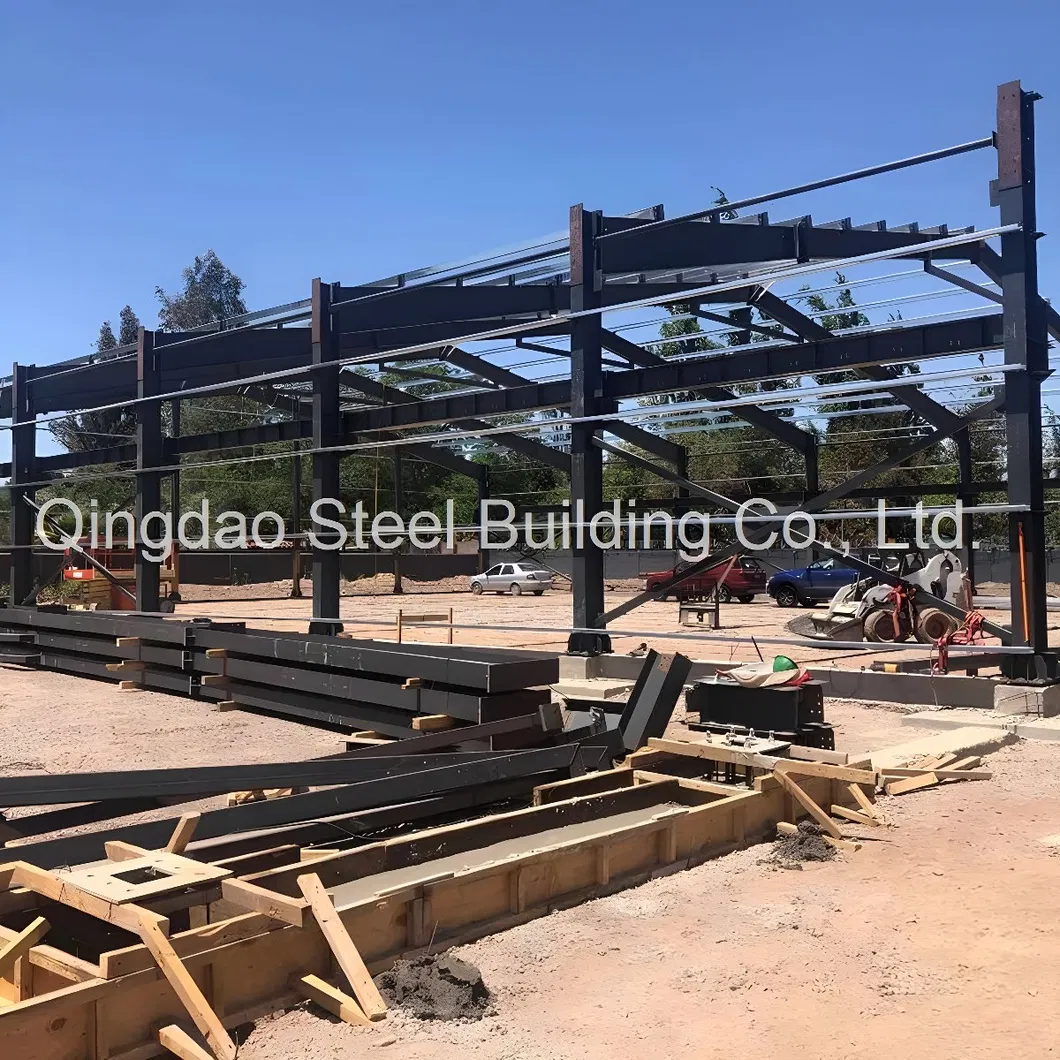

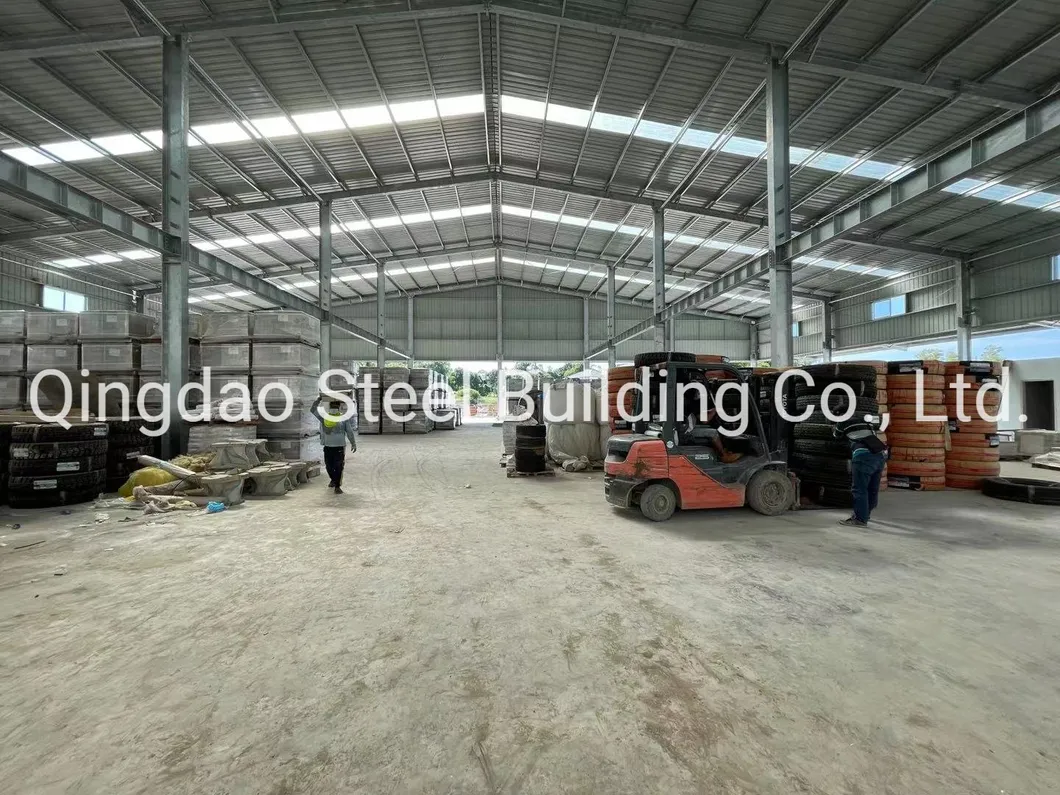

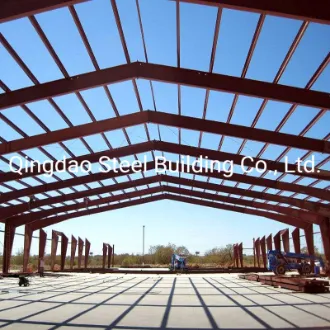

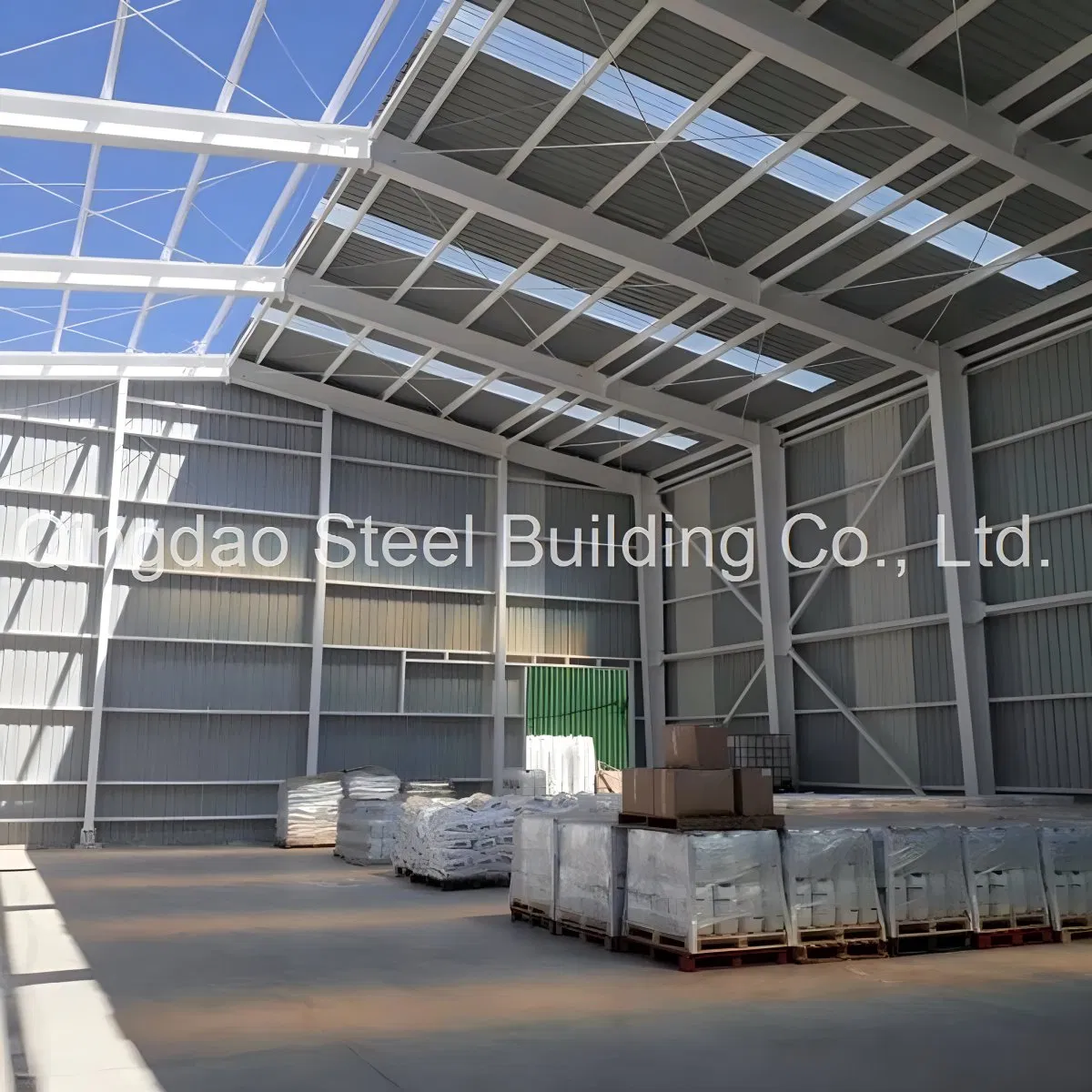

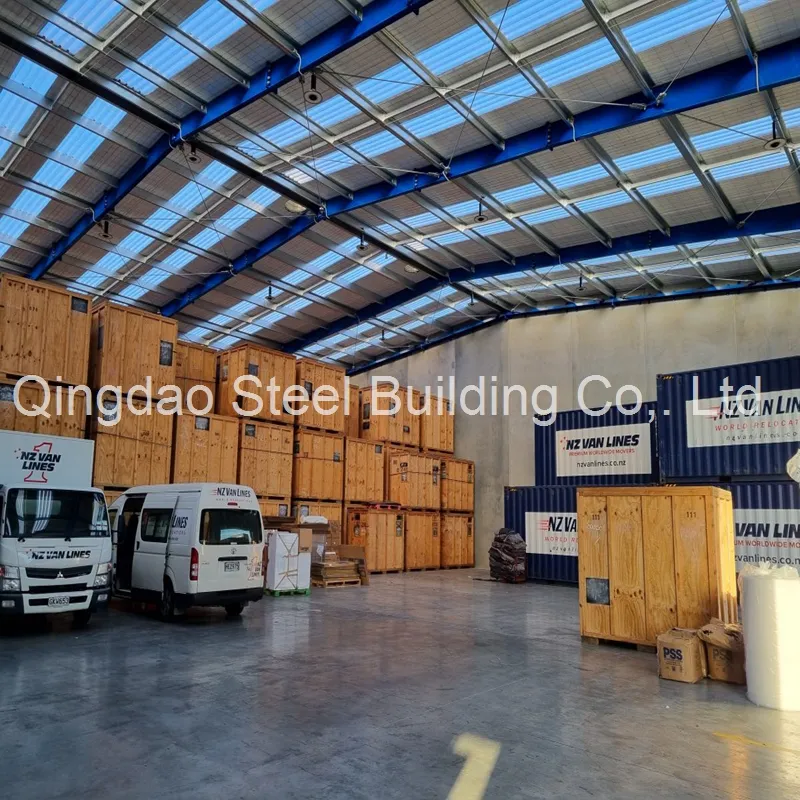

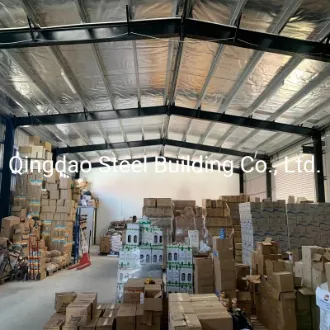

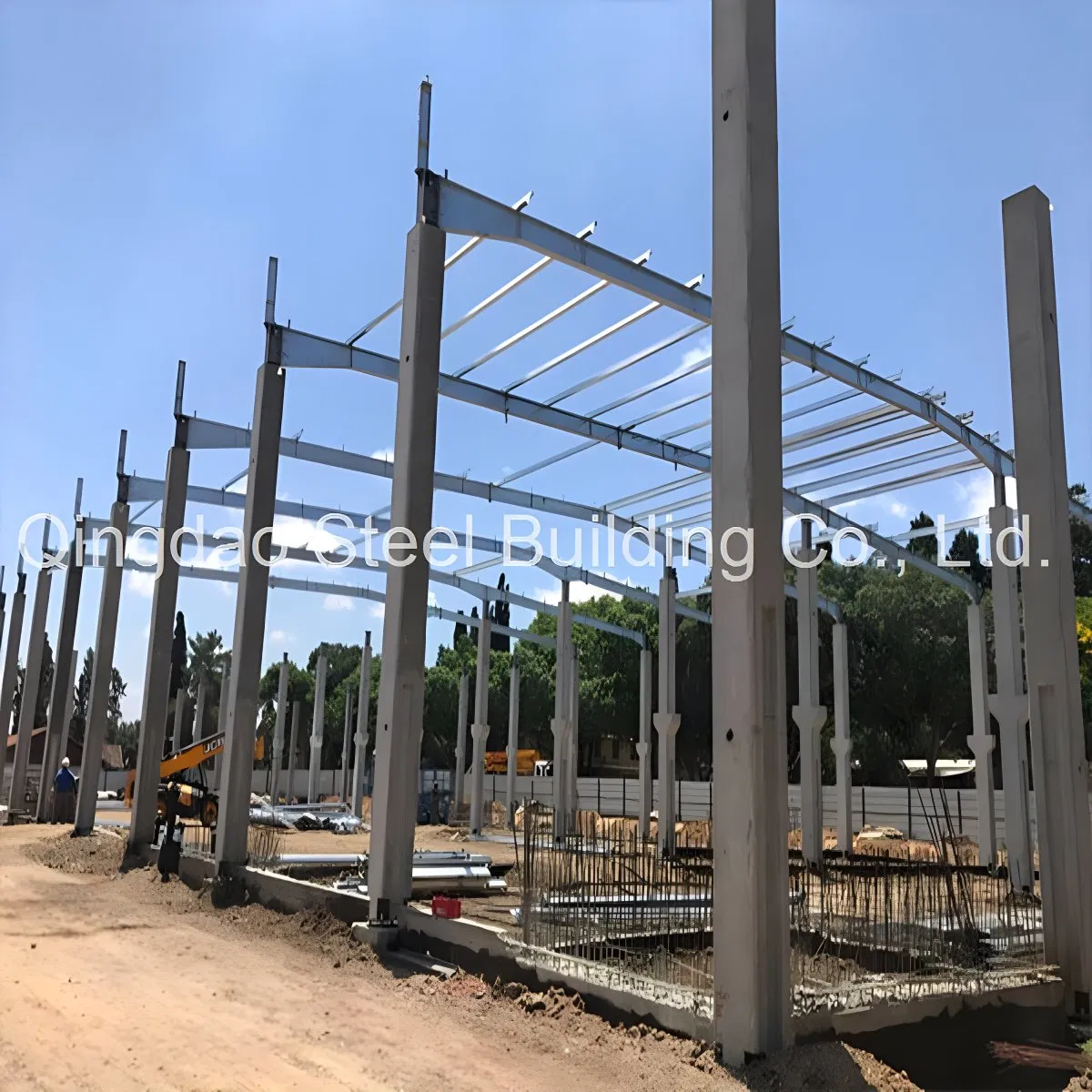

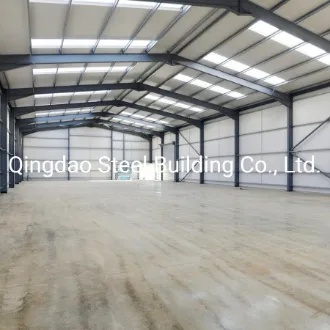

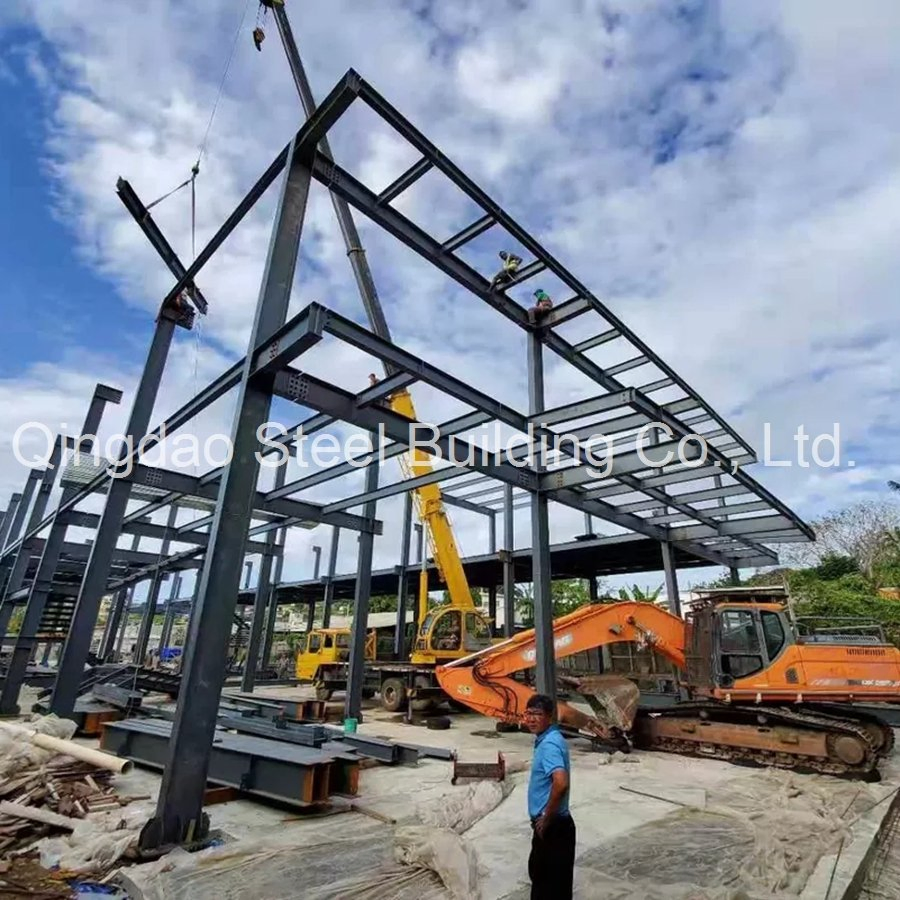

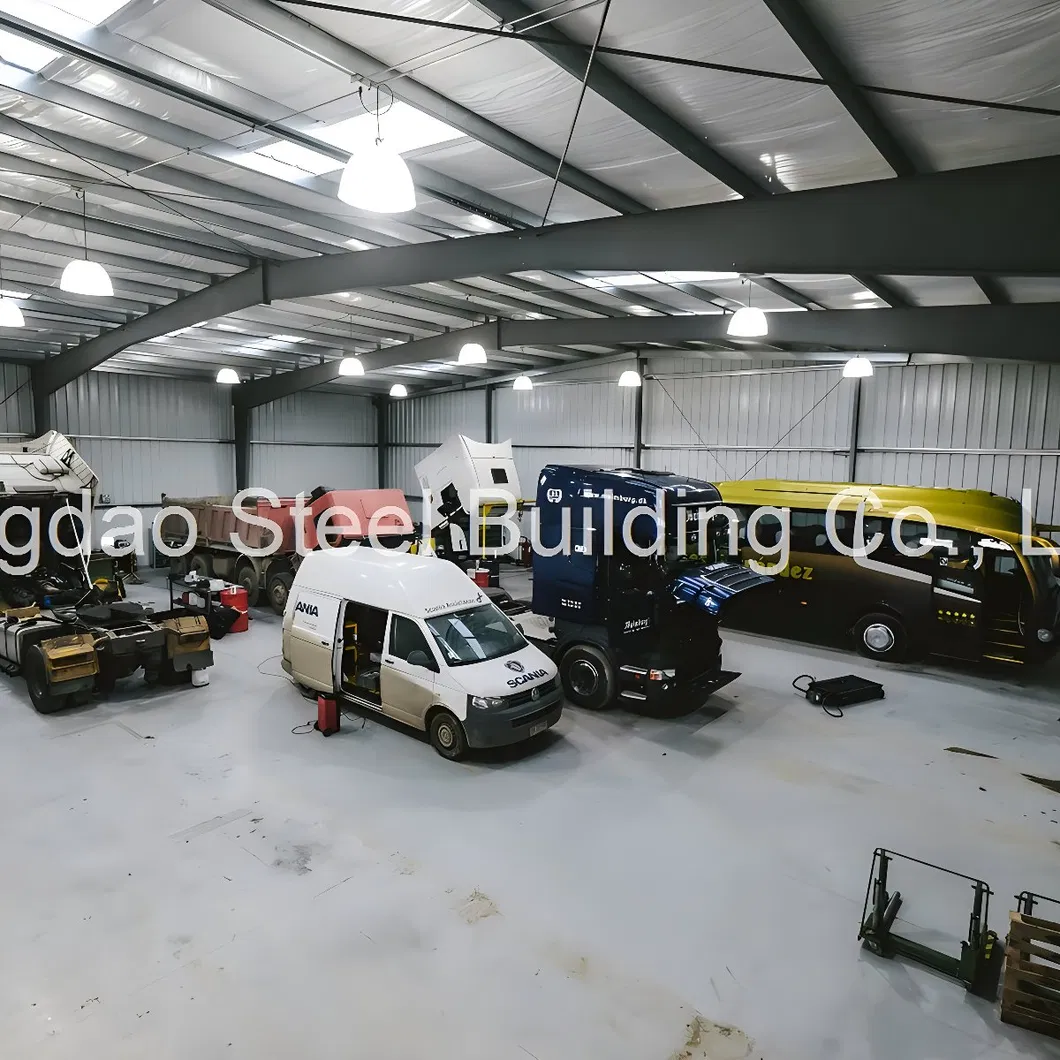

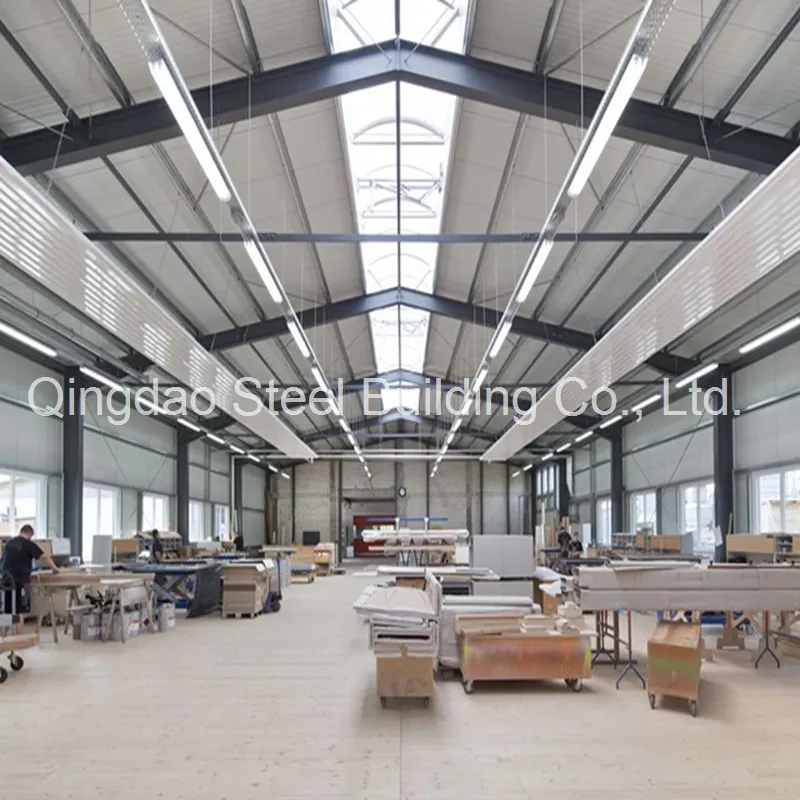

Project Showcase
How to Request a Quotation
To provide an accurate design and price, please provide the following details:
- Location: Country and city of construction.
- Size: Length * Width * Eave Height.
- Environmental Loads: Local wind speed (km/h) and snow load (kg/m²).
- Insulation: Whether sandwich panels are required or single steel sheets.
- Operational Needs: Mezzanine floors, cranes, or specific door/window requirements.
- Surface Treatment: Painting or Hot-dip galvanizing.
Frequently Asked Questions
1. Is the steel structure building cost-effective?
Yes, the price per square meter can be up to 25% lower than conventional concrete buildings due to faster erection times and reduced labor costs.
2. How long does the installation take?
All components are pre-fabricated in the factory and connected by bolts at the site. This significantly reduces assembly time compared to traditional construction.
3. Can the building withstand extreme weather?
Our engineers calculate dimensions based on local wind speeds and snow loads to ensure the structure meets safety requirements for high-grade resistance.
4. What quality control measures are in place?
We perform self-inspections at every step of design and fabrication. Third-party inspections are also welcome to ensure adherence to international standards.
5. Are the buildings environmentally friendly?
Steel buildings are a "green" solution. They are energy-efficient, produce less waste during construction, and the steel itself is 100% recyclable.
6. Do you provide international installation support?
Yes, we can provide detailed installation drawings, videos, and professional technical supervisors to guide the installation on-site globally.
