Prefabricated Light Steel Frame Modular Home China Casa Prefabricada

Customization: Available
After-sales Service: Yes
Architecture: North American Style

Product Description

🏠Basic Info
Model NO.
DPBL-26-12
Certificate
CE, ISO, UL, Icc-Es, En 1090, SGS, Ios9001
Material
Steel Structure
Type
Detached Villa
Bedroom
4 Bedroom
Total Area
298.8m²
Wall
Thermal Metal Siding
Window
Aluminum Window
Transport Package
40'hq Container
Production Capacity
50000sets/Year
📝Product Description: Cork House
4 Bedrooms
5 Bathrooms
1 Living Room
298.8m² Total Area

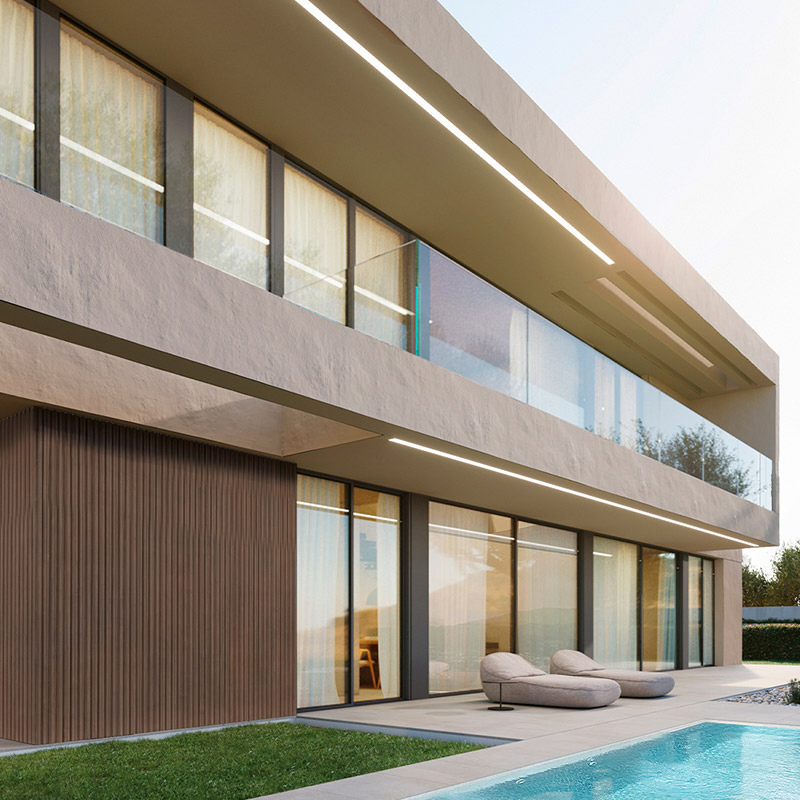

Nestled on a spacious footprint of 23.68 by 20 meters, the Oakland House redefines contemporary family living. Its distinctive L-shaped design is more than just an architectural statement—it is a deliberate layout that seamlessly blends indoor luxury with outdoor serenity.

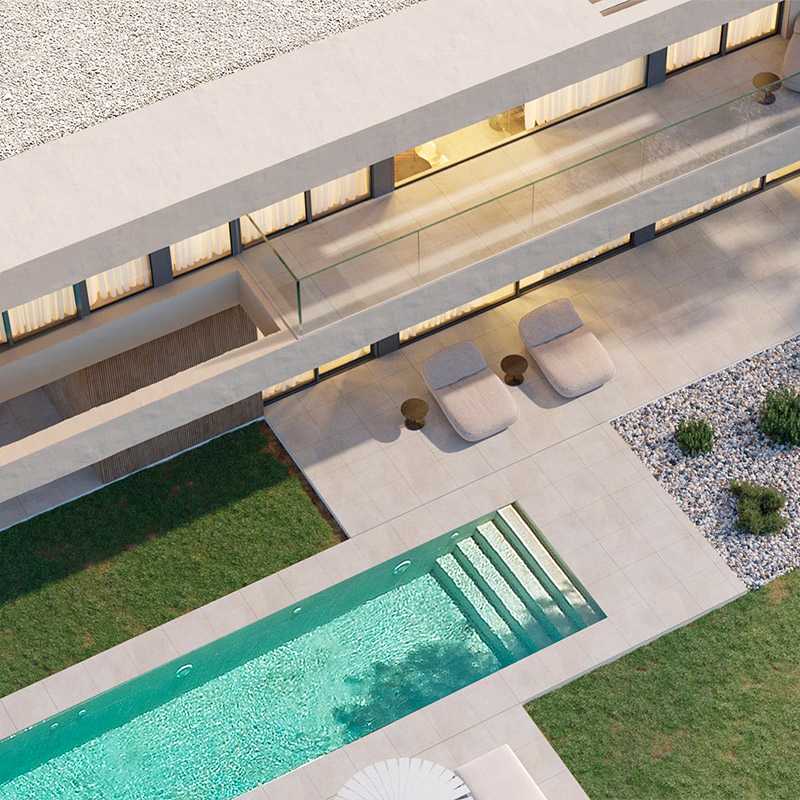

The home wraps around a private, sheltered patio, creating a natural extension of the living space where you can enjoy morning coffee or evening gatherings under the open sky.

📐Layout & Design

Upon entering, you are greeted by a voluminous, light-filled living room. The floor plan flows intuitively into an adjacent dining area and an open-concept kitchen, making it the perfect hub for daily life and entertaining. The ground floor is thoughtfully zoned for privacy, placing two well-appointed bathrooms and the staircase at the rear, while the left wing is dedicated to a luxurious master suite complete with a private bathroom.

Ascending to the second floor reveals a versatile retreat. Here, you will find two comfortable lounges and three additional bedrooms, each thoughtfully designed with direct access to their own individual washrooms—ensuring comfort and autonomy for every family member.

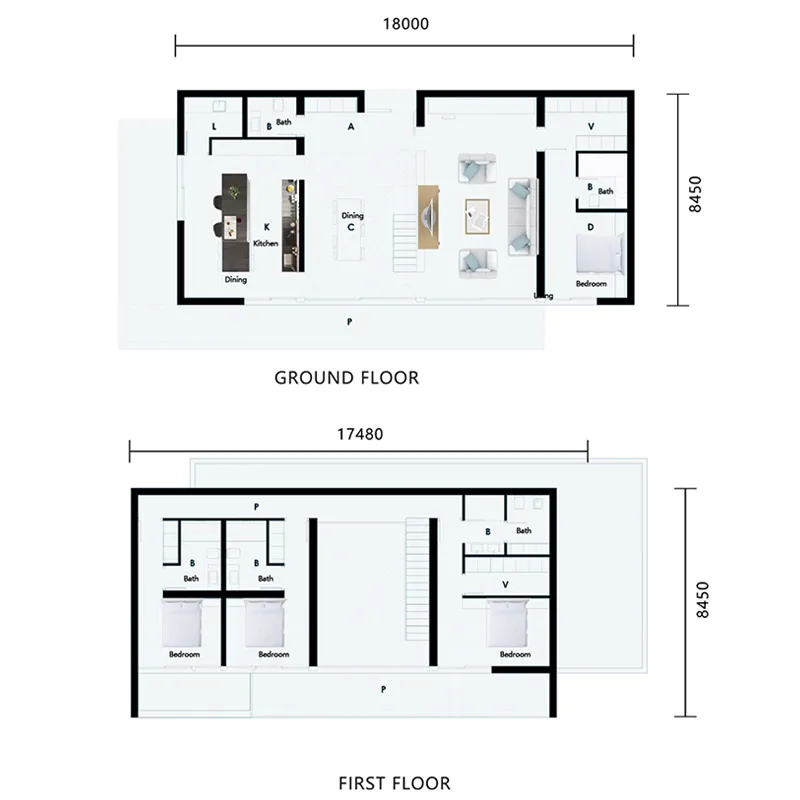

Floorplan
📊Product Parameters
Name: Cork House
Size: 18000×8450mm
Ground floor area: 152.1 sqm
First Floor Area: 147.71 sqm
Total Area: 298.8 sqm
Model: DPBL-26-12

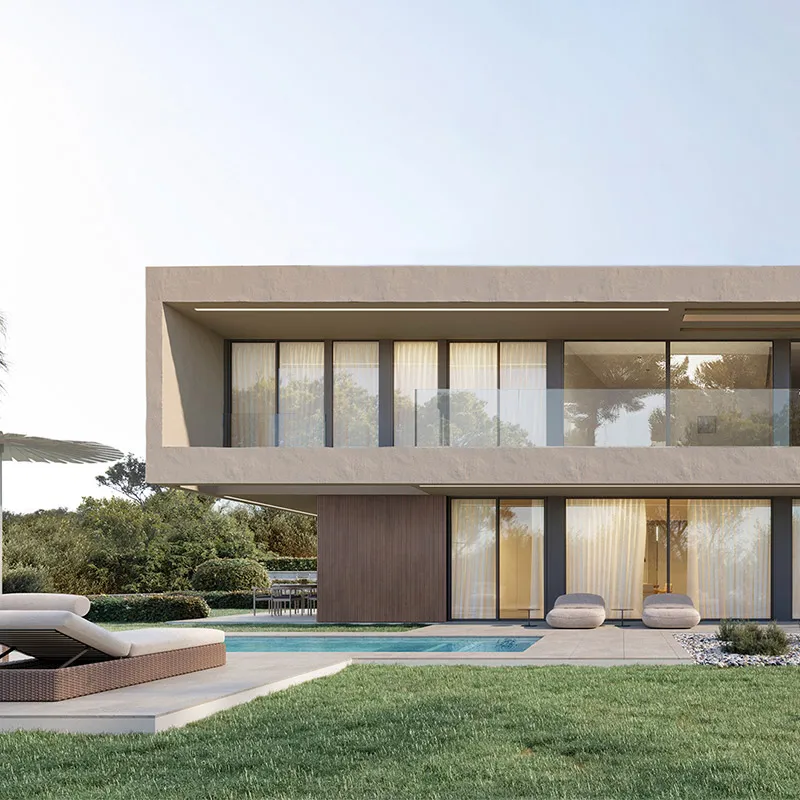

Model Preview
⚙️Specifications

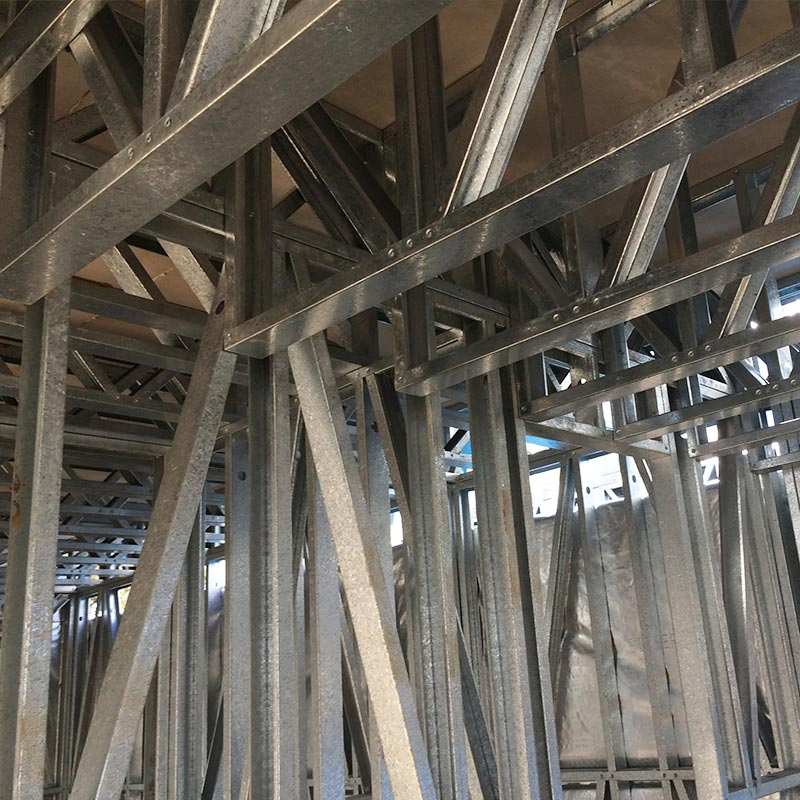

  • Structure: 0.75mm/0.95mm/1.15mm light gauge steel
  • Roof: Colorbond sheet, asphalt shingle, ceramic tile, stone-metal sheet
  • External wall: EPS sandwich panel, ALC panel, metal PU sandwich panel, fiber cement board
  • Internal wall: Gypsum board, MGO board, integrated wall panel
  • Insulation: R2.5/3.5/4/5 glass wool, rock wool
  • Flooring: Ceramic tile, laminated flooring, PVC flooring, wooden flooring
  • Windows & Doors: Double/single glass Alu. window; Security/Plywood/WPC doors
  • Systems: Electrical, plumbing, kitchen (cabinets, sink), and bathroom (washbasin, toilet, shower)

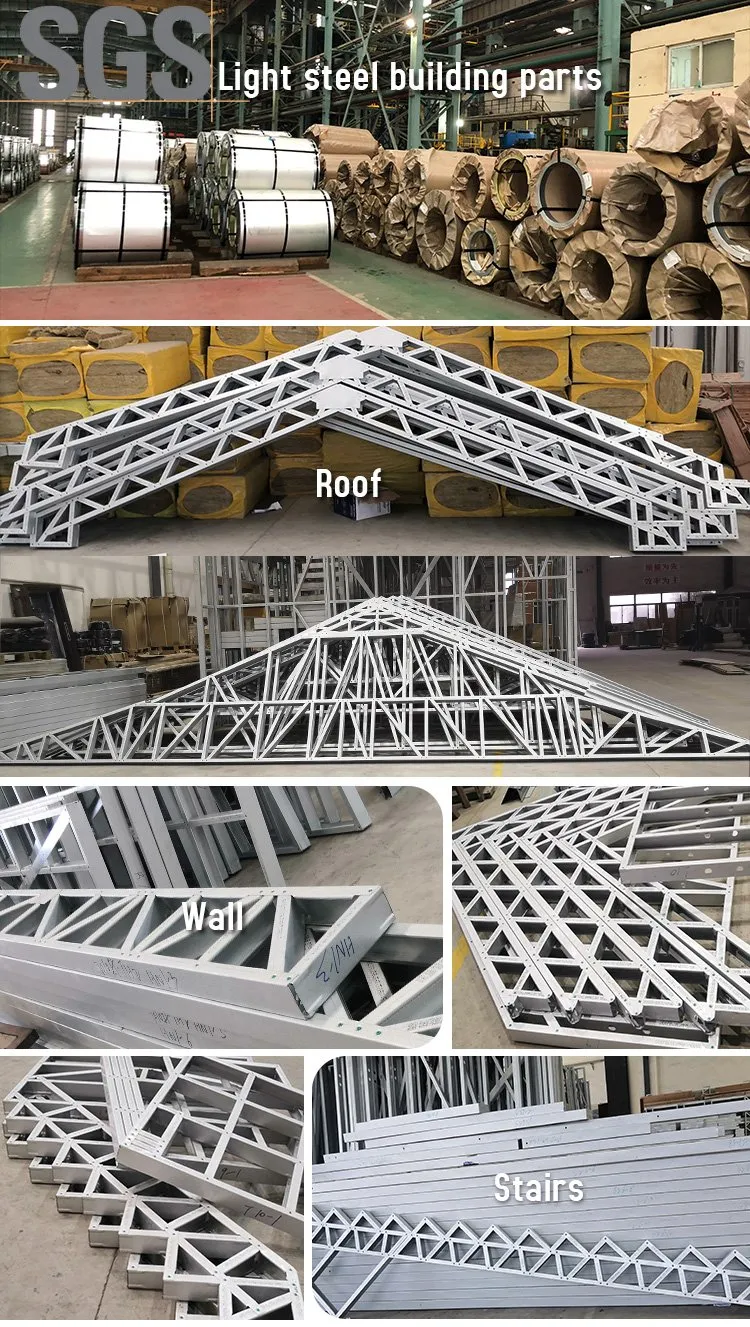

Technical Specifications
💎Why Choose Light Gauge Steel Structure?
  • Long Lifetime: Structure lasts 100 years (Z275 galvanized steel).
  • Earthquake Resistance: High seismic resistance, withstands 8+ grade earthquakes.
  • Wind & Snow Resistance: Max 60m/s wind; Max 2.9KN/m² snow.
  • Fire & Insect Proof: Materials are fire-resistant and free from insect damage.
  • Energy Efficient: 100mm thickness insulation matches 1m of brick wall.
  • Acoustic Insulation: 60db for exterior walls; 40db for interior walls.
  • Fast Assembly: Construction time is less than 1/3 compared to conventional methods.
📜Design Codes

Our structures adhere to international standards:

  • AISI S100 (North American Specification)
  • AS/NZS 4600 (Australian/New Zealand Standard)
  • BS 5950-5 (British Standard)
  • ENV1993-1-3 (Eurocode 3)

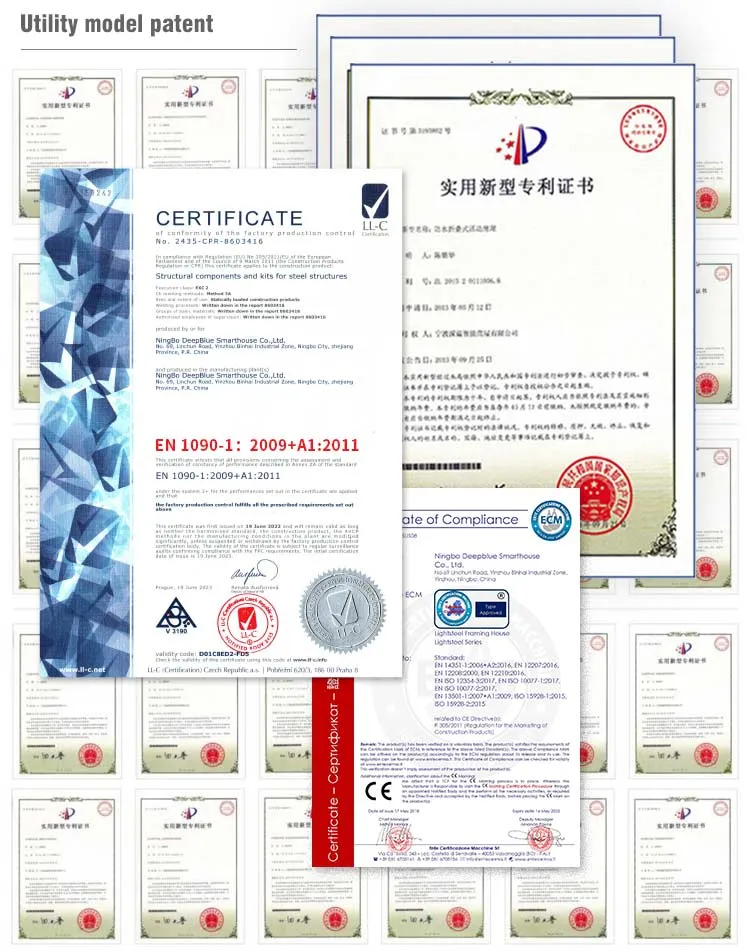

Design Standards

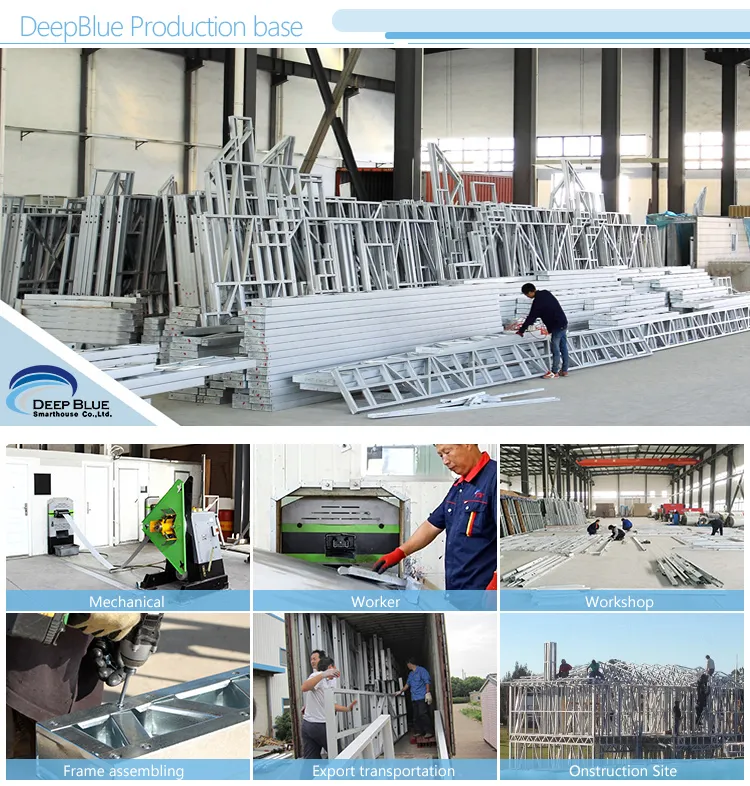

Steel System Benefits
📦Packaging & Shipping

All components are well-packed in export quality packages and shipped via 40'HQ containers to ensure safety during transit.

Frequently Asked Questions
Q1: How long does the light gauge steel structure last? The structural lifetime is designed for 100 years, using Z275 galvanized steel profiles with high strength (550Mpa).
Q2: Can the Cork House withstand extreme weather conditions? Yes, it is designed to resist winds up to 60m/s and 8-degree earthquakes, providing superior safety compared to traditional buildings.
Q3: What are the benefits of the L-shaped design? The L-shaped design creates a private, sheltered patio area, optimizing the blend between indoor luxury and outdoor living while providing efficient zoning for privacy.
Q4: How fast is the assembly process for this villa? The construction time is less than 1/3 of conventional construction. On average, one worker can install one square meter per day.
Q5: Is the house energy efficient and soundproof? Yes, the 100mm wall provides thermal insulation equivalent to a 1m brick wall. It also offers high acoustic insulation (60db for exterior walls).
Q6: Are the materials environmentally friendly? Absolutely. We use 100% recyclable green materials and a dry construction process that minimizes environmental waste.
