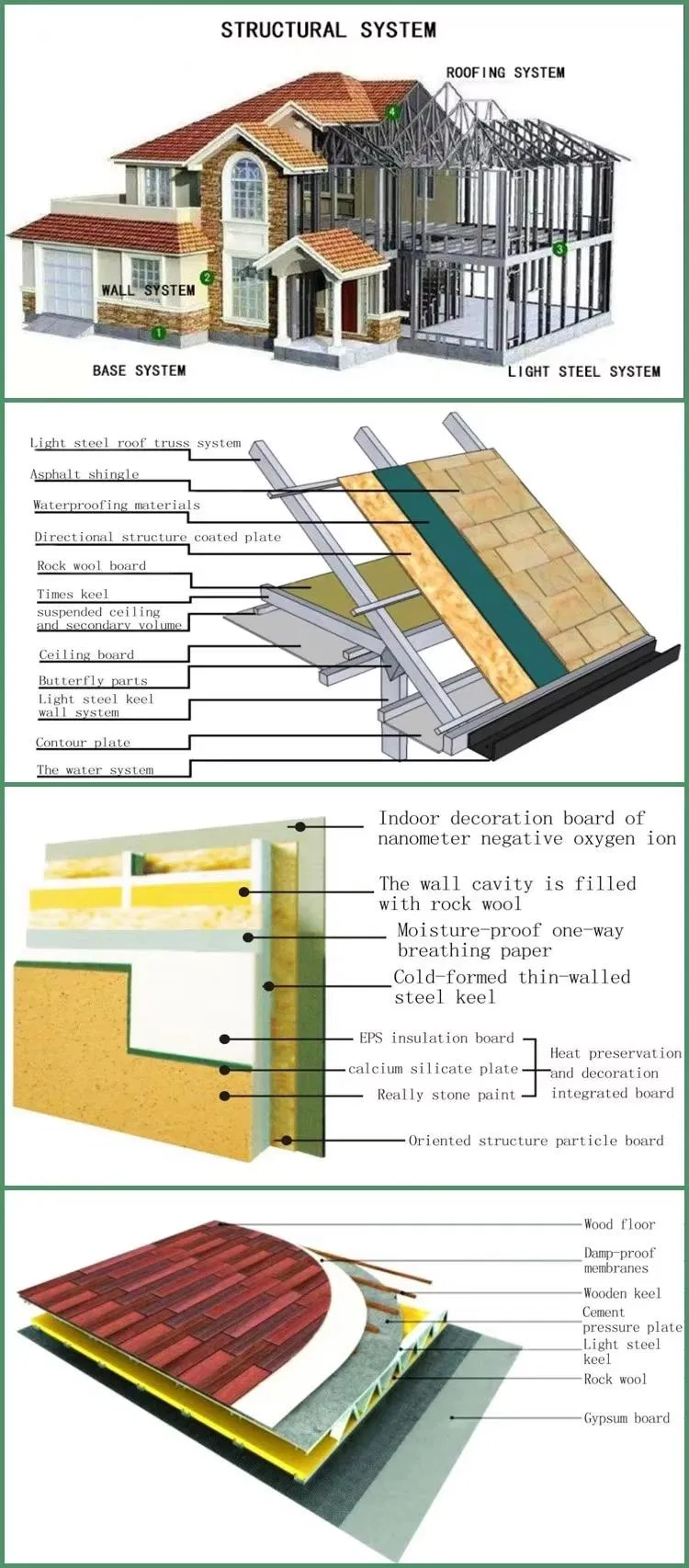

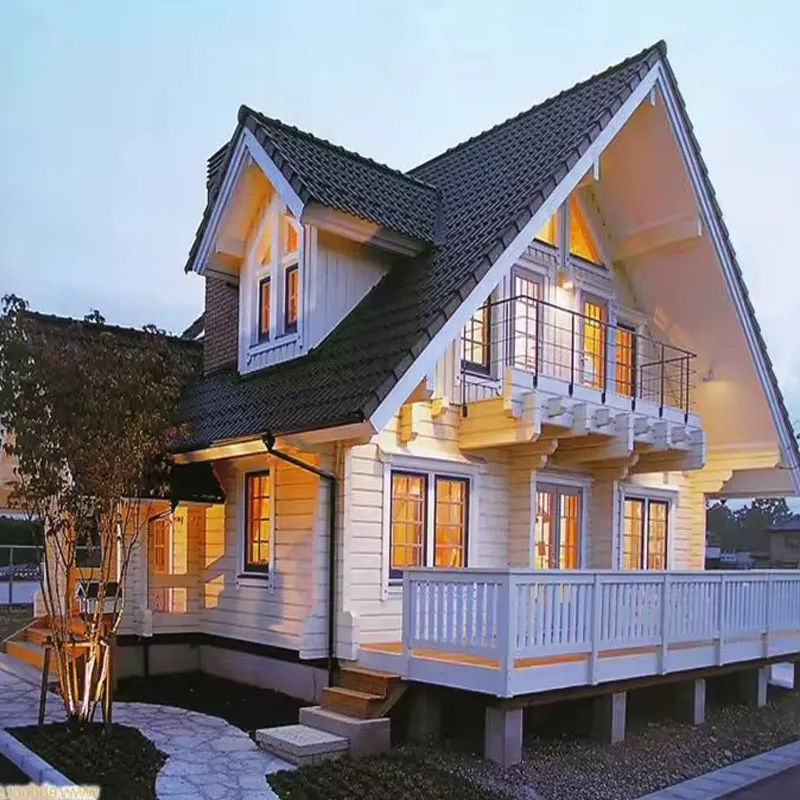

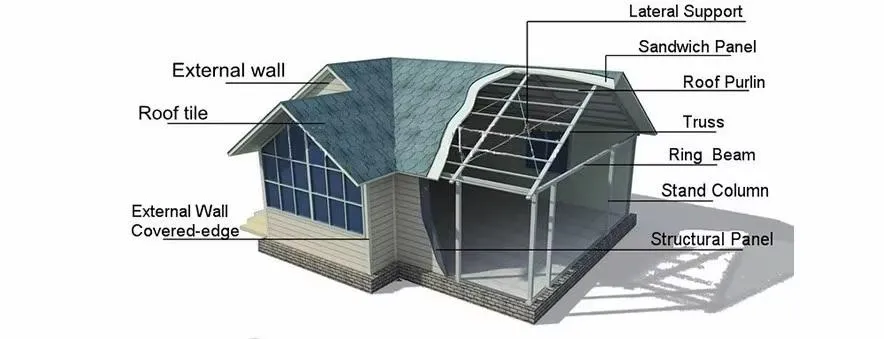

The light steel villa adopts 0.8-1.5mm thickness galvanized C/U type steel (Q550DTz) as the frame. It is integrated with a composite wall and roof system featuring OSB panels, glass wool for thermal and sound insulation, and decorative interior/exterior panels. This prefabricated wall-bearing system is characterized by its light weight, large span, and exceptional resistance to seismic activity and hurricanes.
| Component | Material Details |
|---|---|
| Steel Frame | Square hollow section + C section steel + aluminum profile |
| Consumables | Screw, bent parts, L parts, etc. |
| Deco Layer | Fiberglass reinforcement asphalt shingle (3mm) |
| Ceiling Insulation | Glass wool blanket (100mm thick, 18kg/m³) |
| Structural Layer | Oriented Strand Board (1220*2440*12, waterproof) |
| Waterproof Layer | Two-sided Pressure Sensitive Adhesive SBS Sticky Roll |
| Insulating Layer | XPS extruded polystyrene board (Grade B1) |

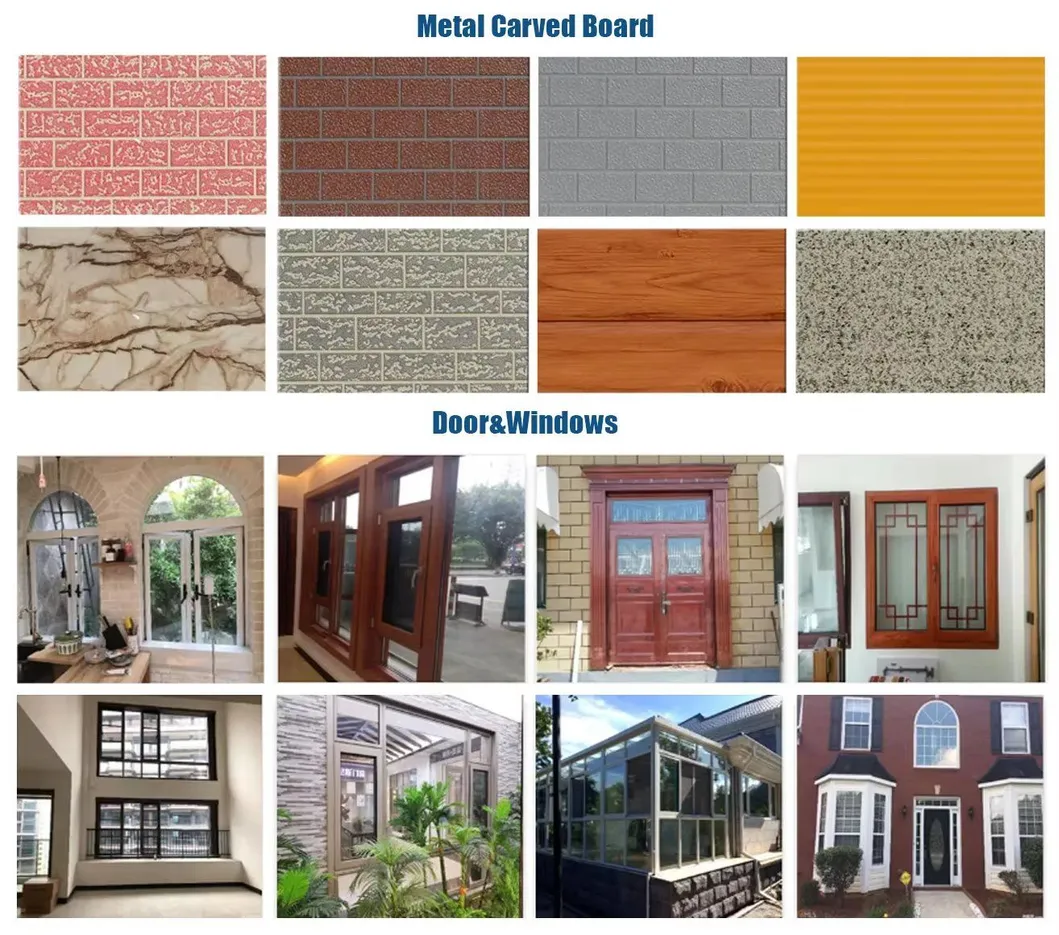

| Window | Aluminum Alloy with Double Glass Insulation |
Using advanced software like AutoCAD, PKPM, 3D3S, SAP2000, and Tekla Structures, we provide exact designs, quotations, and 3D renderings. To receive a precise quote, please provide the desired length, width, eave height, and local weather conditions.

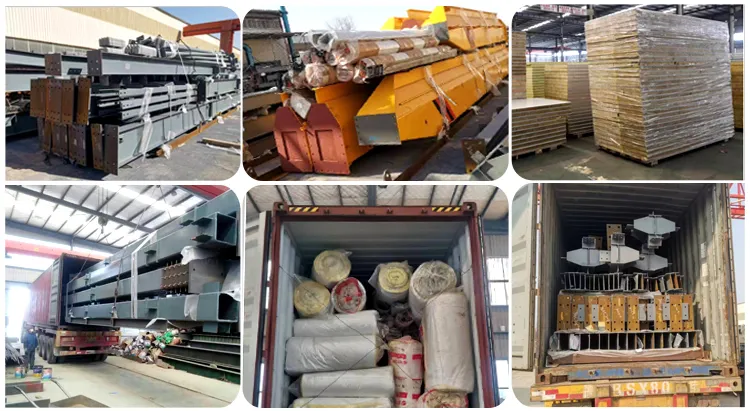

Steel components are securely packaged with iron pallets and assigned coding numbers for easy unloading. Small structures are bundled with iron wires and tagged for clear identification during transit.
