Large Span Prefab Steel Structure Frame Pre-Engineered Metal Prefabricated Building

Customization:	Available
After-sales Service:	on Site Guiding
Column and Beam:	Hot Rolled or Welded H Section, I Section

Basic Specifications

Model NO.

WT-M-27

Service Life

More Than 30 Years

Surface Treatment

Painted or Galvanized

Roof & Wall Panel

PU, EPS, Rock Wool/Fiber Glass Sandwich Panel

Panel Thickness

30-200mm

Crane

No More Than 25 Ton

Windows

Aluminium Alloy/PVC

Doors

Sliding Door/Roll-up Door

Material

Steel Structure

Usage

Warehouse, Temporary Offices, Workshop

Certification

ISO

Warranty

10 Years

Production Capacity

20000 SQM Per Month

HS Code

9406000090

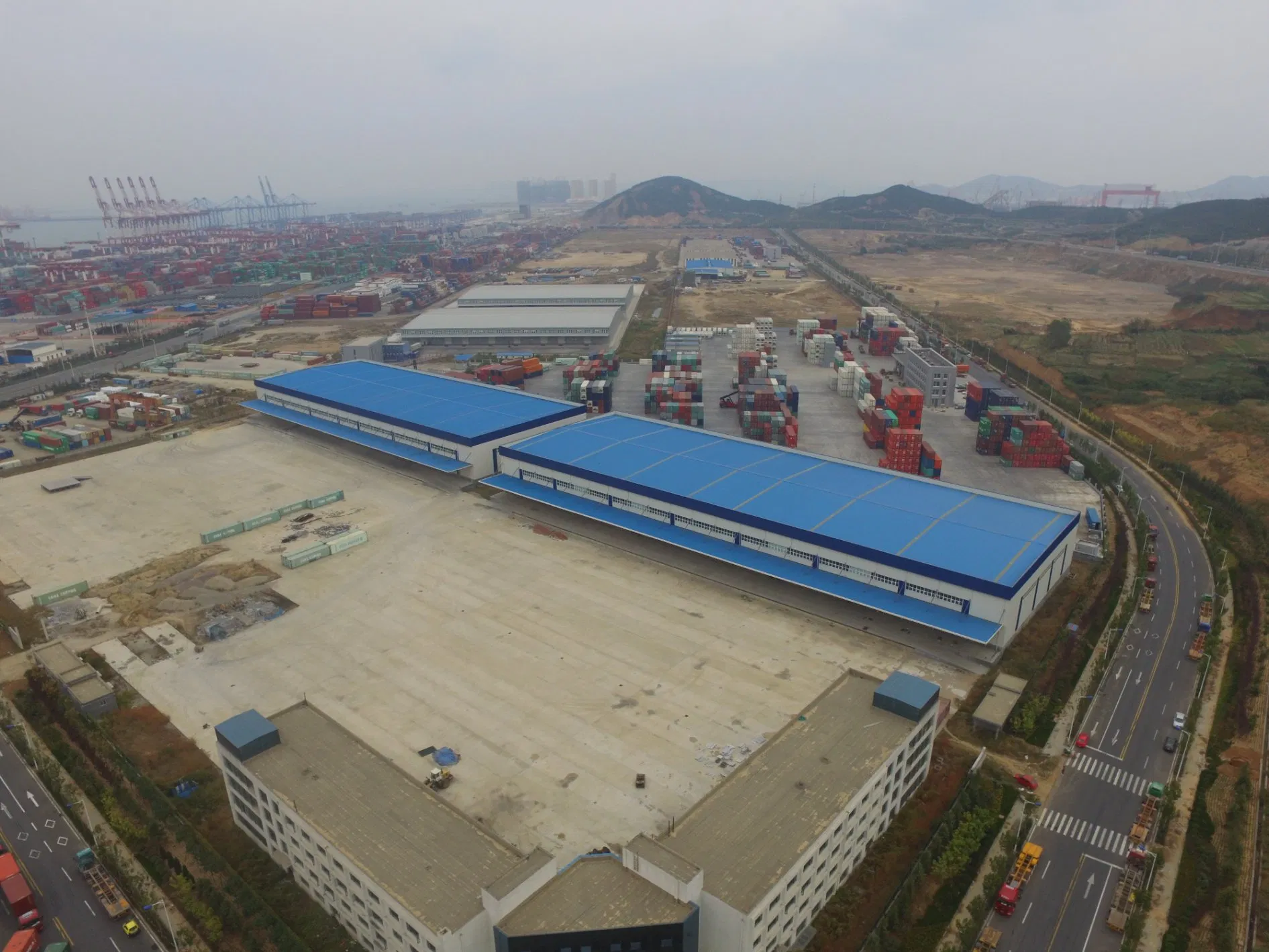

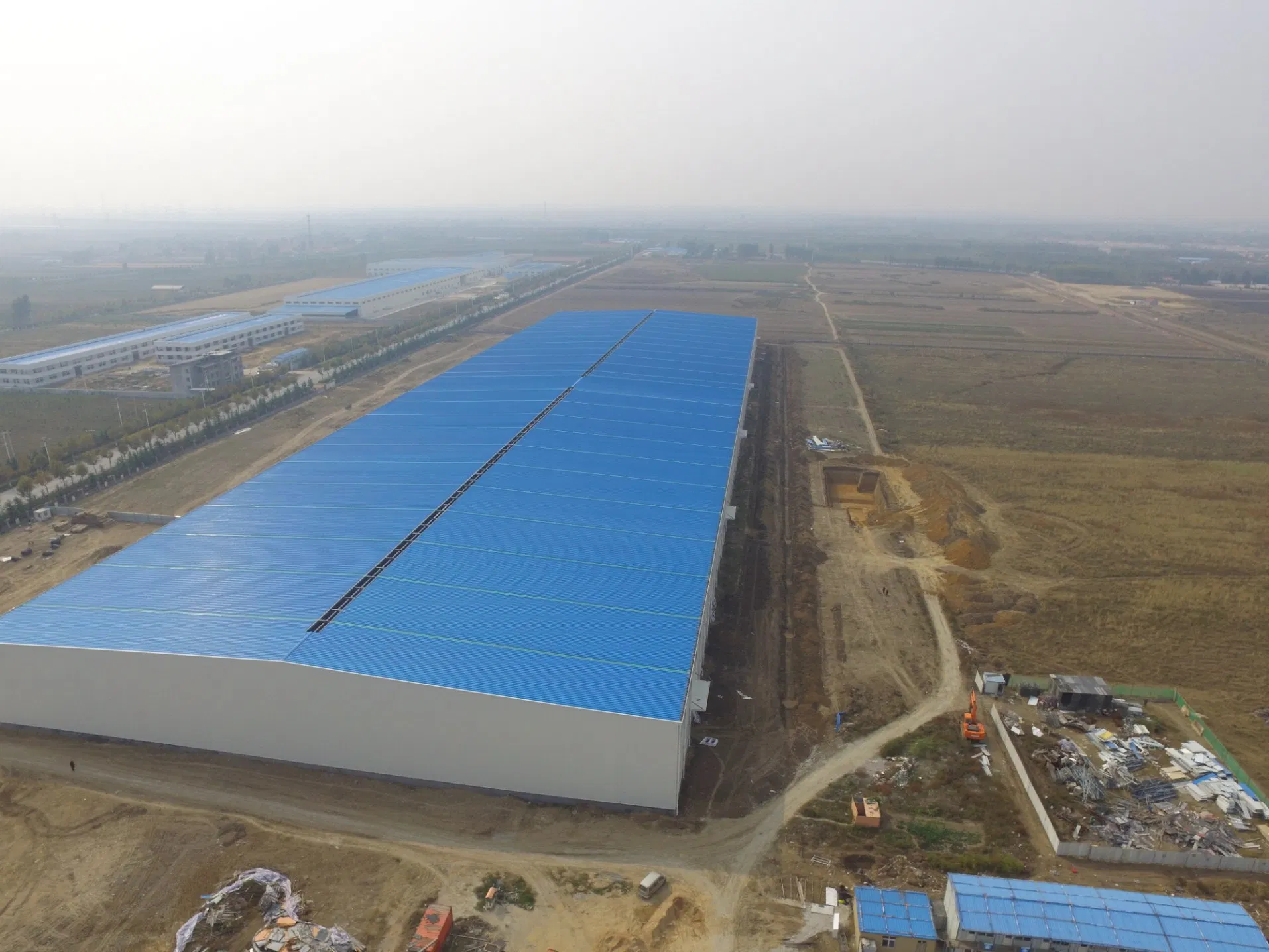

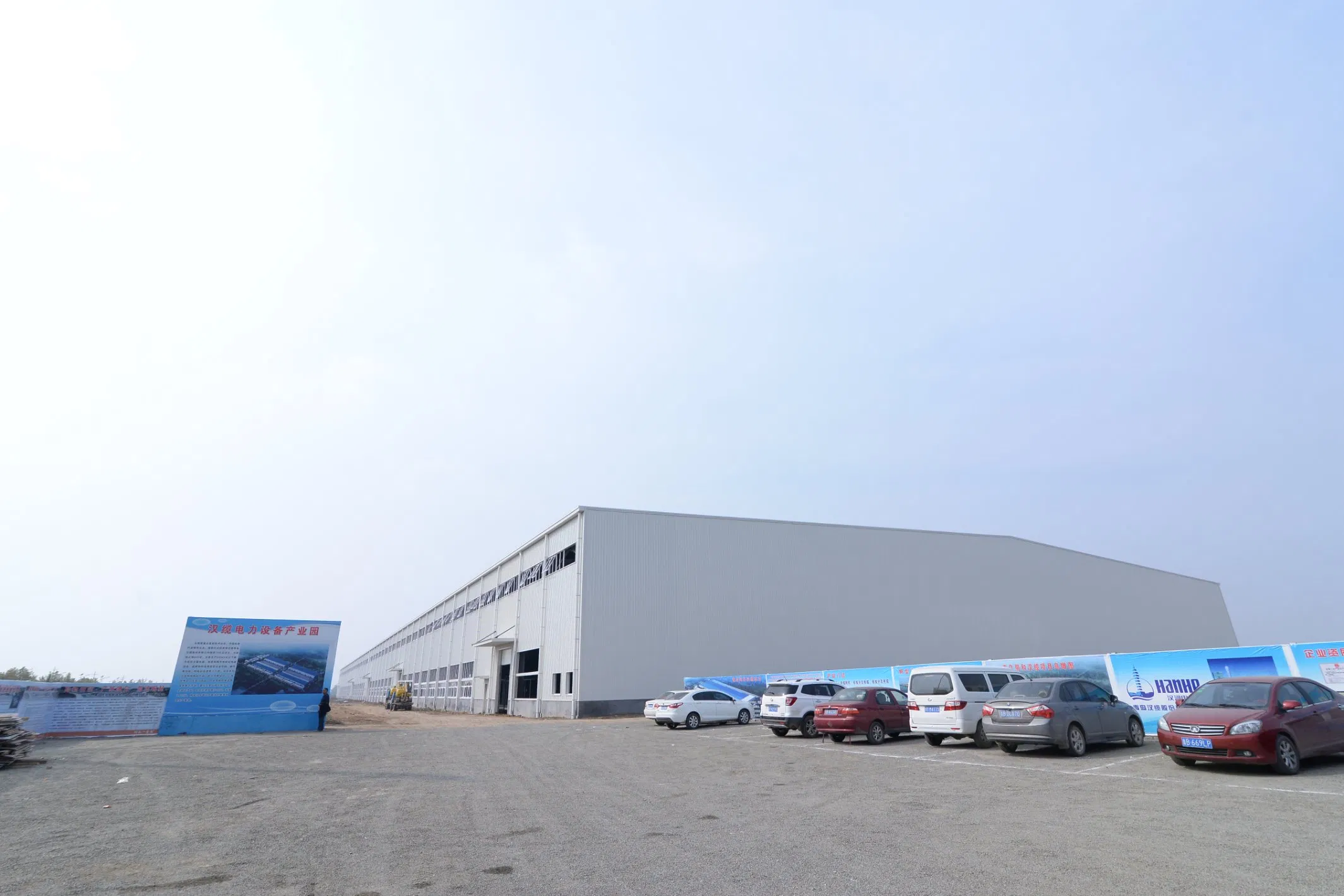

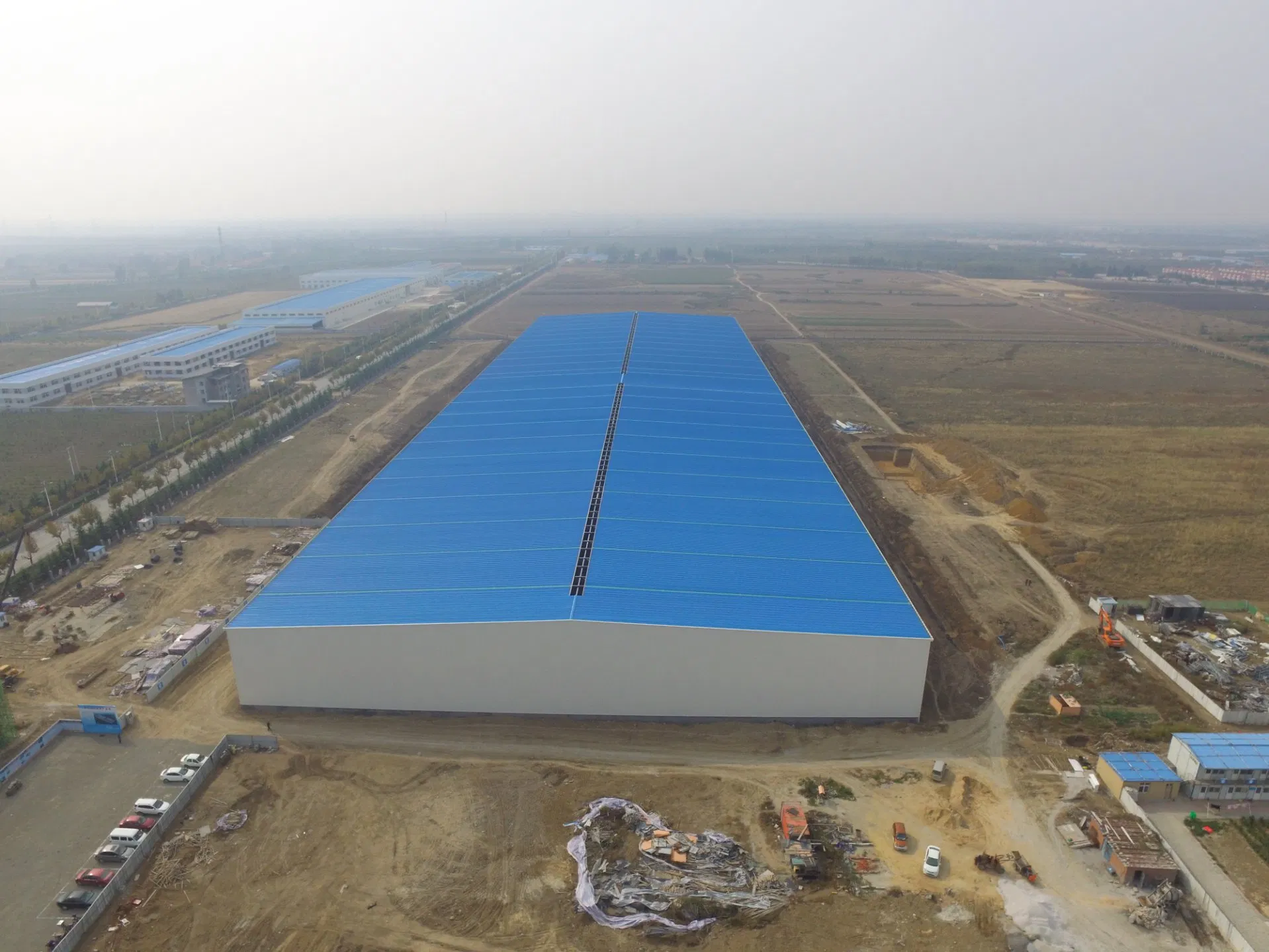

Long-span Steel Structural Warehouse Building

Building System Features

Strong steel structure frame: Fastness, wind proof, snow proof, earthquake resistant.
Plasticity steel materials: Easy to design, providing large space and light weight.
Maintenance system: Sandwich panels provide heat insulation, waterproofing, and soundproofing.
Easy installation: Bolted connections allow for quick assembly and disassembly.
Efficient drainage: Features cold bend steel gutters and downspouts.

Technical Parameters

Category	Details
H-Beam Dimensions	Length: 1000-15000mm; Web: 6-32mm; Wing: 6-40mm; Height: 200-1200mm

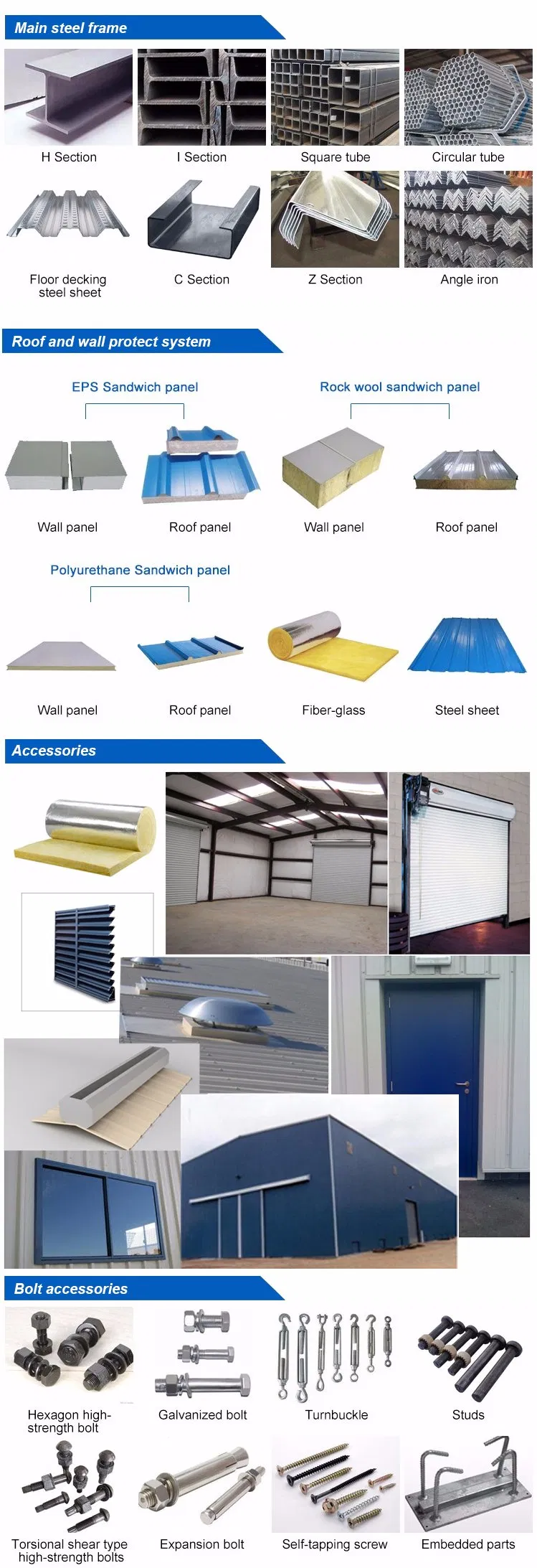

Main Components	H-beam (Q235B/Q345B), C/Z Purlins (C120~C320), X-type Bracing
Roof & Wall	Sandwich panel or color corrugated steel sheet (0.5mm/0.6mm)
Advantages	Low cost, high safety, ISO9001 quality control, non-pollution
Design Parameters	Requires: Wind load, snow load, eave height, and roof pitch details

Core Advantages

Environment Friendly: All steel materials can be reused multiple times.
Quality Aesthetics: Color steel panels provide a tidy and professional appearance.
Short Delivery: Modular design allows for rapid production and containerized shipping.
Professional Guidance: Engineers can provide onsite technical guidance if required.

Certificates & Logistics

Our quality is backed by international standards:

CE EN1090 Certification
ISO9001:2008 Quality Management
ISO14001:2004 Environment Management
Occupational Health and Safety Management System

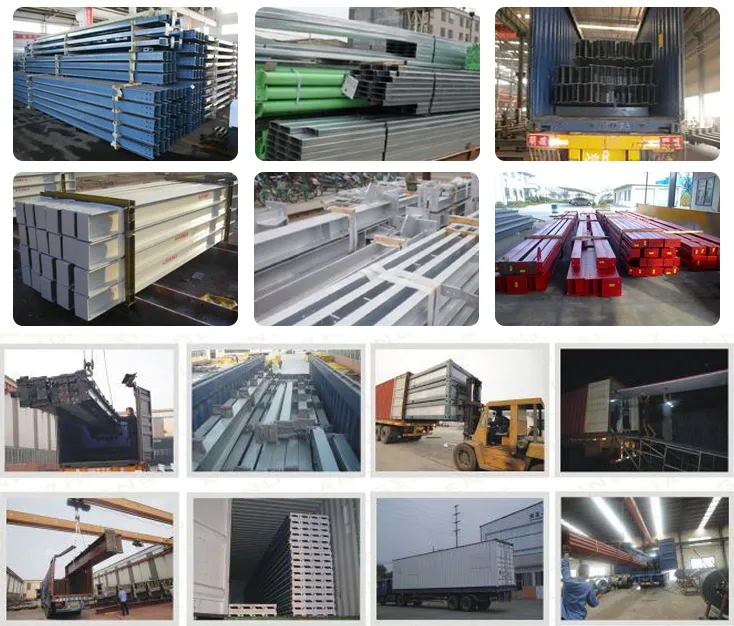

Packaging & Shipping

All components and accessories are packed for ocean transport in 40'OT/HQ containers. Skilled workers use cranes and forklifts to prevent damage during loading.

Frequently Asked Questions

Are you a manufacture factory or a trading company?

We are a professional manufacture factory. You are welcome to visit us for inspection to see our professional quality control flow and competitive pricing.

How do you ensure the quality of your steel structures?

We have established procedures to check products at all stages, from raw materials to finished goods. Third-party testing like SGS and BV is also available.

Can you provide custom design services?

Yes, we have more than 10 design engineers who use software like Auto CAD, PKPM, Tekla Structures, and 3D3S to design full solutions based on your requirements.

Do you offer on-site installation guidance overseas?

Yes, we provide detailed installation drawings. If needed, we can also send professional technical engineers to supervise installation and train your team on-site.

What information is needed to get a fast quotation?

Please provide the construction location, dimensions (L*W*H), local wind/snow load, thermal insulation requirements, and preferred quantity for doors and windows.

What kind of after-sale services do you provide?

We offer reasonable advice for the utilization, maintenance, and technological improvement of your building long after the construction is completed.
