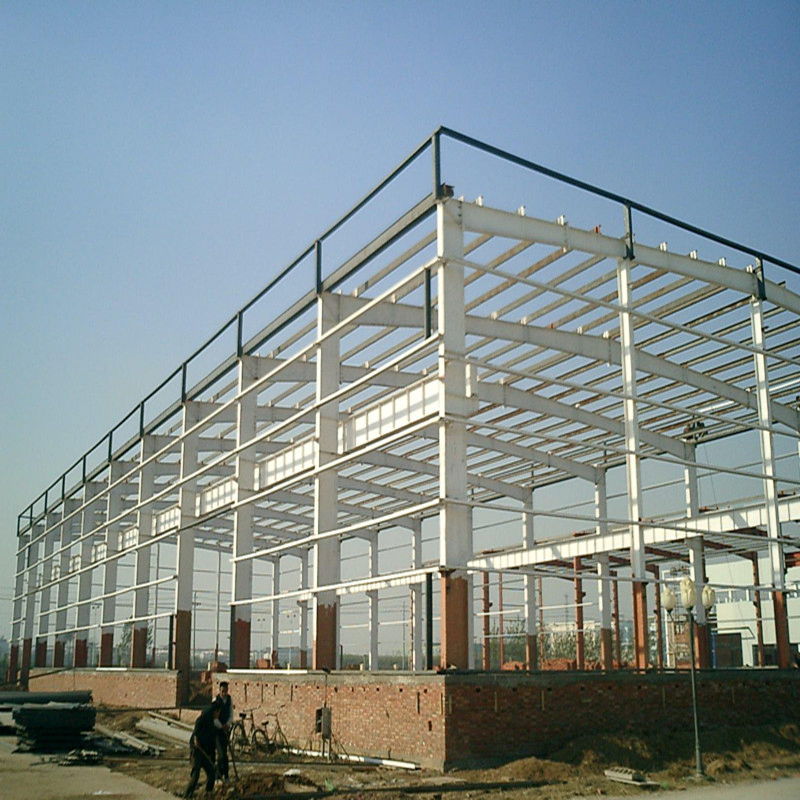

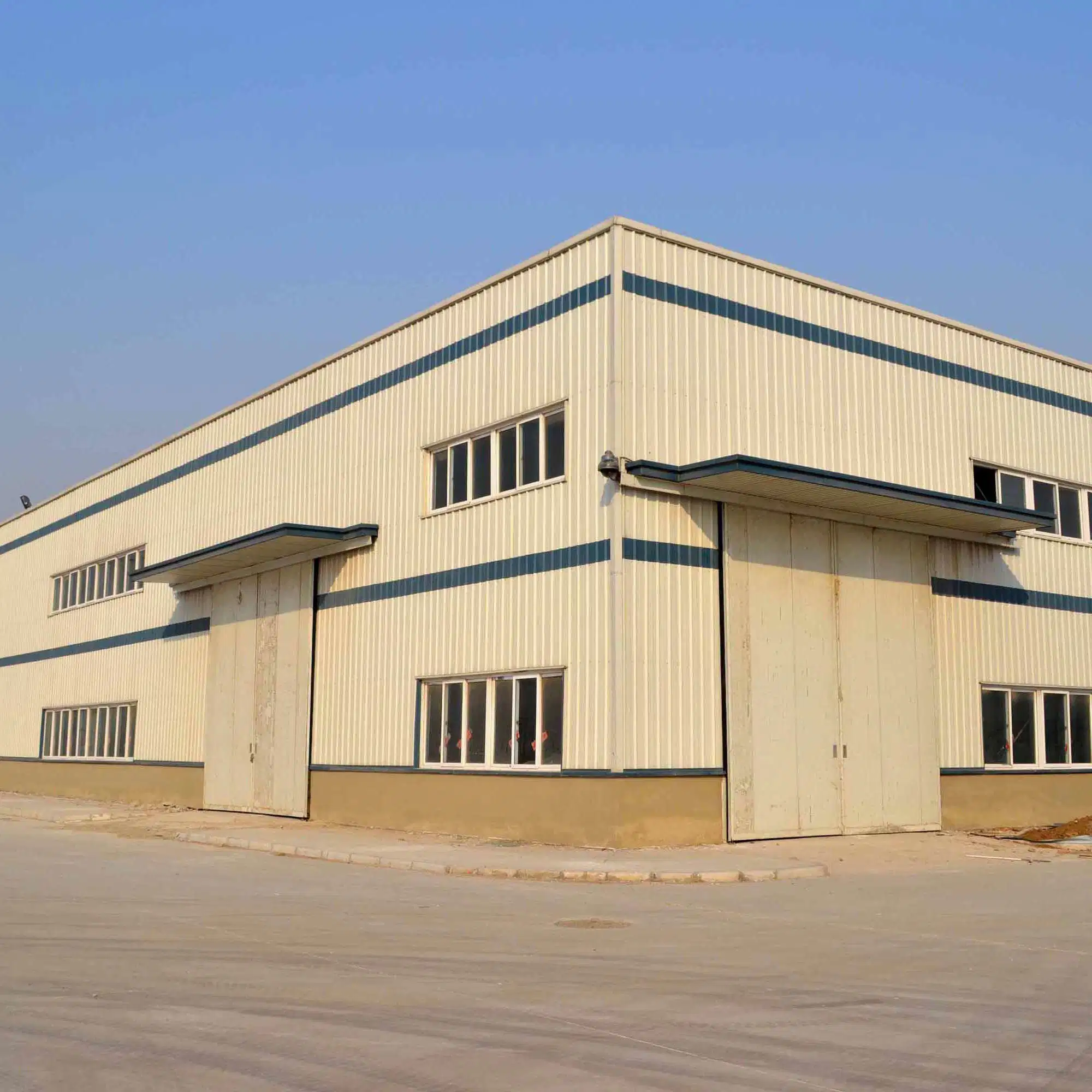

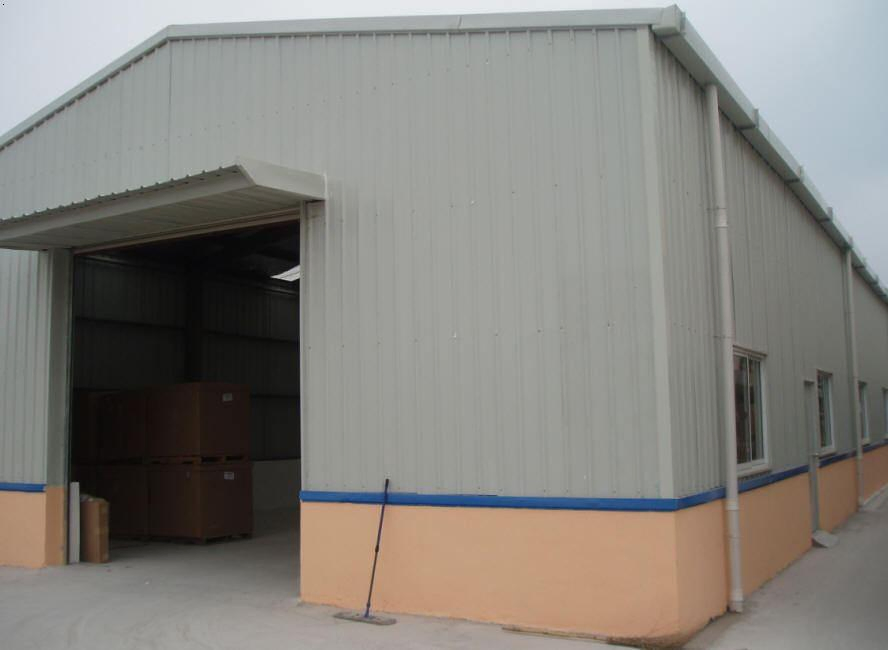

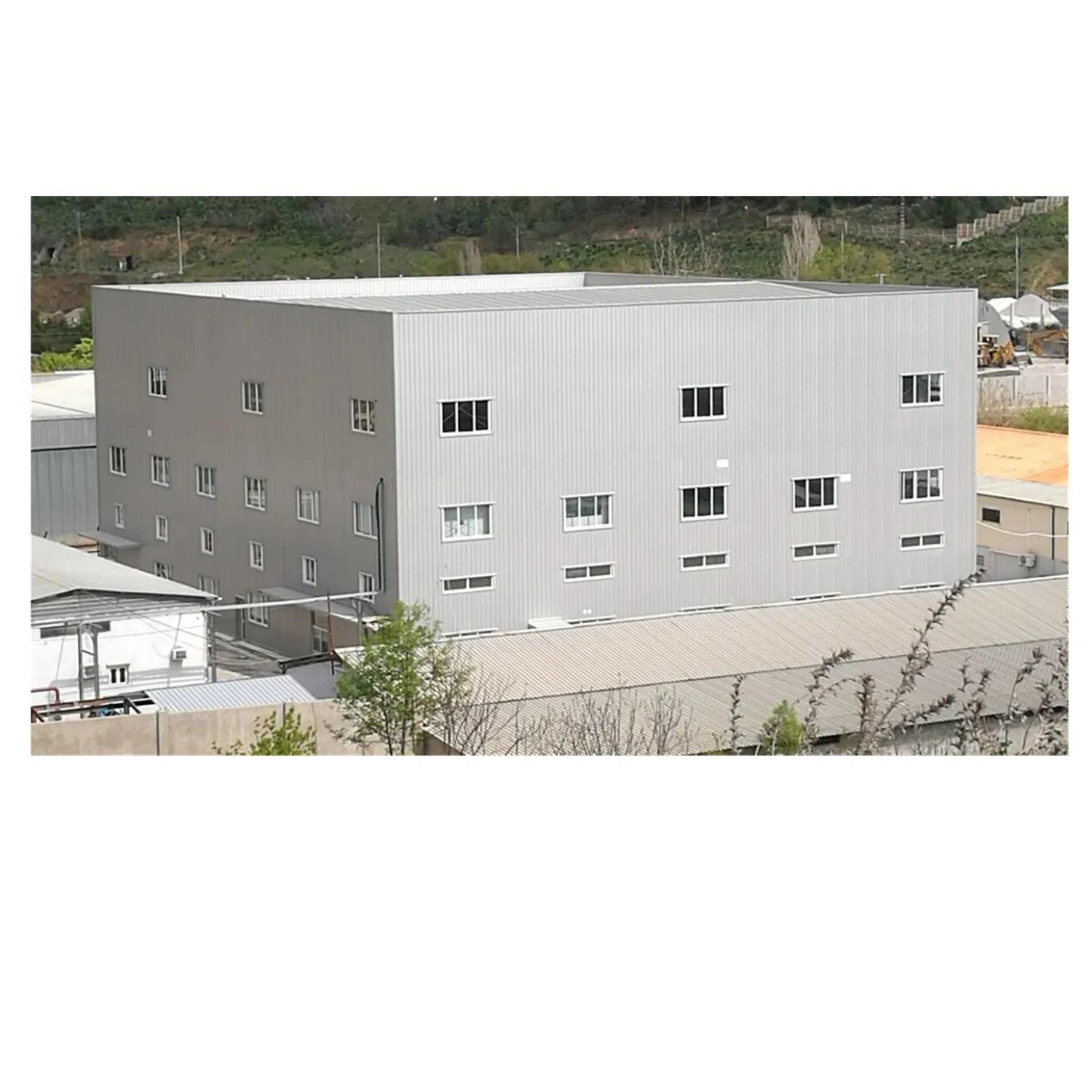

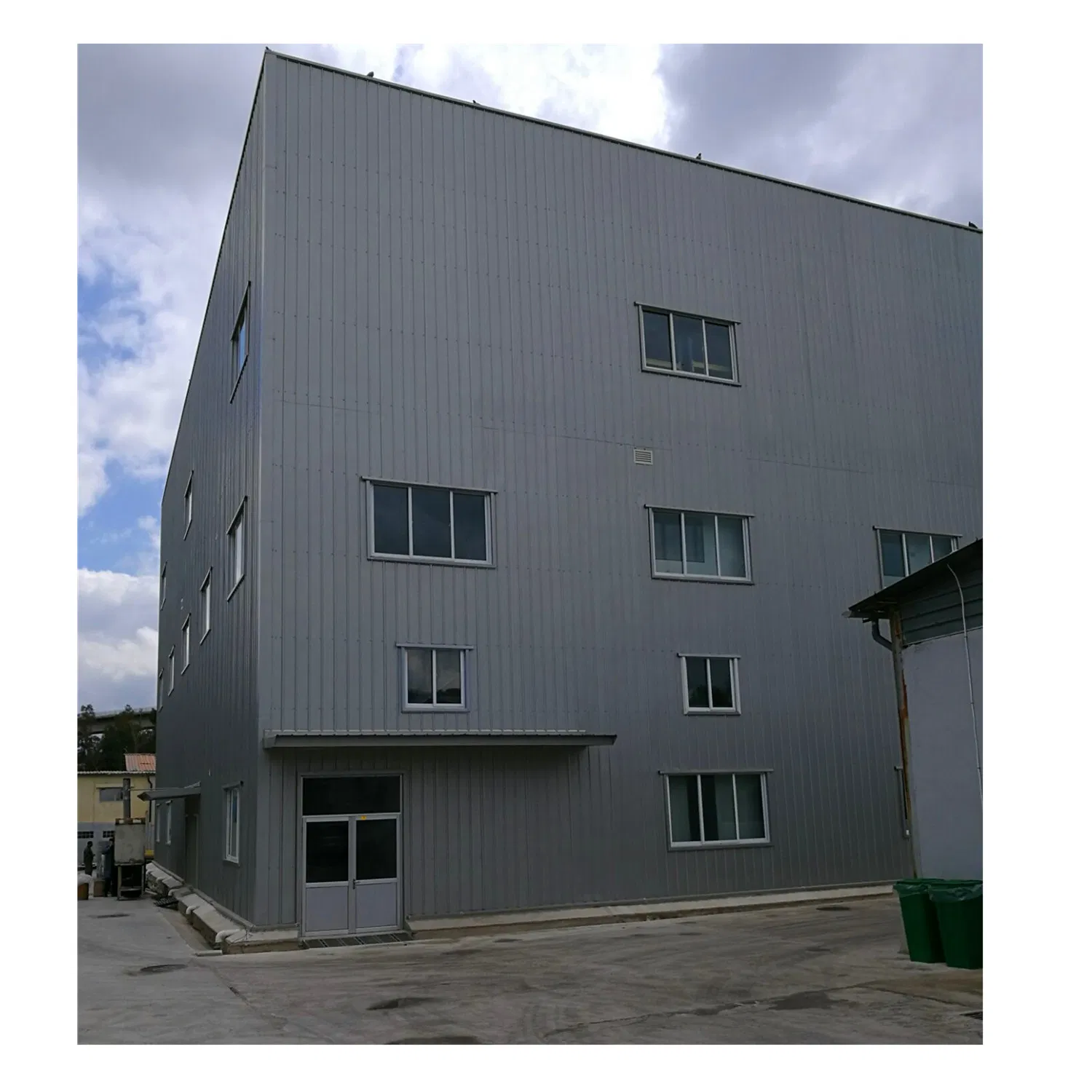

Light Steel Structure Prefab Industrial Building Warehouse Workshop Hangar

Customization:	Available
Size:	Designed as Per Customer′s Requirement
Main Frame:	H Section Steel, C, Z Section Steel

Basic Information

Model NO.

TW-KA131

Design Parameter

Wind Load, Snow Load, Earthquake

Surface Treatment

Painted or Galvanized

Window

Aluminum Alloy Window or Plastic Steel Window

MOQ

200m2

Sandwich Panel

EPS, Rock Wool, Glass Wool, PU

Material

Steel Structure

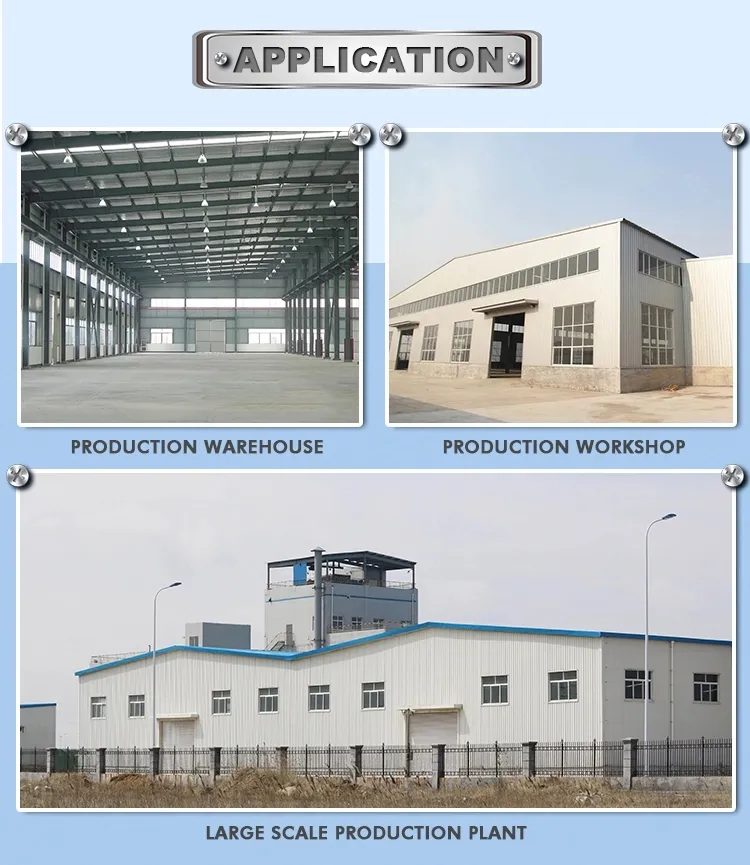

Usage

Warehouse, Villa, Dormitories, Workshop

Certification

ISO, CE, SGS

Warranty

50 Years

Production Capacity

2000 Ton/ Year

Specification

Q235B, Q345B

Advantages of Steel Structure Building

1

Good plasticity and toughness:

The steel structure provides adequate assurance for safety and reliability. It adapts well to dynamic loads and won't suddenly break under accidental overloading.

2

Safety and High Accuracy:

Components are bolt-assembled. The lightweight structure makes construction convenient, shortens the period, and allows for easy disassembly or reinforcement.

3

Light Weight & Fast Installation:

Total weight is about half of concrete structures, reducing basic costs. Speed is 1/3 faster than traditional systems, improving investment efficiency.

4

Environmental Protection:

Uses recyclable or degradable materials. Reduces sand, stone, and ash content, resulting in minimal construction waste.

Project Details

System Category		Material Specifications
Main Frame	Steel Structure	Steel Q345 (S355JR) or Q235 (S235JR) H shape; Straight or Variable cross-section
Main Frame	Sub Structure	Material Q235; Bolt connections; Anti-rust painted or galvanized; C/Z Purlins
Maintenance	Roof & Wall	Sandwich panel (PU / EPS / Fiberglass / Rock wool) or Colorful steel tile
Maintenance	Doors & Windows	Steel rolling shutter; Aluminum Alloy windows
Fittings	Bolts	M24, M22, M16 High-strength bolts, galvanized ordinary bolts
Fittings	Others	Day-lighting panel, Roof ventilator, Down pipe, Crane options

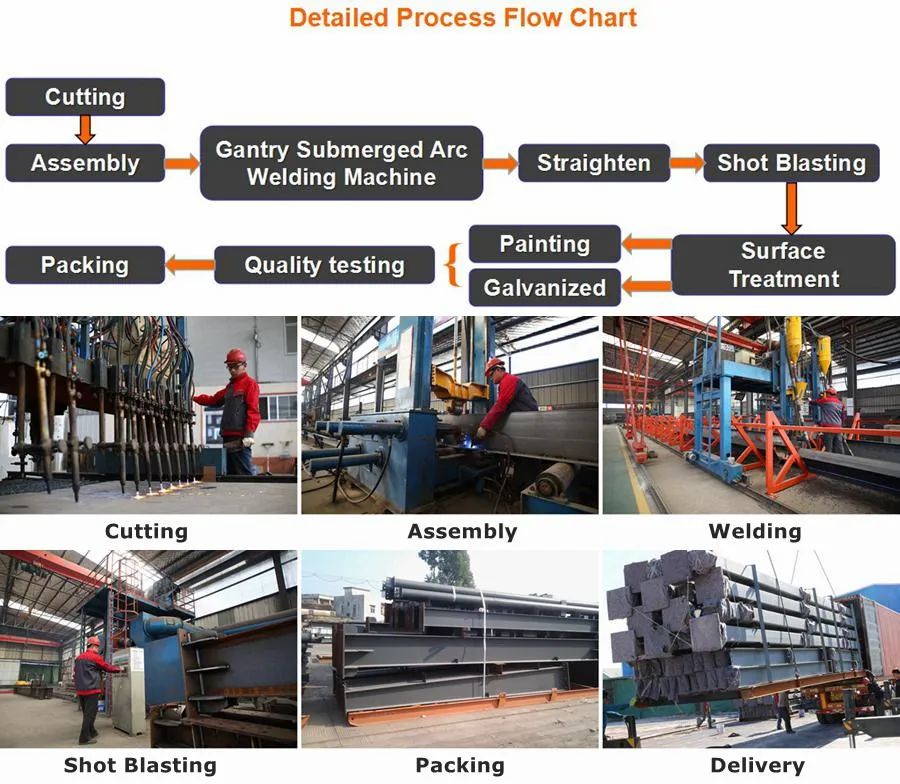

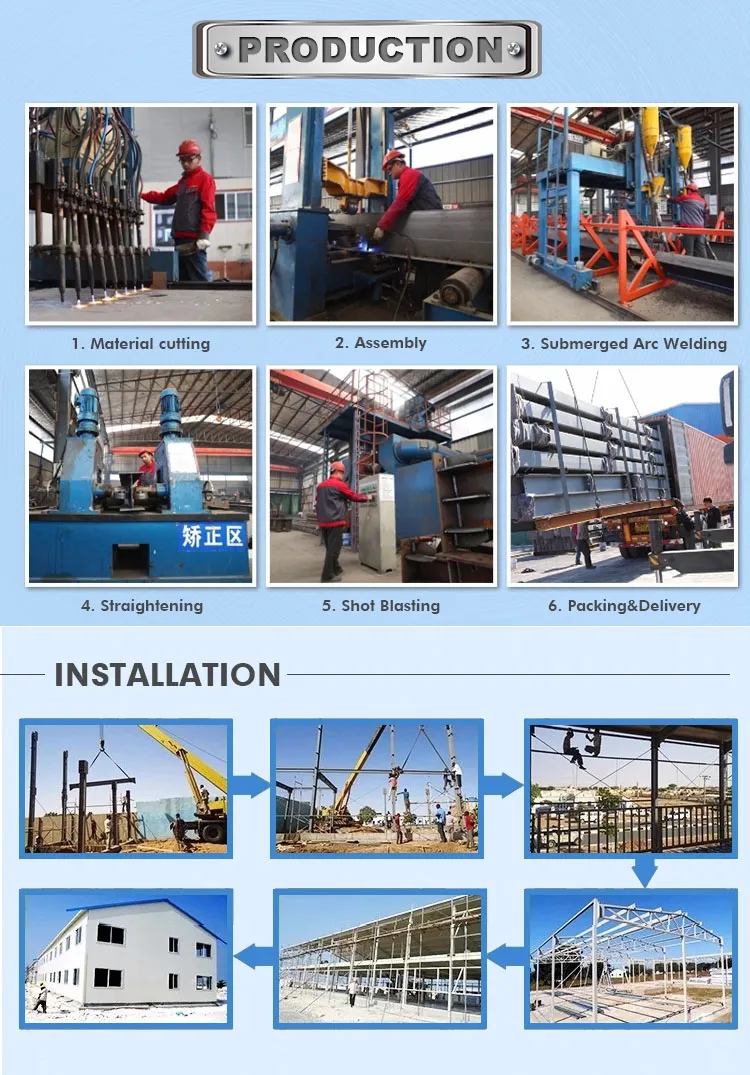

Process & Installation

Delivery & Payment

1) Payment: L/C or by T/T (30% prepaid as deposit, the balance 70% before shipment)
2) Delivery time: 15~30 days after receiving the deposit depending on order volume.

Overview

Frequently Asked Questions

How about the cost of prefabricated building?

Compared with concrete buildings, assembly buildings are lighter in quality and more economical. Factory production reduces labor intensity and site installation time.

How long is the service life of the steel frame?

The service life of the main H-type steel frame can last for up to 50 years.

Is the steel frame safe and stable?

Yes. Statistics show earthquake resistance reaches Grade 8 or more, and wind resistance reaches Grade 12 (wind speed ≤ 120km/h).

What are the advantages over traditional buildings?

The main advantages include lightweight design, cost economy, lower labor intensity, and rapid assembly capabilities.

How do I assemble the steel frame?

All components are bolted (no soldering). Walls and roofs are fixed with self-tapping screws. We can provide technicians to guide installation on-site if required.

Can the design be customized?

Yes, the entire structure, including dimensions, materials for walls/roofs, and window types, can be fully customized to meet specific project requirements.
