15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment
15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment
15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment
15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment
15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment
1 / 5
15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment
15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment
15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment
15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment
15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment

15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment

Customization: Available
Certification: ISO9001, CE
Salt Rejection Rate: 99.5%
Send Inquiry

Product Description

Basic Info.
Model NO.
JFRO-15T
Application
Industry
Capacity
6000lph
Operating Pressure
0.8-1.2MPa
Recovery Rate
67%
Desalination Rate
Less Than 99.5%
RO Frame
SUS304
Membrane Elements
Dow /Hydranautics/Troy/ Vontron (Optional)
Raw Water Pump
Cnp/Nyp (Optional)
Control Valve
Manual/Automatic
Package Size
235.00cm * 155.00cm * 230.00cm
Gross Weight
800.000kg
Product Description
Containerized water treatment equipment

Containerized water treatment equipment is a convenient and efficient solution for water treatment, housing various water treatment processes within a standard shipping container.

Structure and Design
  • Container Base: Utilizes a standard shipping container for structural strength and ease of transportation.
  • Modular Design: Various units (filters, RO units, disinfection) are modular for easy maintenance and updates.
Key Advantages
  • Flexibility and Convenience for transport and installation.
  • Cost-effectiveness compared to traditional built-in-place plants.
  • High efficiency and rapid response to water quality changes.
  • Reliability for 24 hours continuous operation.
Equipment Design

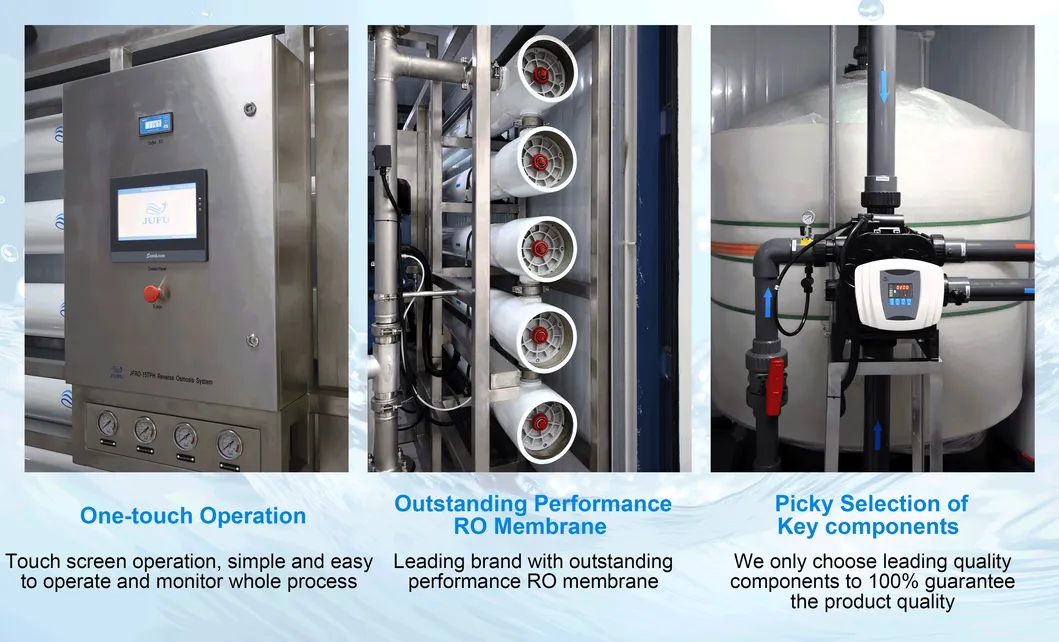

System Operation
Technical Specifications
Model JFRO-15T RO membrane 8″
Producing Capacity 15m³/h Recovery Rate 75%
Operating Pressure 1.0-1.6MPa Power Supply Tri-phase: 110/220/380/415V 50/60Hz
Desalination Rate 99% Power Consumption 21KW/22KW
Filtration Accuracy 0.0001 micron Control Type Manual / Auto control
Feed Water Quality SDI < 5; Free Chlorine < 0.1mg/L; TDS < 2000mg/L
Working Flow Chart
Raw water tank → Booster pump → Quartz sand filter → Activated carbon filter → Scale inhibitor dosing → Precision filter → High pressure pump → Reverse Osmosis System → Pure water tank

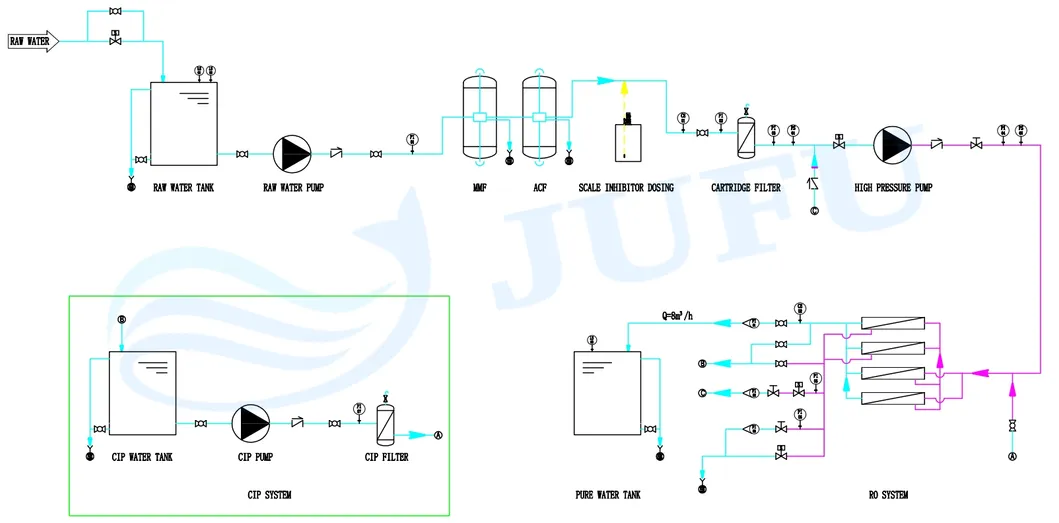

System Flow Diagram
Equipment Showcase

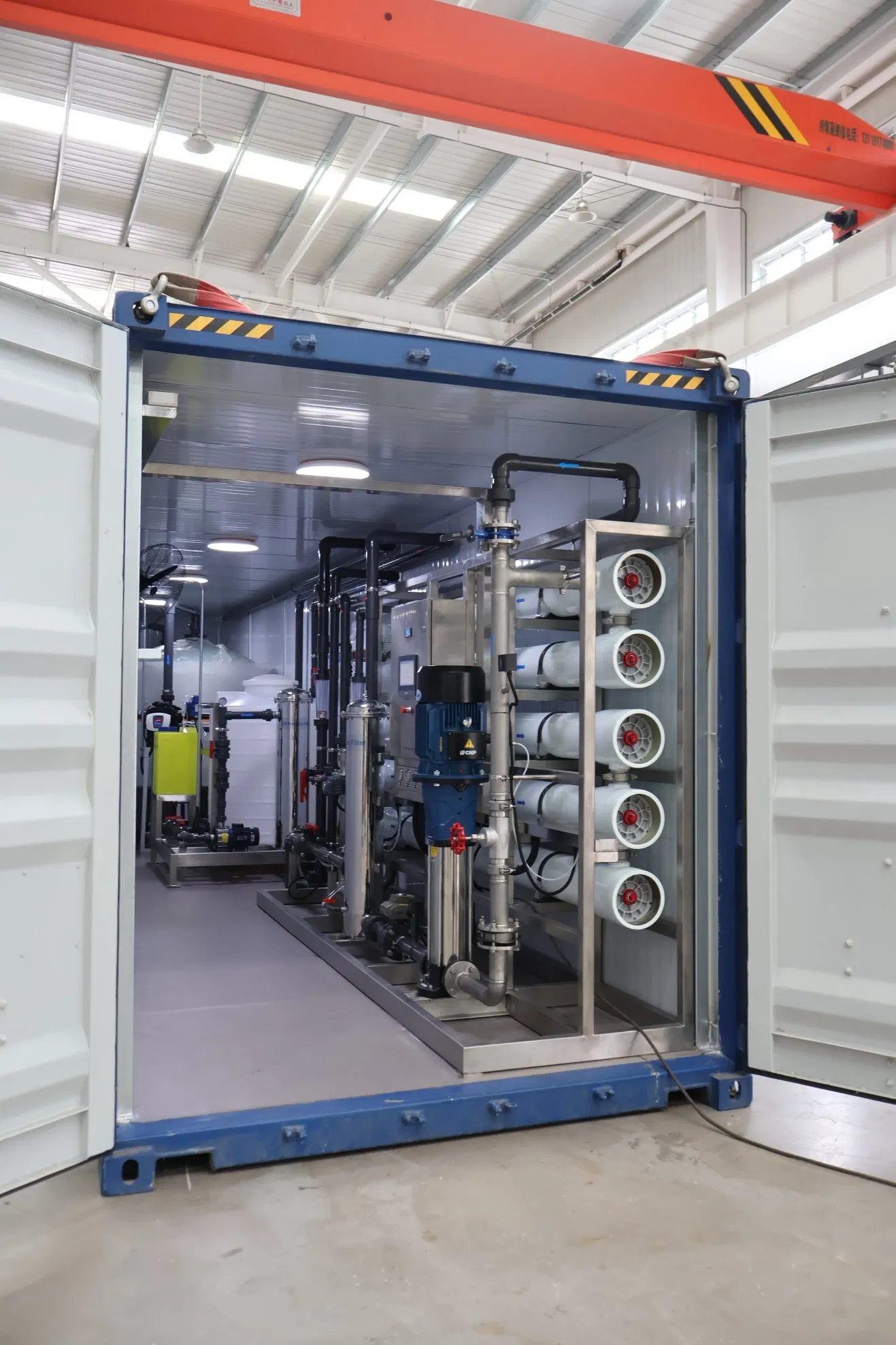

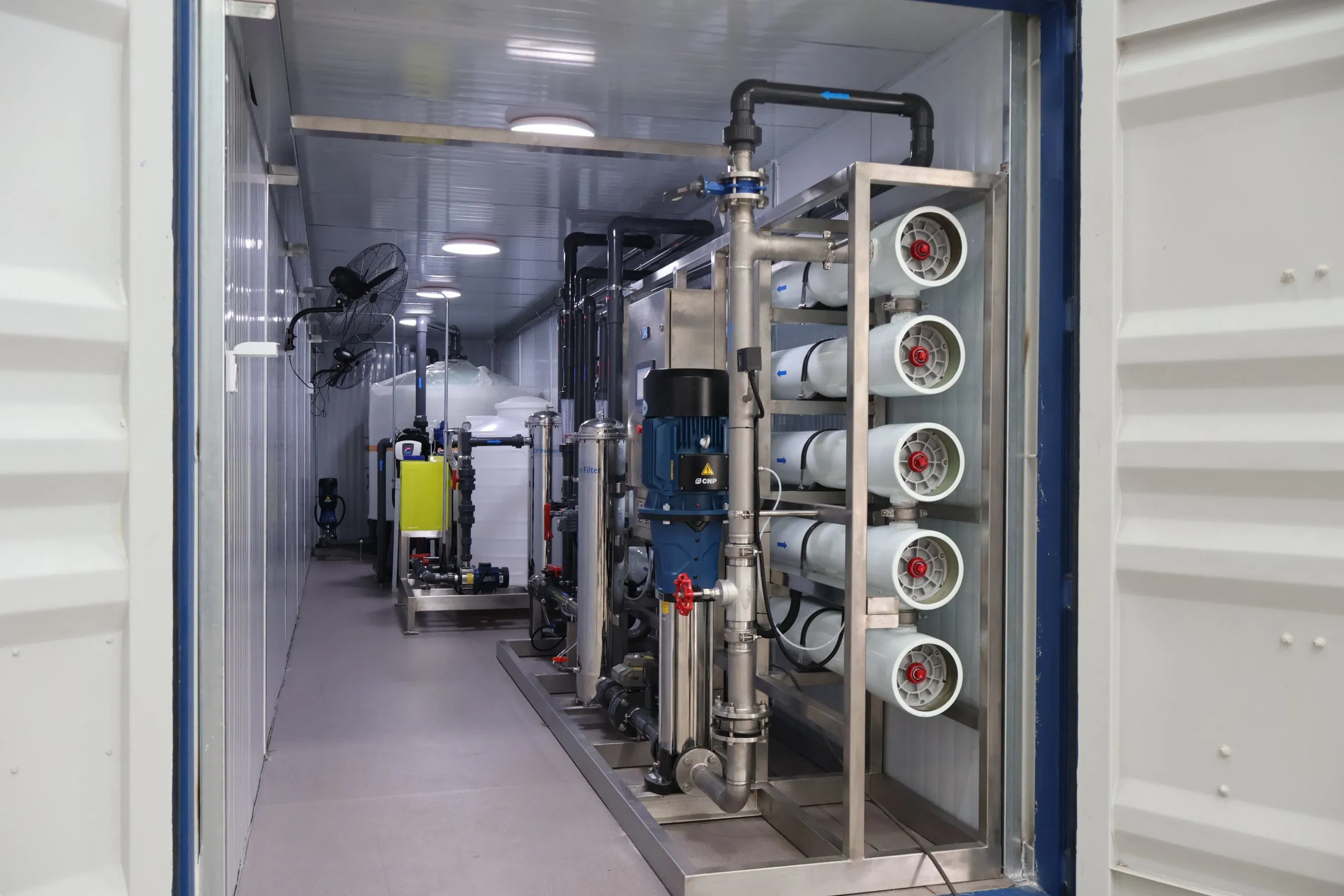

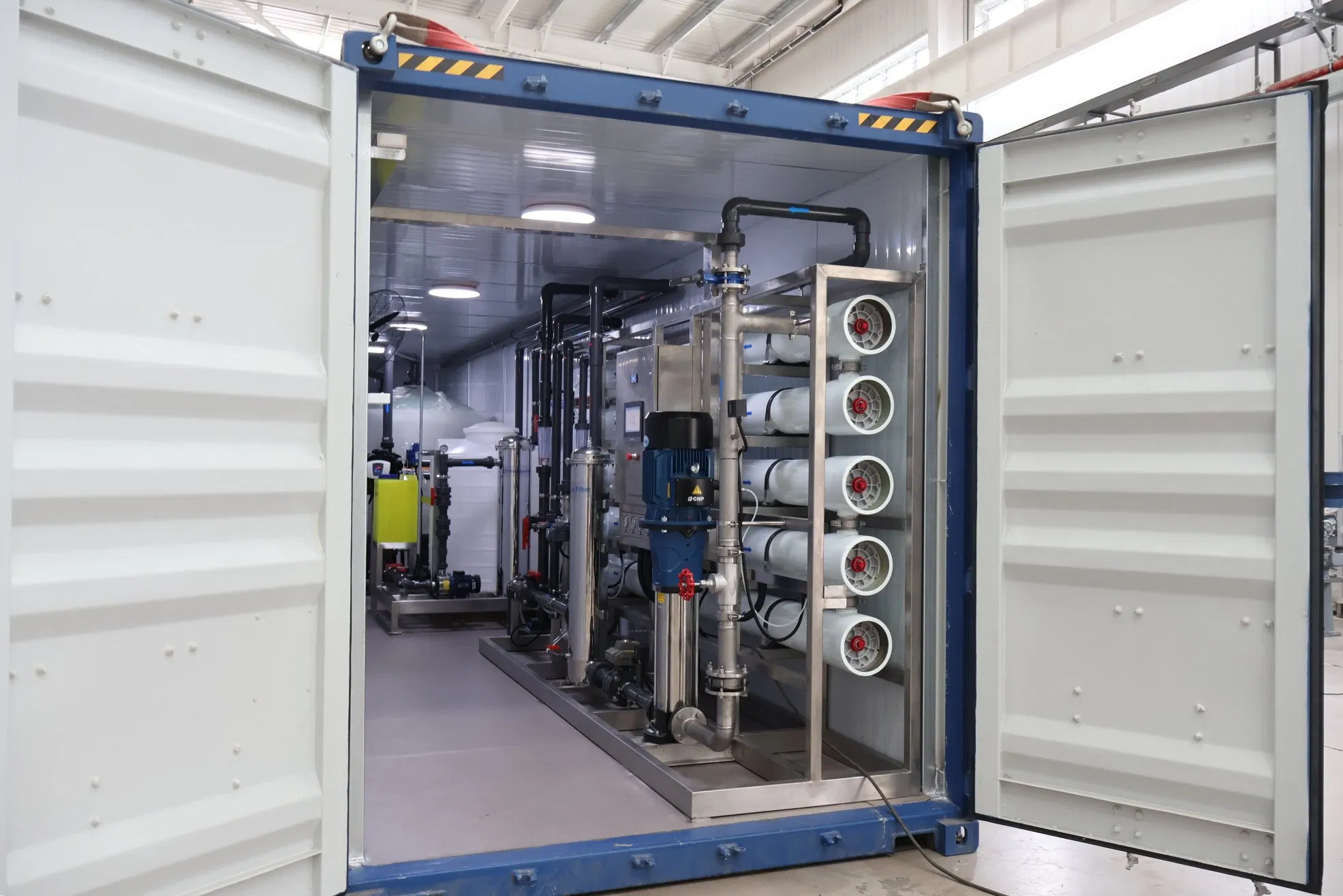

Container Interior

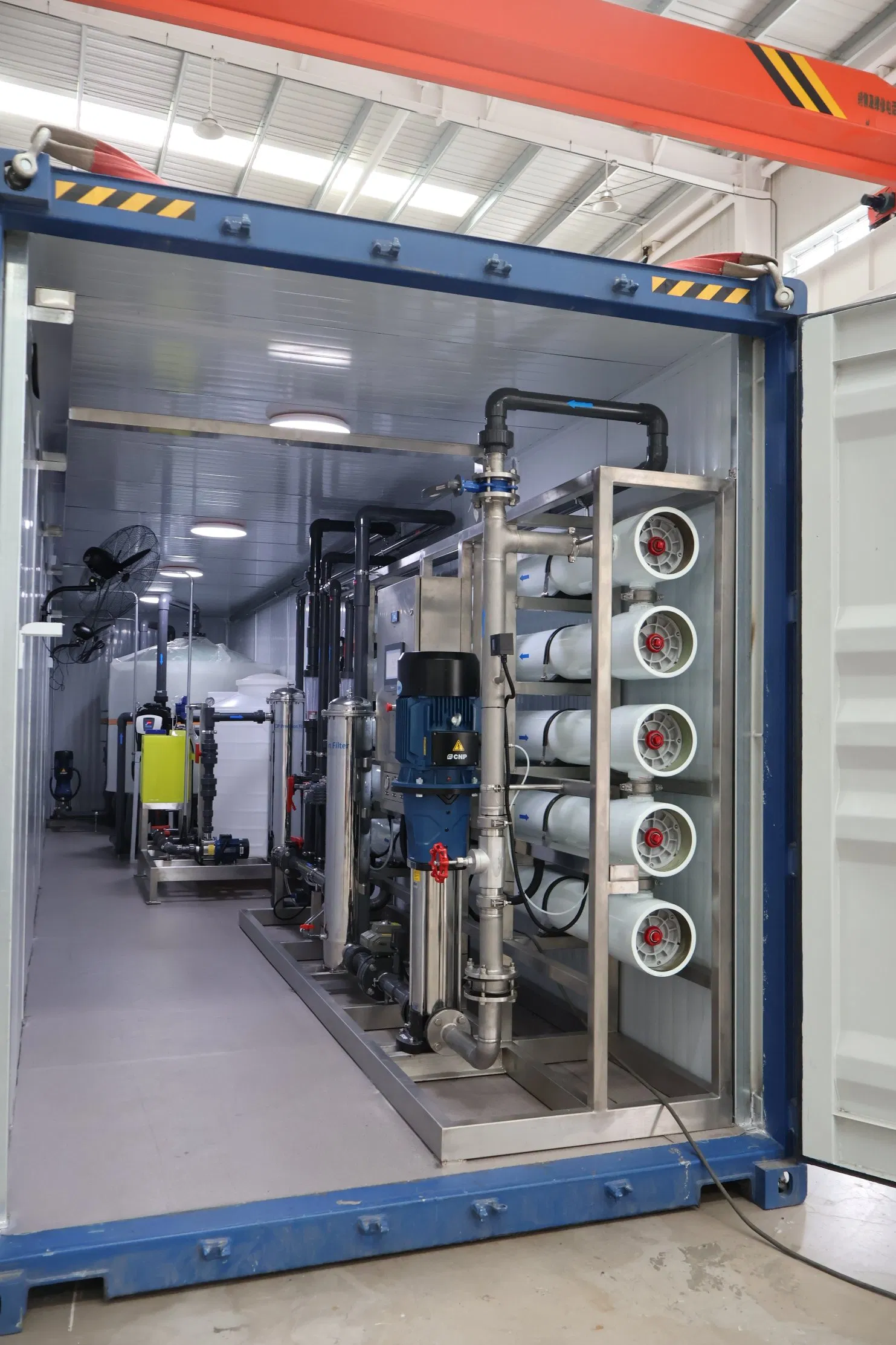

RO System Setup
Control Panel
Filters
Pipeline Design

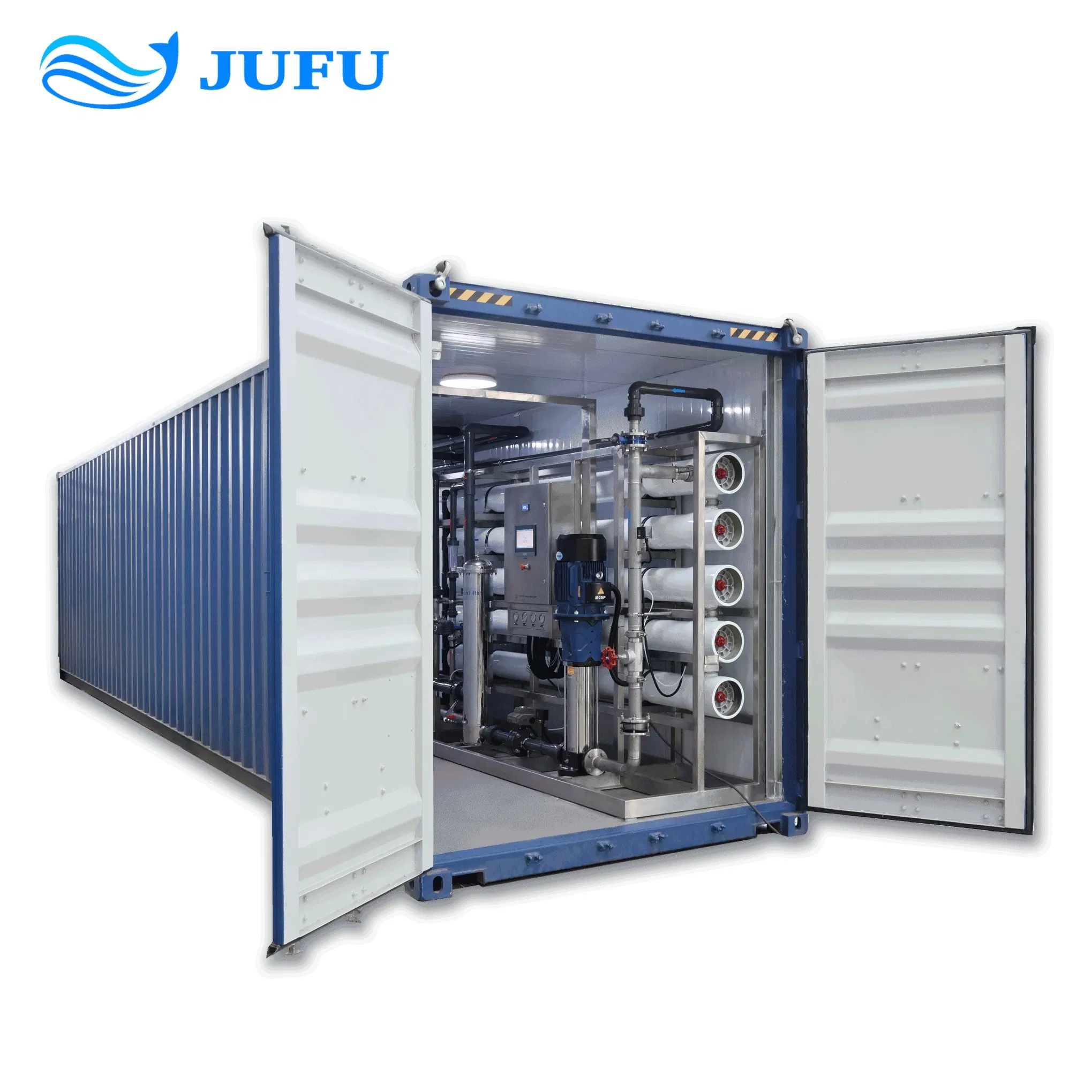

Finished Unit
Frequently Asked Questions
What's the type of your company? Manufacturer or Trading agent?
We're a Hi-tech manufacturer in the water treatment industry for almost two decades, specializing in Research & Development, Manufacturing, Sales, and Engineering installation.
What kind of information is needed for product selection?
Please provide the raw water source (Water Analysis Report if possible), requested output capacity, project application, local piping standards, and whether on-site installation guidance is required.
How can I choose the products which perfectly match my case?
Tailor-made solutions are provided by professional engineers based on your requirements. All project pain-points are addressed for overall optimization.
What are your payment terms?
Typically, deposit in advance and balance before delivery.
What is the lead time for equipment?
It depends on the scope, but generally 3-5 weeks for standard products.
What is your warranty policy?
We offer a 1-year warranty. With proper use and maintenance, the product itself can work for over 5 years.
