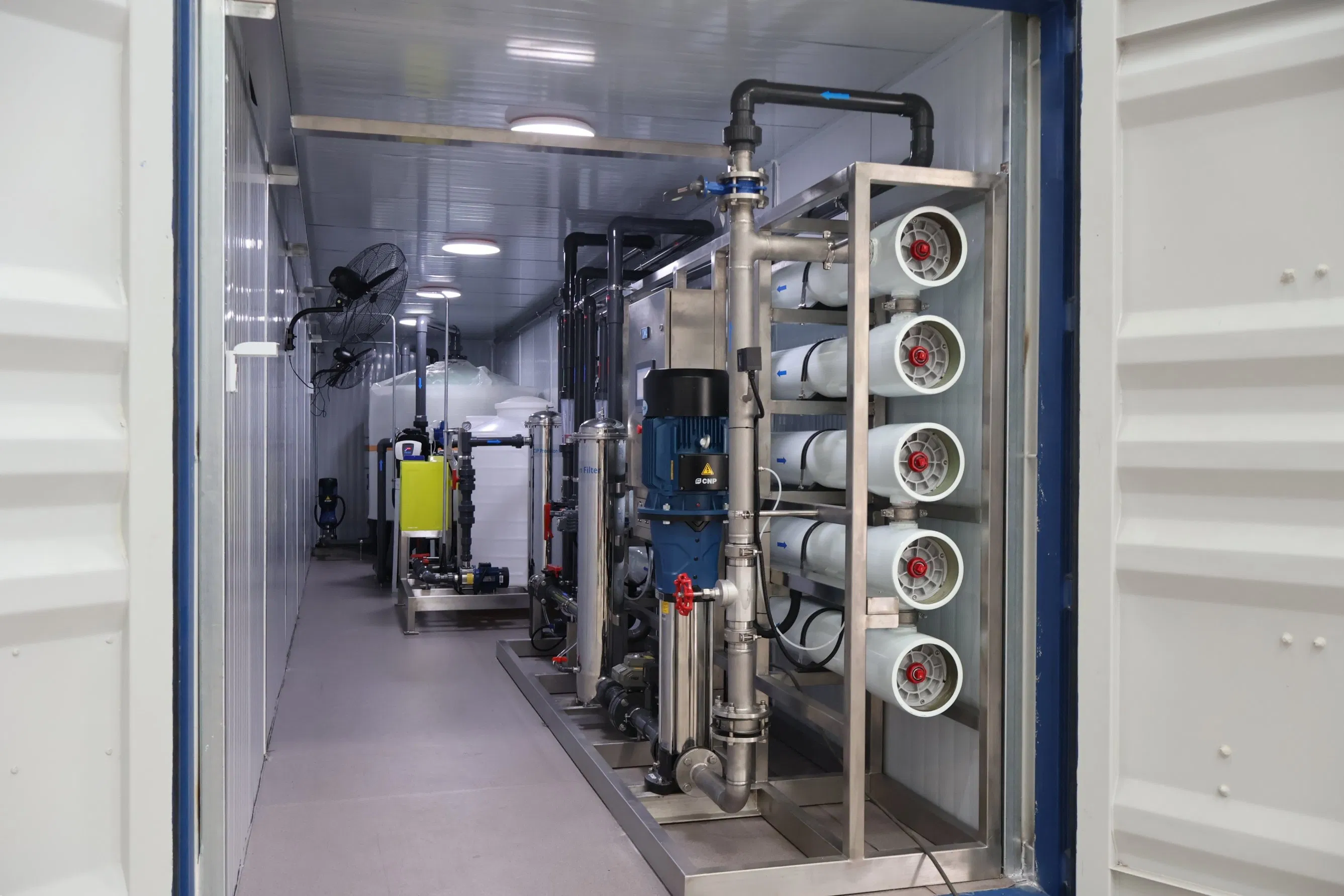

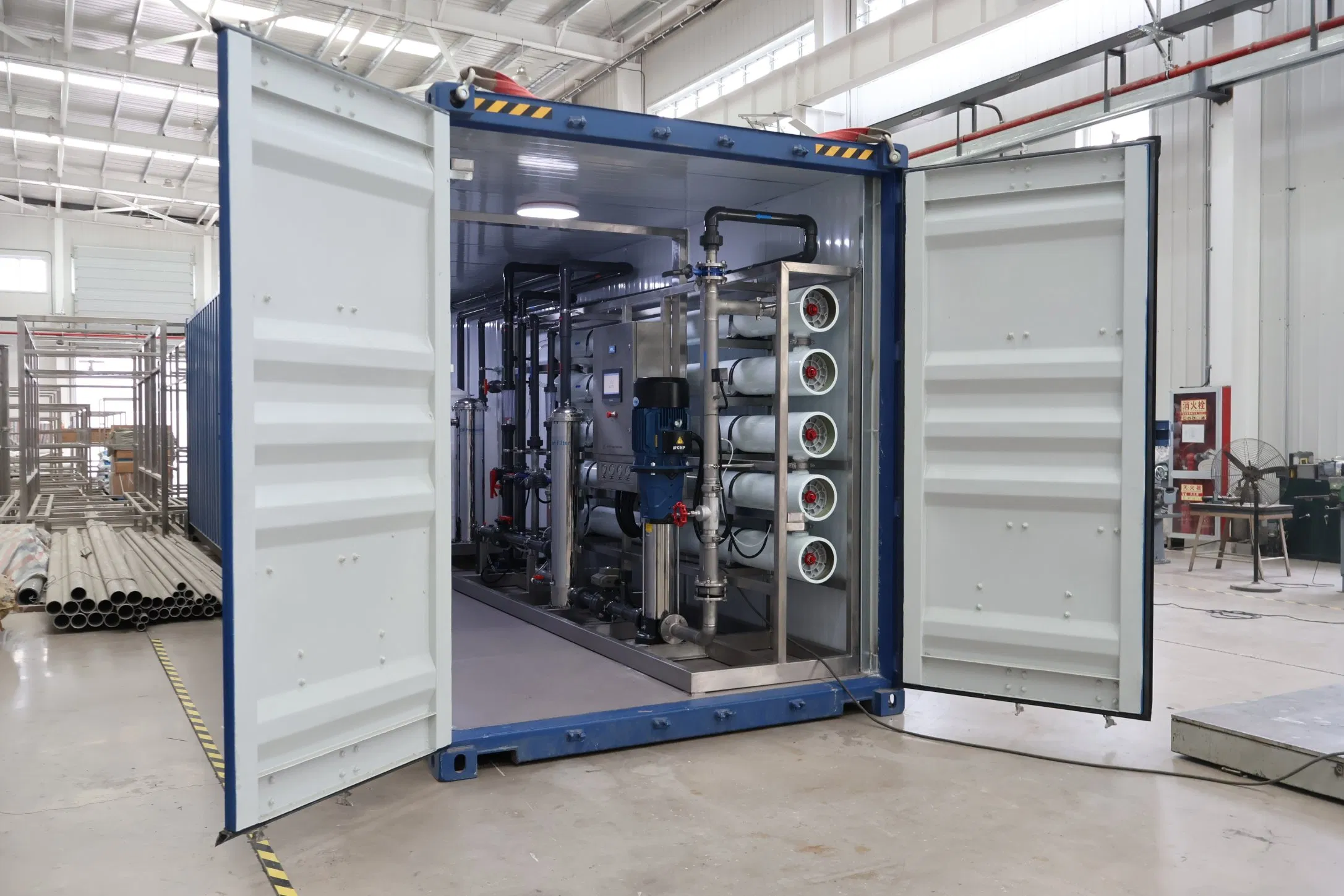

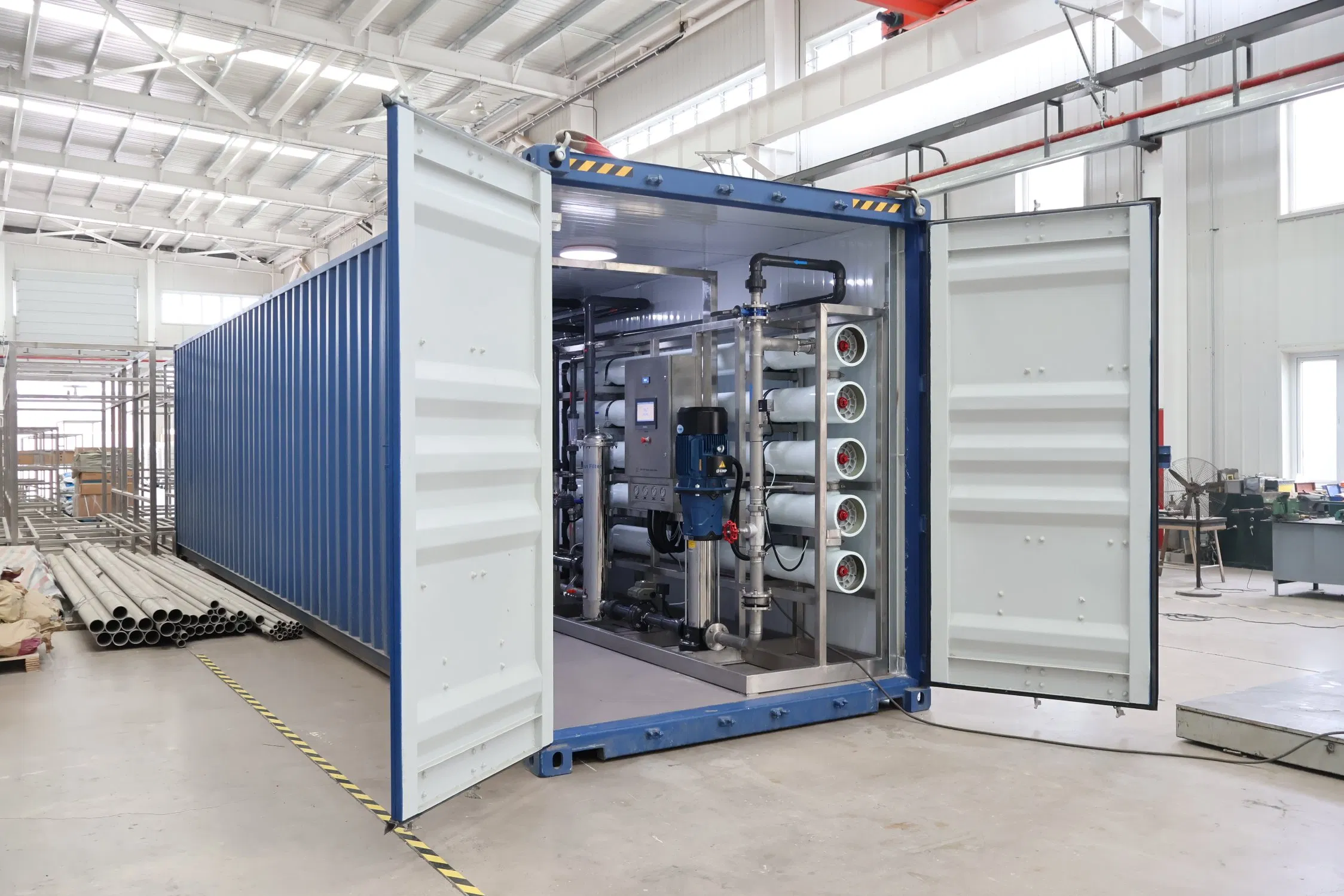

15tph Reverse Osmosis Water Treatment Machine Mobile RO System Containerized Water System
15tph Reverse Osmosis Water Treatment Machine Mobile RO System Containerized Water System
15tph Reverse Osmosis Water Treatment Machine Mobile RO System Containerized Water System
15tph Reverse Osmosis Water Treatment Machine Mobile RO System Containerized Water System
15tph Reverse Osmosis Water Treatment Machine Mobile RO System Containerized Water System
1 / 5
15tph Reverse Osmosis Water Treatment Machine Mobile RO System Containerized Water System
15tph Reverse Osmosis Water Treatment Machine Mobile RO System Containerized Water System
15tph Reverse Osmosis Water Treatment Machine Mobile RO System Containerized Water System
15tph Reverse Osmosis Water Treatment Machine Mobile RO System Containerized Water System
15tph Reverse Osmosis Water Treatment Machine Mobile RO System Containerized Water System

15tph Reverse Osmosis Water Treatment Machine Mobile RO System Containerized Water System

Customization: Available
Certification: ISO9001, CE
Salt Rejection Rate: 99.5%
Send Inquiry

Product Description

Divider

Basic Specifications

Model NO.
JFRO-15T
Application
Industry
Capacity
6000lph
Operating Pressure
0.8-1.2MPa
Recovery Rate
67%
Desalination Rate
Less Than 99.5%
RO Frame
SUS304
Control Valve
Manual/Automatic
Package Size
235x155x230cm
Gross Weight
800.00kg

Containerized Water Treatment Equipment

Containerized water treatment equipment is a convenient and efficient solution for water treatment, housing various processes within a standard shipping container.

Containerized RO System

🔑 Key Features & Structure

  • Modular Design: Arranged in modular units (filters, RO units, disinfection) for easy maintenance.
  • Standard Container Foundation: Provides structural strength and extreme ease of transportation.
  • High Reliability: Designed for 24-hour continuous operation with mature RO technology.
  • Energy Saving: Advanced design to reduce power consumption and water production costs.
  • Corrosion Resistance: Pipelines and fittings made of stainless steel and corrosion-resistant materials.
Divider

Technical Parameters

ModelJFRO-15T RO membrane8″
Capacity15m³/h Power Supply3-Phase: 110-415V 50/60Hz
Recovery Rate75% Consumption21KW / 22KW
Operating Pressure1.0-1.6MPa Control TypeManual / Auto
Filtration Accuracy0.0001 micron Feed Water TDS< 2000mg/L
Divider

Working Process Flow

Raw water tank ➔ Booster pump ➔ Quartz sand filter ➔ Activated carbon filter ➔ Scale inhibitor dosing ➔ Precision filter ➔ High pressure pump ➔ Reverse Osmosis System ➔ Pure water tank

* Note: Raw water and pure water tanks are typically prepared by the customer.

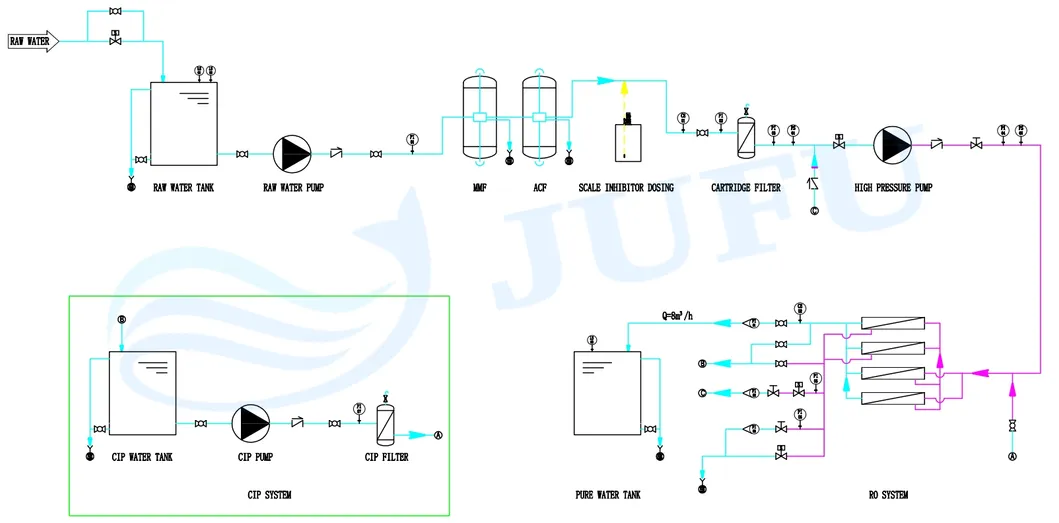

Flow Diagram

Product Details & Display

Divider

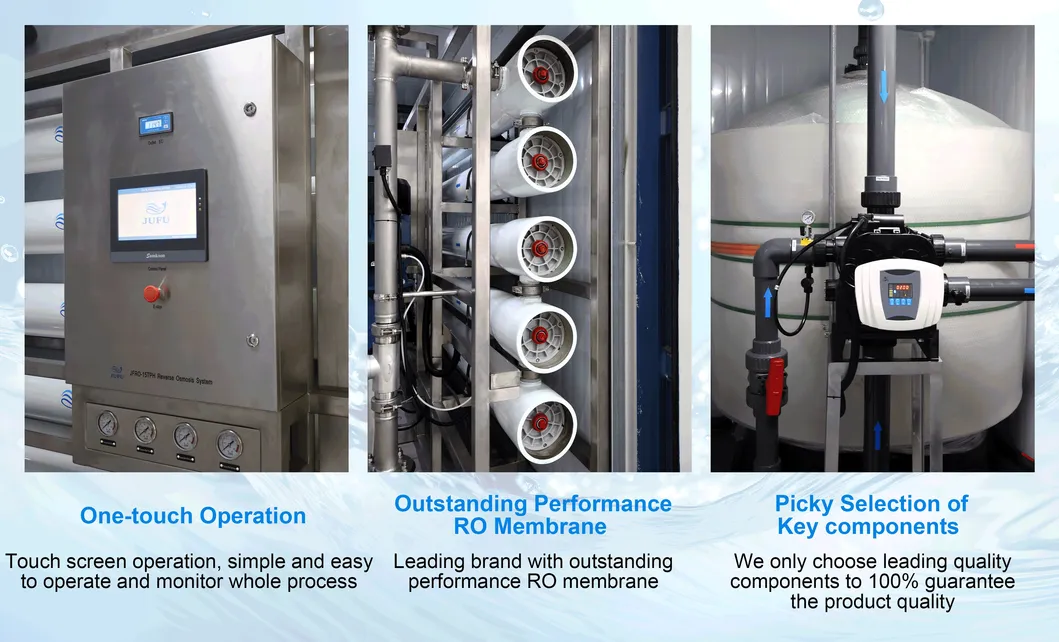

RO System Detail 1 RO System Detail 2 RO System Detail 3
Divider

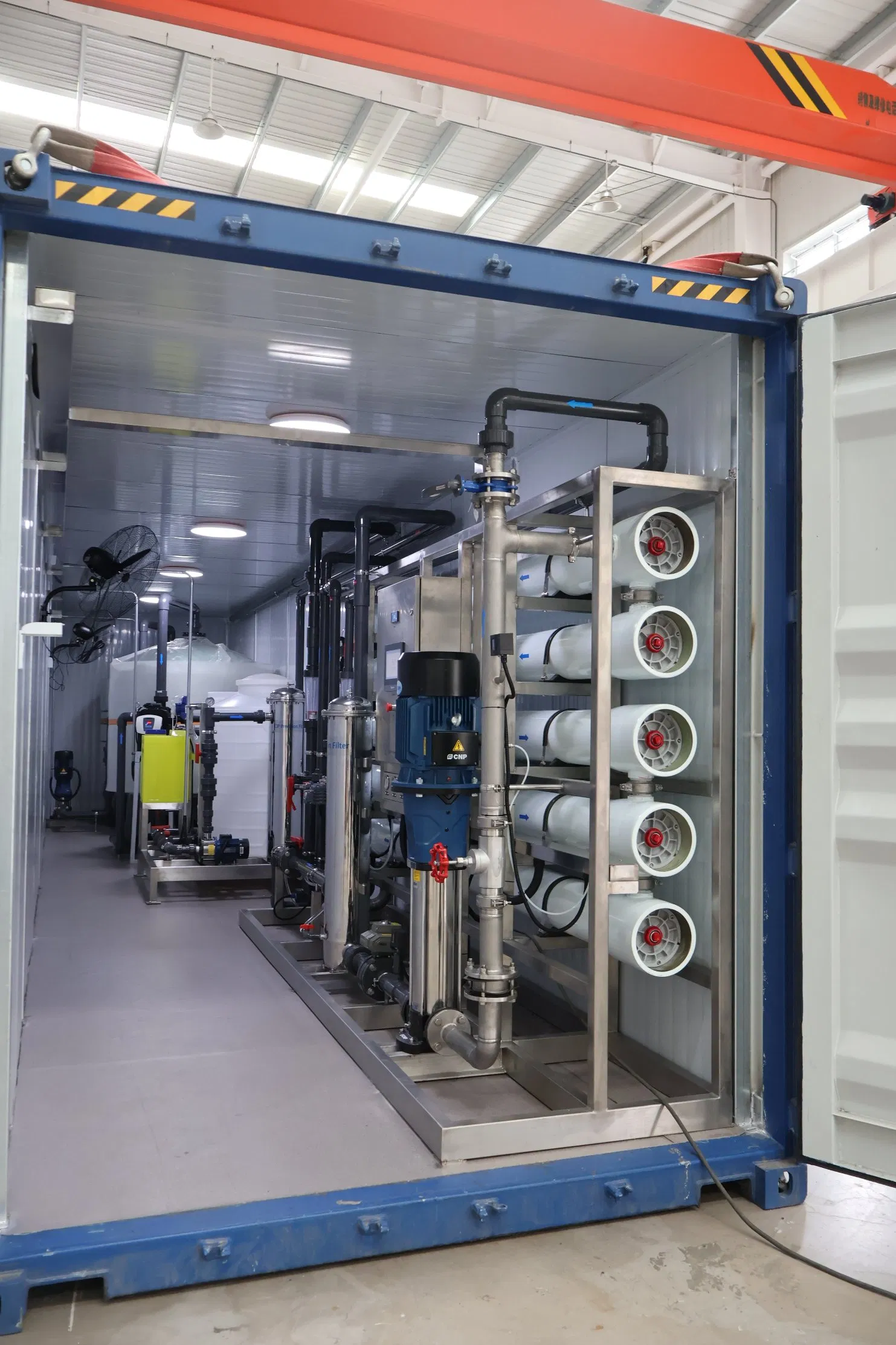

Internal View 1 Internal View 2 Internal View 3

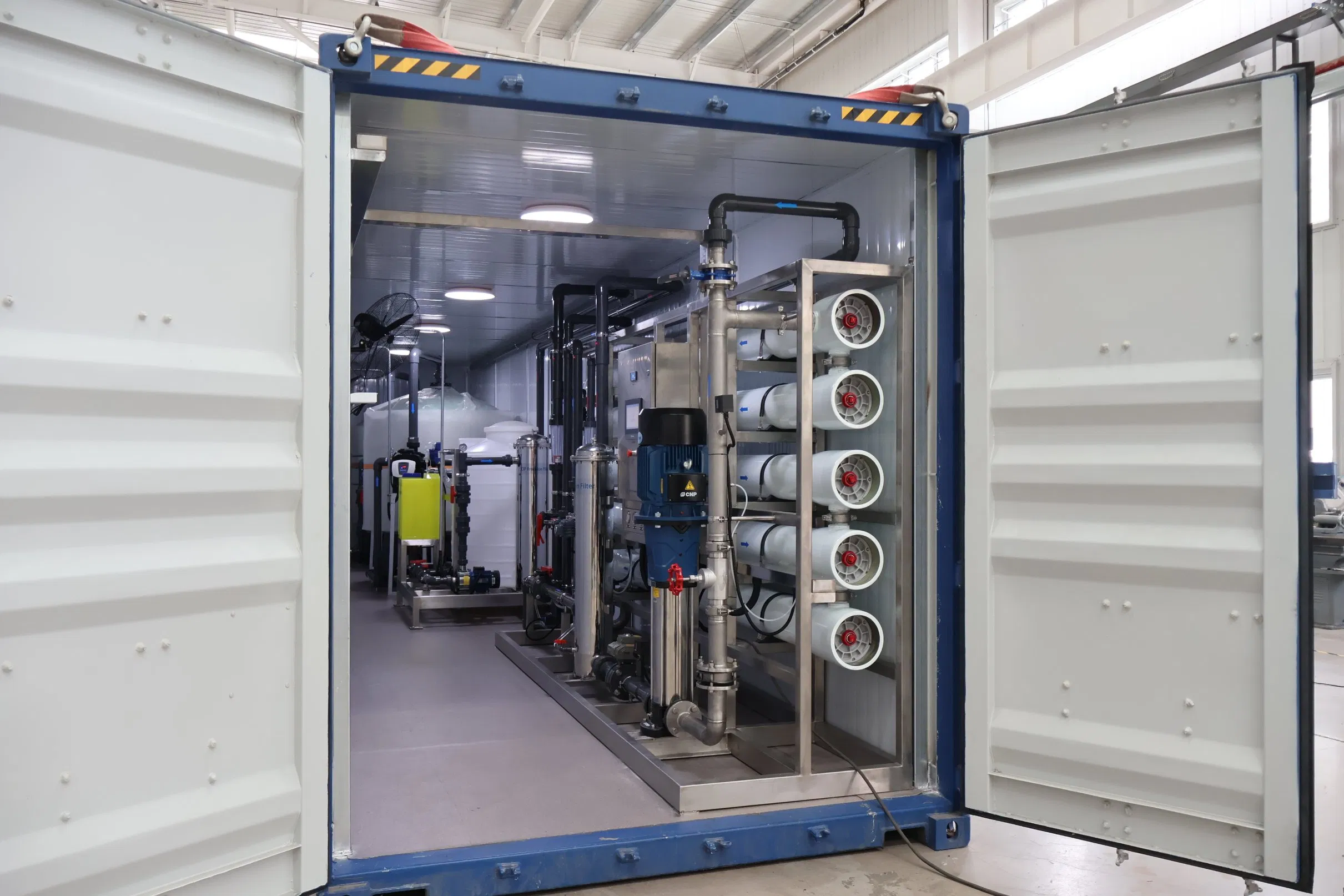

Complete Unit Divider

Frequently Asked Questions

What is your company's expertise in water treatment?
We are a high-tech manufacturer in the water treatment industry with nearly two decades of experience, specializing in R&D, manufacturing, and engineering installation of purification technologies.
What information should I provide for a product selection?
Please provide your raw water source (and analysis report if available), required output capacity, the specific application of the project, and your local piping standards.
How can I ensure the product matches my specific requirements?
Our professional engineers provide tailor-made solutions based on your needs. We highlight and solve project pain-points to ensure overall optimization.
What are the standard payment and delivery terms?
Standard terms involve a deposit in advance with the balance due before delivery. The general lead time is approximately 3-5 weeks for standard products.
What is the warranty period for this equipment?
We offer a 1-year warranty on our products. With proper use and regular maintenance, the equipment is designed to operate efficiently for over 5 years.
