15tph Mobile RO Water Treatment System Reverse Osmosis Containerized Water System

Customization: Available
Certification: ISO9001, CE
Salt Rejection Rate: 99.5%

Product Description

📊 Basic Info.
Application
Industry
Capacity
6000lph
Operating Pressure
0.8-1.2MPa
Recovery Rate
67%
Desalination Rate
Less Than 99.5%
RO Frame
SUS304
Membrane Elements
Dow /Hydranautics/Troy/ Vontron (Optional)
Control Valve
Manual/Automatic
Package Size
235.00cm * 155.00cm * 230.00cm
Gross Weight
800.000kg
📝 Product Description
Header Banner

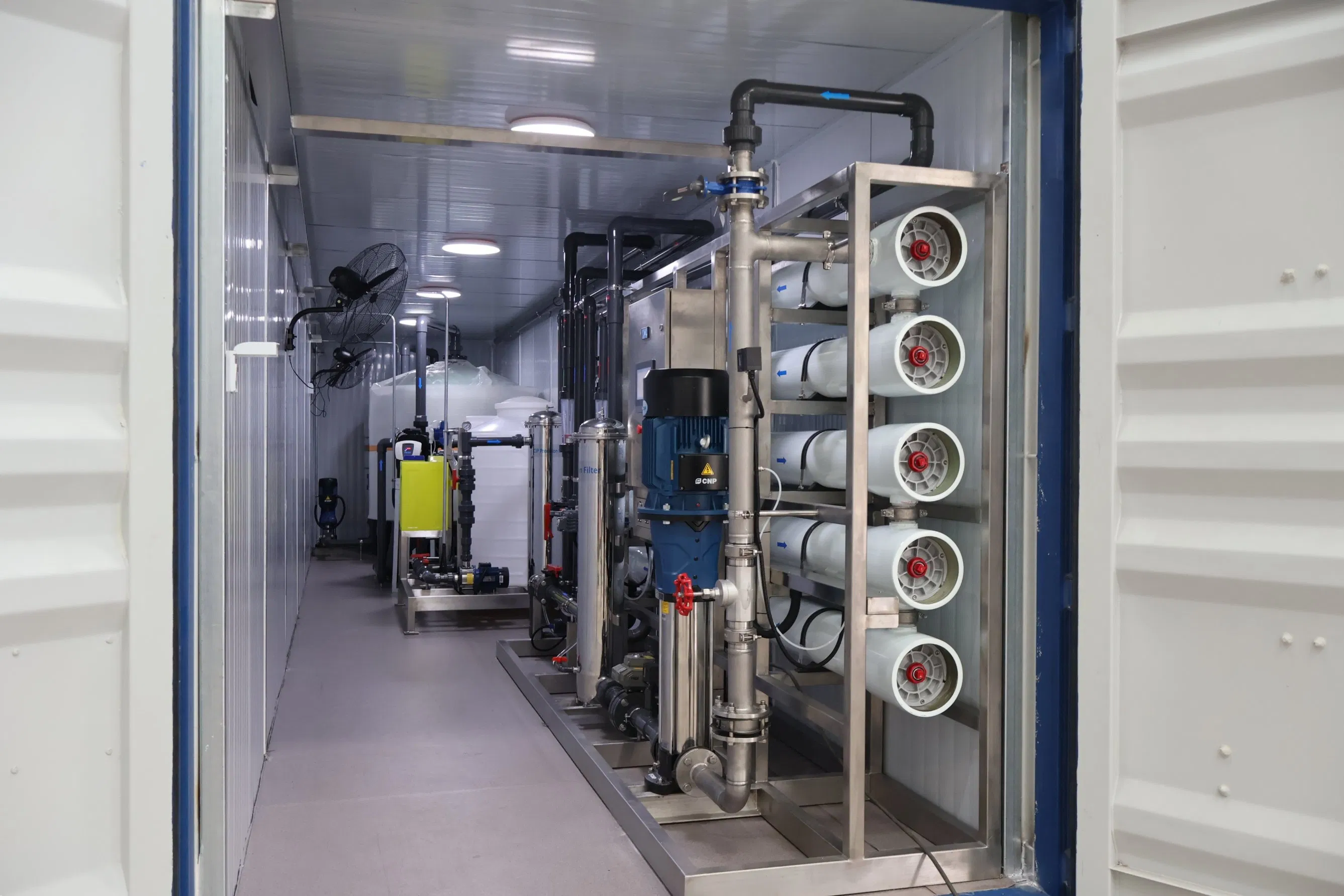

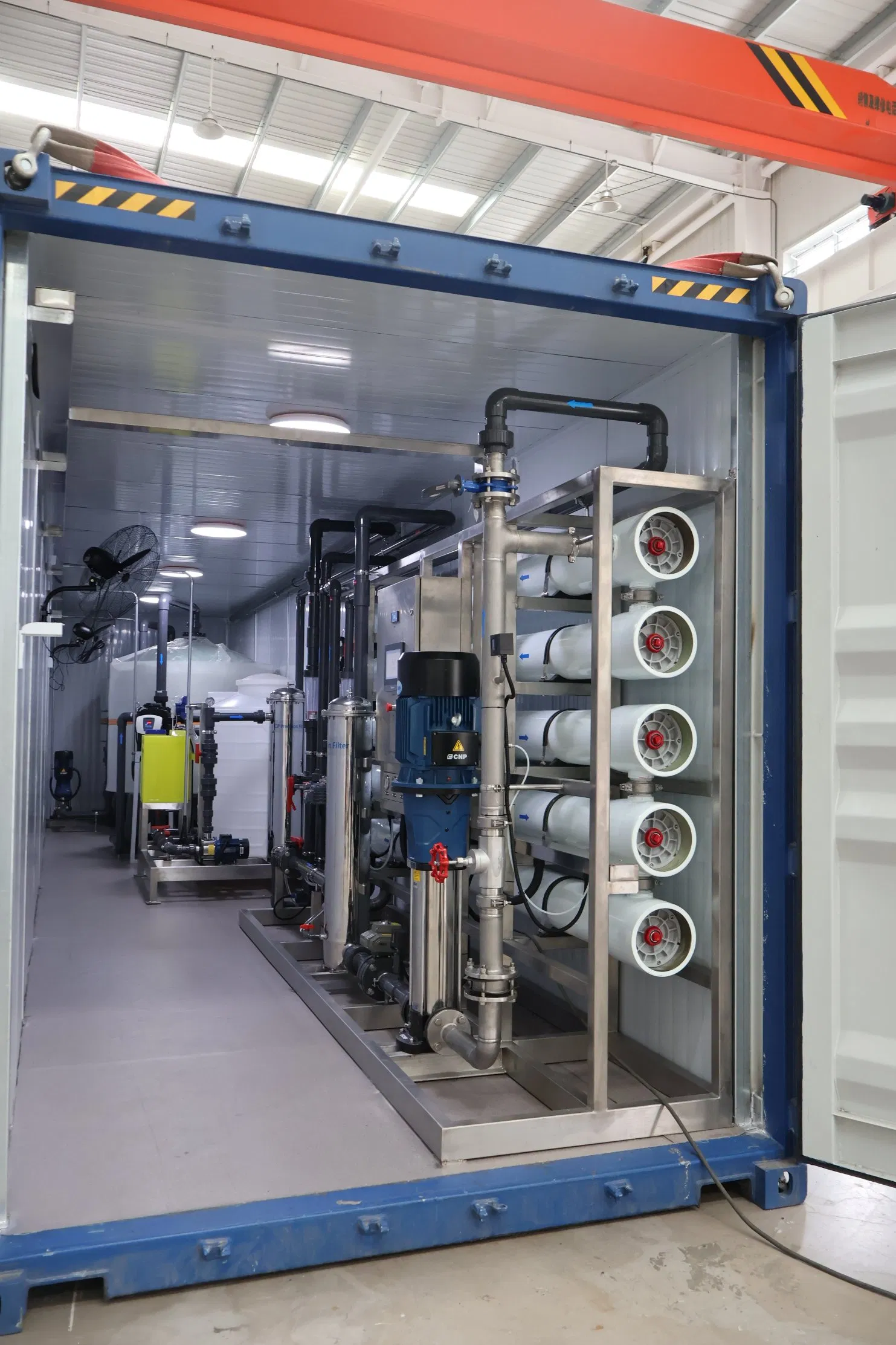

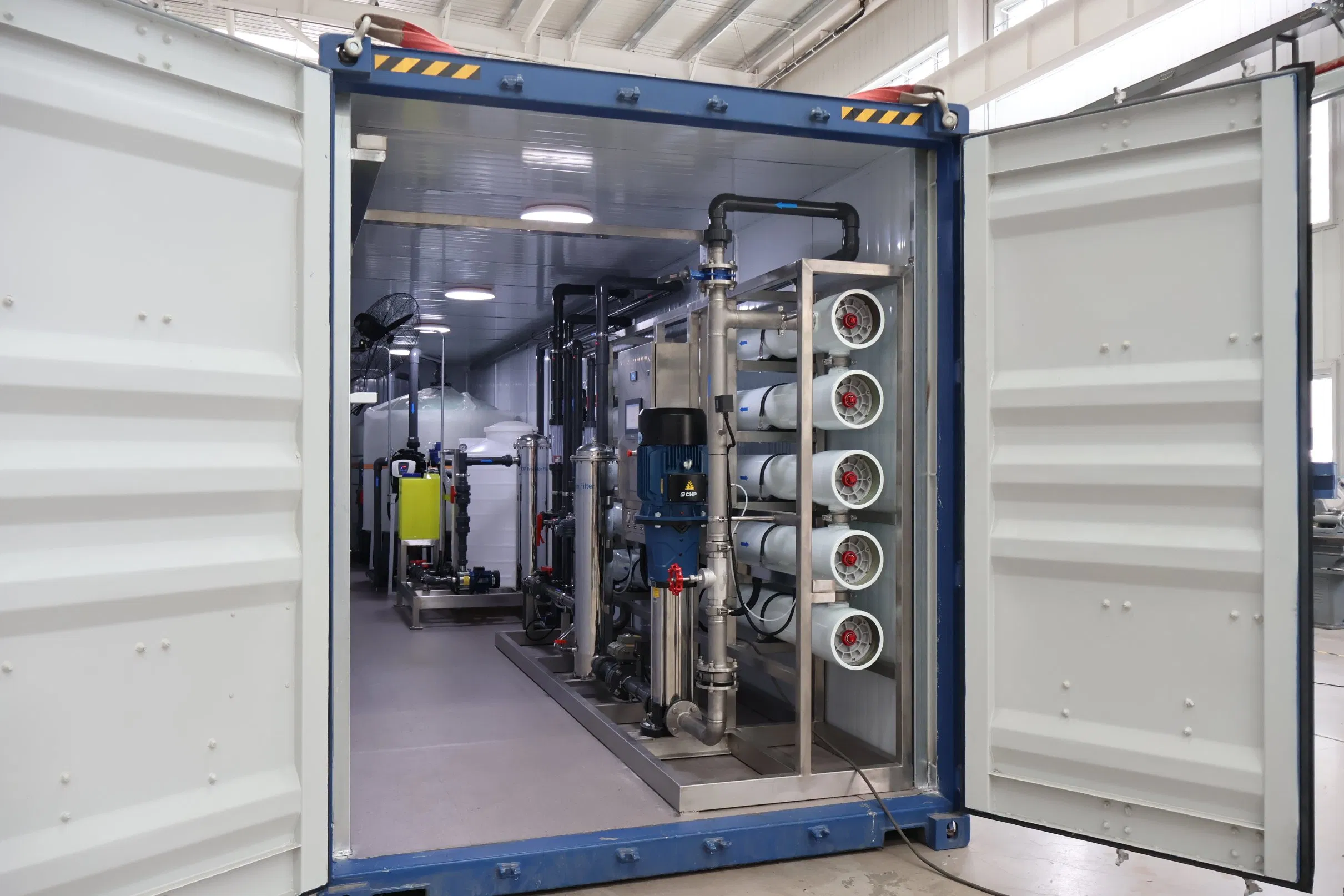

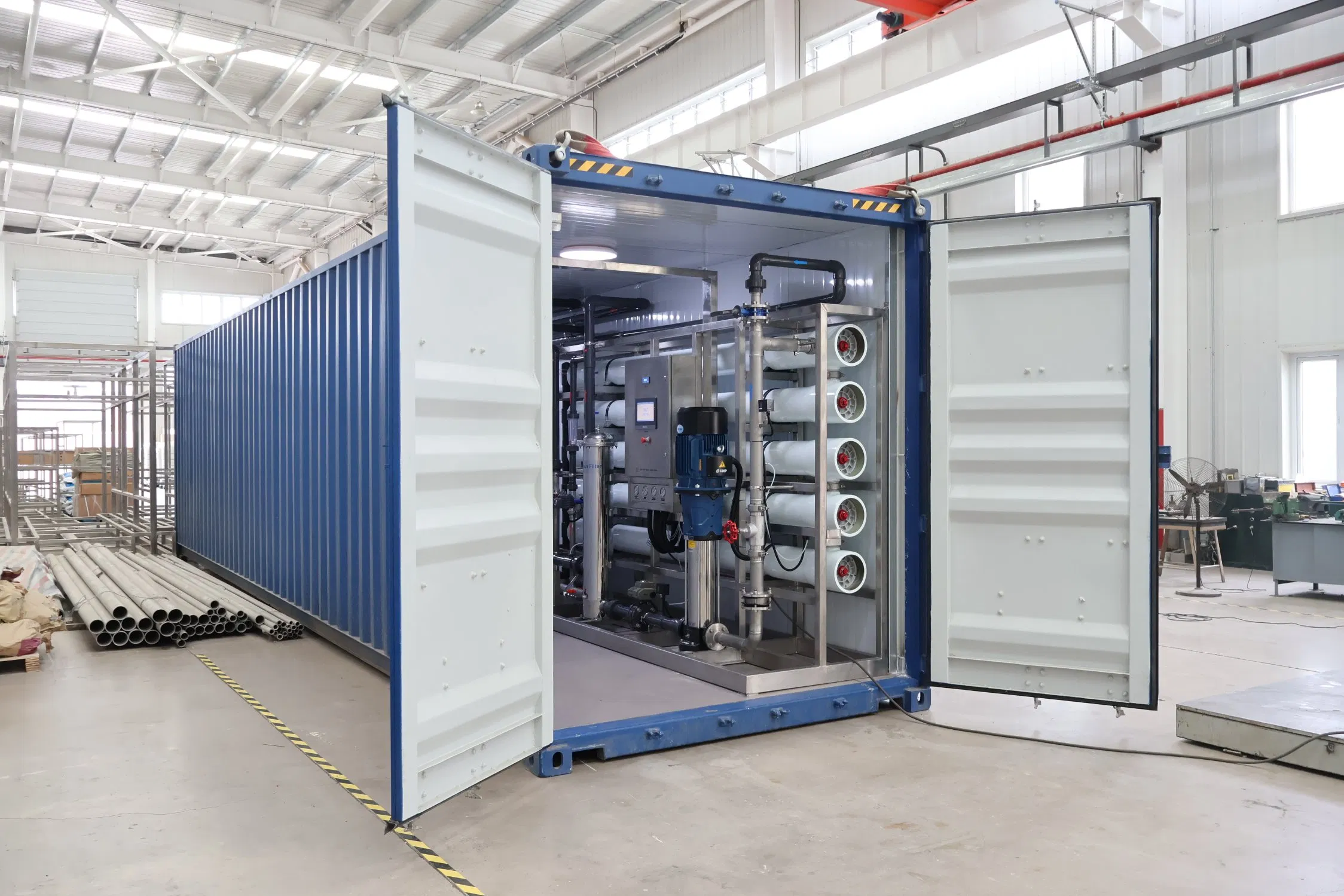

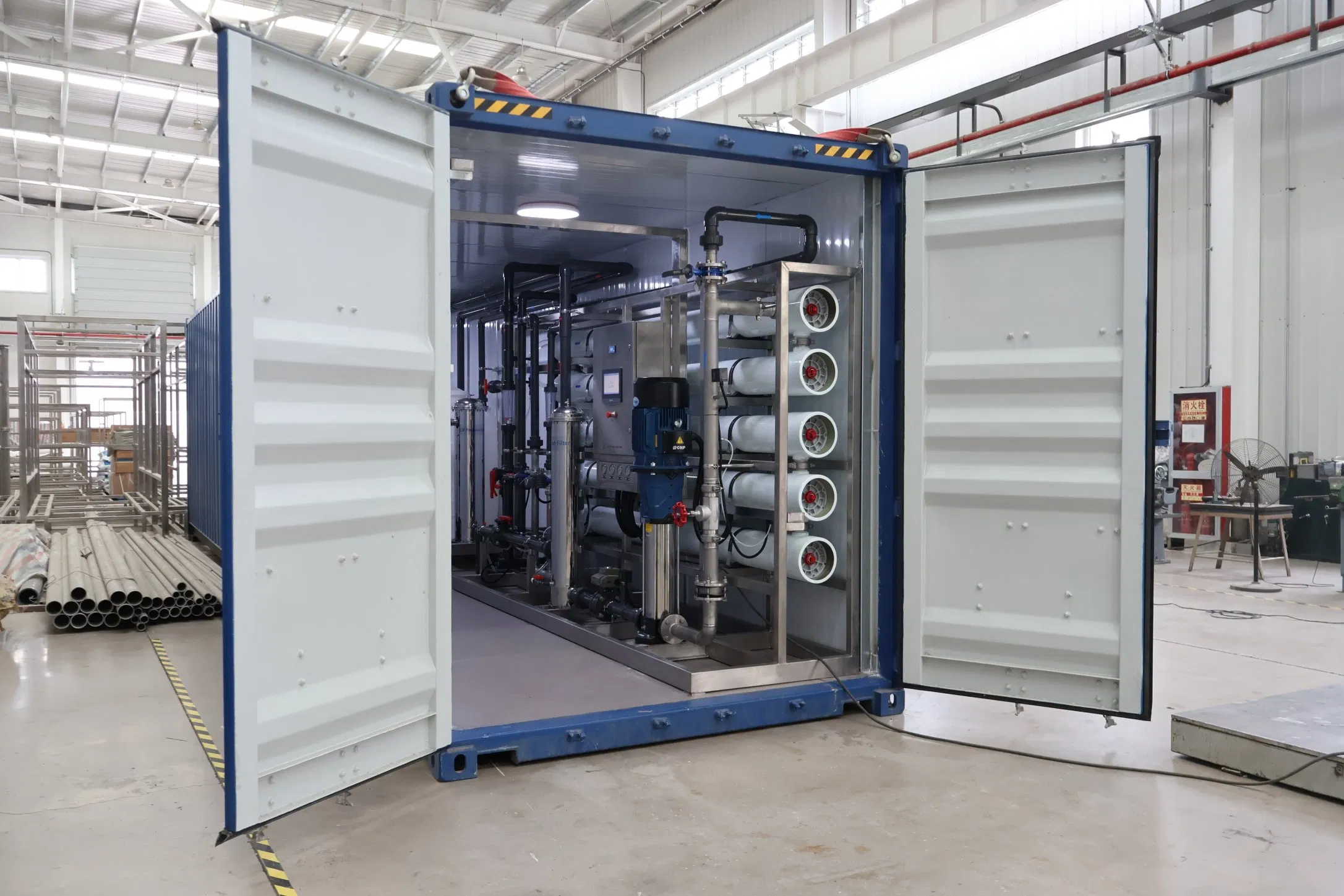

💧 What is Containerized water treatment equipment?

Containerized water treatment equipment is a convenient and efficient solution for water treatment, housing various water treatment processes within a standard shipping container.

  • Structure and Design: Typically utilizes a standard shipping container as a foundation, providing structural strength and ease of transportation. Modular Design allows easy maintenance and updates.
  • Application Scenarios: Ideal for temporary or mobile projects (construction sites, disaster response), remote areas, and emergency response.
  • Key Components: Includes Pre-treatment units (sand filters), Main treatment units (RO membranes, ion exchange), and Disinfection units (UV/Ozone).
  • Advantages: High flexibility, cost-effectiveness for small to medium projects, and rapid response to water quality changes.
⚙️ Performance & Characteristics
  • Mature and advanced reverse osmosis technology, desalination rate up to 99.5%.
  • Modern automatic control technology to reduce labor intensity.
  • Energy-saving design with low energy consumption.
  • Stainless steel (SUS304) pipelines and corrosion-resistant materials.
  • 24 hours continuous operation reliability.
  • Integrated electrical control system for monitoring status, faults, and alarms.
📋 Technical Specifications
Spec Divider
Model JFRO-15T RO membrane 8″
Producing Capacity 15m³/h Recovery Rate 75%
Power Supply Tri-phase: 110/220/380/415V 50/60Hz
Operating Pressure 1.0-1.6MPa Desalination Rate 99%
Power Consumption 21KW/22KW Filtration Accuracy 0.0001 micron
Feed Water Quality SDI<5; Free Chlorine <0.1mg/L; TDS<2000mg/L

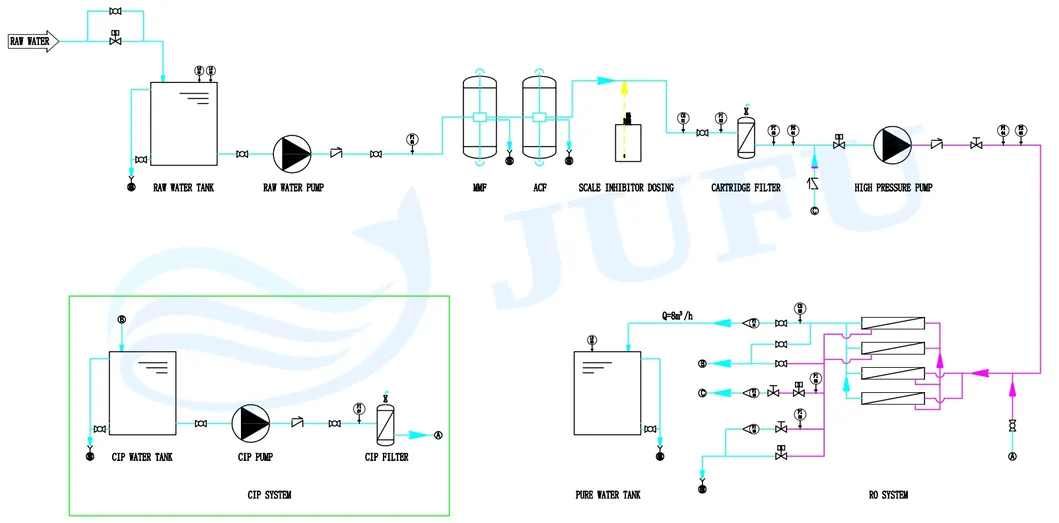

🔄 Working Flow Chart
Flow Header
Raw water tank → Booster pump → Quartz sand filter → Activated carbon filter → Scale inhibitor dosing → Precision filter → High pressure pump → Reverse Osmosis System → Pure water tank

*Remarks: Raw water tank and pure water tank need to be prepared by the customer.

📷 Product Gallery
❓ FAQ
What's the type of your company? Manufacturer or Trading agent?
We're a Hi-tech manufacturer in the water treatment industry for almost two decades, specializing in R&D, manufacturing, and engineering installation.
What kind of information is needed for product selection?
Please provide the raw source of water (water analysis report), required output capacity, project application, and local piping standards.
How can I choose the products which can perfectly match my case?
Tailor-made solutions are provided by professional engineers based on your specific requirements and project pain-points.
What's your payment terms?
Deposit in advance and balance before delivery.
What's the lead time?
It typically depends on the order, usually 3-5 weeks for general products.
What's your warranty?
We offer a 1-year warranty. The product itself can work for over 5 years with proper use and maintenance.
