Underground Purification RO System for Farm Irrigation Desalination Machines Water Plant Price

Still deciding? Get samples of $ !
Order Sample

Product Description

Purification RO System
📋

Basic Information

Model NO.TK-RO-20T/H
ApplicationIndustry
Capacity88 Gallon Per Mins
Pure Water Capacity20,000 Liters 20t/H
Machine NameSalt Desalination Machine
After-Sales ServiceHome Installation
MaterialStainless Steel+FRP
OperationAutomatic and Manual
TechnologyPretreatment + RO
Voltage380V/50Hz or Others
Control TypeAuto, PLC, Press-Button
Specification700*2000*300cm
HS Code8421219990
Production Capacity500 sets/Year
🔍

Product Overview

Reverse osmosis (RO) is widely considered one of the most effective water filtration methods, creating clean, great-tasting water. RO systems are utilized in a diverse range of applications, regardless of the source water quality.

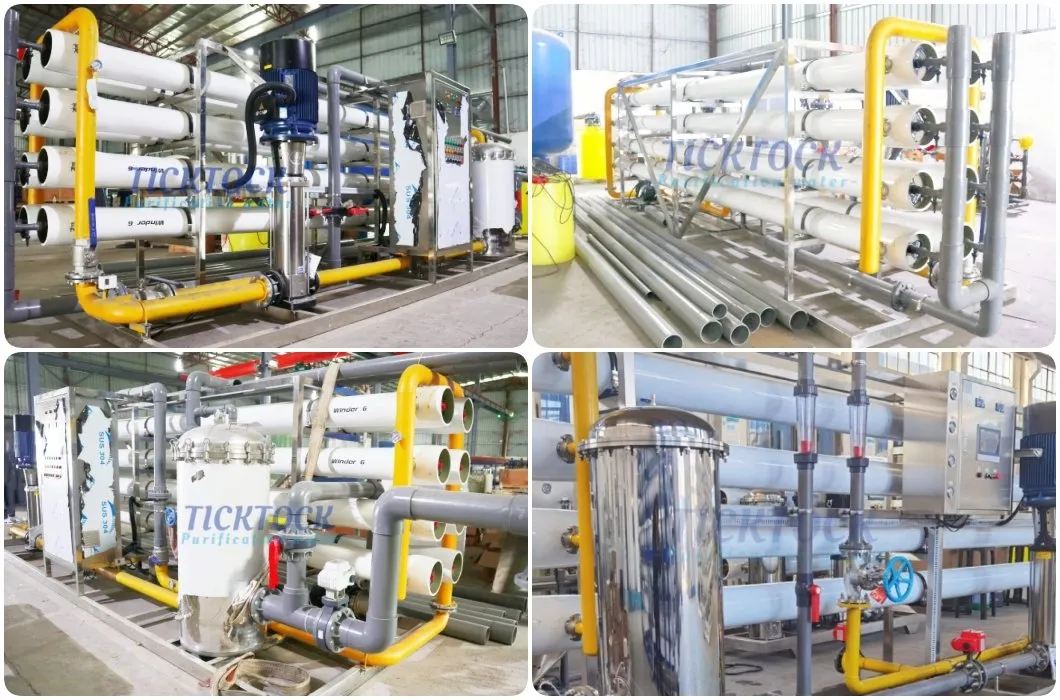

RO System Overview
Items Water Machine Description Brand Components Quantity
1Raw water booster pumpCNP/Grundfos/SHIMGE etc.1 Set

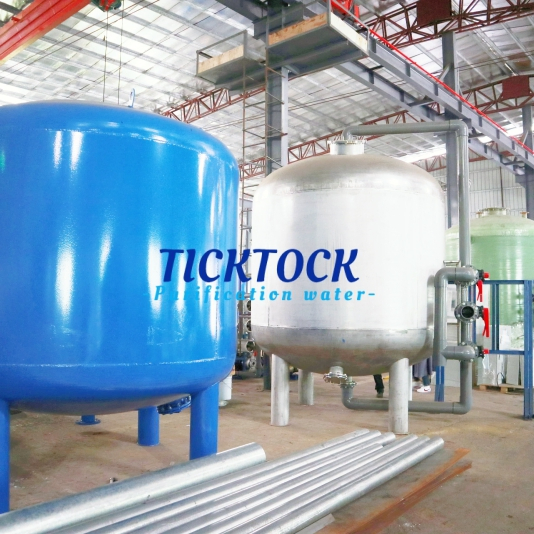

2Quartz Sand filterHigh Grade1 Set
3Activated Carbon filterHigh Absorption1 Set
4Cartridge/security PP element filterFine Filtration1 Set
5High pressure pumpCNP/Grundfos/SHIMGE etc.1 Set

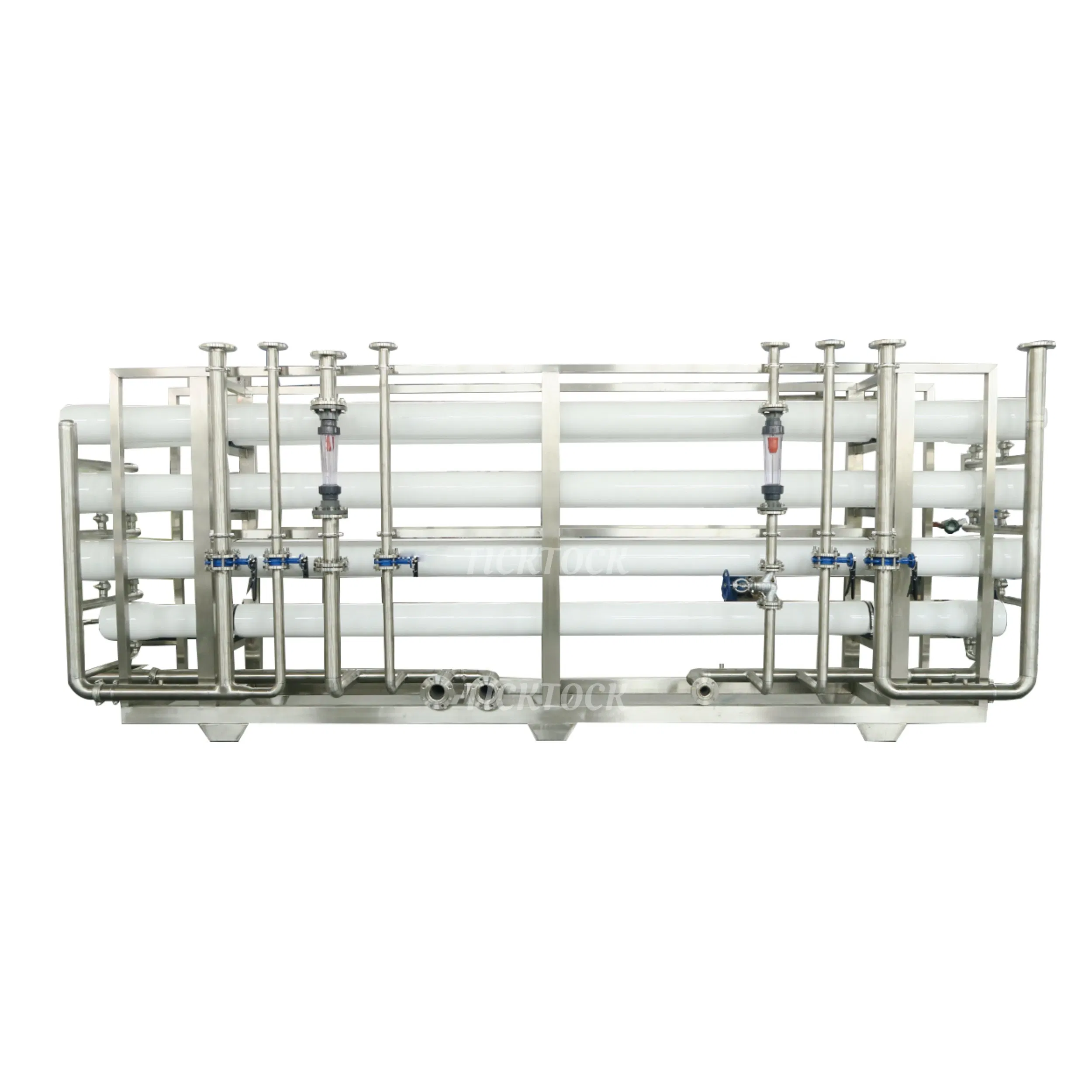

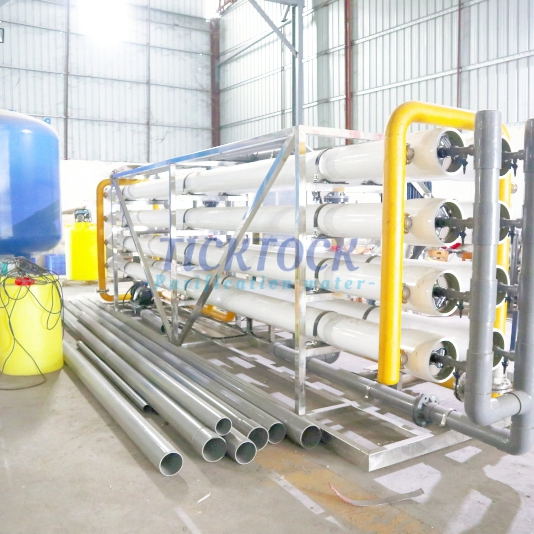

620m3/hour RO Membrane & HousingFull Stainless Steel 304 Rack1 Set
7Pipe fittings, valves304 Stainless Steel/PVC1 Set

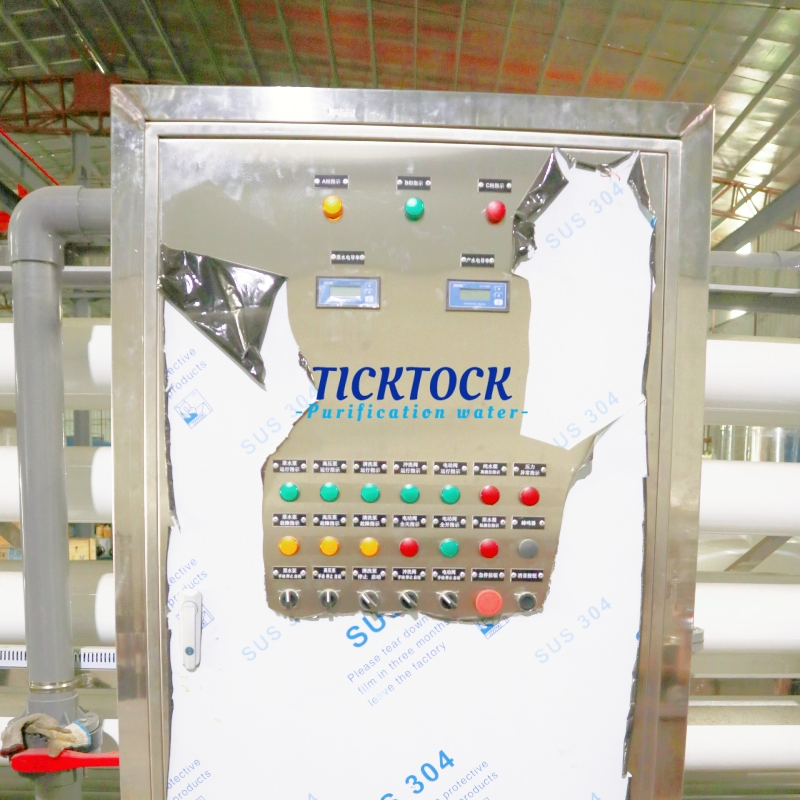

8Electronic control systemStainless Steel Cabinet1 Set
9Filter MediaManganese/Quartz/Carbon/Resin1 Set
10Pressure gaugesPrecision Type1 Set
11FlowmeterPanel type1 Set
12UV SterilizerEffective Purification1 Set
⚙️

Design Features

  • Main parts and components from well-known brands for reliable performance.
  • Low maintenance design with no common wearing parts for long-term effectiveness.
  • Soft start configuration with slow pressure increase to protect RO membranes from water hammer damage.
  • Integrated low-pressure switch to protect the high-pressure pump from dry running.
  • Automatic rinsing of membrane elements during startup to reduce contamination rates.
  • Fresh water refilling during shutdown to prevent concentrated salt water from contaminating the membrane.
  • Continuous monitoring via inlet and discharge pressure gauges for optimized cleaning cycles.
  • Automated tank level controls for replenishment and system stop.
  • Full PLC control system with a 10" touch screen and integrated alarm management.
📸

Detail Images & Flow Chart

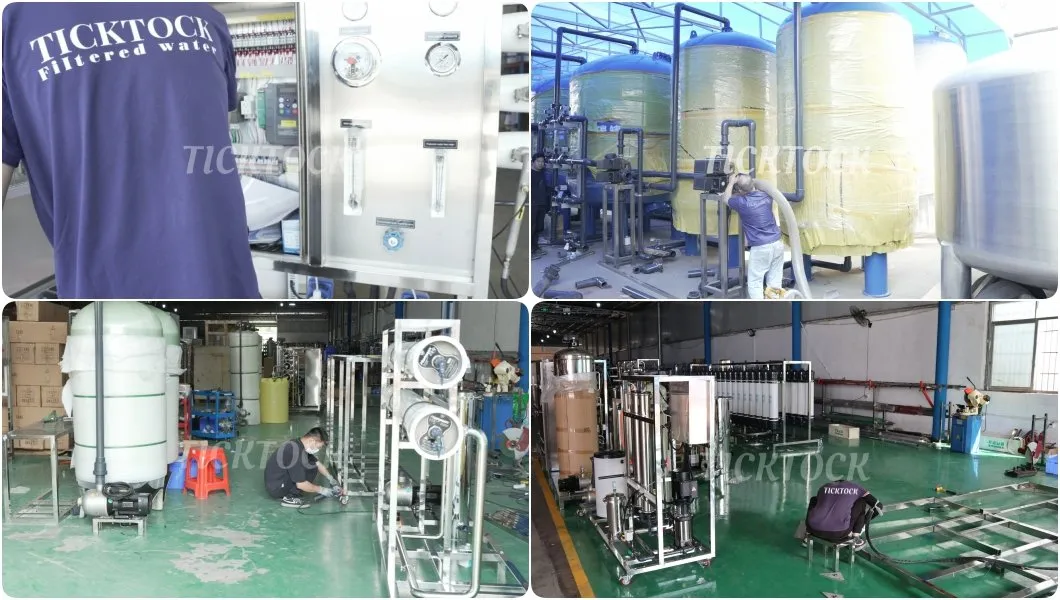

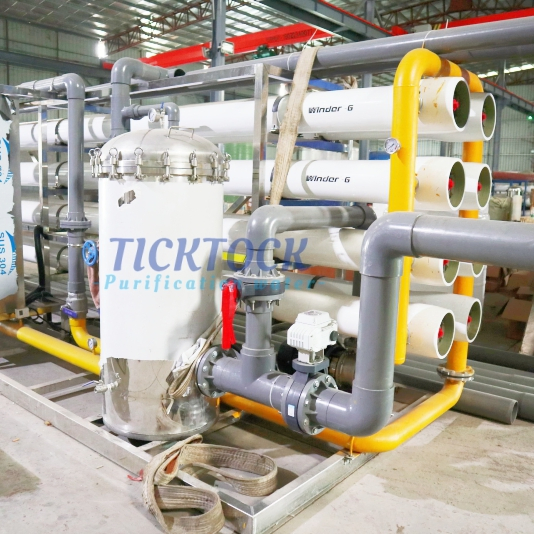

Detail Image

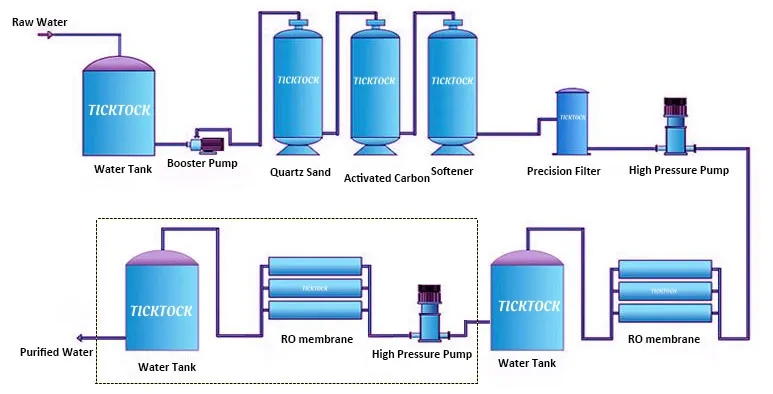

Flow Chart
🌍

Why Choose Our Solutions

We provide water treatment solutions for a wide range of industries globally, including electronics, battery production, boiler treatment, pharmaceuticals, agriculture, and food & beverage production.

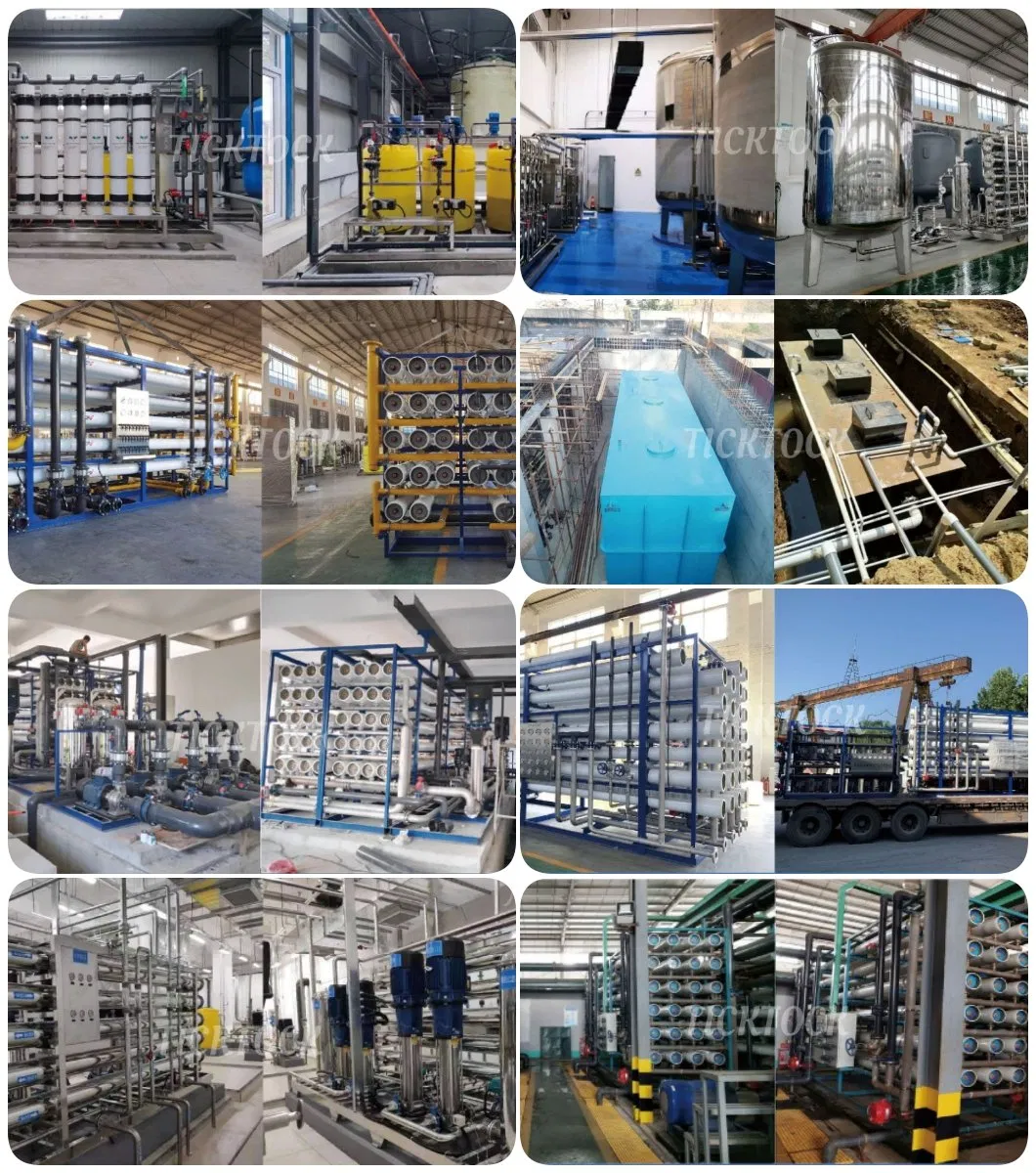

Customer Cases
Certifications
📦

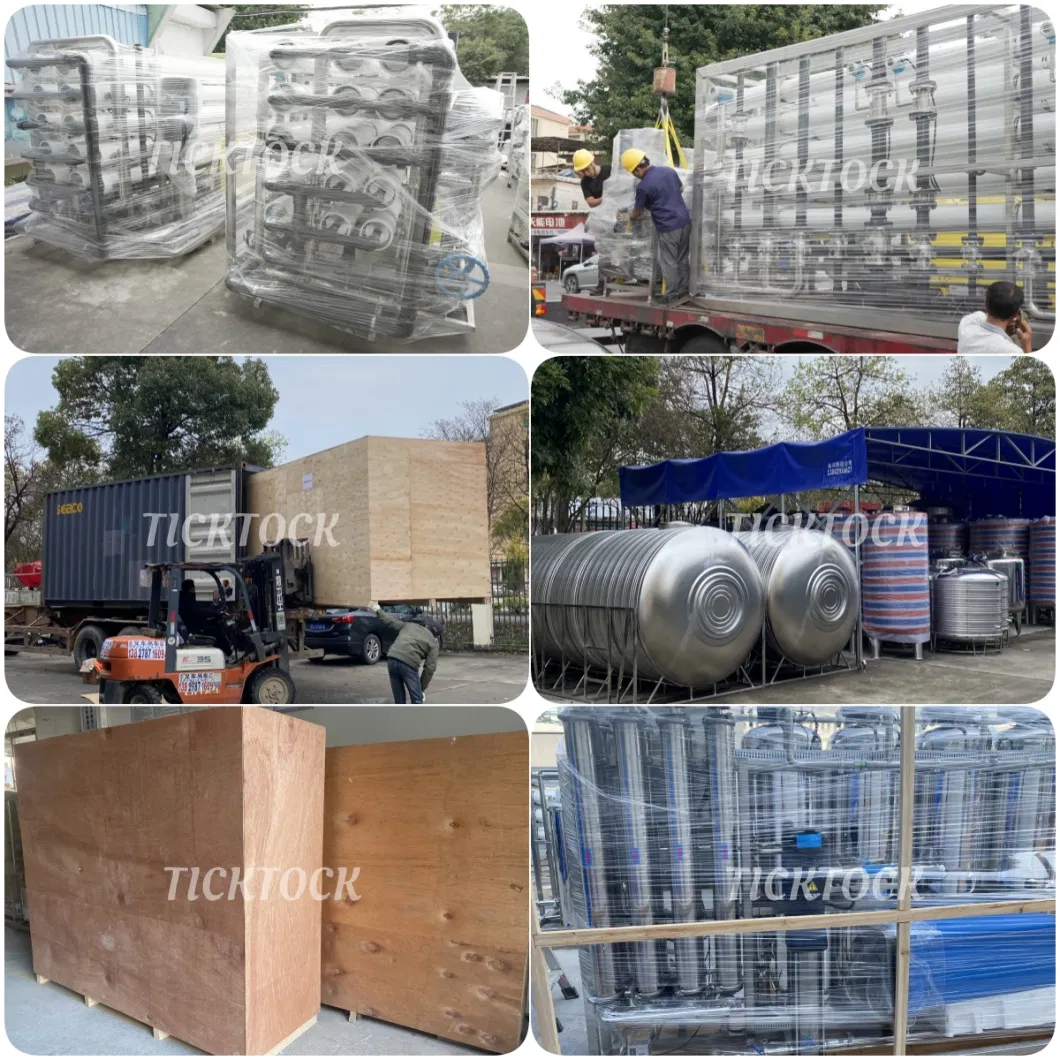

Packaging & Shipping

Full container shipments utilize specialized film paper packaging. Smaller equipment units for export are securely packed in strong wooden crates to ensure safety during long-distance delivery.

Product Packaging

Frequently Asked Questions

What is the production capacity of this RO system?
The system features a pure water capacity of 20,000 Liters per hour (20t/H), which is approximately 88 Gallons per minute, designed for industrial-scale requirements.
What information is required to get an accurate quote?
We need to know your required pure water capacity (Liters/Hour), the feed water TDS (total dissolved solids) or a raw water analysis report, and your available electrical power voltage and phase.
How is the quality of the machinery controlled?
All production follows CE and ISO standards. Every machine undergoes rigorous testing before packaging. We use strong wooden cases to ensure the equipment remains safe during transit.
What is the typical lead time for production?
Depending on the specific project and model complexity, delivery generally takes between 5 to 50 days. Standard models may be available in stock for faster dispatch.
What industries can utilize this water purification system?
This system is suitable for the electronic industry, battery production, boiler water treatment, pharmaceutical manufacturing, agricultural irrigation, and the food and beverage industry.
What are the main automation features?
The system is controlled by a Siemens PLC with a 10" touch screen. It includes automatic rinsing, automated level controls for refilling, and low-pressure protection to prevent pump damage.
