Product Description

Overview & Basic Information

Corrosion Durability:Higher

Operating Voltage:220V

Noise Level:Low

Application:Hotels, Schools, Airports, etc

Mounting:Concealed, Floor Ceiling, Wall Mount

Lifetime:10-15 years

Airflow:200-3000cfm

Cooling Capacity:1635-34410 W

Control System:Intelligent Control

Coils Design:2 Pipes / 4 Pipes

Product Features

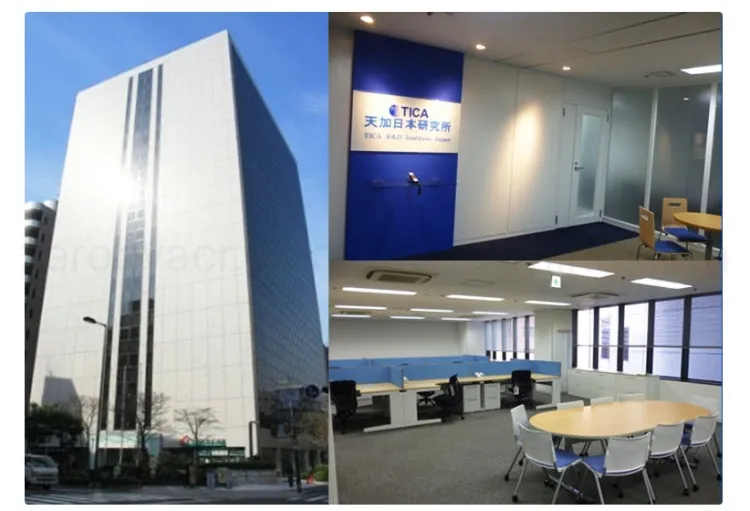

ADVANCED R&D TECHNOLOGY

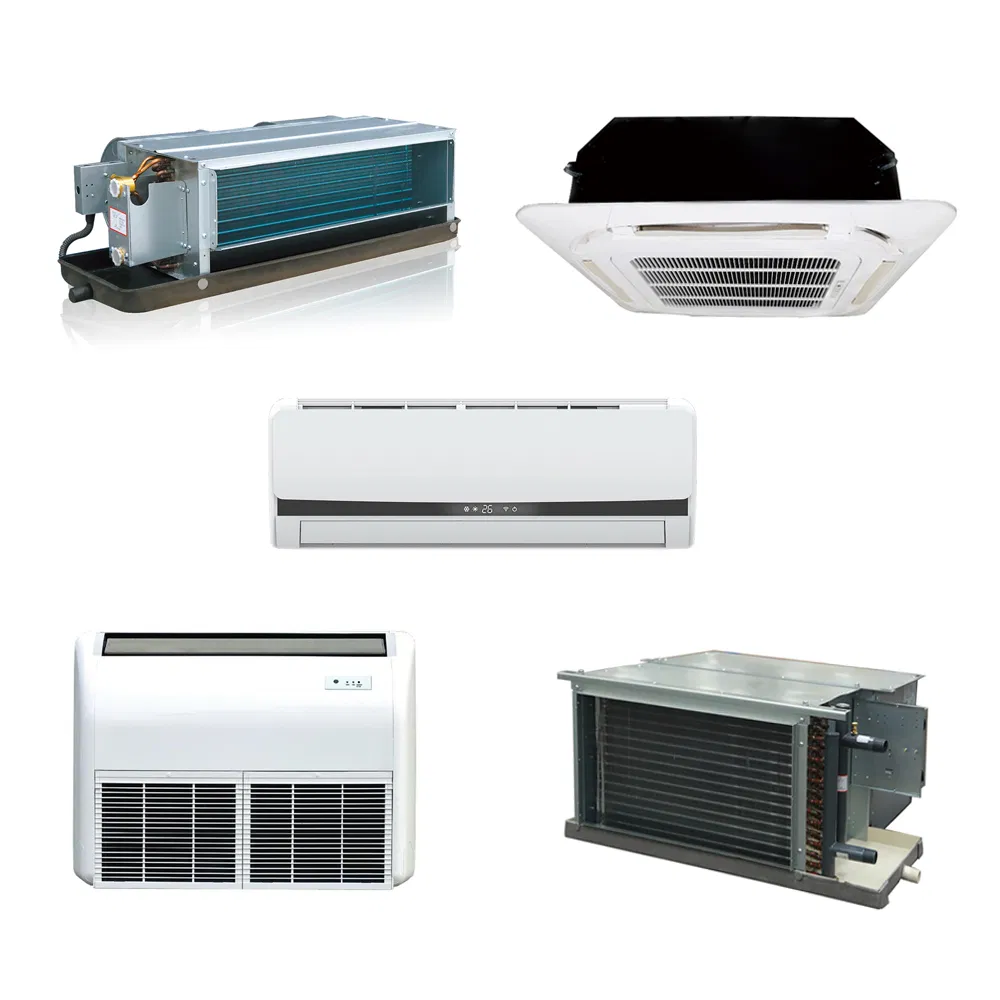

Products Line

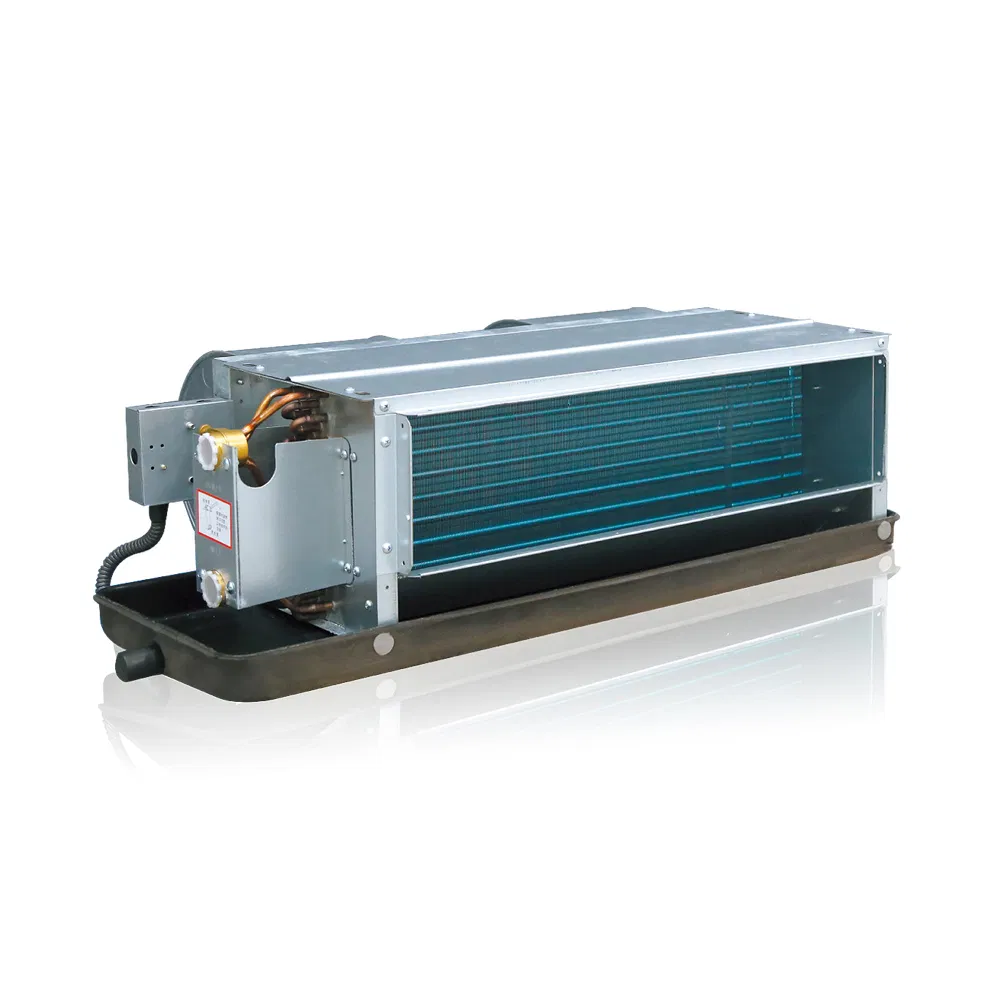

Duct concealed type (TCR/TCRQ)
200-1400 CFM

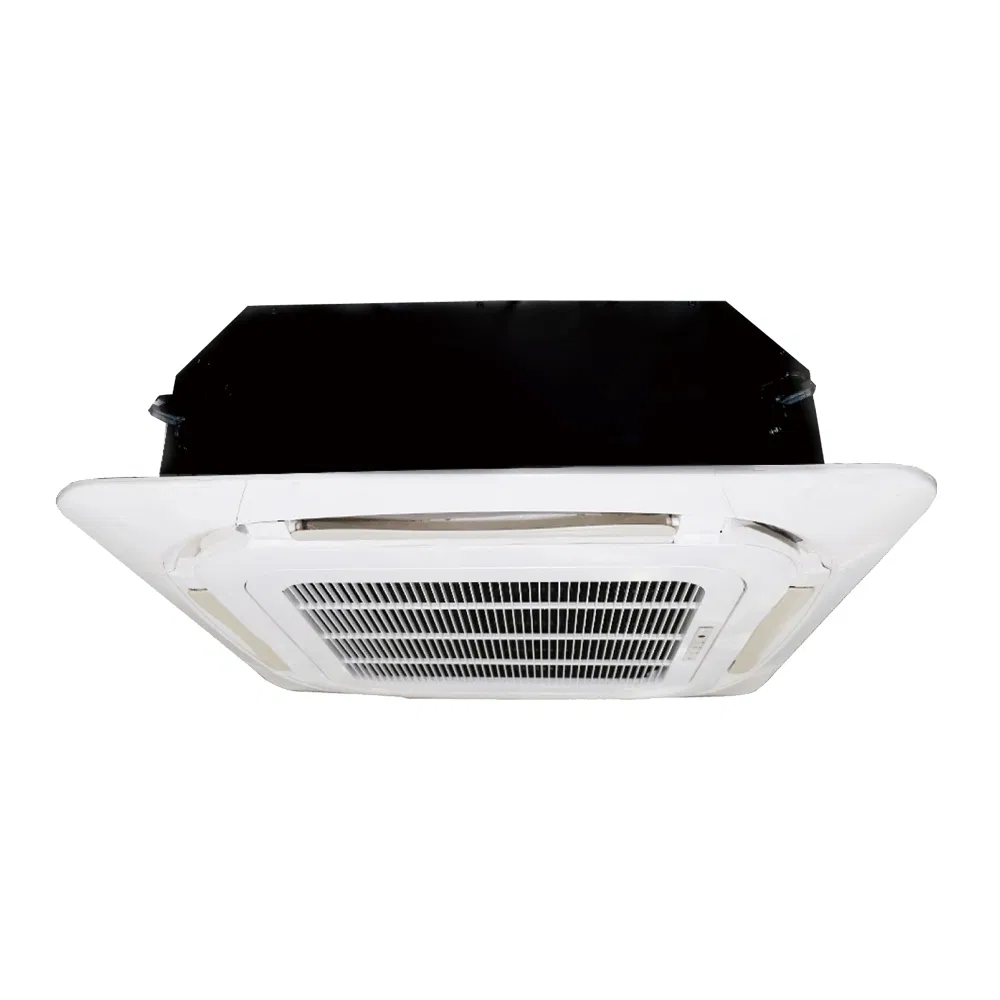

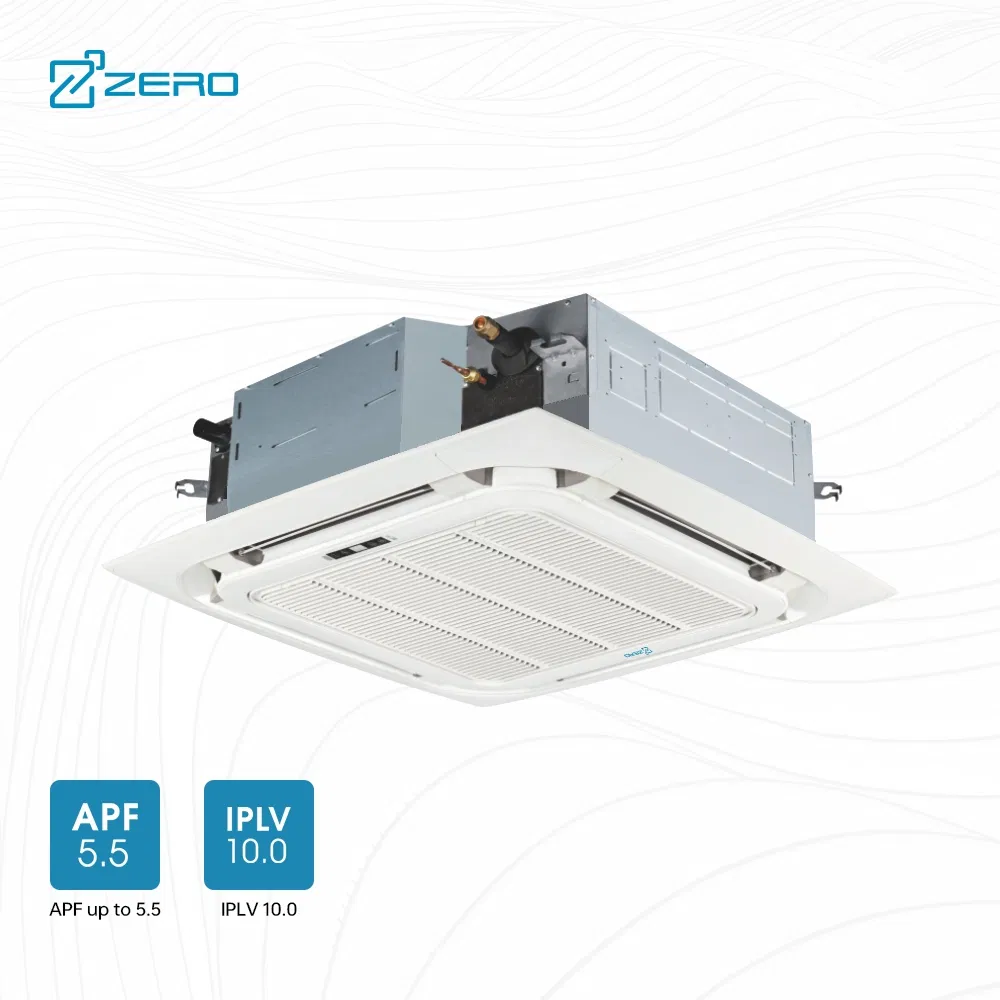

Cassette (TKM)
300-1200 CFM

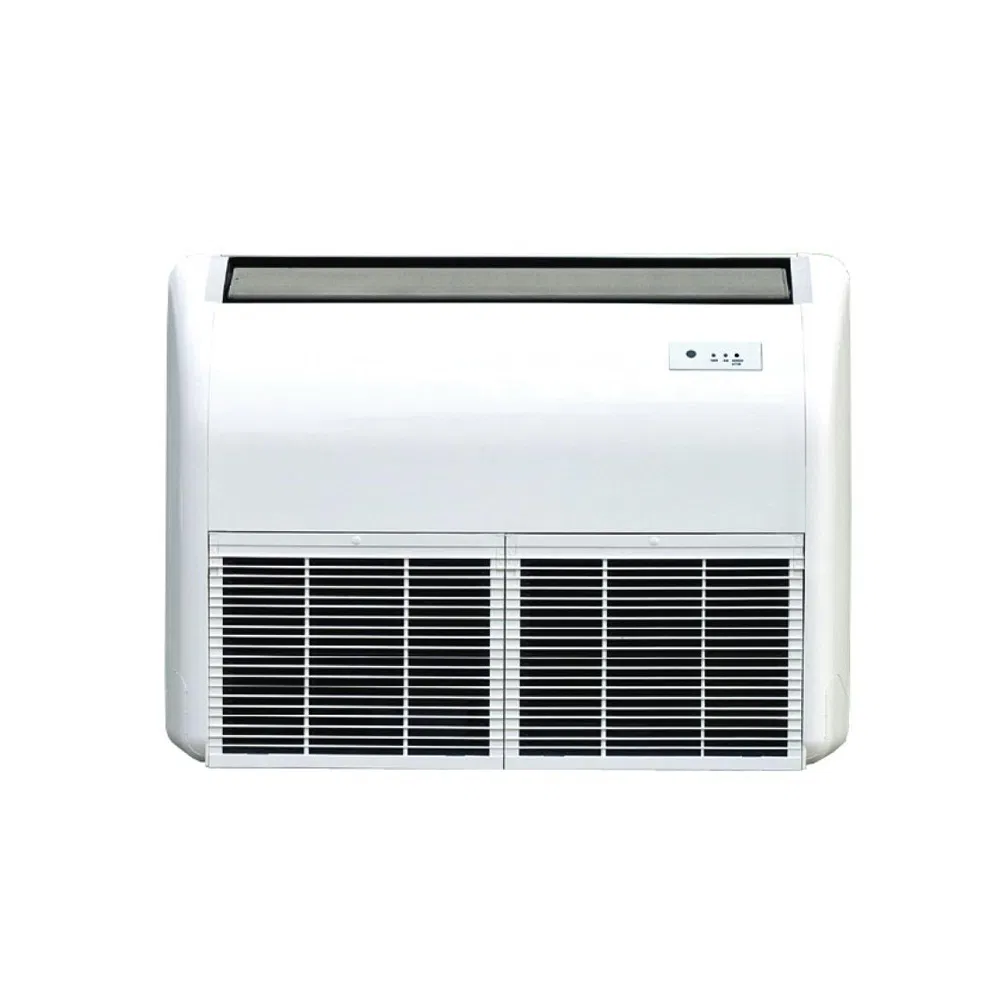

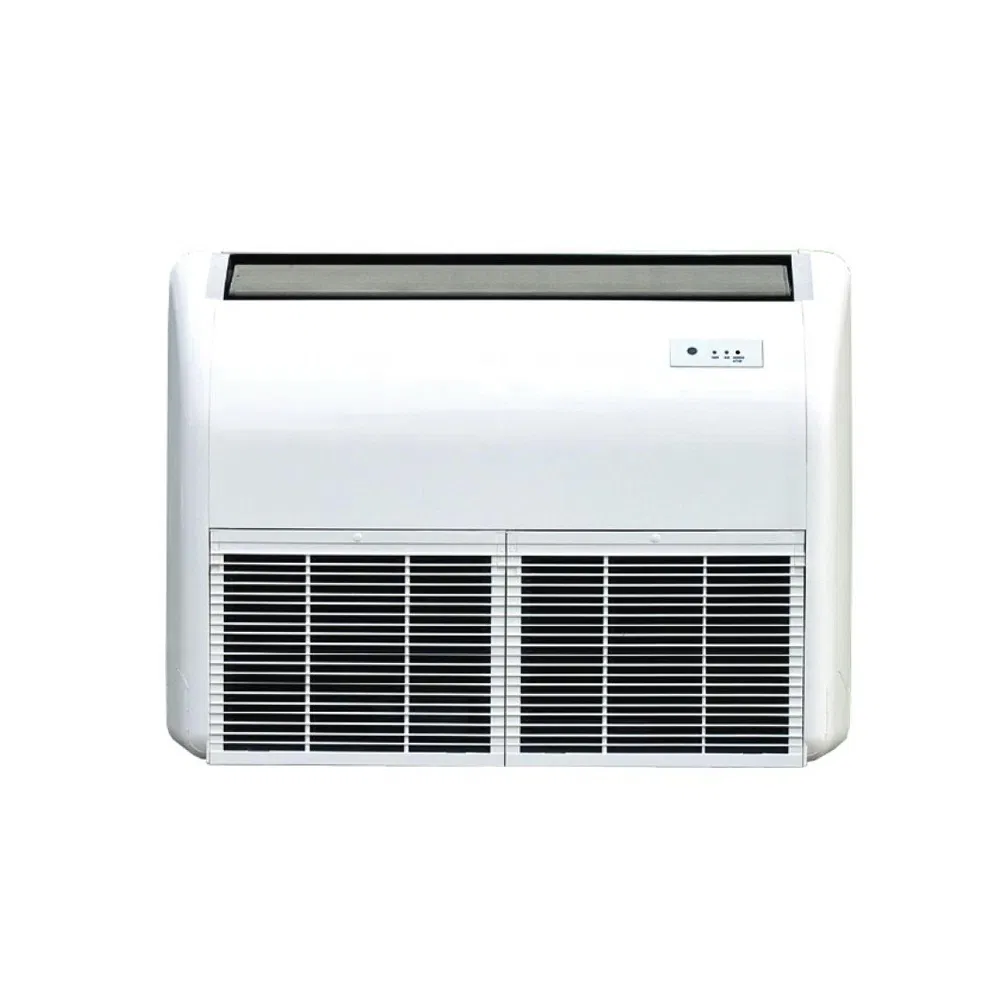

Exposed Floor Ceiling Type (TC)
200-1400 CFM

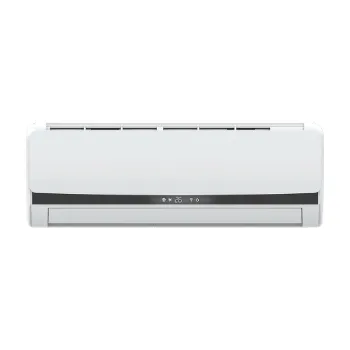

Wall Mounted type FCU (TWM)
300-800 CFM

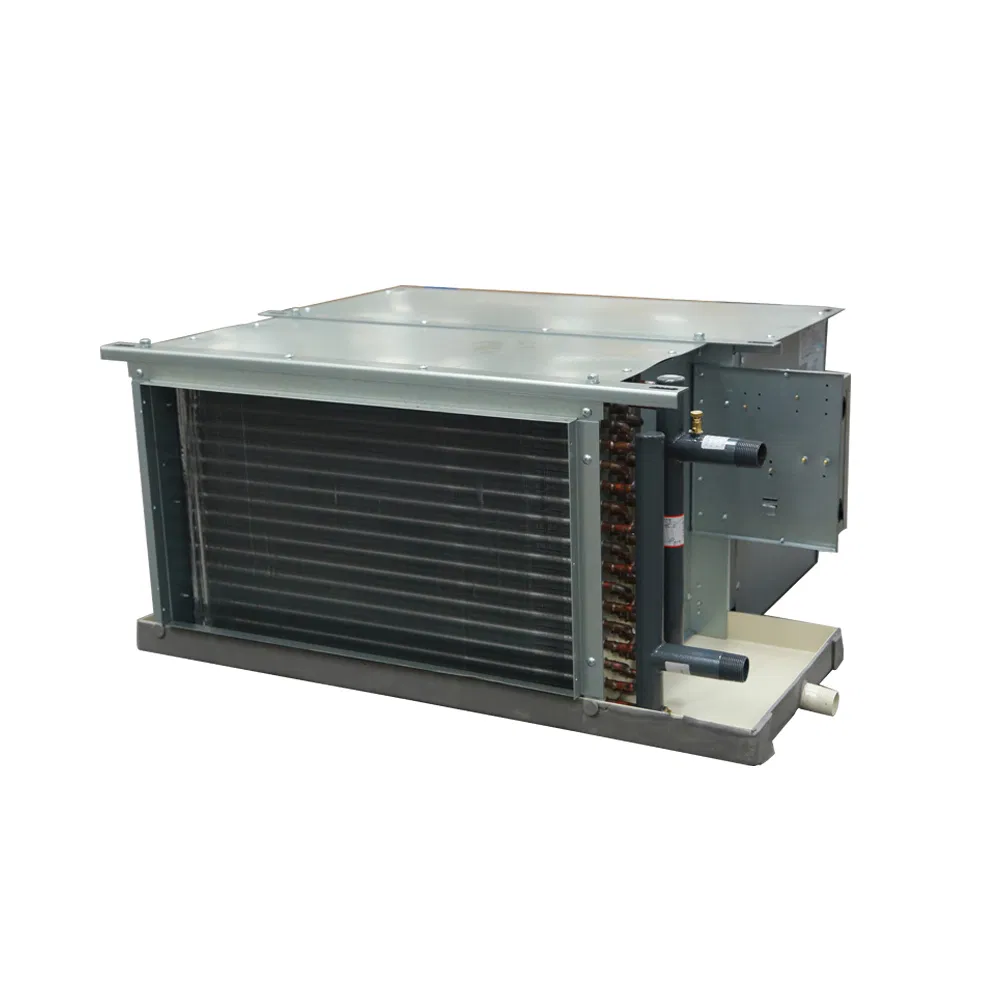

High Static Pressure Ceiling Concealed (TFM)
800-3000 CFM

Specifications

Model Name	Power Supply	Air Flow (CFM)	Cooling (W)	Heating (W)	ESP
TCR / TCRQ	220V-1Ph-50/60Hz	200-1400	1635~13000	3900~22100	12/30/50
TFM (High Pressure)	220V-1Ph-50Hz	800-3000	5300~34410	7910~55990	80/130/180
TC (Exposed)	220V-1Ph-50Hz	200-1400	1380~10500	2200~16800	/
TKM (Cassette)	220V-1Ph-50/60Hz	300-1200	2140~10800	4050~17000	/

Key Advantages

Global Technology Standards

Equipped with advanced engineering solutions through world-class strategic partnerships in HVAC technology.

Market Leadership

Leading provider of air-side products with significant market share and consecutive years of top performance.

Wide Export Reach

Reliable global delivery to more than 50 countries including Europe, Southeast Asia, and Central Asia.

Purification Expertise

Premier supplier for electronic cleaning industries and GMP-certified pharmaceutical facilities globally.

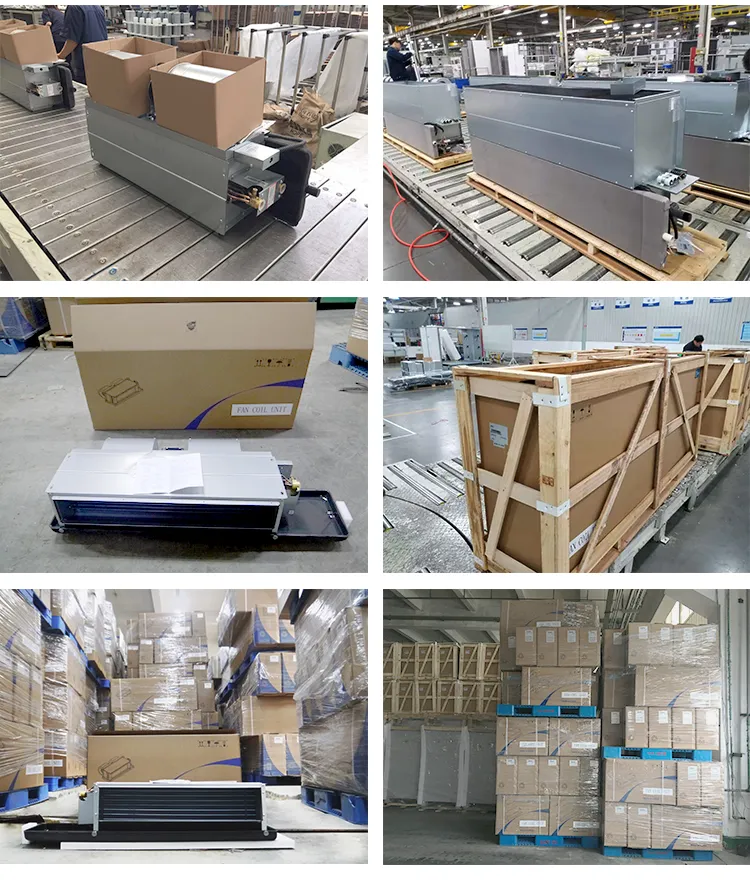

Certifications & Packaging

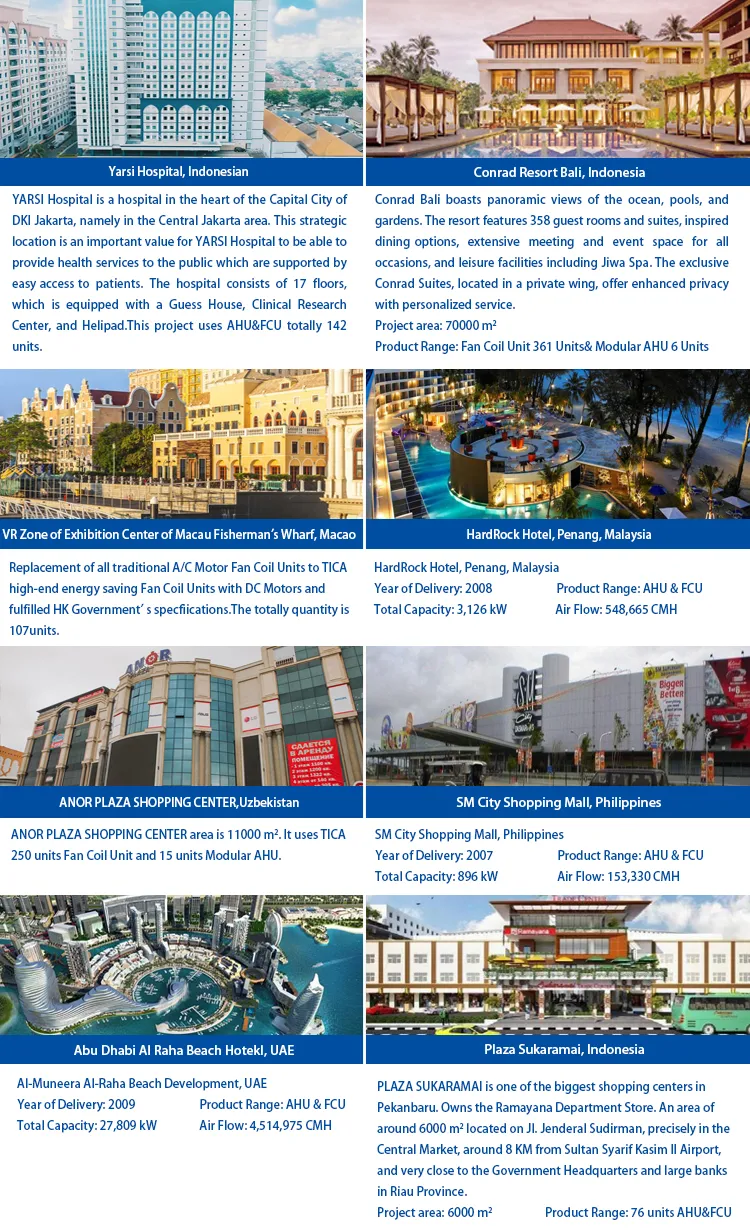

Prestigious Projects

Frequently Asked Questions

Can you provide drawing design services?

Yes, we have professional HVAC engineers to assist in designing the entire project, including duct layouts and optimized system solutions.

Are installation accessories provided with the equipment?

Absolutely. We can include standard accessories like corrugated pipes, Y strainers, valves, and wired controllers in a single shipment.

What customized services are available?

We offer options such as wet film humidification, specialized control boxes, multiple filter grades, and heating coils to suit specific project needs.

What is the typical delivery timeframe?

For standard units, the estimated delivery time is approximately 35-40 days.

What kind of technical support do you offer?

We provide 24/7 technical support through our professional team and include detailed user manuals with every package.

Do you handle international transportation?

Yes, our logistics team manages cost-effective and fast shipping services to ensure your equipment arrives safely at your destination.
