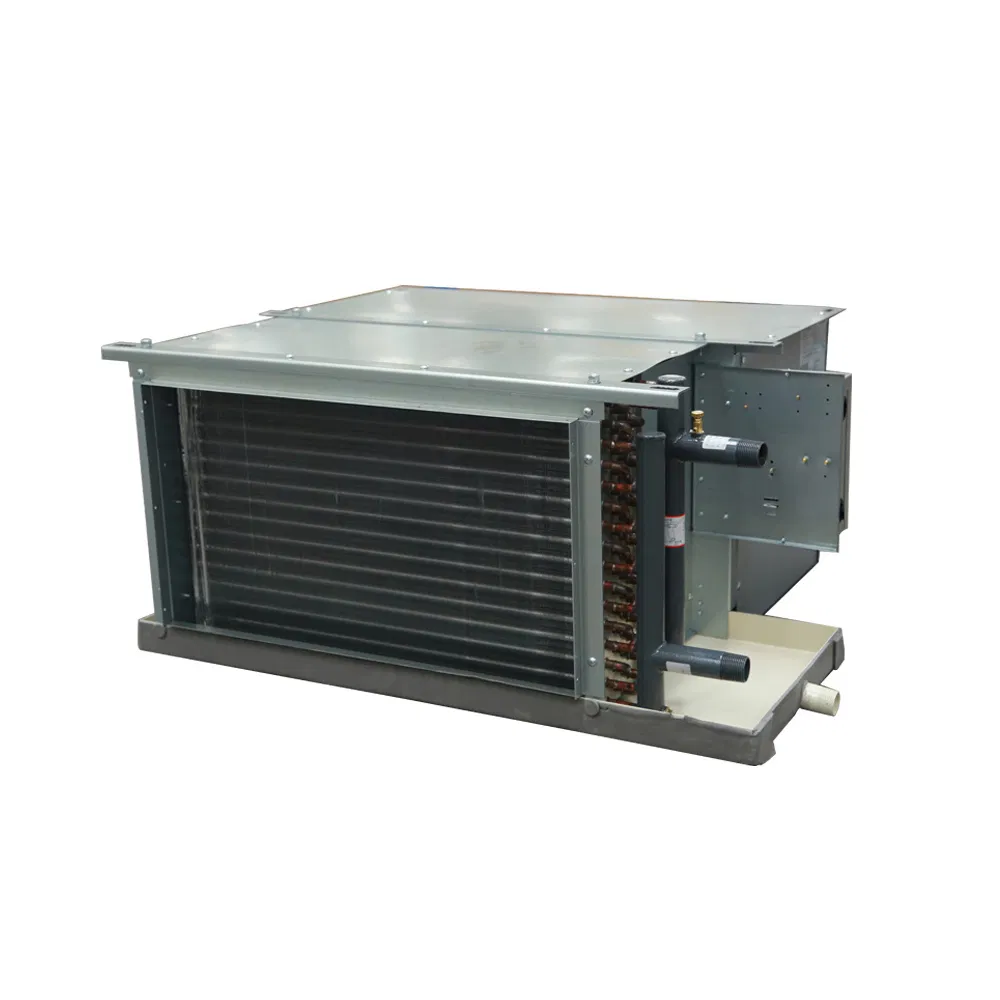

Chilled Water Hydronic Ceiling / Floor Standing Fcu Fan Coil Unit

1 / 5

Chilled Water Hydronic Ceiling / Floor Standing Fcu Fan Coil Unit

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview & Basic Info

Corrosion DurabilityHigher

Operating Voltage220V

Noise LevelLow

Application FieldsHotels, Schools, Airports, etc

MountingConcealed, Floor Ceiling, Wall Mount etc

Lifetime10~15 years

CertificationAhri

Airflow200-3000cfm

Cooling Capacity(W)1635-34410

Heating Capacity(W)3900-55990

Control SystemIntelligent Control

Power Supply220V 50Hz/ 60Hz

Product Gallery

Products Line

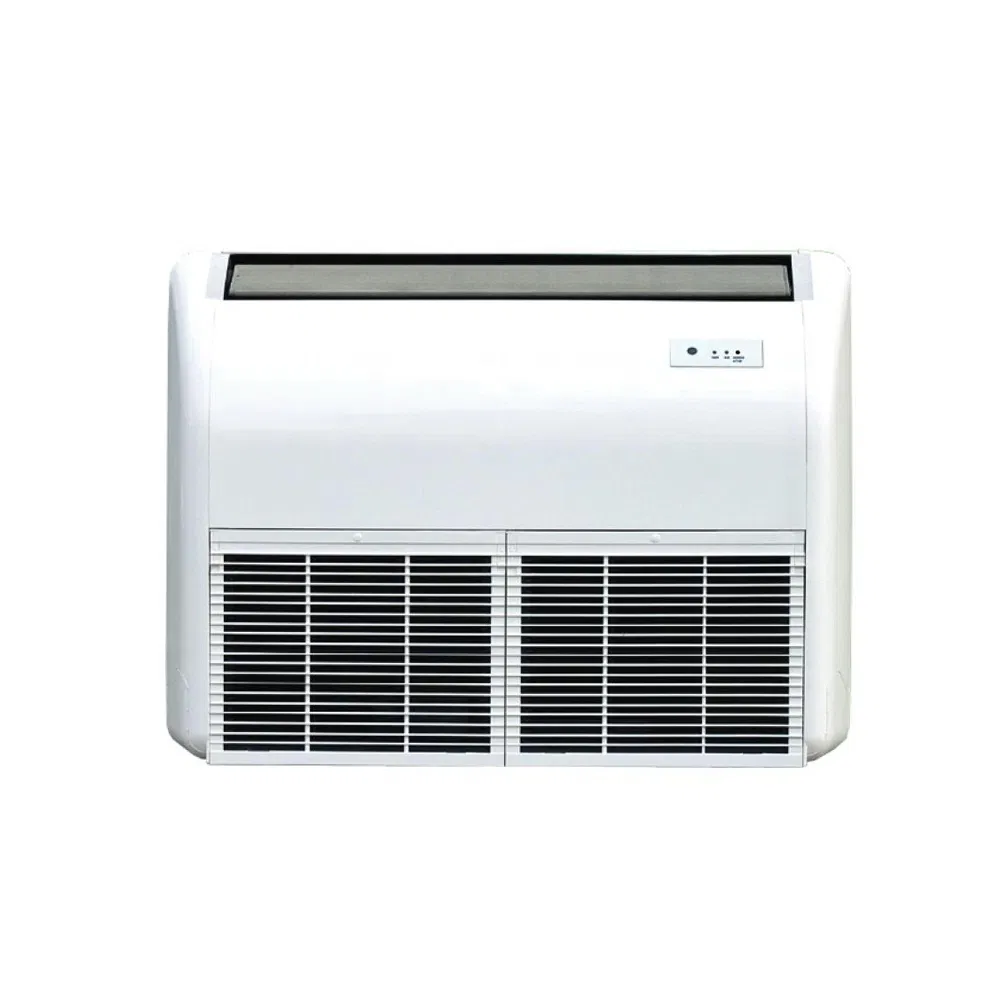

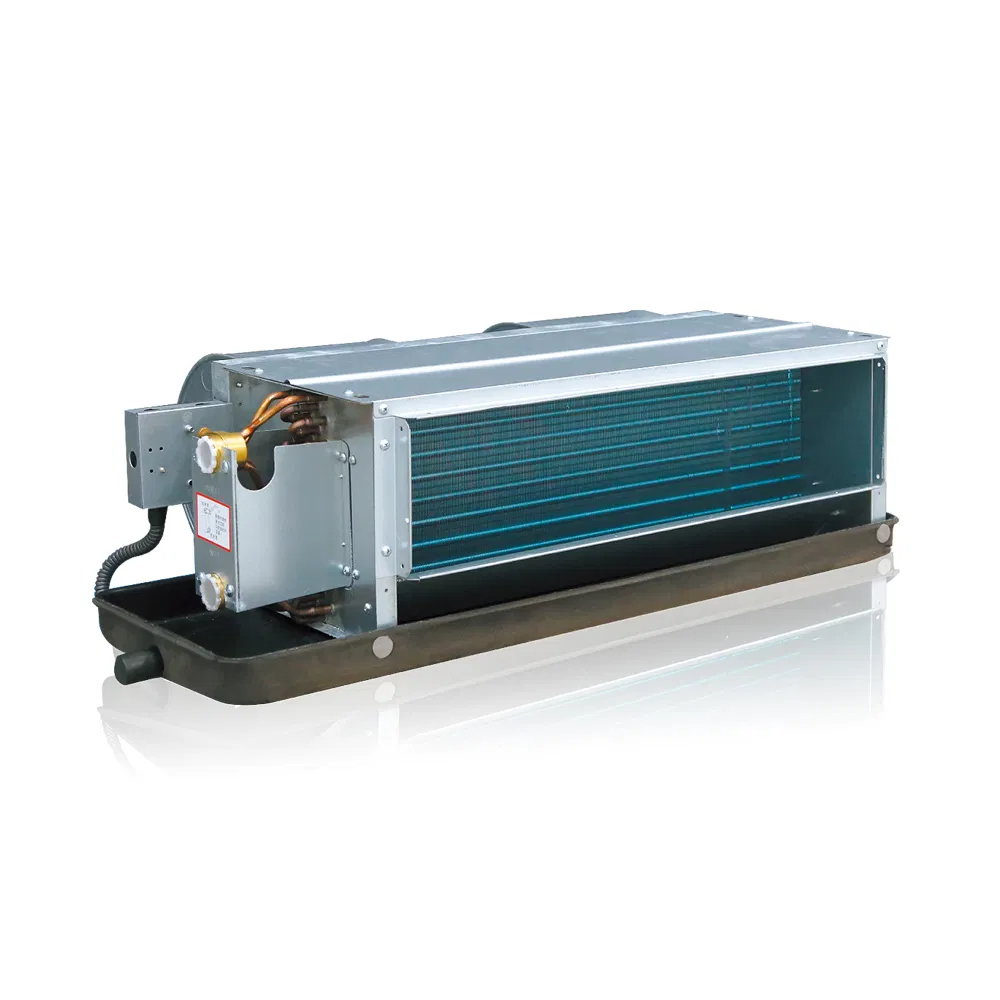

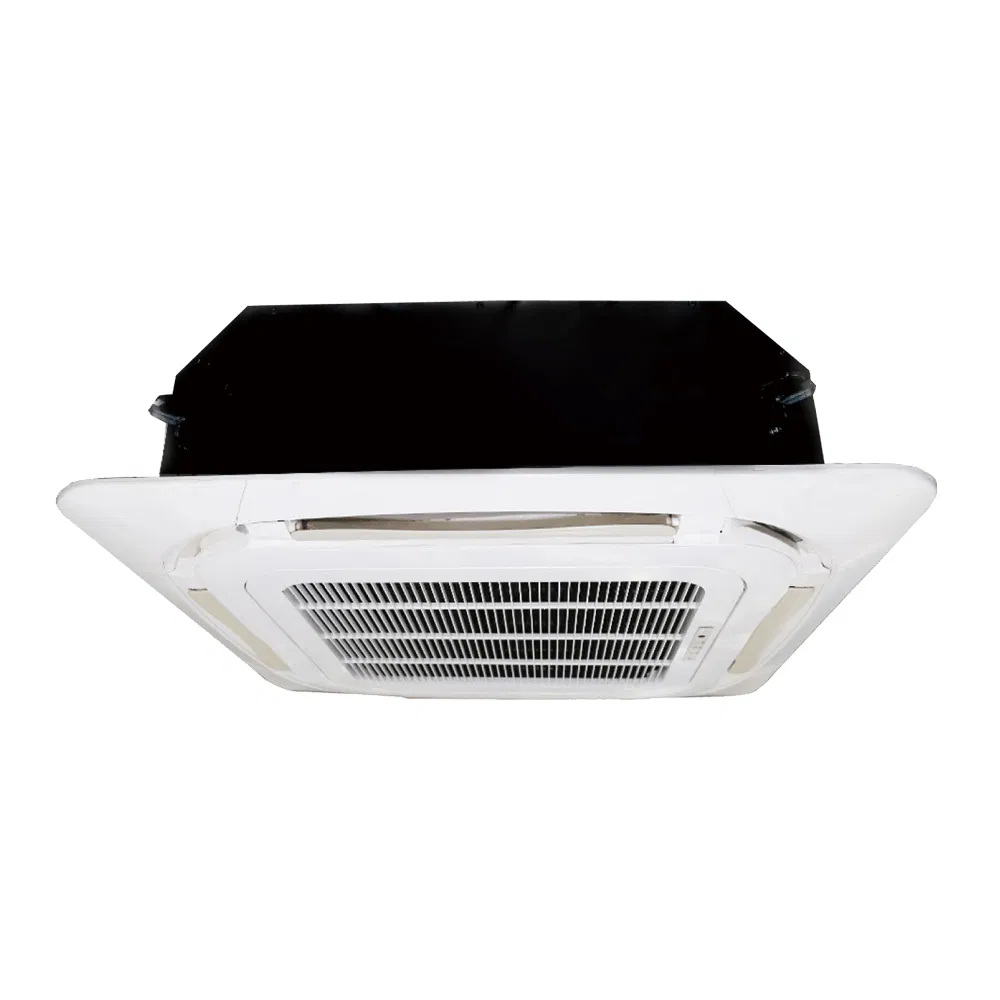

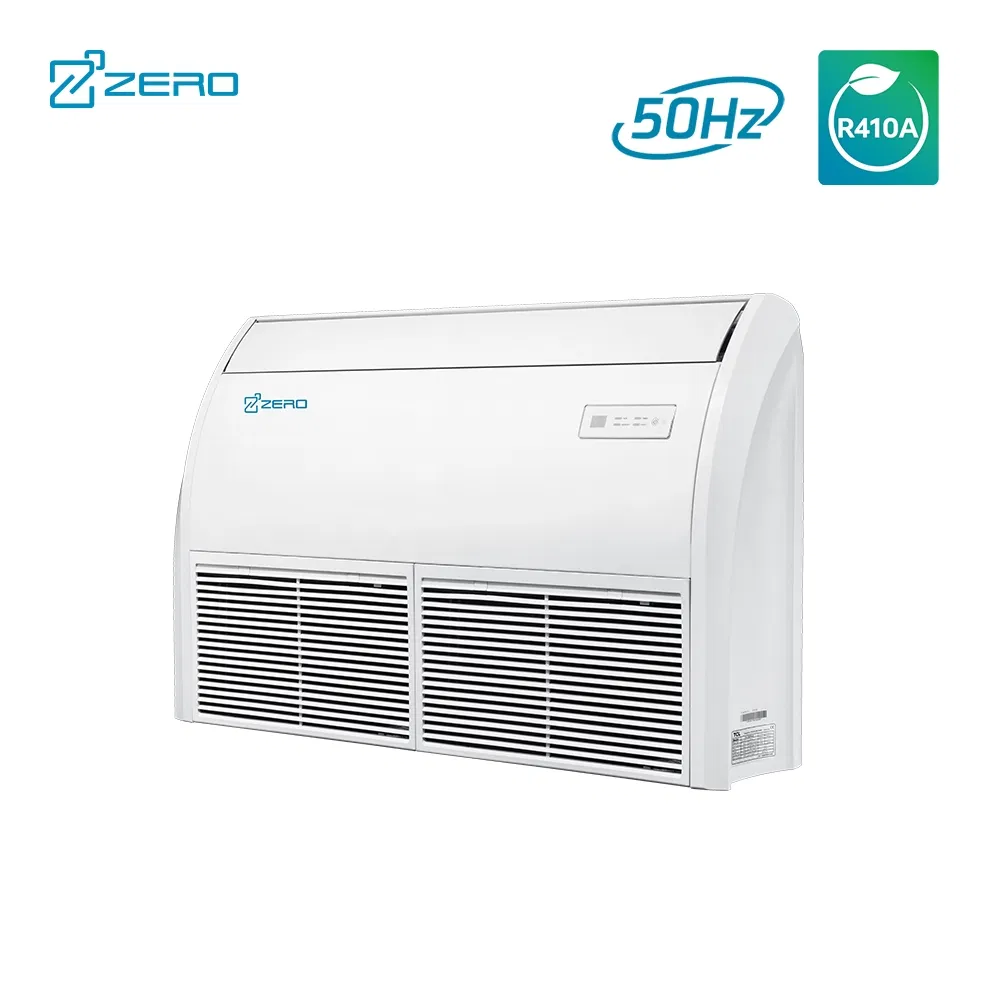

Duct concealed type (TCR/TCRQ)	Cassette (TKM)	Exposed Floor Ceiling Type (TC)
200-1400 CFM	300-1200 CFM	200-1400 CFM

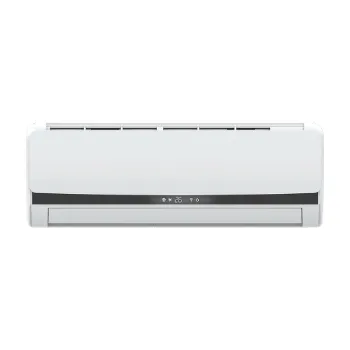

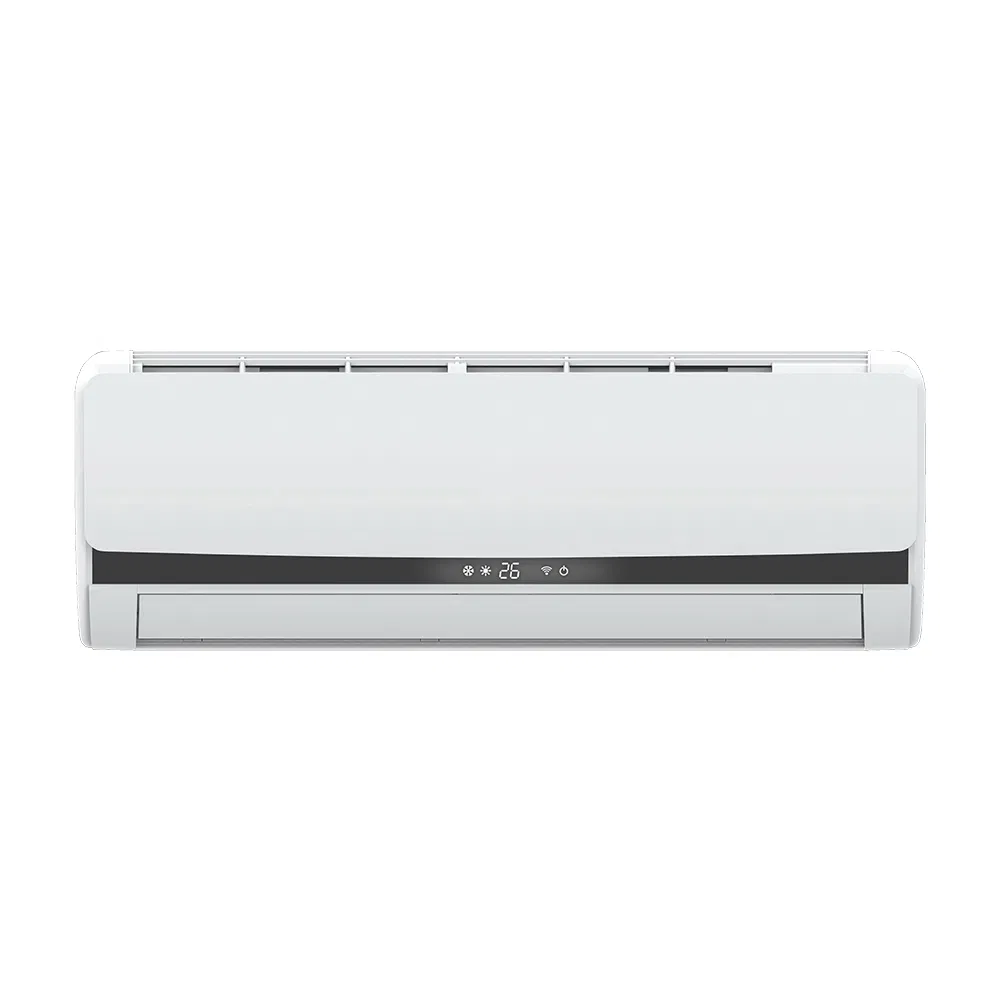

Wall Mounted type FCU (TWM)	High Static Pressure Ceiling Concealed (TFM)
300-800 CFM	800-3000 CFM

Technical Specifications

Model Name	Power Supply	Air Flow (CFM)	Cooling Capacity (W)	Heating Capacity (W)	ESP (Pa)
TCR / TCRQ (Concealed)	220V-1Ph-50/60Hz	200-1400	1635~13000	3900~22100	12/30/50
TFM (High Pressure)	220V-1Ph-50Hz	800-3000	5300~34410	7910~55990	80/130/180
TC (Exposed)	220V-1Ph-50Hz	200-1400	1380~10500	2200~16800	/
TKM (Cassette)	220V-1Ph-50/60Hz	300-1200	2140~10800	4050~17000	/
TWM (Wall Mounted)	220V-1Ph-50Hz	200-800	1800~7200	1800~7200	/

Our Advantages

1. Strategic Global Cooperation

Our brand has established global strategic partnerships with industry-leading corporations involved in advanced aircraft engines, air-conditioning, and elevator technologies.

2. Leading Market Share

We are a top air side products provider with a significant market share, maintaining a leading position in the industry for consecutive years.

3. Global Export Capability

Our products are exported to more than 50 countries and regions, including Russia, Central Asia, Eastern Europe, Argentina, Southeast Asia, and Indonesia.

4. Industrial Recognition

We are a major supplier for electronic cleaning industries, serving over 2000 electronic enterprises and 3000 pharmaceutical facilities globally.

Certifications & Packaging

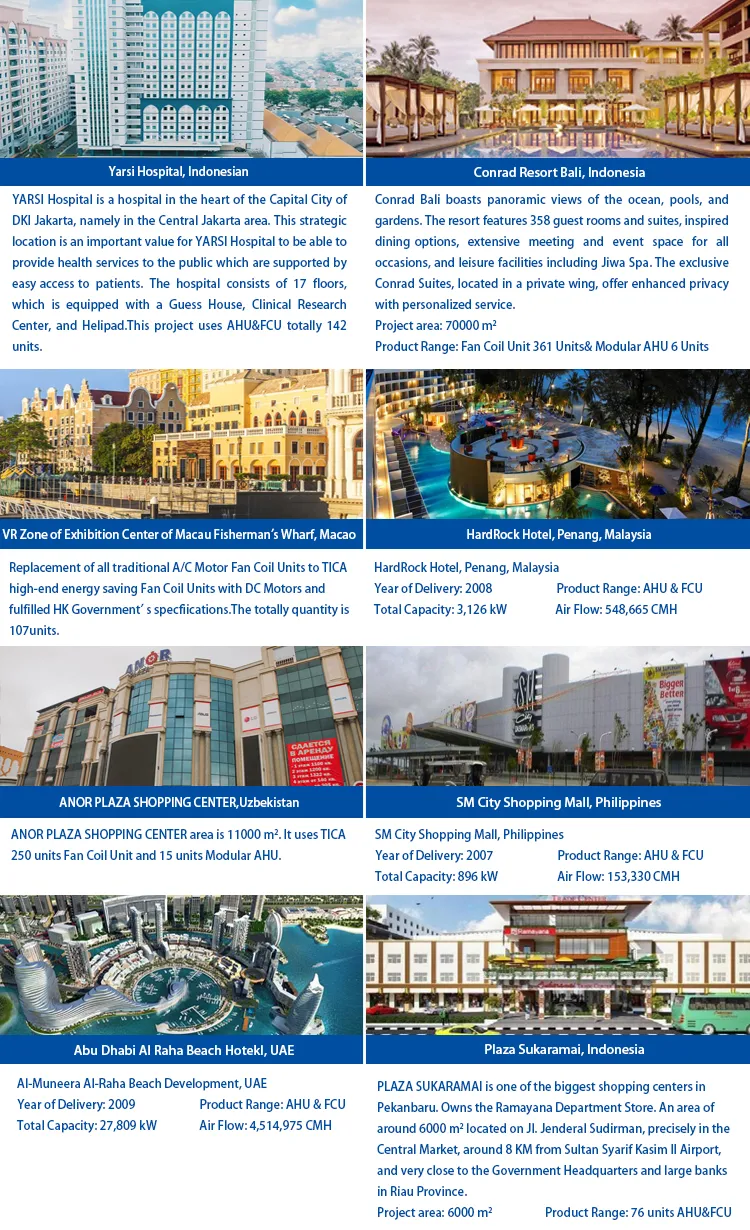

Prestigious Projects

Frequently Asked Questions

1. Can you provide drawing design services? Yes, we have professional HVAC engineers to help you design the entire project of FCU application, including area/length of air ducts and optimized solutions.

2. Can you provide installation accessories along with equipment? Absolutely. We can provide standard installation materials such as corrugated pipes, Y strainers, gate/ball valves, electric valves, and wired controllers in a single shipment.

3. Are customized services available? Yes, our units offer optional functions like wet film humidification, specialized control boxes, multiple filter grades, heating coils, and oil mist filters to satisfy different project needs.

4. What is the typical delivery time? For standard units, the delivery time is approximately 35-40 days.

5. What is the guarantee and lifespan of the FCU? With strict quality control, the lifespan for proper use is 5-10 years. We also provide 1% free spare parts for maintenance and after-sales support.

6. Do you provide technical support? We have a professional technical team available 24/7 to answer questions, and detailed user manuals are included in every package.
