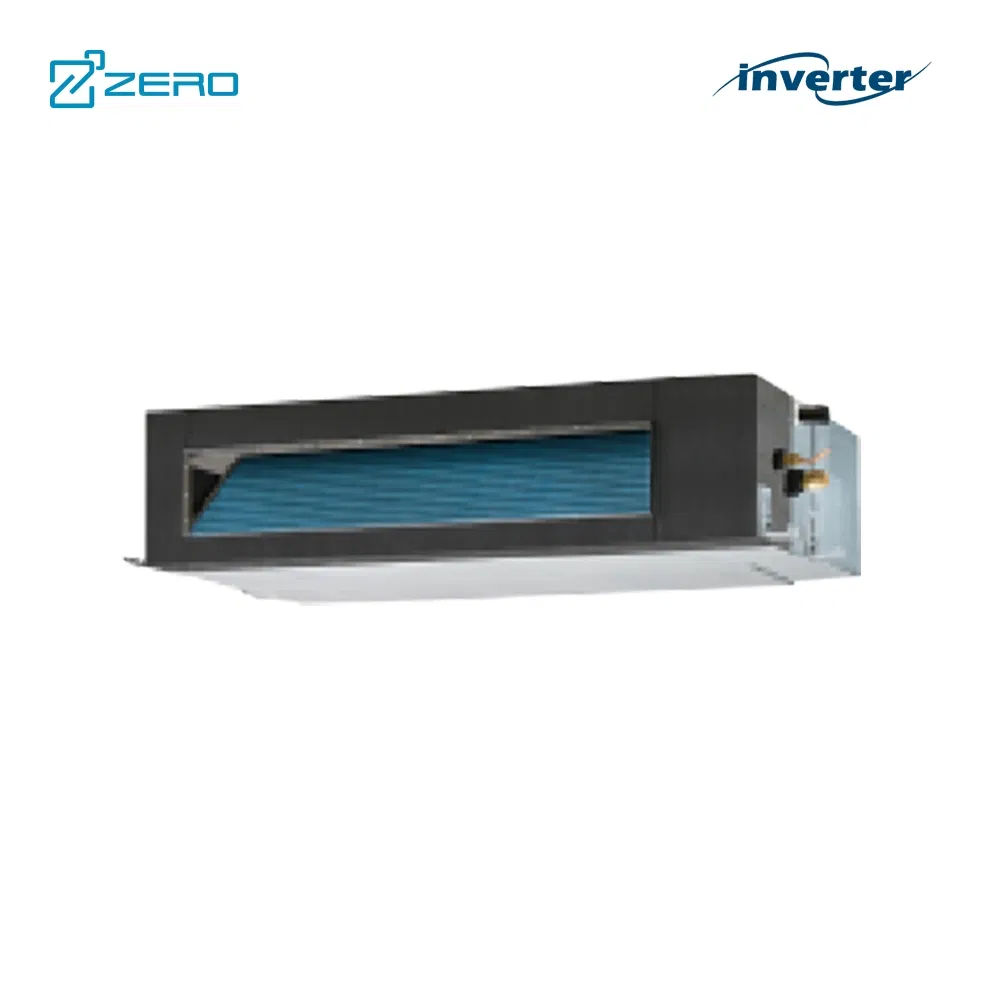

Heating Cooling Ceiling Split Wall Mounted System Air Conditioner Concealed Cassette Type Chilled Water Fcu Fan Coil Unit
Heating Cooling Ceiling Split Wall Mounted System Air Conditioner Concealed Cassette Type Chilled Water Fcu Fan Coil Unit
Heating Cooling Ceiling Split Wall Mounted System Air Conditioner Concealed Cassette Type Chilled Water Fcu Fan Coil Unit
Heating Cooling Ceiling Split Wall Mounted System Air Conditioner Concealed Cassette Type Chilled Water Fcu Fan Coil Unit
Heating Cooling Ceiling Split Wall Mounted System Air Conditioner Concealed Cassette Type Chilled Water Fcu Fan Coil Unit
1 / 5
Heating Cooling Ceiling Split Wall Mounted System Air Conditioner Concealed Cassette Type Chilled Water Fcu Fan Coil Unit
Heating Cooling Ceiling Split Wall Mounted System Air Conditioner Concealed Cassette Type Chilled Water Fcu Fan Coil Unit
Heating Cooling Ceiling Split Wall Mounted System Air Conditioner Concealed Cassette Type Chilled Water Fcu Fan Coil Unit
Heating Cooling Ceiling Split Wall Mounted System Air Conditioner Concealed Cassette Type Chilled Water Fcu Fan Coil Unit
Heating Cooling Ceiling Split Wall Mounted System Air Conditioner Concealed Cassette Type Chilled Water Fcu Fan Coil Unit

Heating Cooling Ceiling Split Wall Mounted System Air Conditioner Concealed Cassette Type Chilled Water Fcu Fan Coil Unit

Customization: Available
Type: Fan Coil Unit
Air Tube Material: Galvanized Sheet
Send Inquiry

Product Description

📋 Basic Information
Corrosion Durability
Higher
Operating Voltage
220V
Noise Level
Low
Application Fields
Hotels, Schools, Airports, etc
Mounting
Concealed, Floor Ceiling, Wall Mount etc
Lifetime
10~15 years
Airflow
200-3000cfm
Cooling Capacity(W)
1635-34410
Heating Capacity(W)
3900-55990
Control System
Intelligent Control
📦 Packaging & Delivery
Package Size
120.00cm * 80.00cm * 70.00cm
Gross Weight
40.000kg

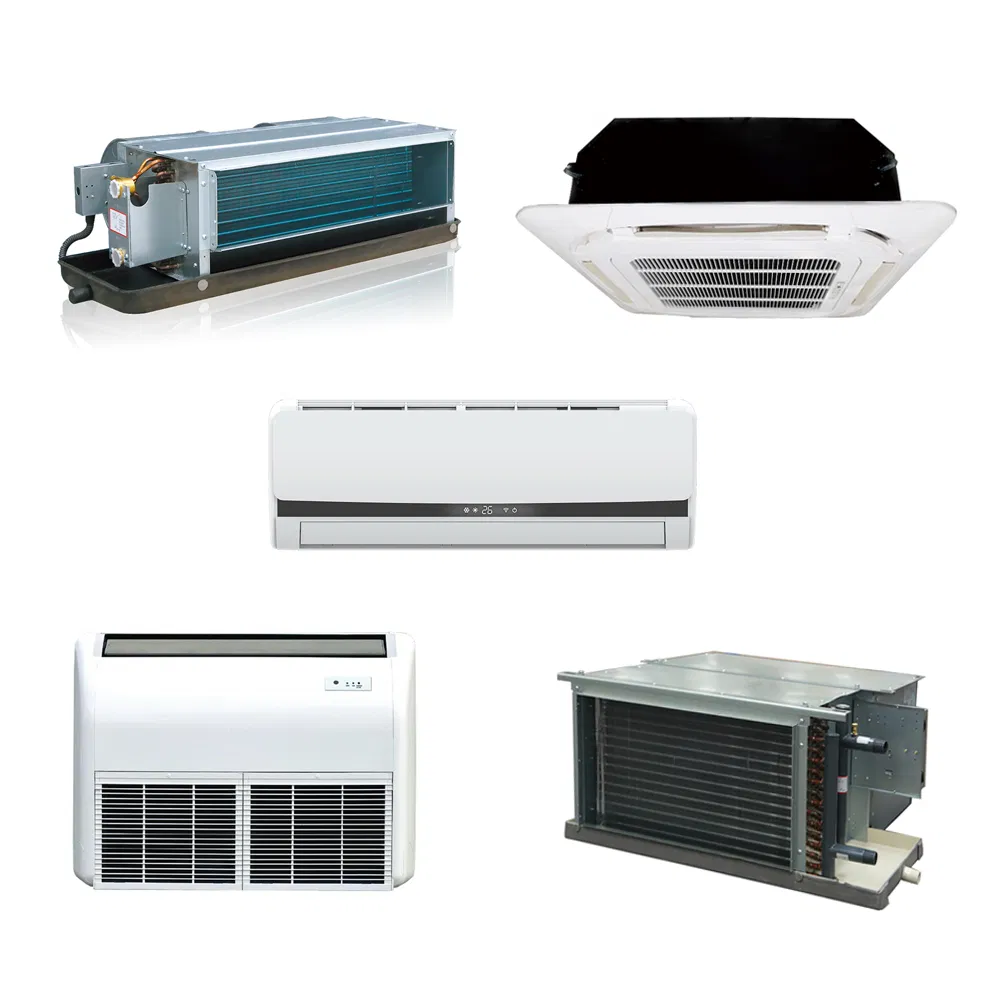

⚙ Products Line

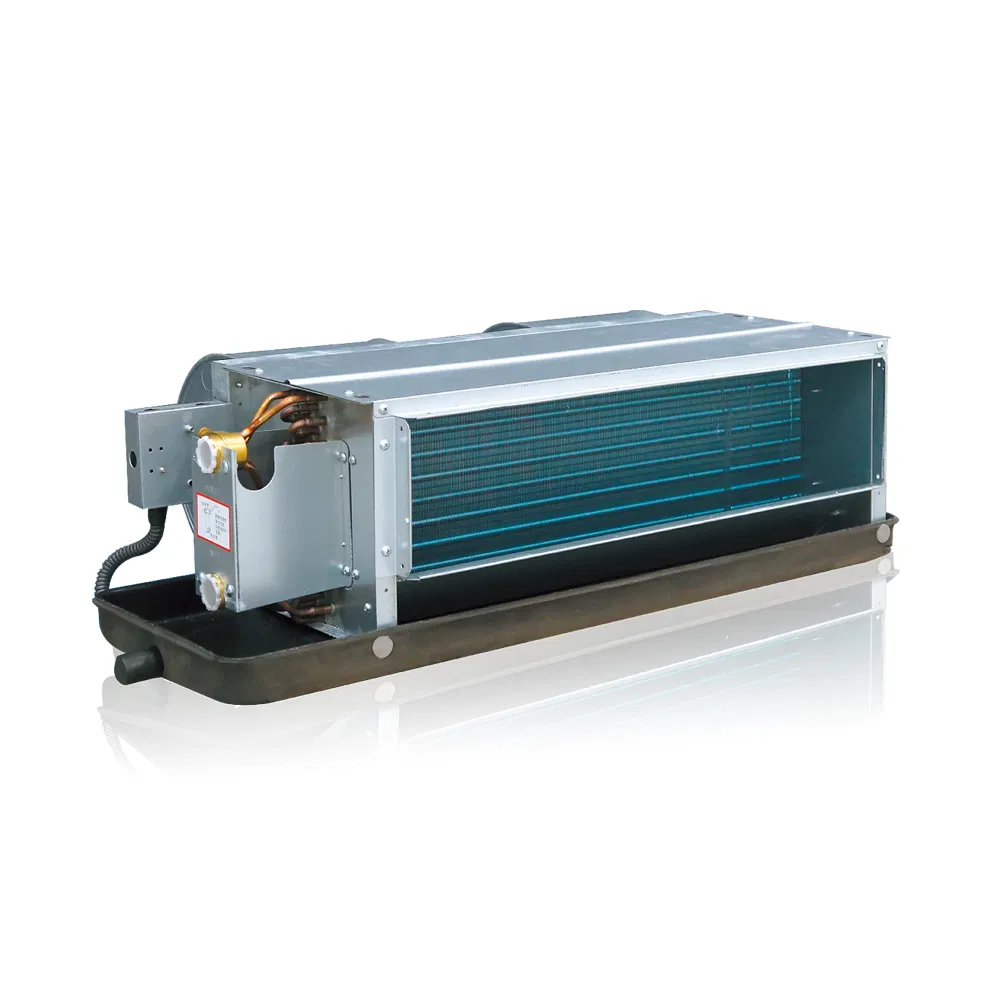

Duct concealed type
Duct Concealed (200-1400 CFM)

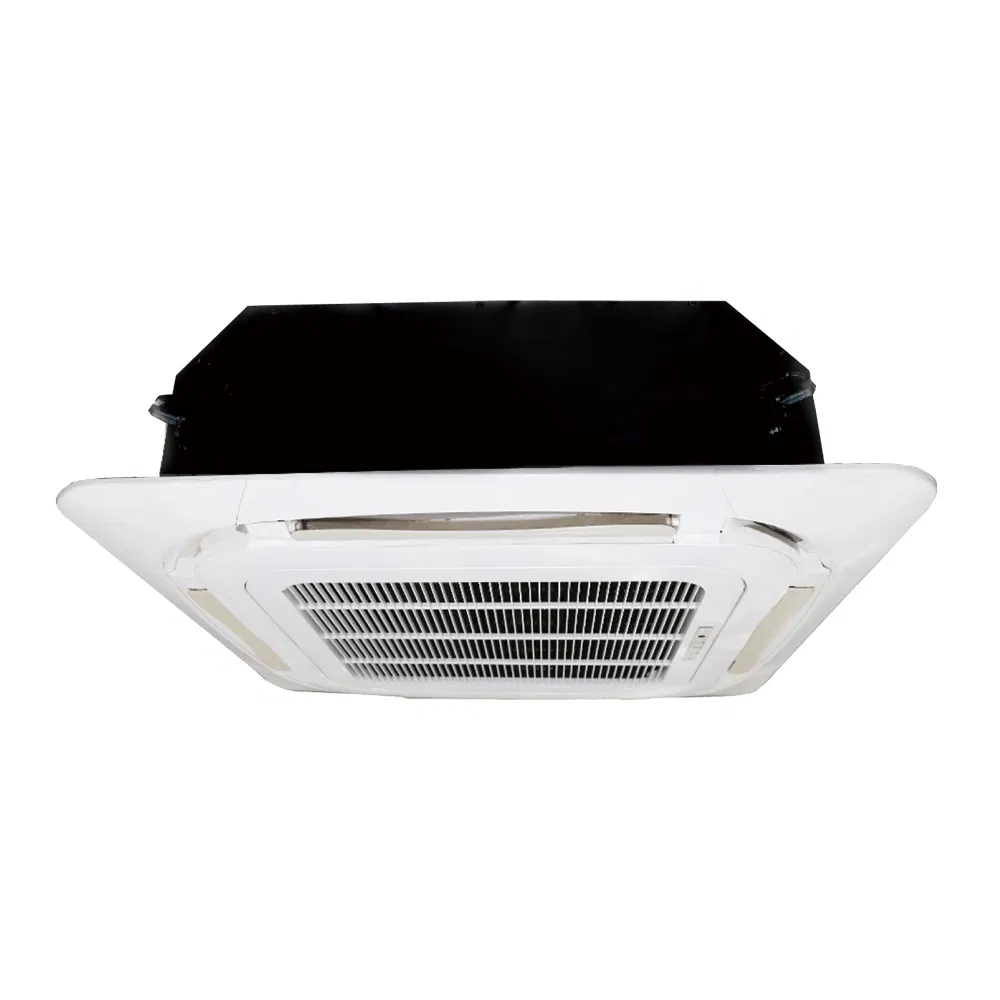

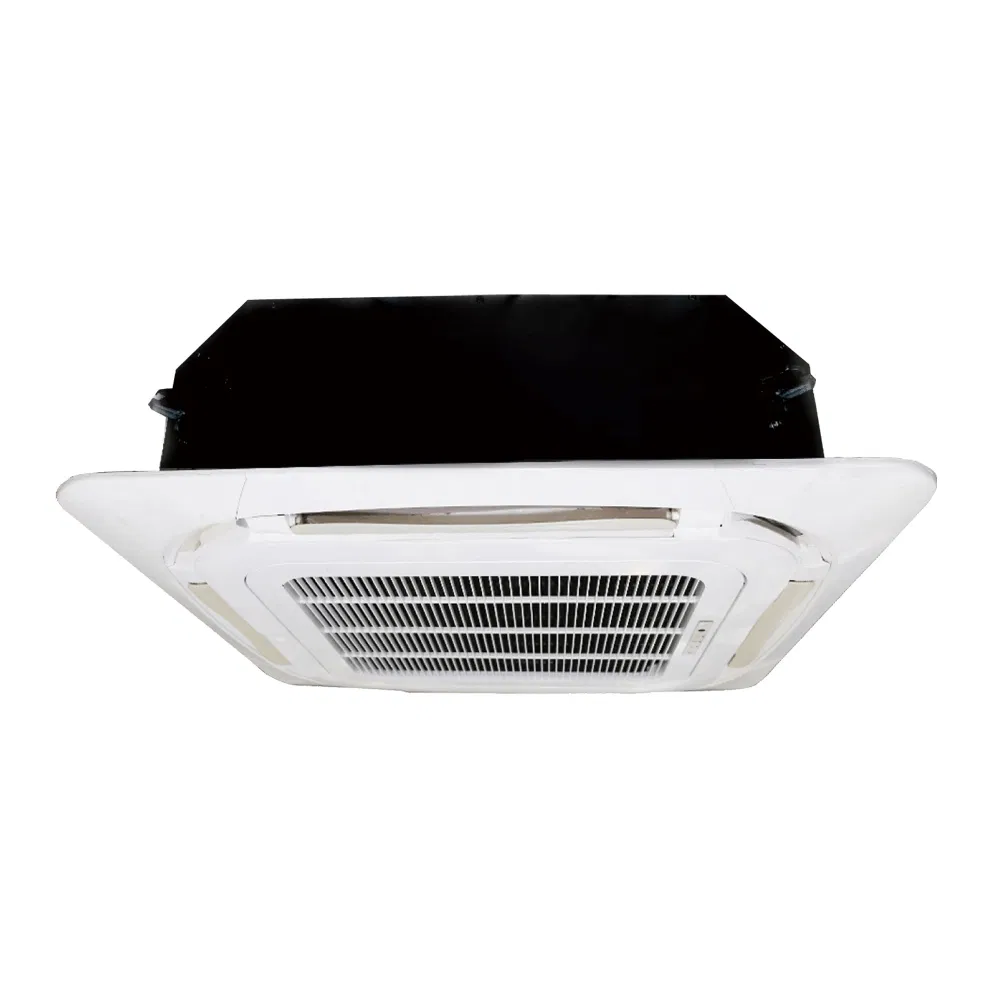

Cassette type
Cassette (300-1200 CFM)

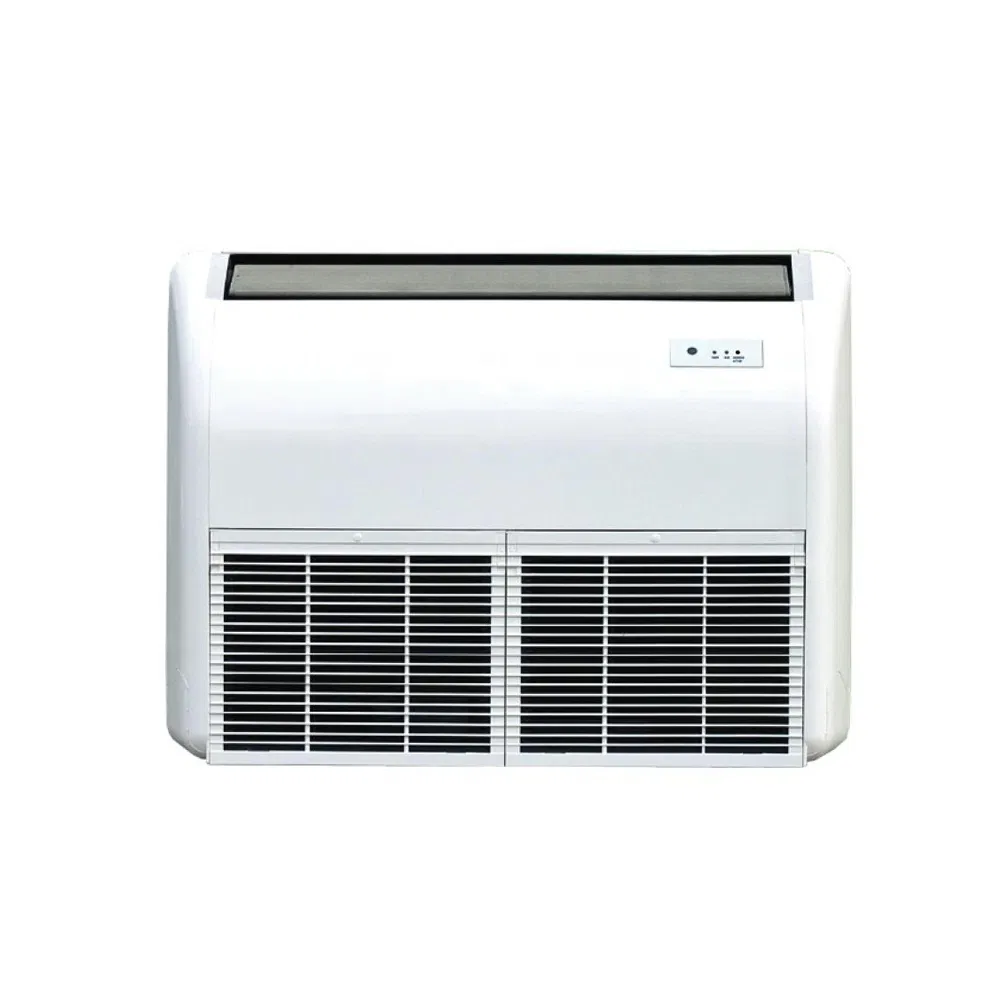

Exposed Floor Ceiling Type
Floor Ceiling (200-1400 CFM)

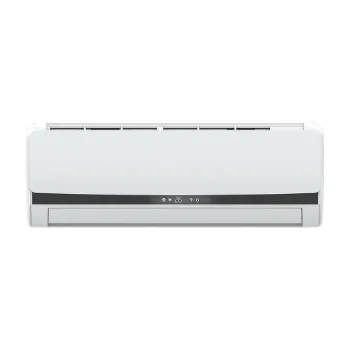

Wall Mounted type
Wall Mounted (300-800 CFM)

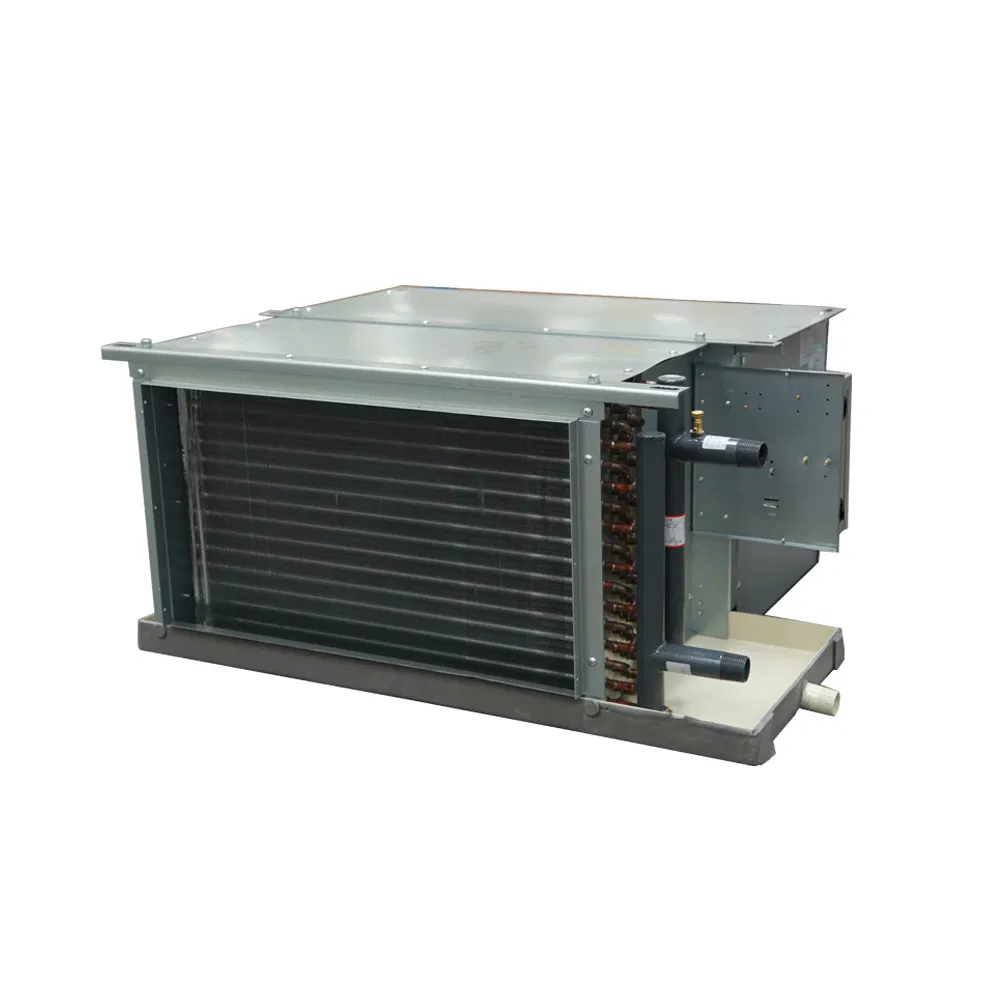

High Static Pressure
High Static Pressure (800-3000 CFM)
📊 Technical Specifications
Model/Type Power Air Flow (CFM) Cooling Cap. (W) Heating Cap. (W) ESP
Ceiling Concealed FCU 220V-1Ph-50/60Hz 200-1400 1635 ~ 13000 3900 ~ 22100 12/30/50
High Pressure FCU 220V-1Ph-50Hz 800-3000 5300 ~ 34410 7910 ~ 55990 80/130/180
Ceiling & Floor Exposed 220V-1Ph-50Hz 200-1400 1380 ~ 10500 2200 ~ 16800 /
Cassette Type FCU 220V-1Ph-50/60Hz 300-1200 2140 ~ 10800 4050 ~ 17000 /
Wall Mounted Type FCU 220V-1Ph-50Hz 200-800 1800 ~ 7200 1800 ~ 7200 /
⭐ Why Choose Our Solutions
1. Strategic Global Technology
Utilizing world-class manufacturing standards and advanced aircraft-engine level precision in thermal systems.
2. Market Leadership
Leading provider with significant market share in air-side products and over 8 years of top-tier performance rankings.
3. Extensive Export Capability
Products are trusted in more than 50 countries including Russia, Central Asia, Southeast Asia, and Eastern Europe.
4. Industrial Specialization
The preferred choice for electronic cleaning, GMP-Certified Pharmaceutical facilities, and high-grade hospital operating rooms.
📷 Certifications & Projects
Certifications

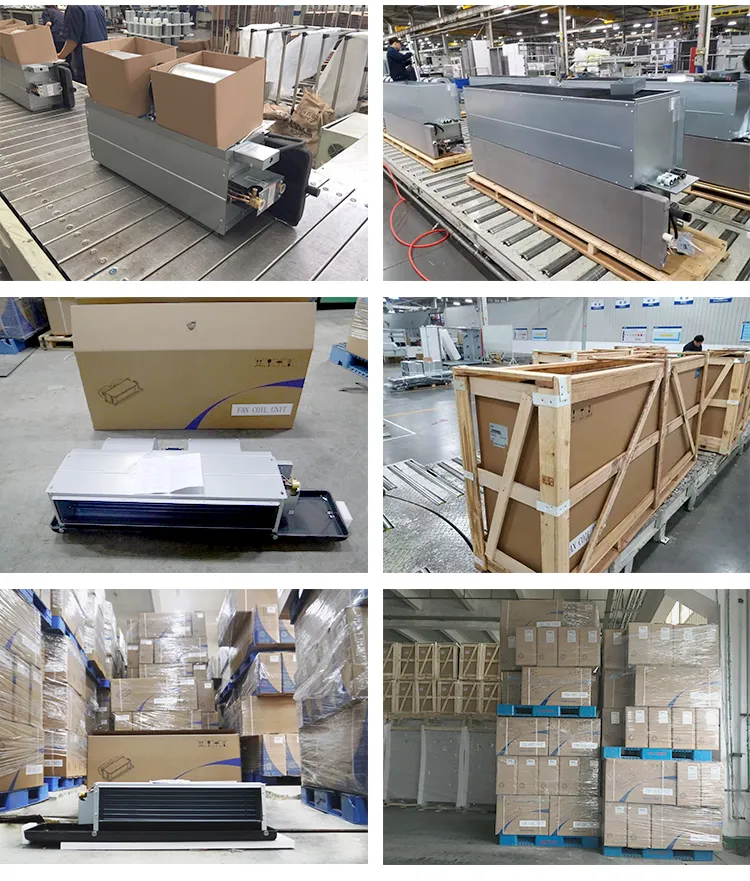

Packaging

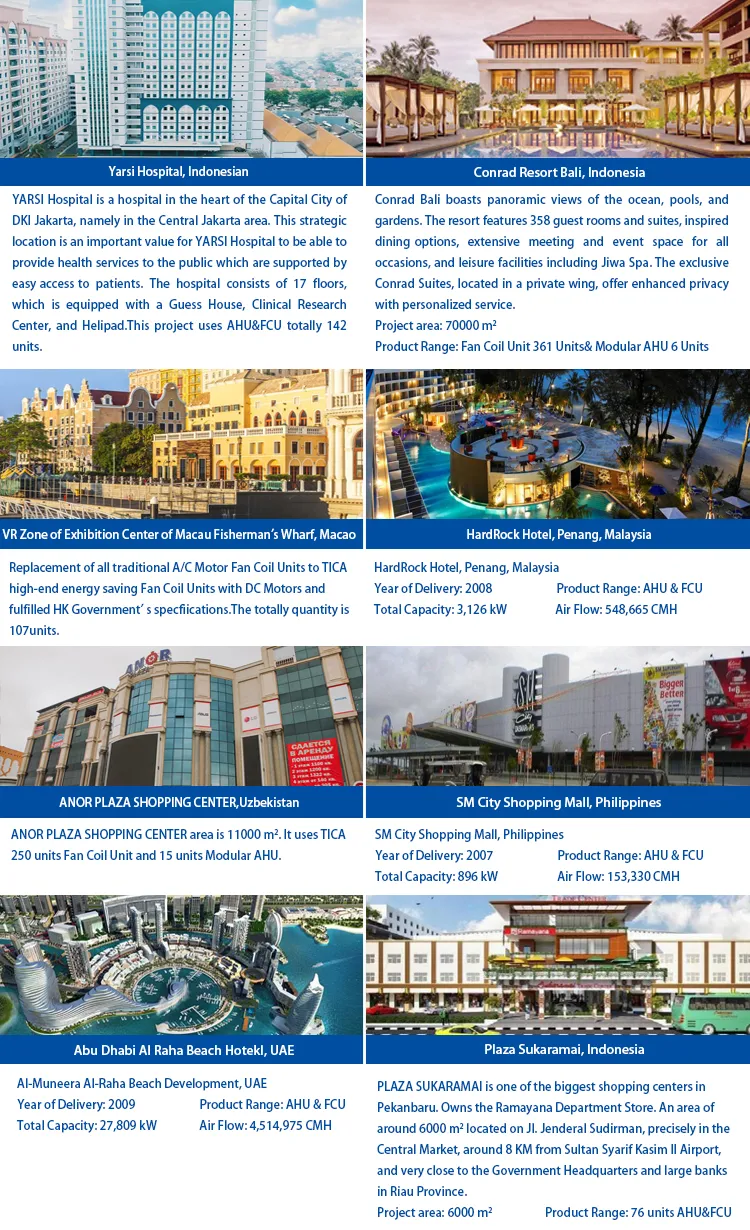

Prestigious Projects
❓ Frequently Asked Questions
Can you provide drawing design services?
Yes, professional HVAC engineers are available to help design the entire project application, including duct layout and optimized airflow solutions.
Are installation accessories provided with the equipment?
Yes, we can provide all necessary accessories such as corrugated pipes, Y strainers, valves, and wired controllers to be shipped together with the units.
What customized services are available?
Optional functions include wet film humidification, specialized control boxes, multiple filter grades, extra heating coils, and oil mist filters.
What is the standard delivery time?
For standard units, the delivery time is approximately 35-40 days.
What is the product guarantee and lifespan?
Under proper use, the lifespan is 10-15 years. We also provide 1% free spare parts for maintenance and after-sales support.
Do you provide technical support?
Yes, our technical team is available to answer questions 24/7, and every package includes a detailed user manual.
