Factory Commercial Floor Standing Air Conditioner Ceiling Ducted Concealed Low Noise Fan Coil Unit Fcu

Still deciding? Get samples of $ !
Request Sample

Product Description

Overview
Corrosion Durability
Higher
Operating Voltage
220V
Noise Level
Low
Application Fields
Hotels, Schools, Airports, etc
Mounting
Concealed,Floor Ceiling,Wall Mount etc
Lifetime
10~15 years
Certification
Ahri
Condition
New
Airflow
200-3000cfm
Recommend Shipping
LCL, Full Container
Cooling Capacity(W)
1635-34410
Heating Capacity(W)
3900-55990
ESP
12/ 30/ 50, 80/ 130/ 180
Control System
Intelligent Control
Power Supply
220V 50Hz/ 60Hz
Multiple Coils Design
2 Pipes and 4 Pipes
Origin
China
Product Description

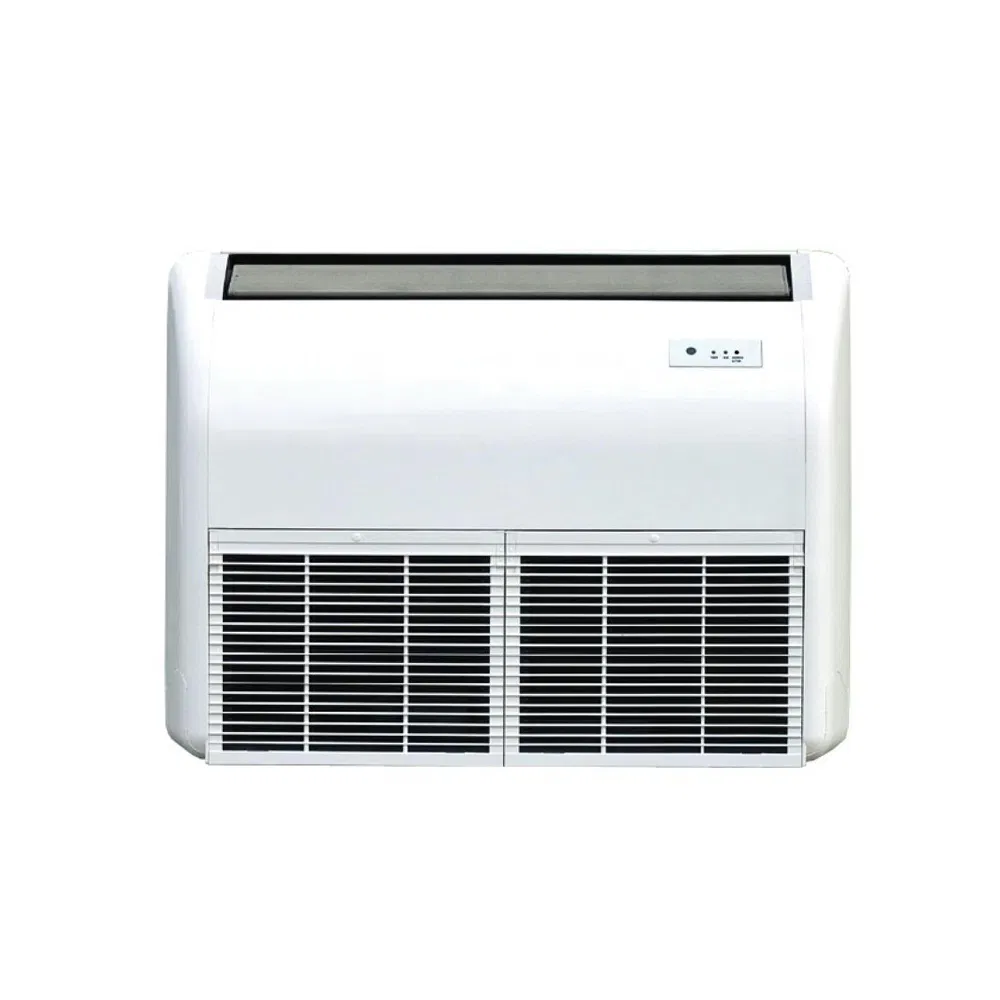

Floor Standing Air Conditioner

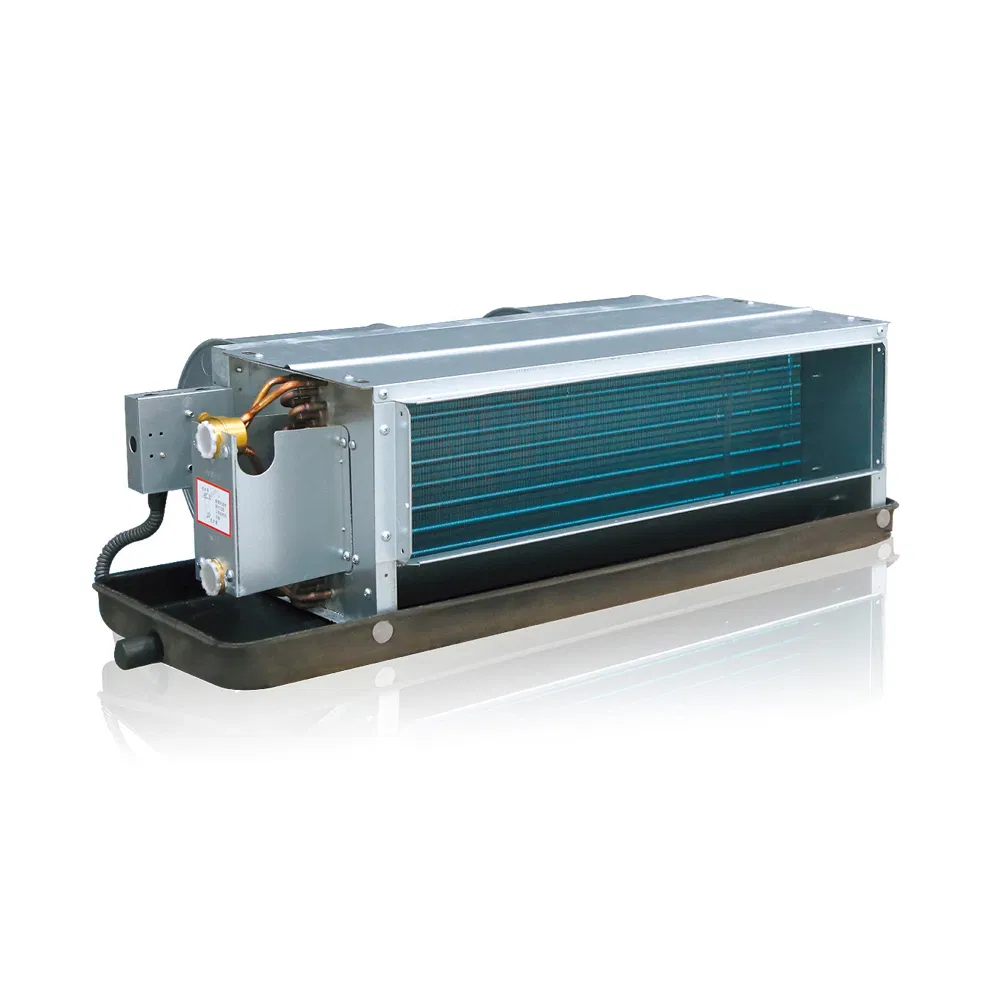

Ceiling Ducted Concealed FCU

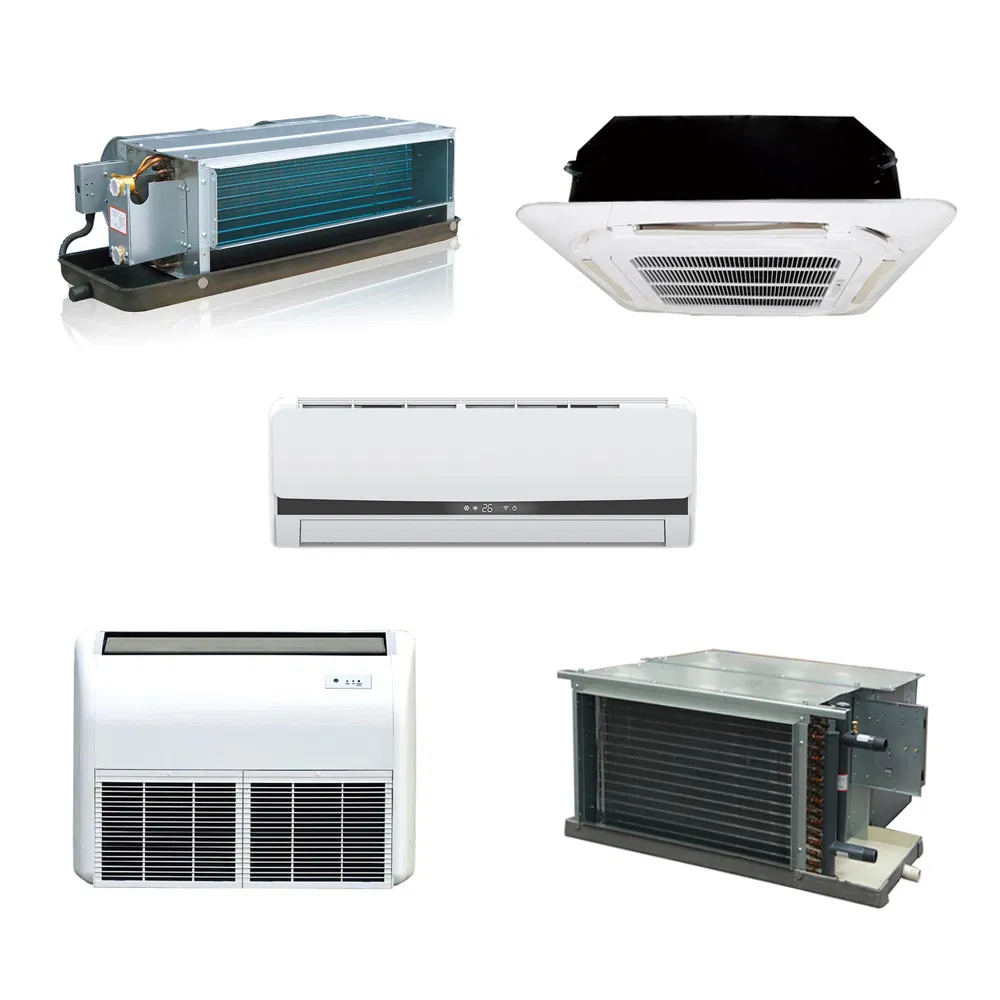

Products Line

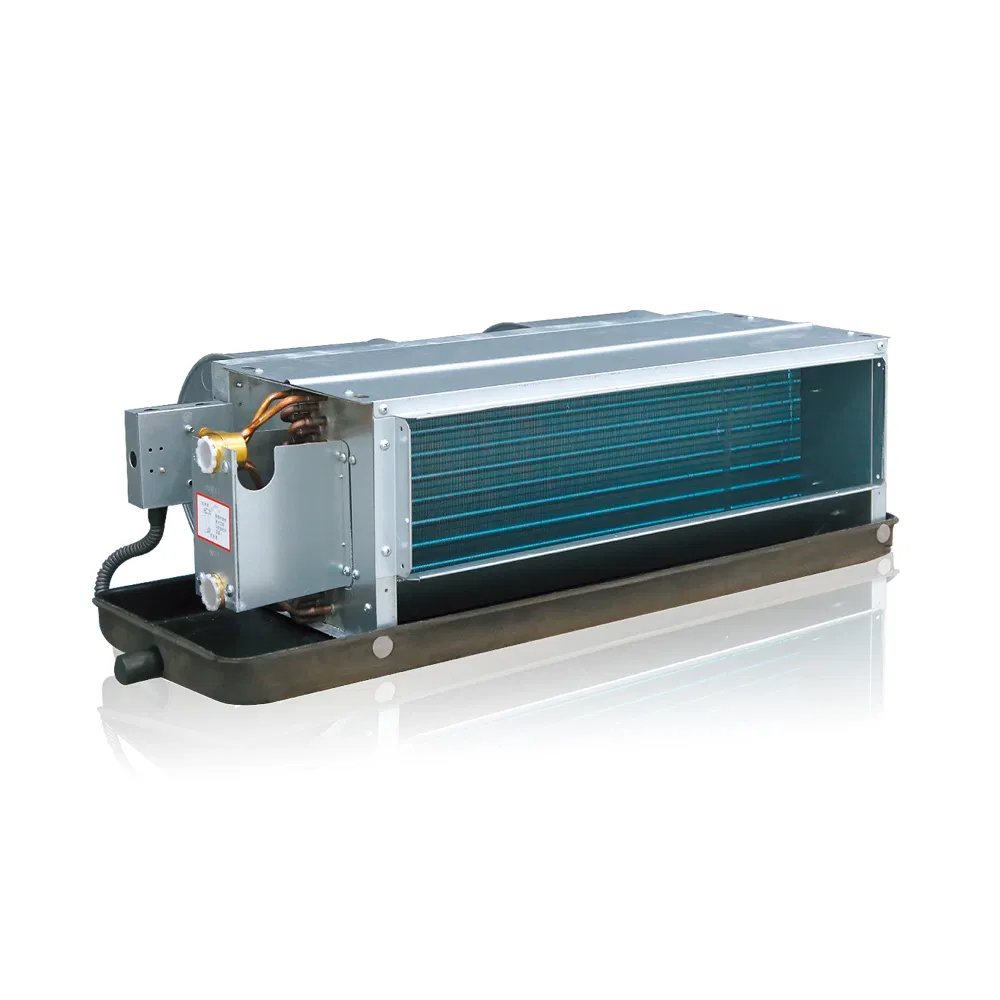

Duct concealed type

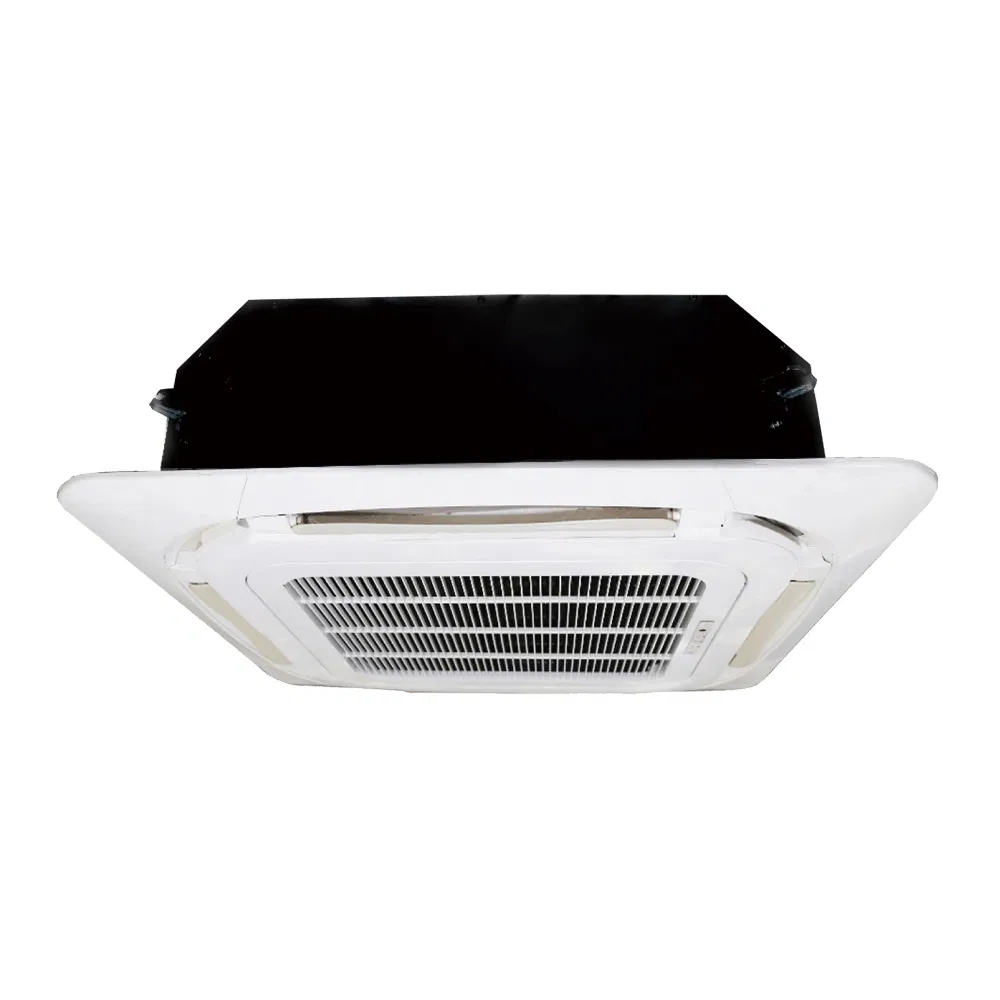

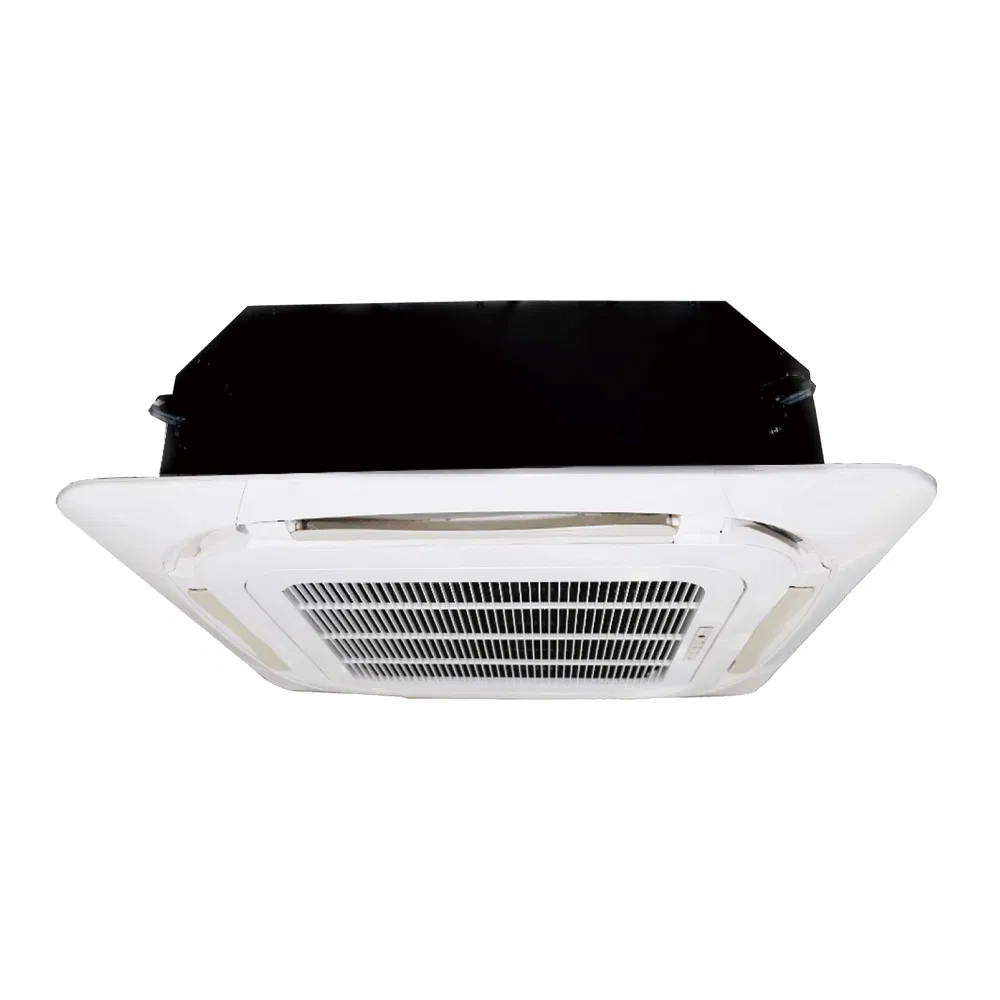

Cassette type

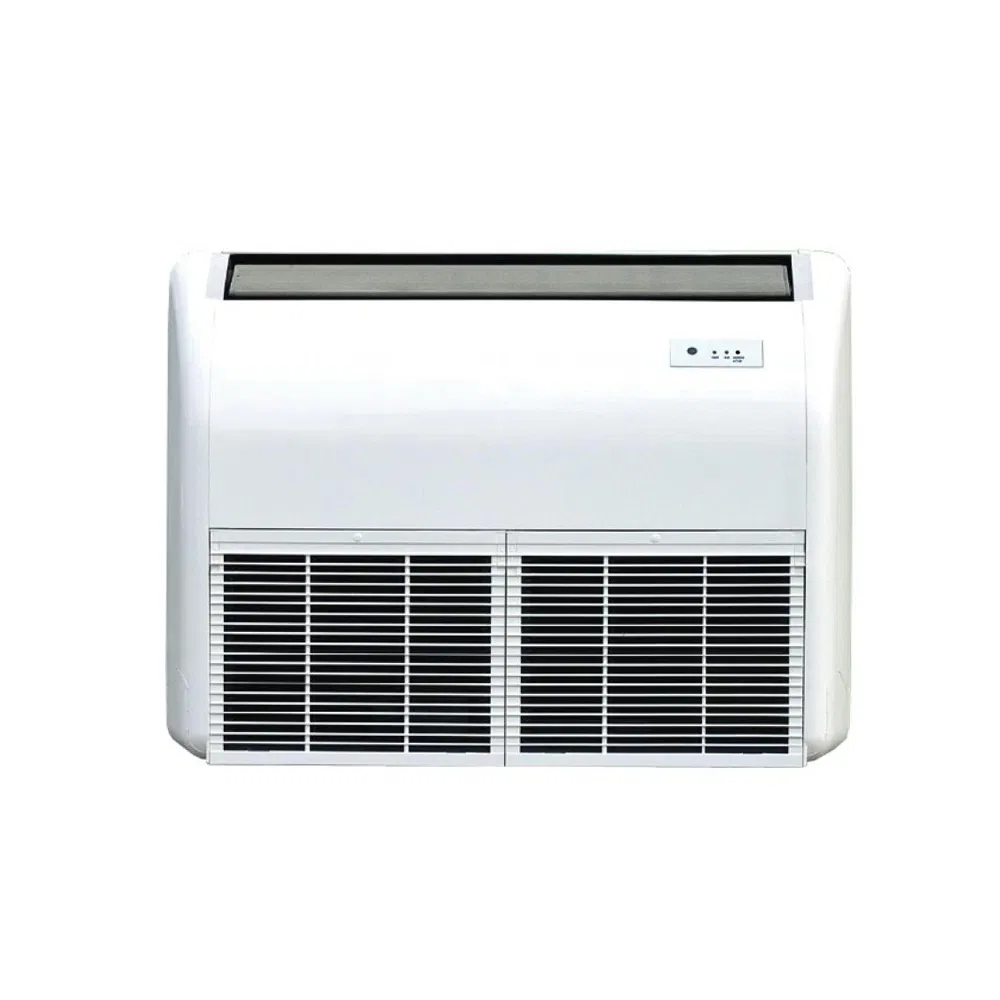

Exposed Floor Ceiling Type
Duct concealed type Cassette Exposed Floor Ceiling Type
200-1400 CFM 300-1200 CFM 200-1400 CFM

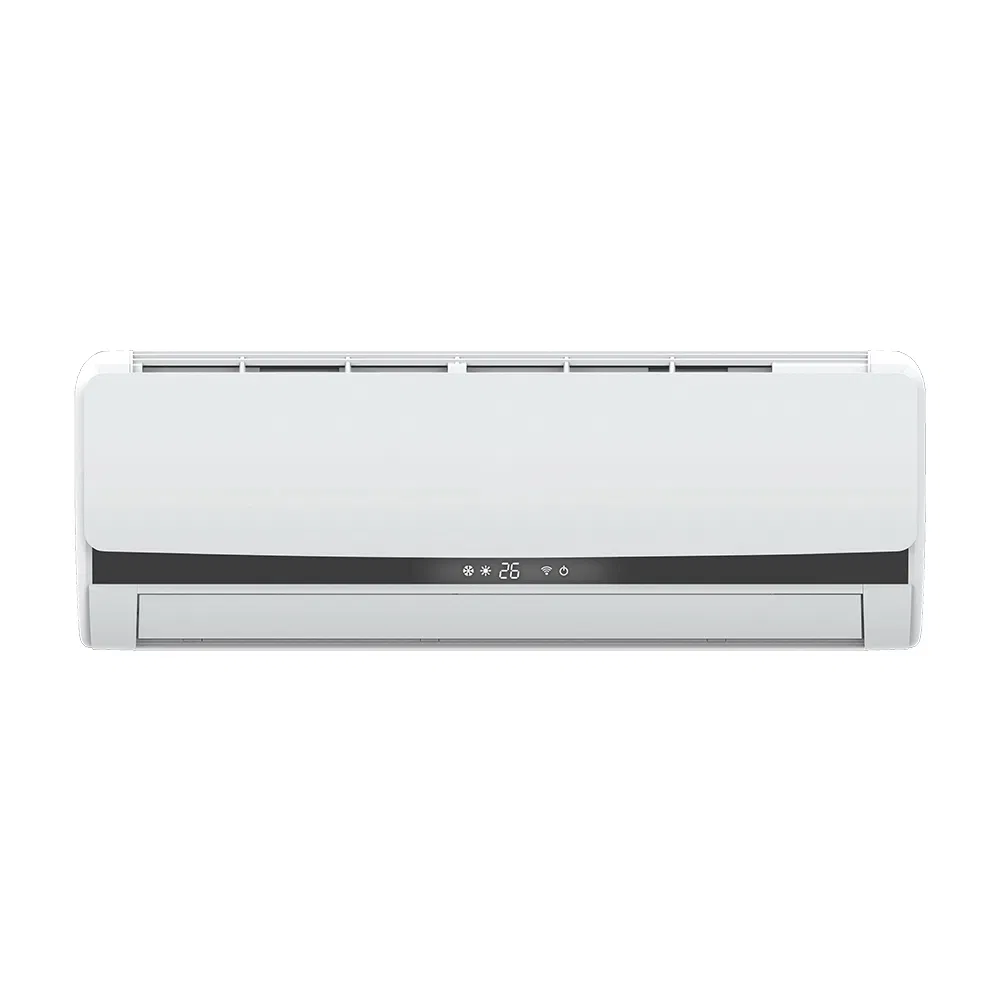

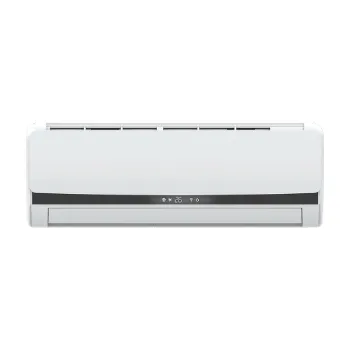

Wall Mounted type FCU

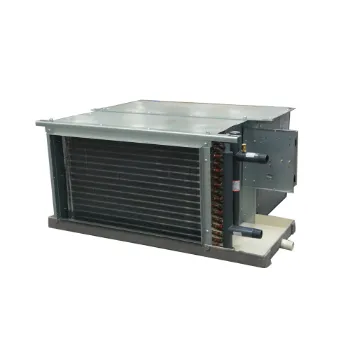

High Static Pressure FCU
Specification
Model Name Power Air Flow (CFM) Cooling Capacity (W) Heating Capacity (W) ESP (Pa)
Ceiling Concealed / Low Noise FCU 220V-1Ph-50/60Hz 200-1400 / 200-1200 1635 ~ 13000 3500 ~ 22100 12/30/50
High Pressure FCU 220V-1Ph-50Hz 800-3000 5300 ~ 34410 7910 ~ 55990 80/130/180
Ceiling & Floor Exposed FCU 220V-1Ph-50Hz 200-1400 1380 ~ 10500 2200 ~ 16800 /
Cassette Type FCU 220V-1Ph-50/60Hz 300-1200 2140 ~ 10800 4050 ~ 17000 /
Wall Mounted type FCU 220V-1Ph-50Hz 200-800 1800 ~ 7200 1800 ~ 7200 /
Our Advantages

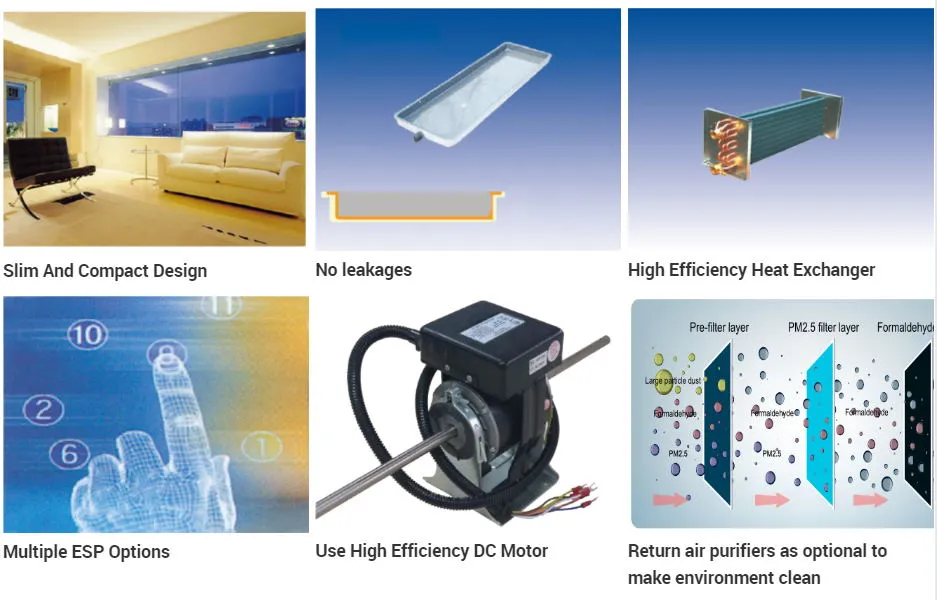

Advantages Chart
WHY CHOOSE US
Why Choose Us
1 Global Strategic Joint Venture
Established global strategic partnerships with world-leading enterprises in aircraft engines, air-conditioning, and elevators.
2 Market Share Leader
No.1 air side products provider with 14.1% of market share. Consecutive 8 years of No.1 AHUs provider.
3 Export Ability
Products are exported to more than 50 countries and regions, including Russia, Central Asia, Eastern Europe, Southeast Asia, etc.
4 International Brand Choice
Leading purification equipment supplier for electronic cleaning industries, serving over 2000 electronic enterprises and 3000 pharmaceutical facilities.
Certifications & Product Packaging
Certifications

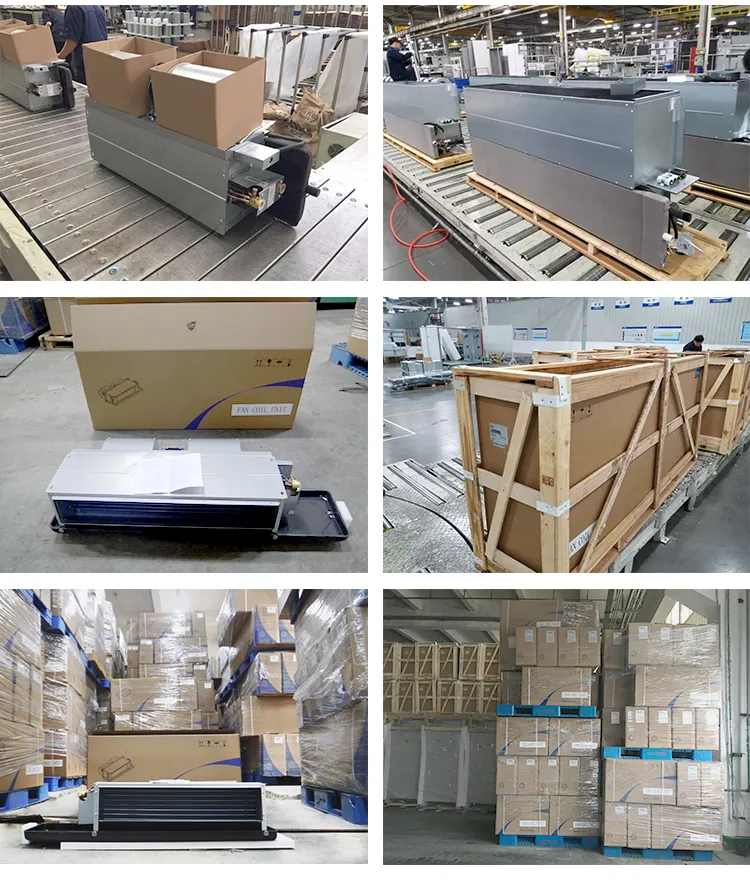

Product Packaging
Prestigious Projects

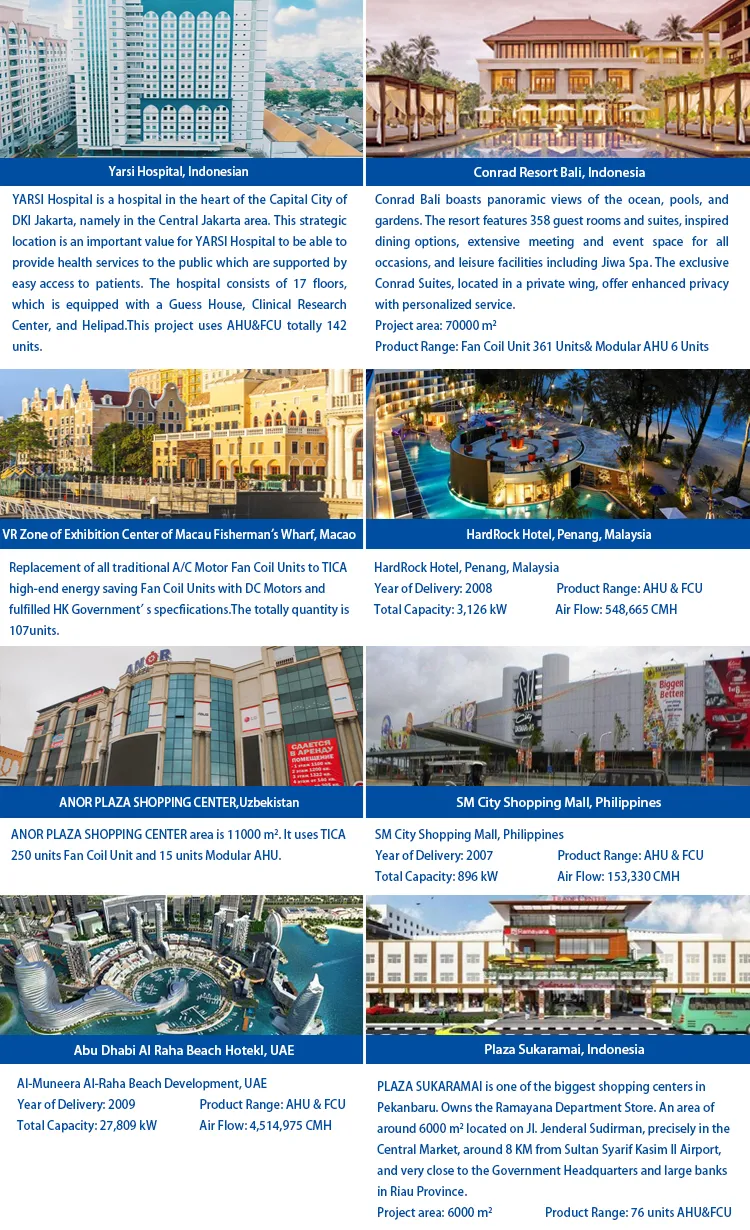

Projects Showcase
Frequently Asked Questions
Can you provide drawing design service?
Yes, we have professional HVAC engineers to help you better design the entire project of FCU application, including area/length of air duct and optimized solutions.
Can you provide installation accessories along with equipment?
Yes, we can calculate and quote needed FCU installation accessories including corrugated pipes, Y strainers, valves, electric controllers, etc., shipped together as one package.
Could you please provide customized services?
FCU products have optional functions such as wet film humidification, specific control boxes, multiple filter grades, heating coils, and oil mist filters to satisfy different projects.
What is your delivery time?
For standard units, the delivery time is approximately 35-40 days.
What is your FCU guarantee?
Our products have strict quality control with a lifespan of 5-10 years for proper use. We also provide 1% free spare parts for maintenance and after-sales services.
Do you have technical support?
We have a professional technical team to answer questions 24/7, along with detailed user manuals included in the goods package.
