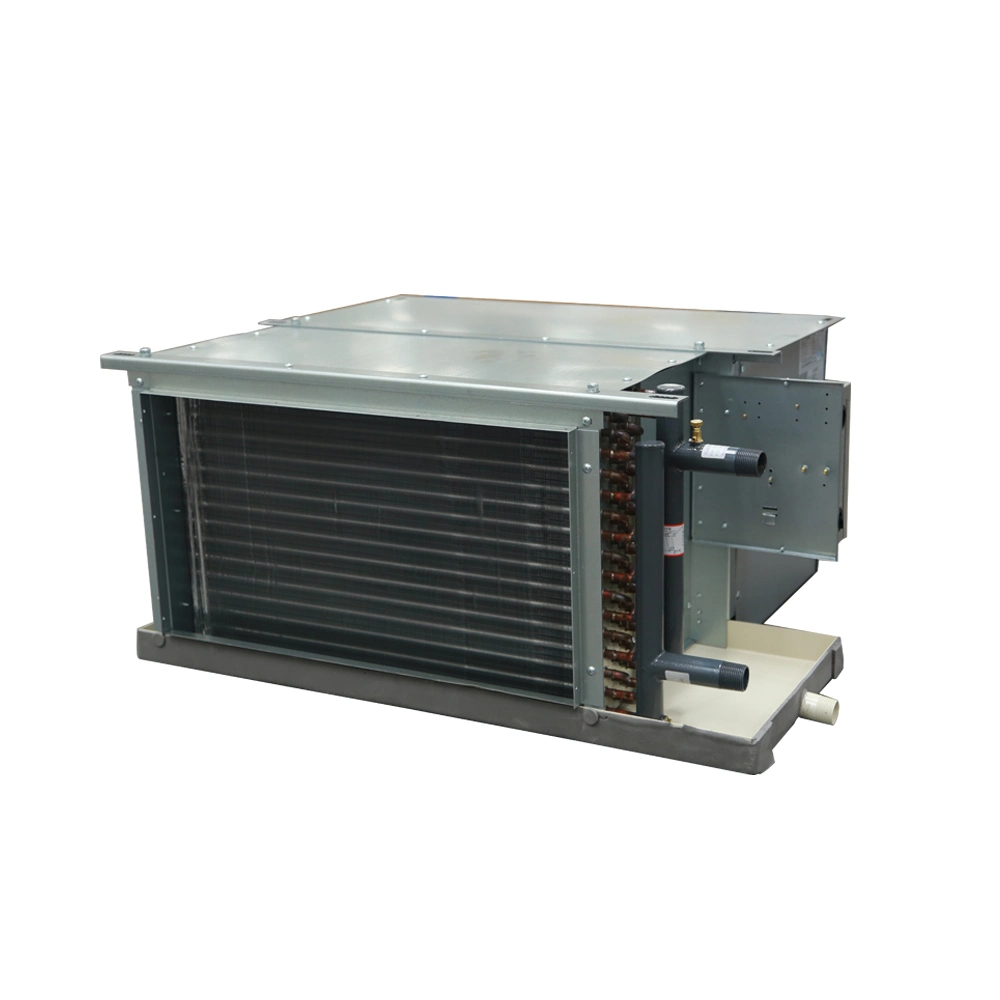

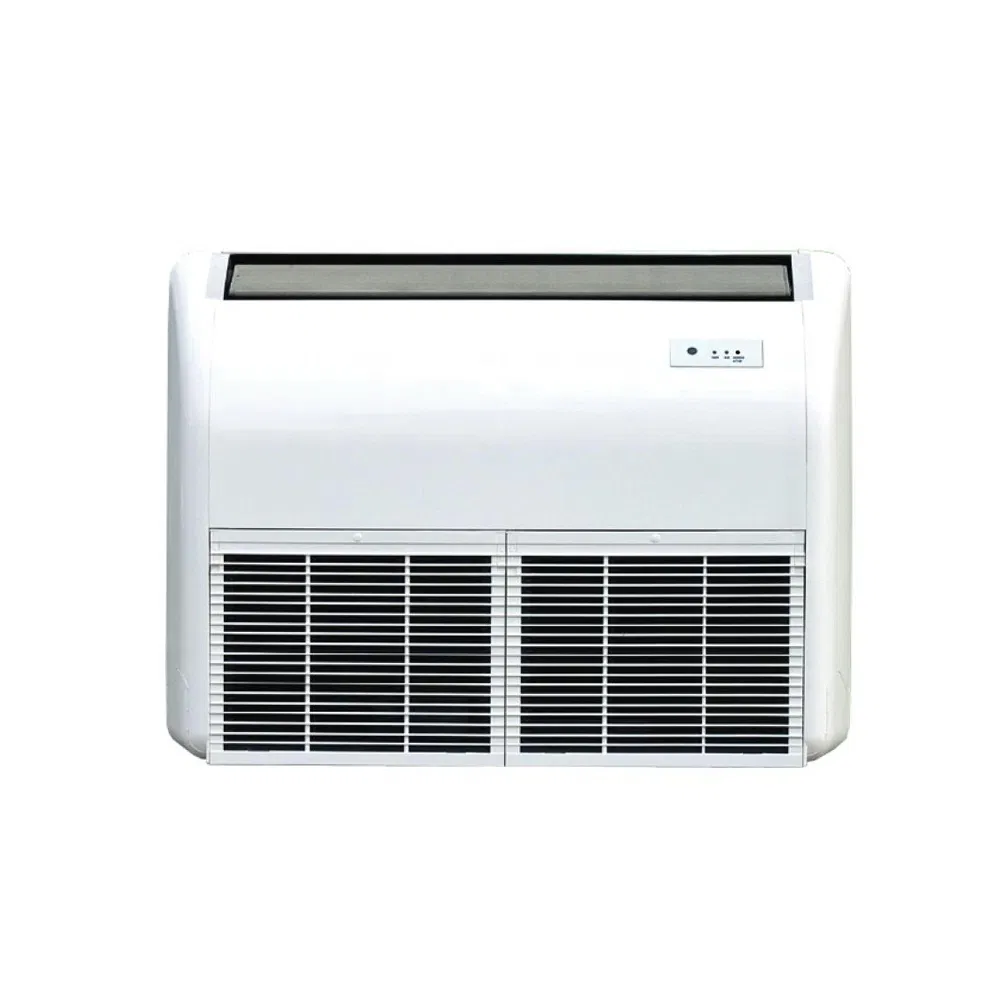

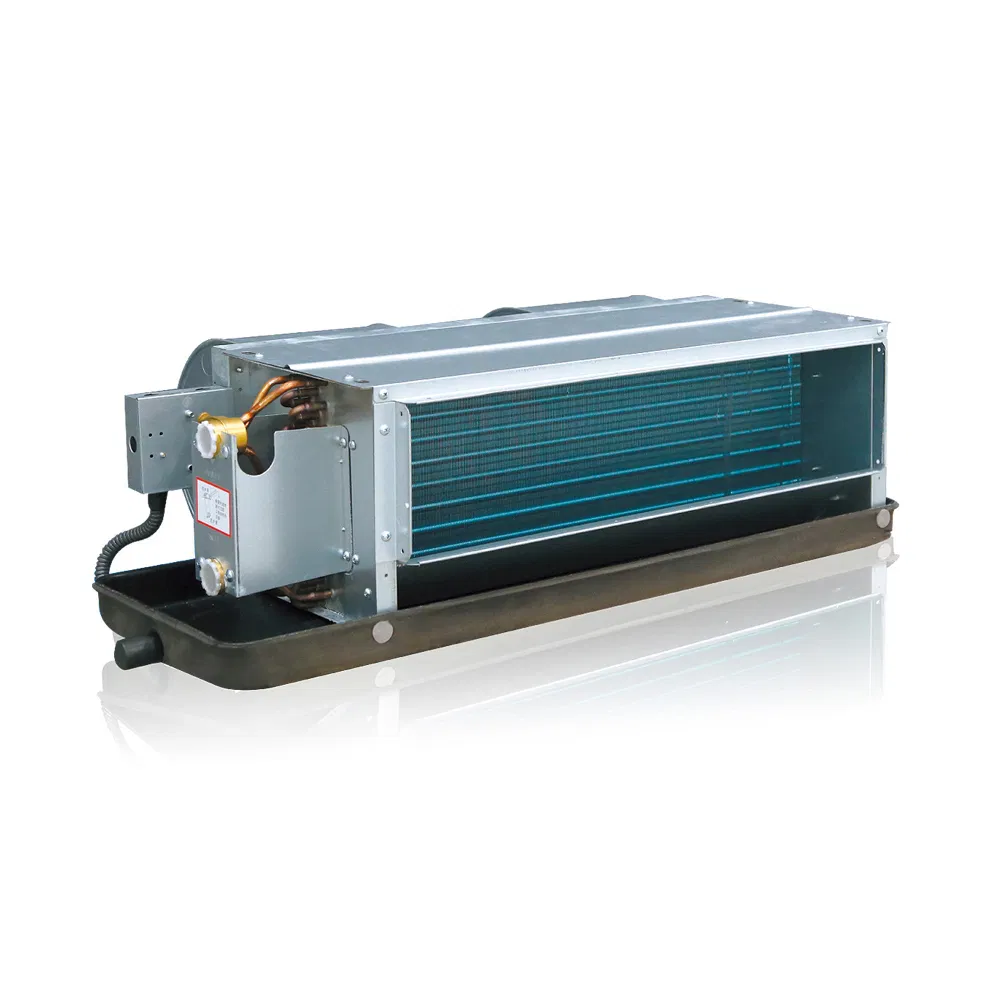

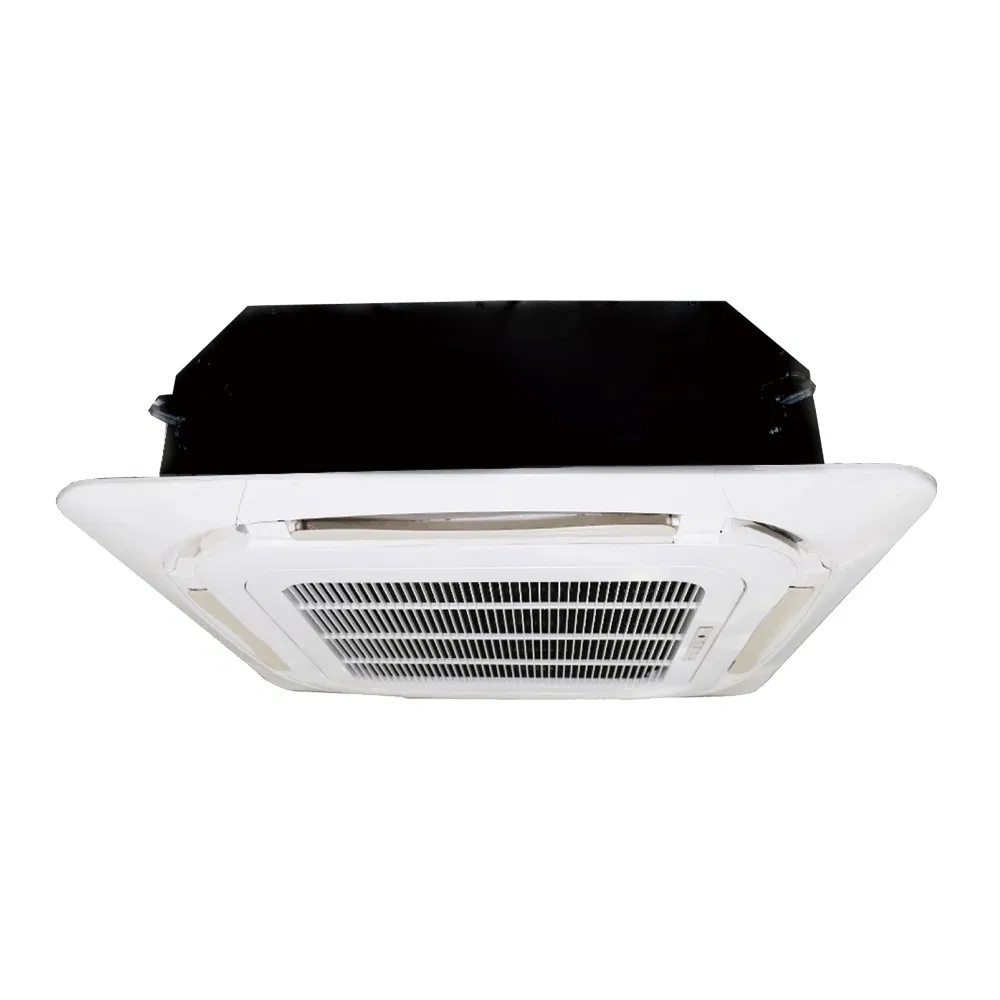

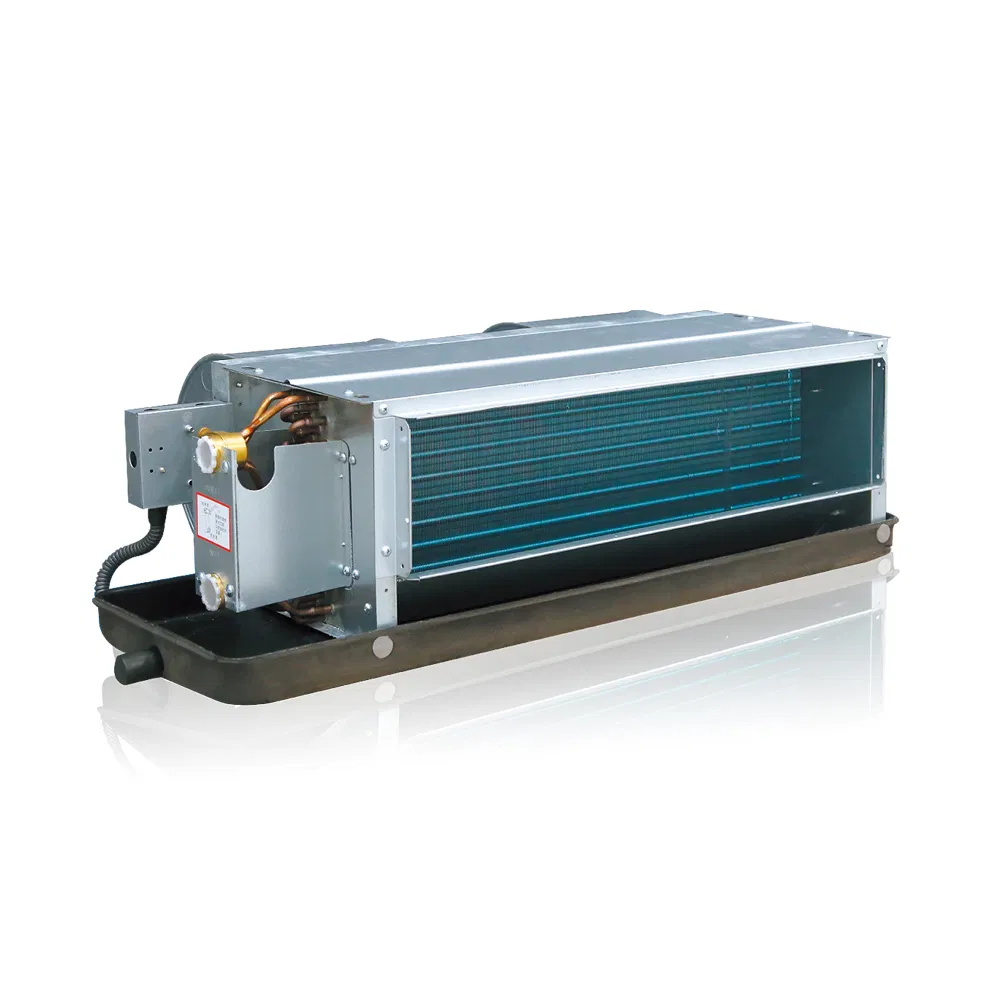

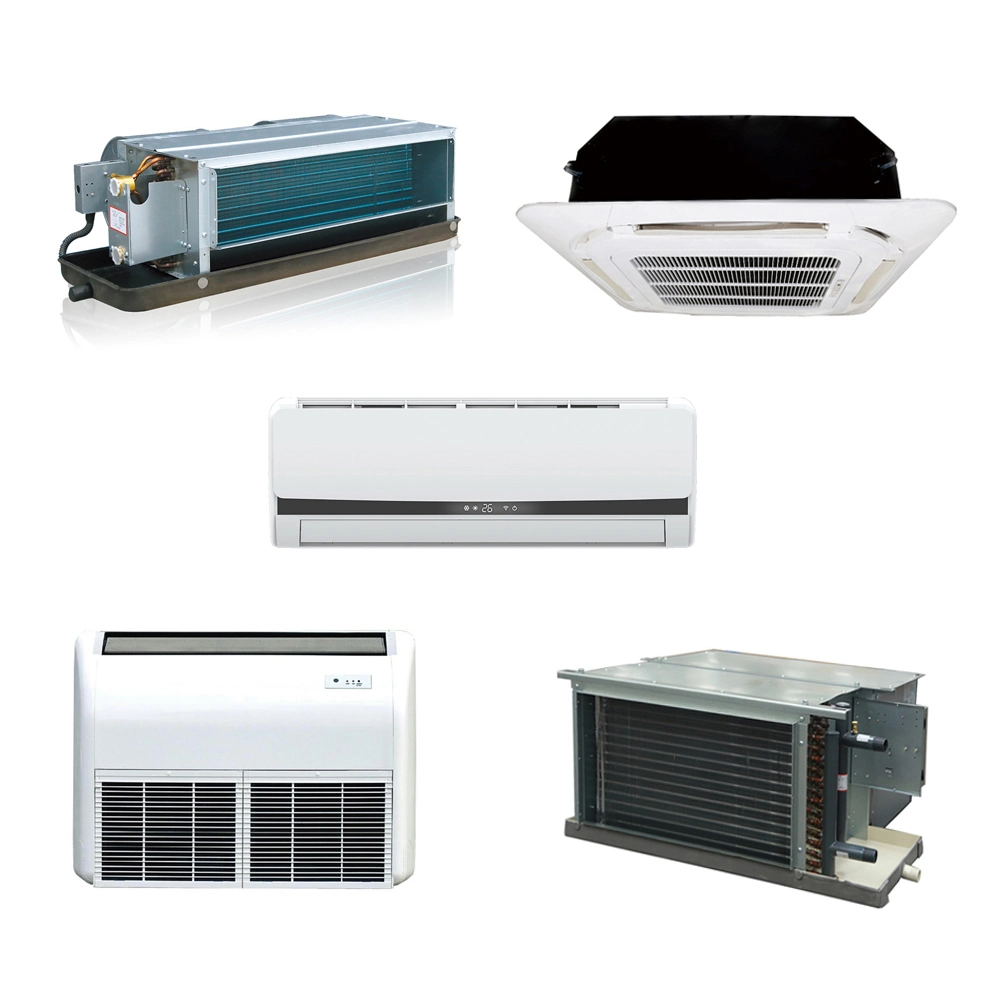

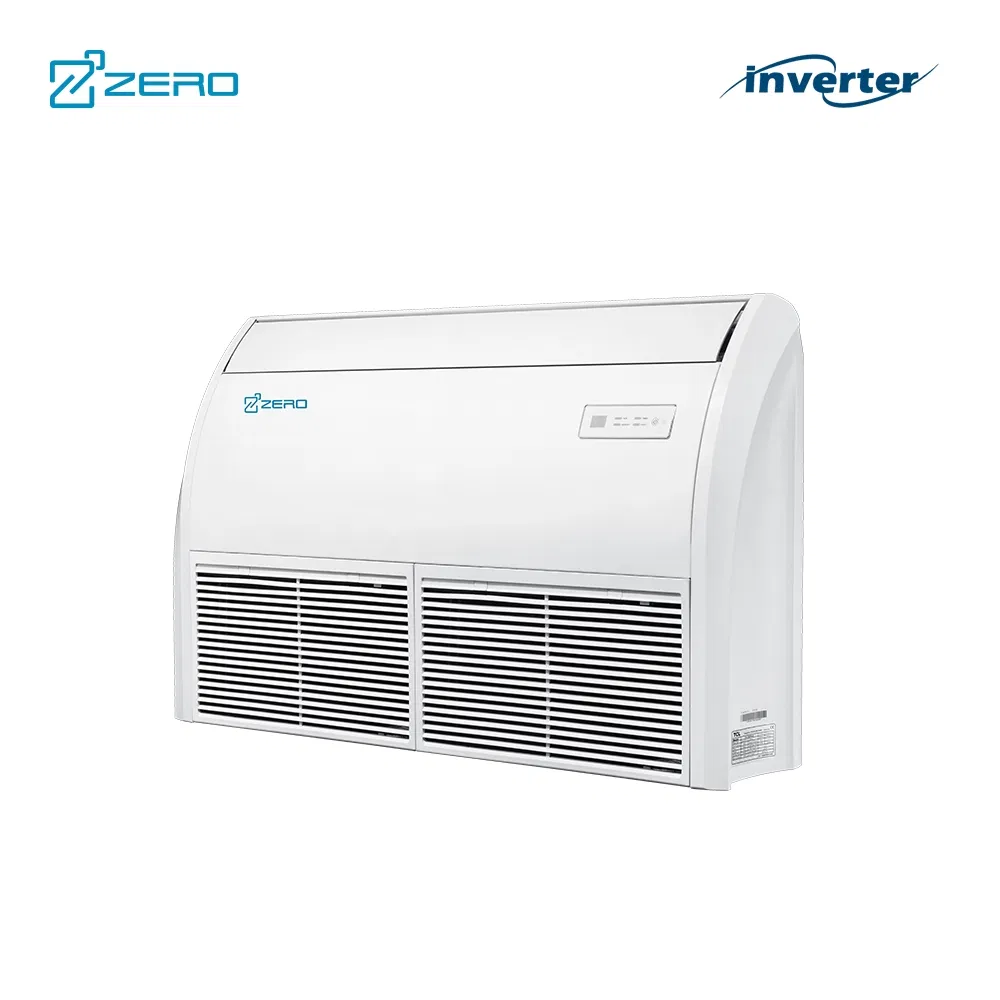

| Duct concealed type (TCR/TCRQ) | Cassette (TKM) | Exposed Floor Ceiling Type (TC) |
|---|---|---|
| 200-1400 CFM | 300-1200 CFM | 200-1400 CFM |

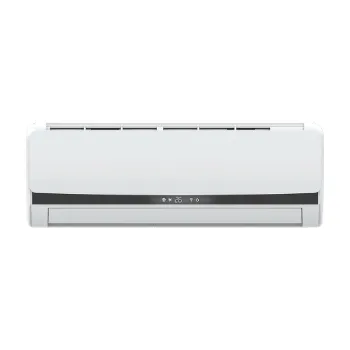

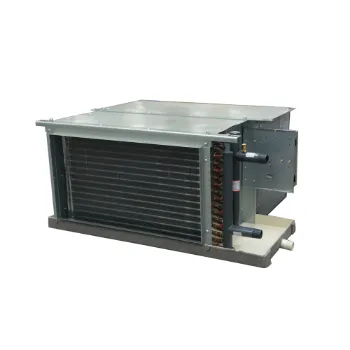

| Wall Mounted type FCU (TWM) | High Static Pressure Ceiling Concealed (TFM) |
|---|---|
| 300-800 CFM | 800-3000 CFM |
| Model Name | Power Supply | Air Flow (CFM) | Cooling (W) | Heating (W) | ESP (Pa) |
|---|---|---|---|---|---|
| TCR / TCRQ | 220V-1Ph-50/60Hz | 200-1400 | 1635-13000 | 3900-22100 | 12/30/50 |
| TFM (High Pressure) | 220V-1Ph-50Hz | 800-3000 | 5300-34410 | 7910-55990 | 80/130/180 |
| TC (Exposed) | 220V-1Ph-50Hz | 200-1400 | 1380-10500 | 2200-16800 | / |
| TKM (Cassette) | 220V-1Ph-50/60Hz | 300-1200 | 2140-10800 | 4050-17000 | / |
Establishing global strategic partnerships to integrate world-advanced technology in air-conditioning and purification systems.
Leading provider in air side products with significant market share. Recognized as a top AHUs provider for consecutive years.
Products are exported to more than 50 countries and regions including Russia, Central Asia, Eastern Europe, Southeast Asia, and South America.
Serving over 3000 GMP-Certified Pharmaceutical facilities and 6000 Grade-A hospitals, providing integrated clean room equipment.
