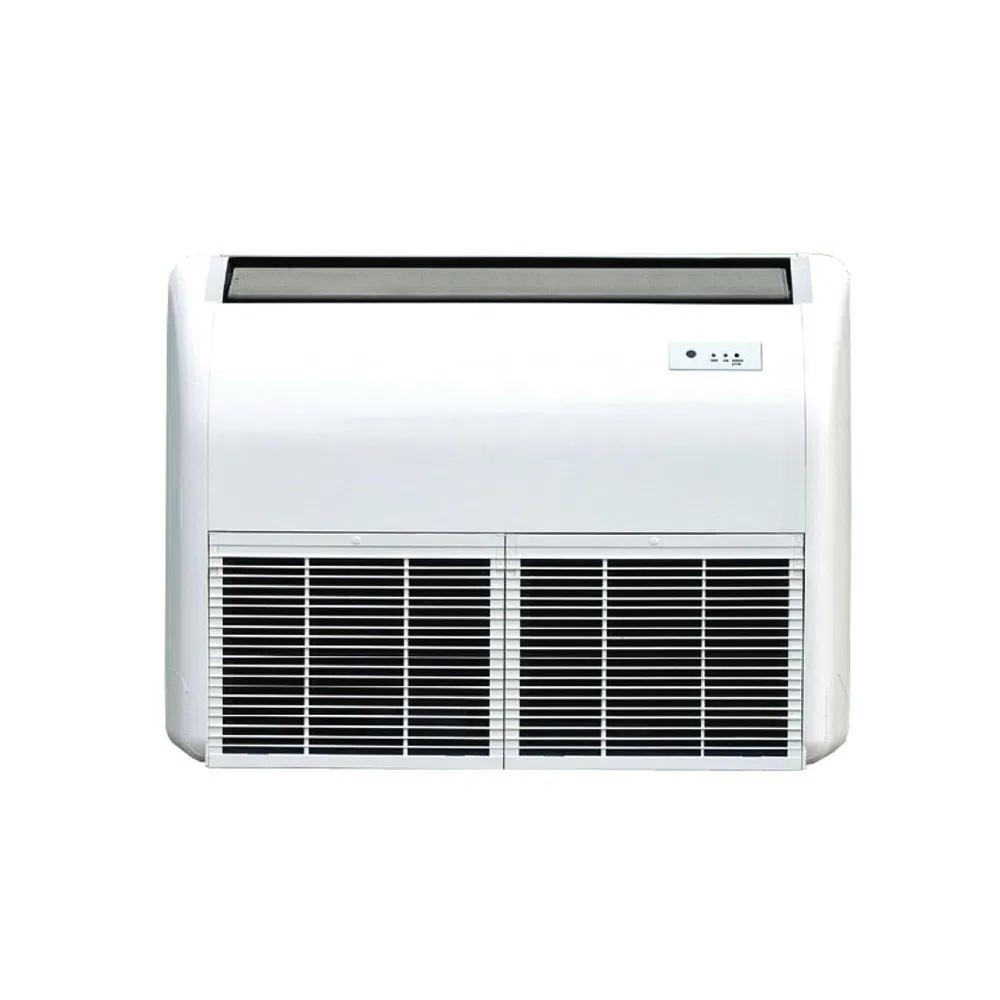

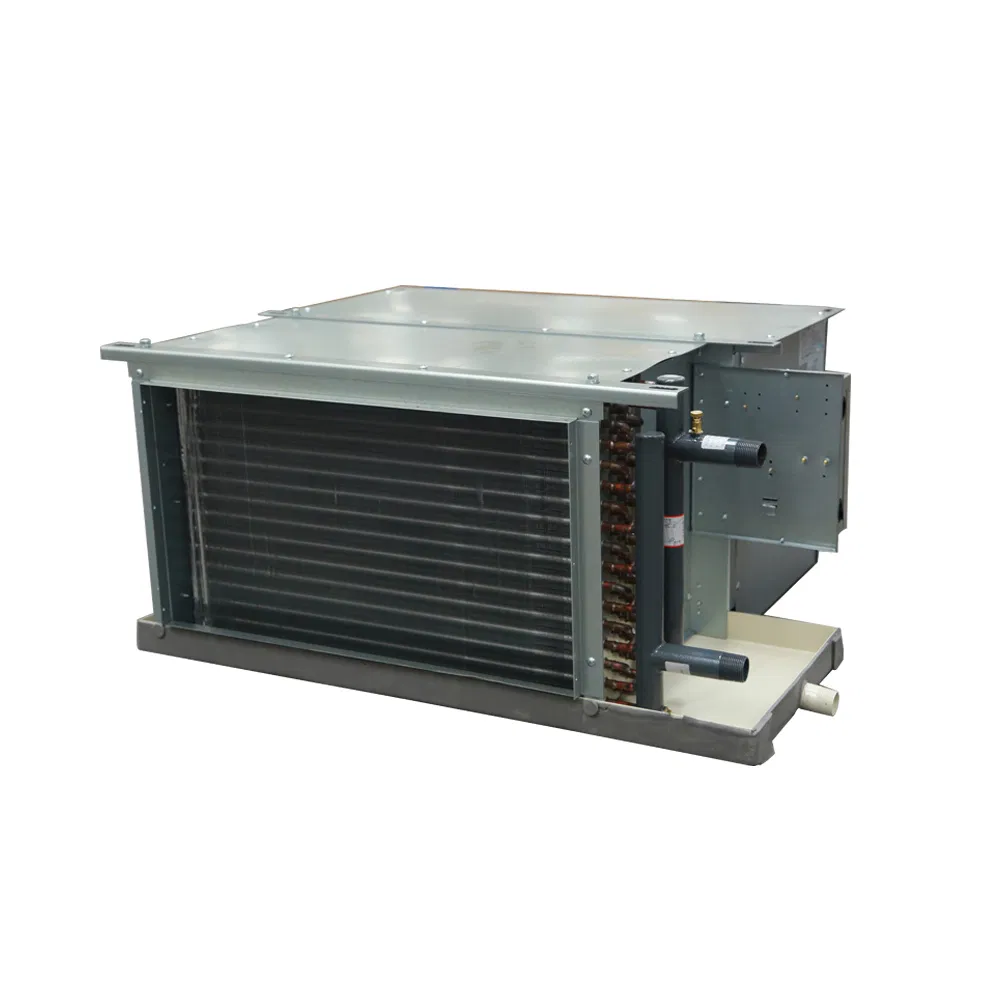

Commercial Floor Using Ceiling Concealed Chilled Standing Water Plant Cassette Duct Type Price Fan Coil Units

1 / 5

Commercial Floor Using Ceiling Concealed Chilled Standing Water Plant Cassette Duct Type Price Fan Coil Units

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Corrosion Durability

Higher

Operating Voltage

220V

Noise Level

Low

Application Fields

Hotels, Schools, Airports, etc

Mounting

Concealed, Floor Ceiling, Wall Mount

Lifetime

10~15 years

Certification

Ahri

Airflow

200-3000cfm

Cooling Capacity(W)

1635-34410

Heating Capacity(W)

3900-55990

Control System

Intelligent Control

Multiple Coils

2 Pipes / 4 Pipes

💎

Product Highlights

🚀

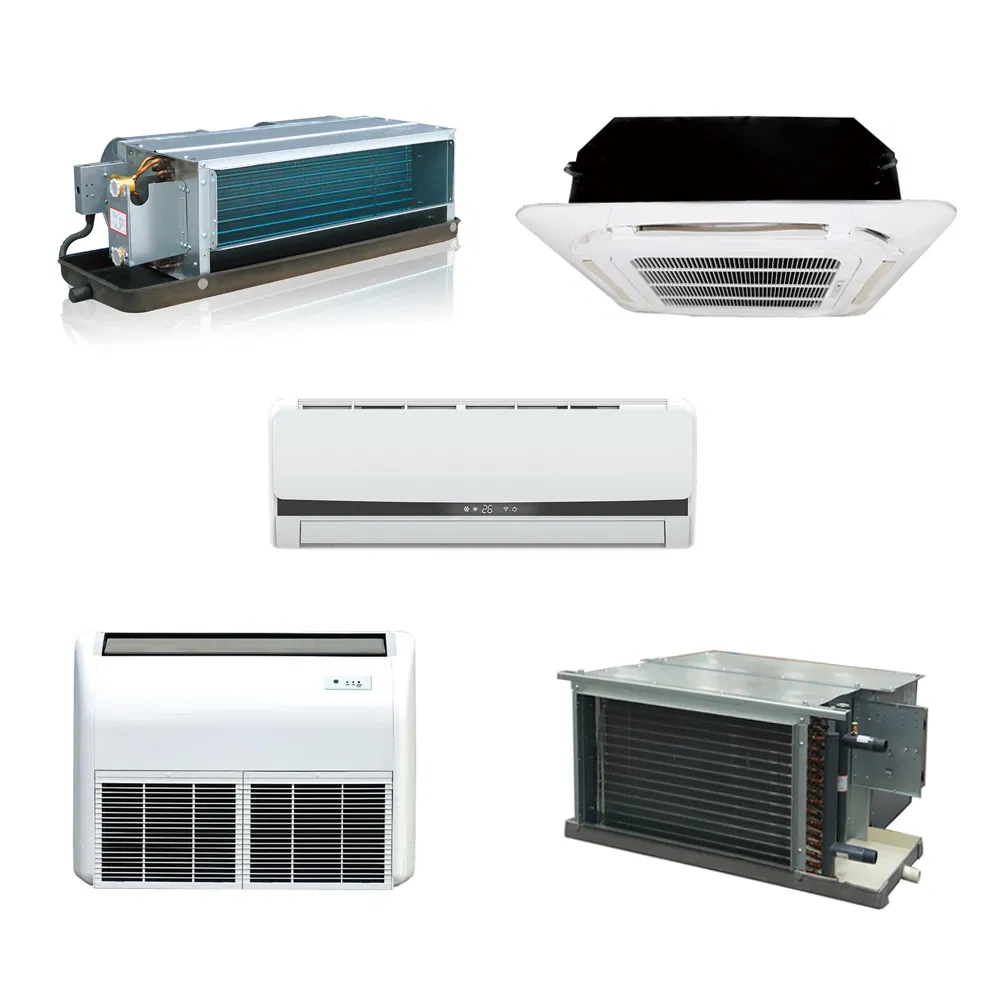

Product Lineup

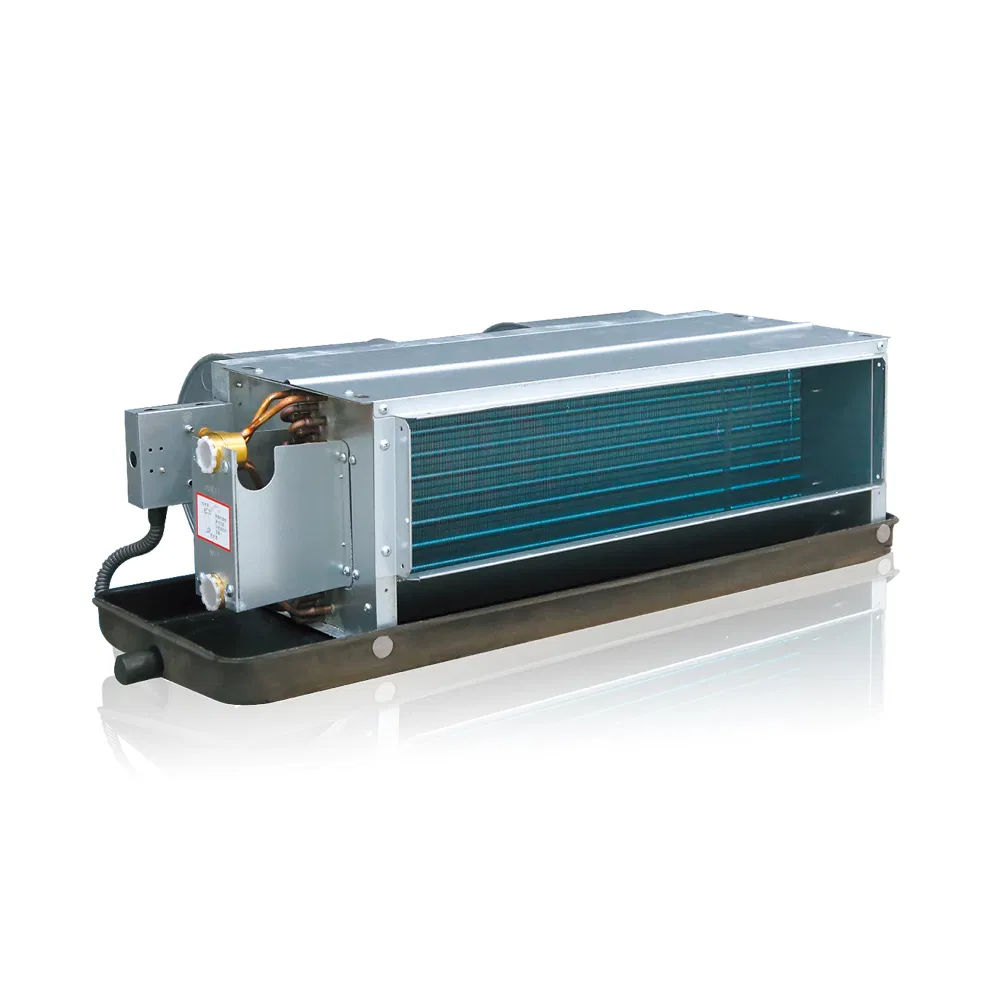

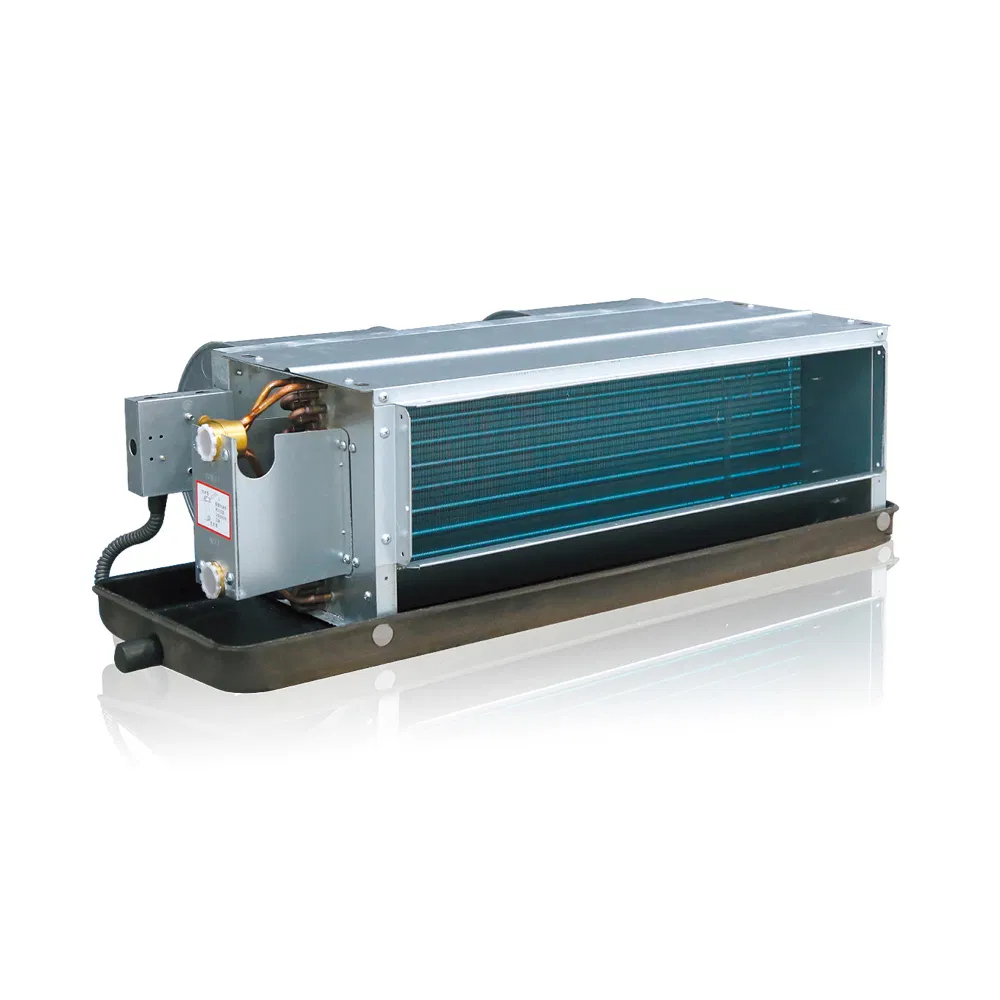

Duct Concealed Type
200-1400 CFM

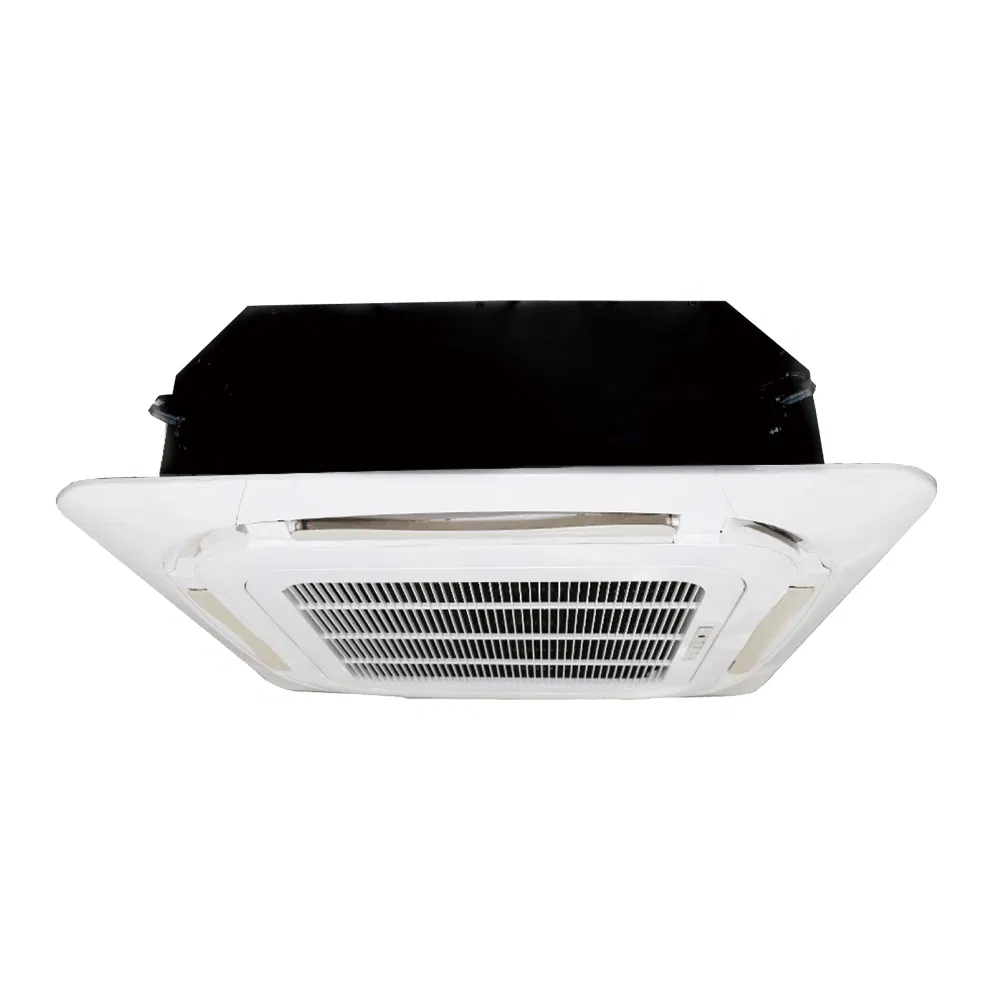

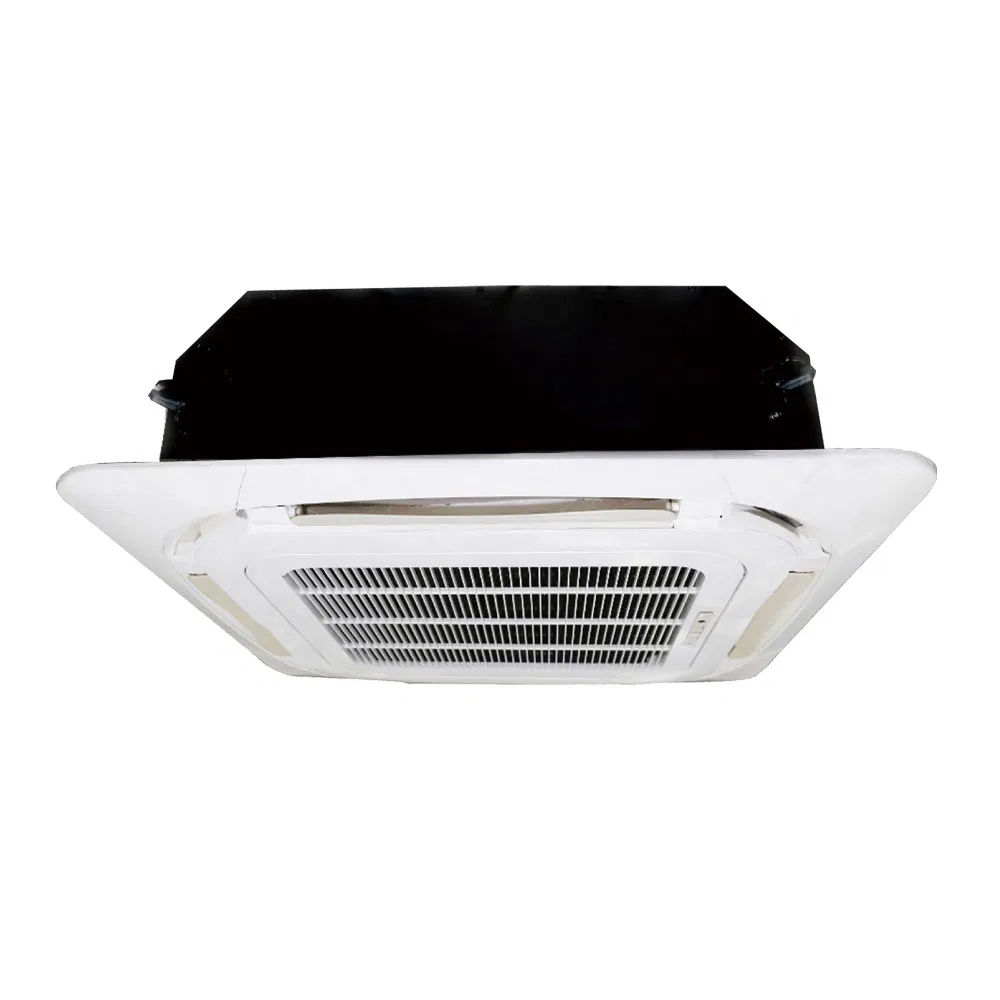

Cassette Type
300-1200 CFM

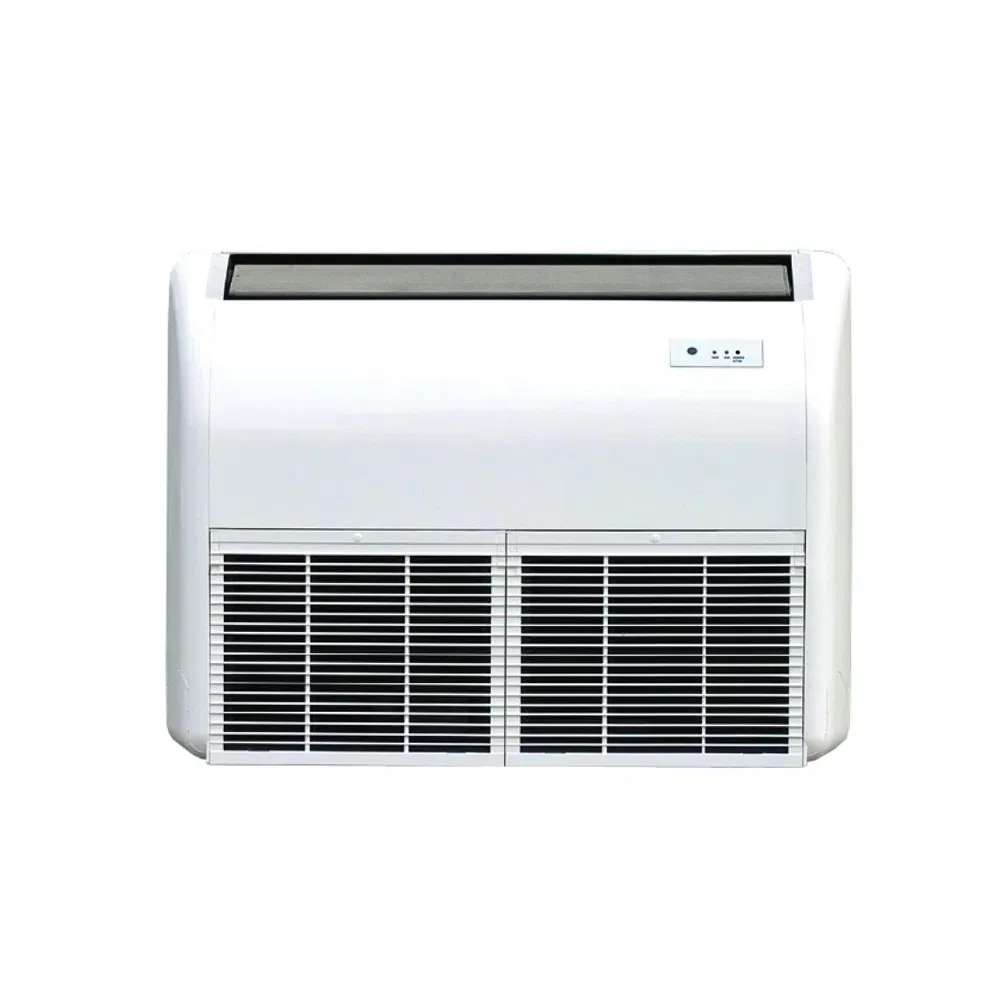

Floor Ceiling Type
200-1400 CFM

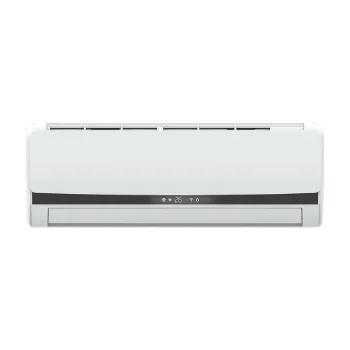

Wall Mounted Type
300-800 CFM

High Static Pressure
800-3000 CFM

📊

Technical Specifications

Model Type	Power Supply	Air Flow (CFM)	Cooling Cap (W)	Heating Cap (W)	ESP (Pa)
TCR / TCRQ (Ceiling Concealed)	220V-1Ph-50/60Hz	200-1400	1635-13000	3900-22100	12/30/50
TFM (High Pressure)	220V-1Ph-50Hz	800-3000	5300-34410	7910-55990	80/130/180
TC (Ceiling & Floor)	220V-1Ph-50Hz	200-1400	1380-10500	2200-16800	-
TKM (Cassette Type)	220V-1Ph-50/60Hz	300-1200	2140-10800	4050-17000	-
TWM (Wall Mounted)	220V-1Ph-50Hz	200-800	1800-7200	1800-7200	-

⭐

Our Advantages

Strategic Partnership

Global strategic joint venture with world-leading technology corporations specializing in aircraft engines and HVAC systems.

Market Leadership

Leading provider with 14.1% market share. Consecutive 8 years as the No.1 AHU provider in the region.

Export Capability

Products exported to more than 50 countries including Russia, Central Asia, Eastern Europe, and Southeast Asia.

Industry Choice

Trusted by over 2000 electronic enterprises and 3000 pharmaceutical facilities for clean room equipment.

📜

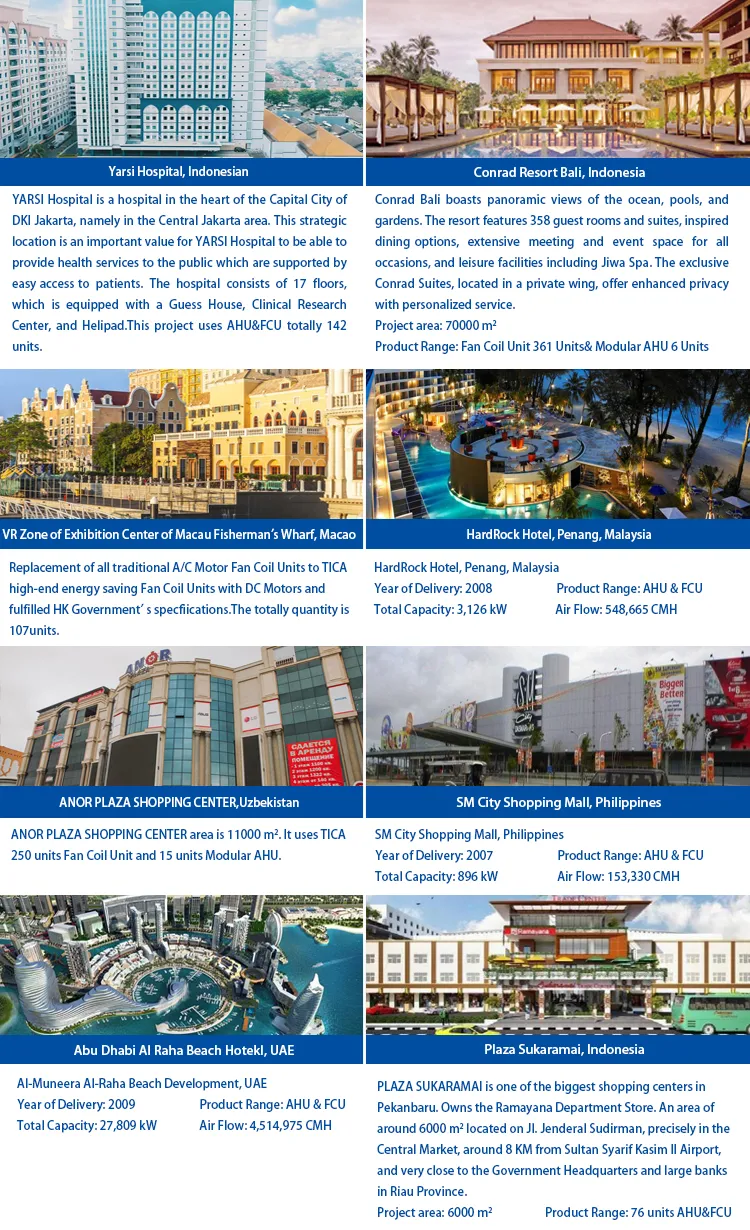

Certifications & Projects

Frequently Asked Questions

Can you provide drawing design services?

Yes, we have professional HVAC engineers to help you better design the entire project of FCU application, including area/length of air ducts, and provide appropriate and optimized solutions.

Can you provide installation accessories with the equipment?

Absolutely. We can calculate and quote necessary FCU installation accessories including corrugated pipes, Y strainers, gate/ball valves, electric valves, and wired controllers.

Do you offer customized services?

Yes, our FCU products offer optional functions such as wet film humidification, specialized control boxes, multiple filter grades, heating coils, and oil mist filters to meet specific project needs.

What is the standard delivery time?

For standard units, the delivery time is approximately 35-40 days.

What is the guarantee for the Fan Coil Units?

With strict quality control, the lifespan for proper use is 5-10 years. We also provide 1% free spare parts for maintenance and after-sales service.

How do you handle technical support and transportation?

We have a professional technical team available 24/7 and detailed user manuals. Our logistics team also assists in arranging cost-effective and fast shipping services to your destination.
