OEM Ceiling Wall Mouted Chiller Water Cassette Air Conditioning Price Fan Coil Unit
OEM Ceiling Wall Mouted Chiller Water Cassette Air Conditioning Price Fan Coil Unit
OEM Ceiling Wall Mouted Chiller Water Cassette Air Conditioning Price Fan Coil Unit
OEM Ceiling Wall Mouted Chiller Water Cassette Air Conditioning Price Fan Coil Unit
OEM Ceiling Wall Mouted Chiller Water Cassette Air Conditioning Price Fan Coil Unit
1 / 5
OEM Ceiling Wall Mouted Chiller Water Cassette Air Conditioning Price Fan Coil Unit
OEM Ceiling Wall Mouted Chiller Water Cassette Air Conditioning Price Fan Coil Unit
OEM Ceiling Wall Mouted Chiller Water Cassette Air Conditioning Price Fan Coil Unit
OEM Ceiling Wall Mouted Chiller Water Cassette Air Conditioning Price Fan Coil Unit
OEM Ceiling Wall Mouted Chiller Water Cassette Air Conditioning Price Fan Coil Unit

OEM Ceiling Wall Mouted Chiller Water Cassette Air Conditioning Price Fan Coil Unit

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview & Basic Info
Corrosion Durability
Higher
Operating Voltage
220V
Noise Level
Low
Application Fields
Hotels, Schools, Airports, etc
Mounting
Concealed, Floor Ceiling, Wall Mount
Lifetime
10~15 years
Airflow
200-3000cfm
Multiple Coils
2 Pipes & 4 Pipes (3+1)
Chiller Water Fan Coil Unit Banner
TICA R&D INSTITUTE JAPAN

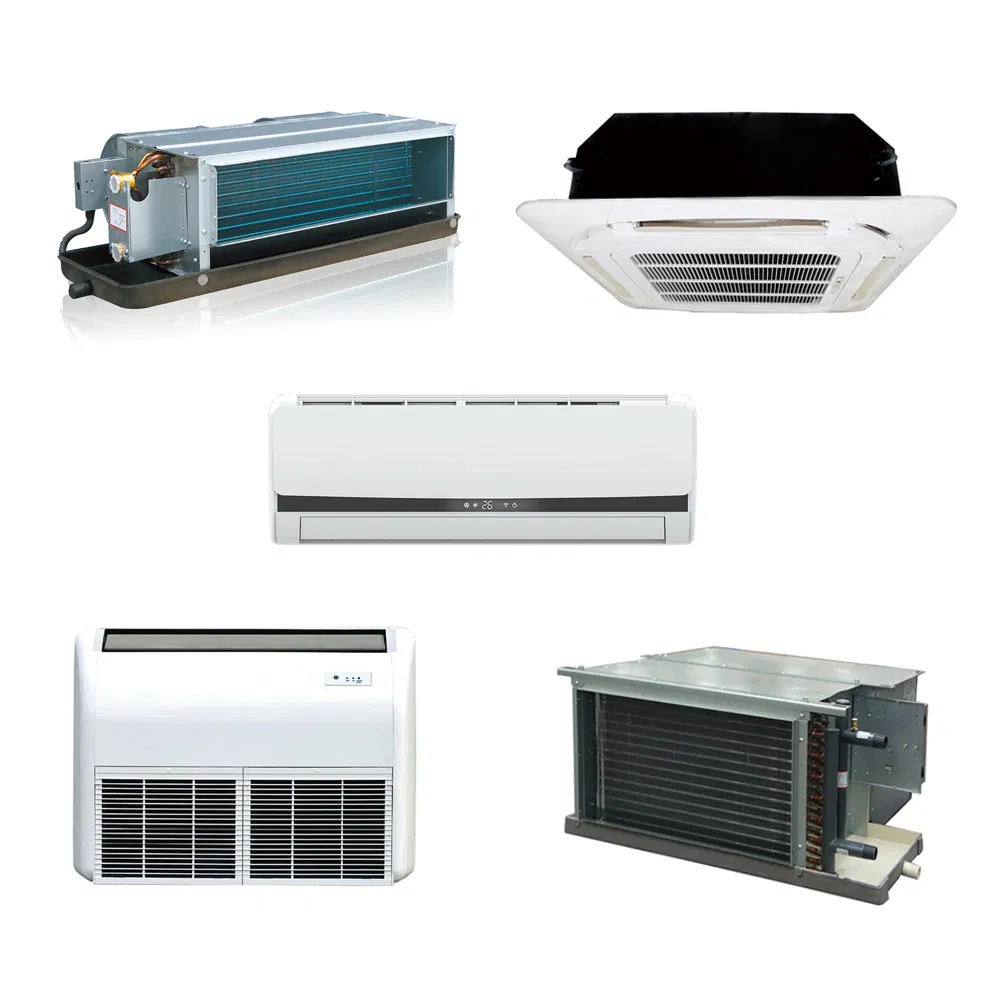

Products Line

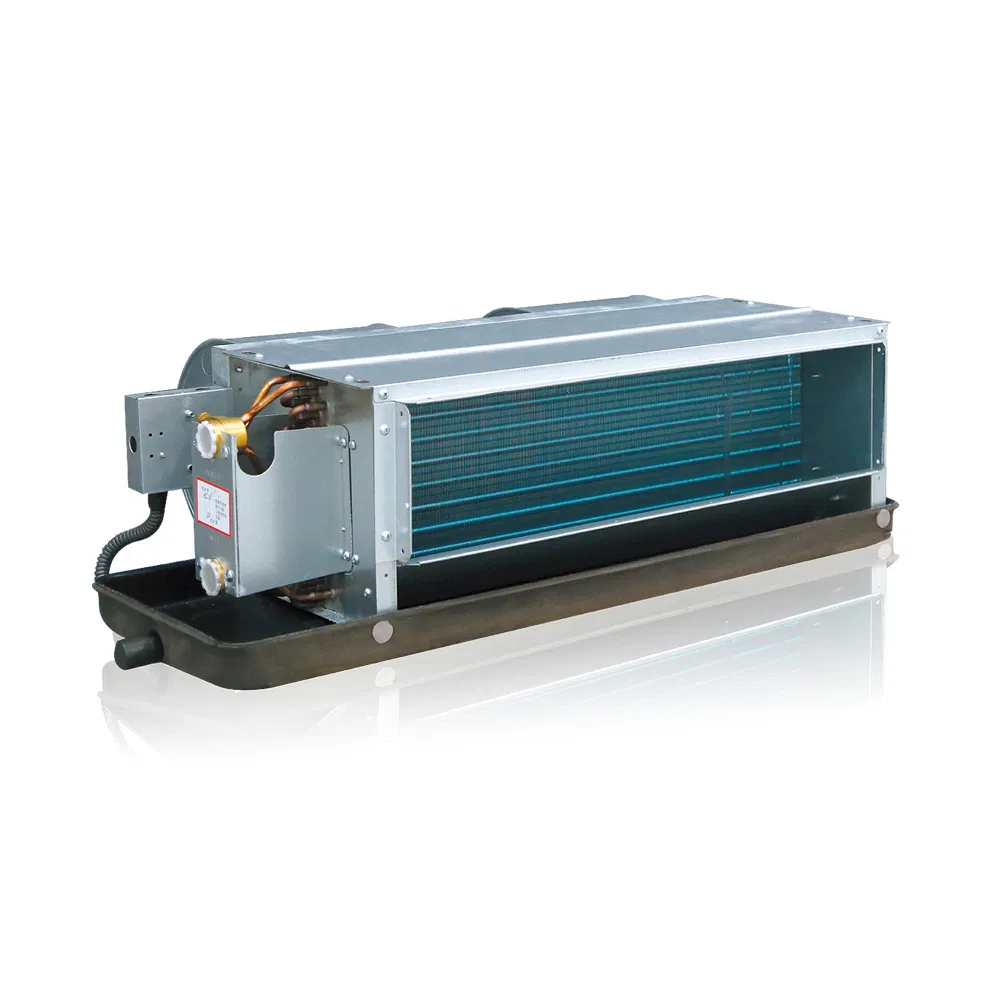

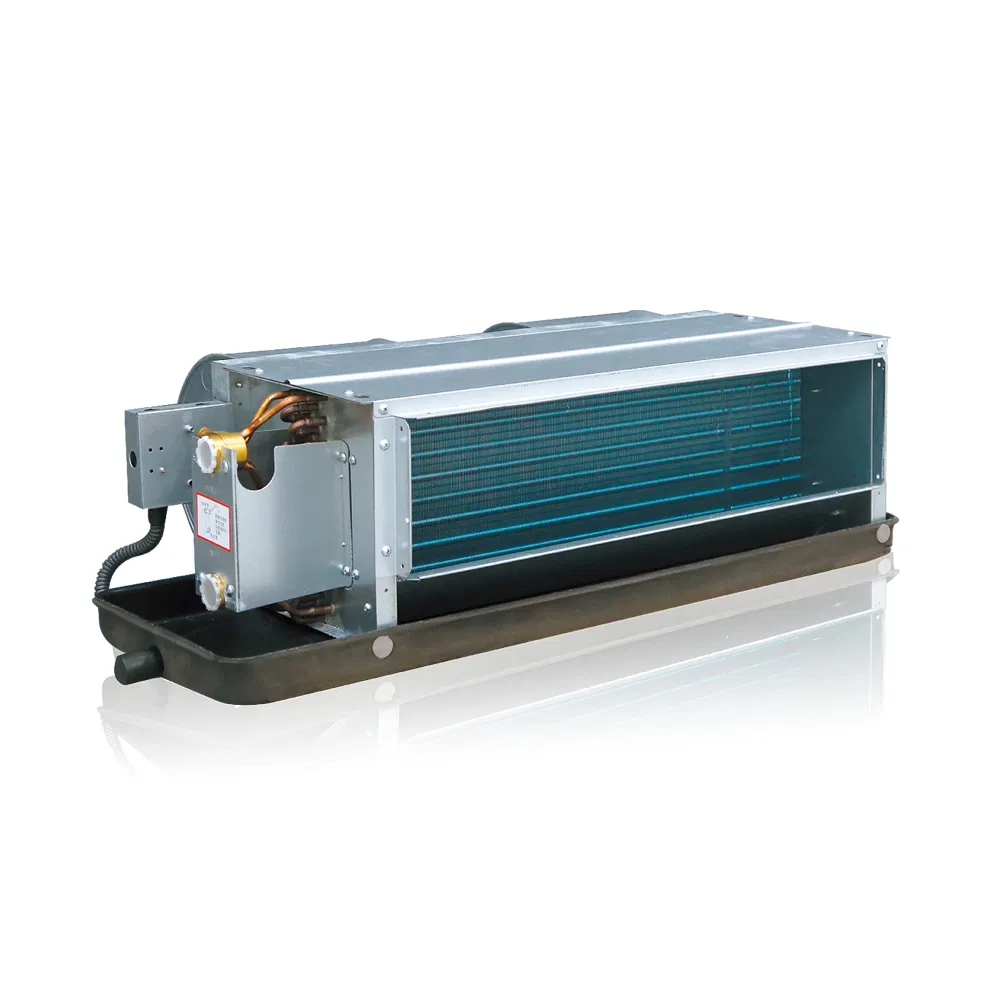

Duct concealed type

Duct concealed type (TCR/TCRQ)

200-1400 CFM

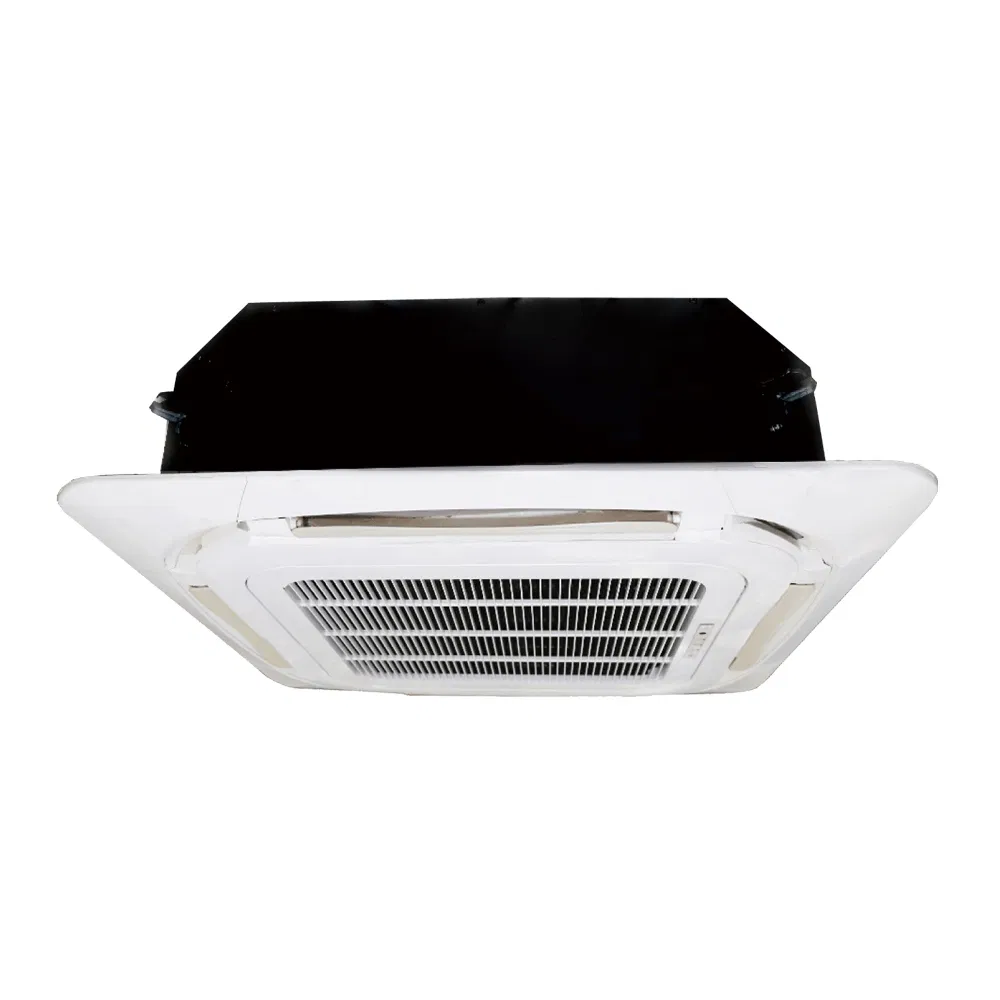

Cassette type

Cassette (TKM)

300-1200 CFM

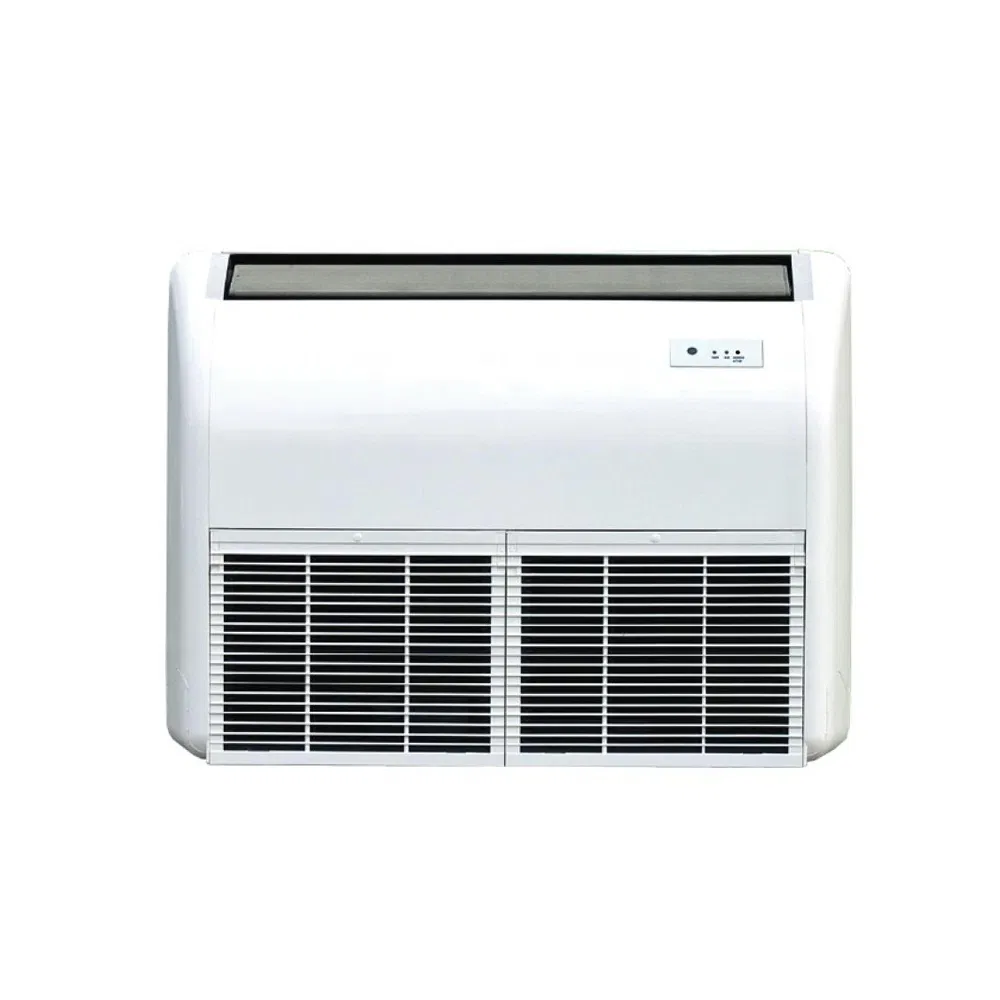

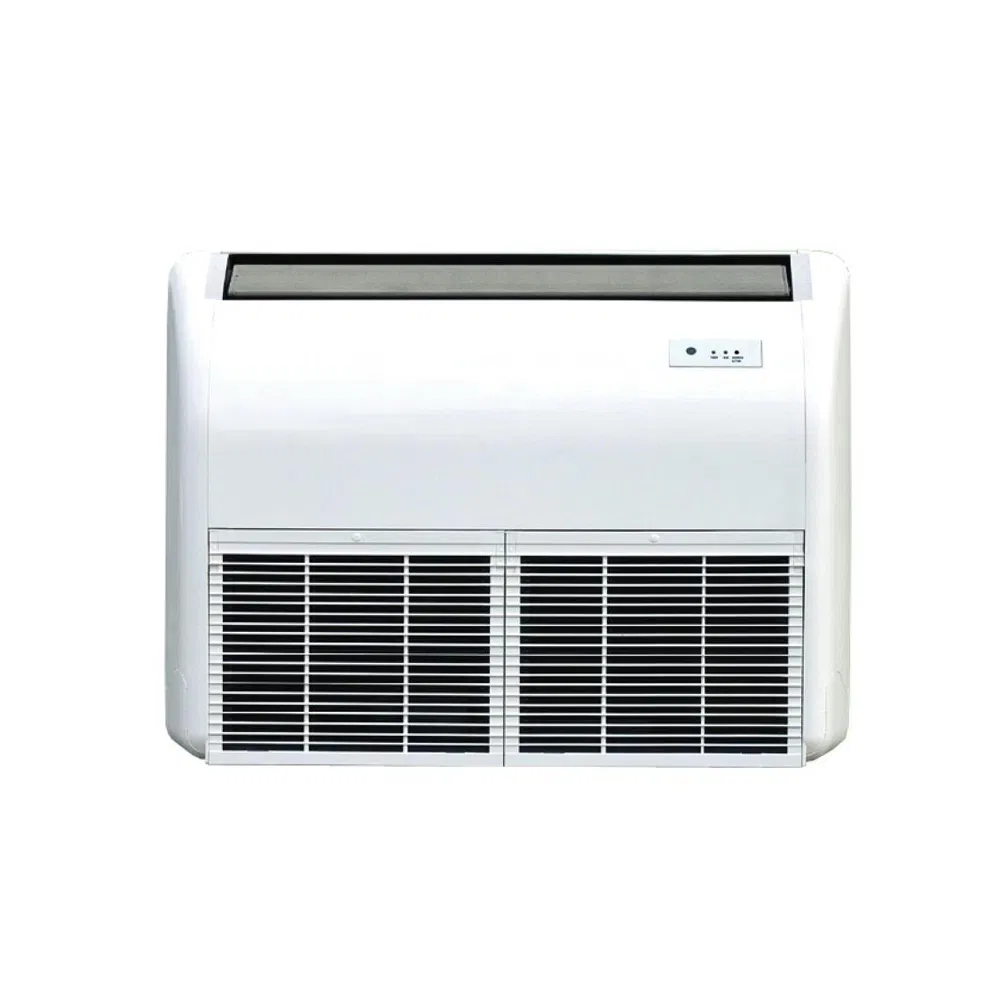

Exposed Floor Ceiling Type

Exposed Floor Ceiling (TC)

200-1400 CFM

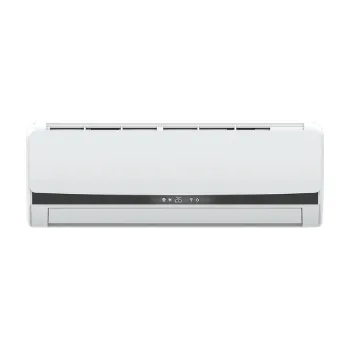

Wall Mounted type

Wall Mounted type (TWM)

300-800 CFM

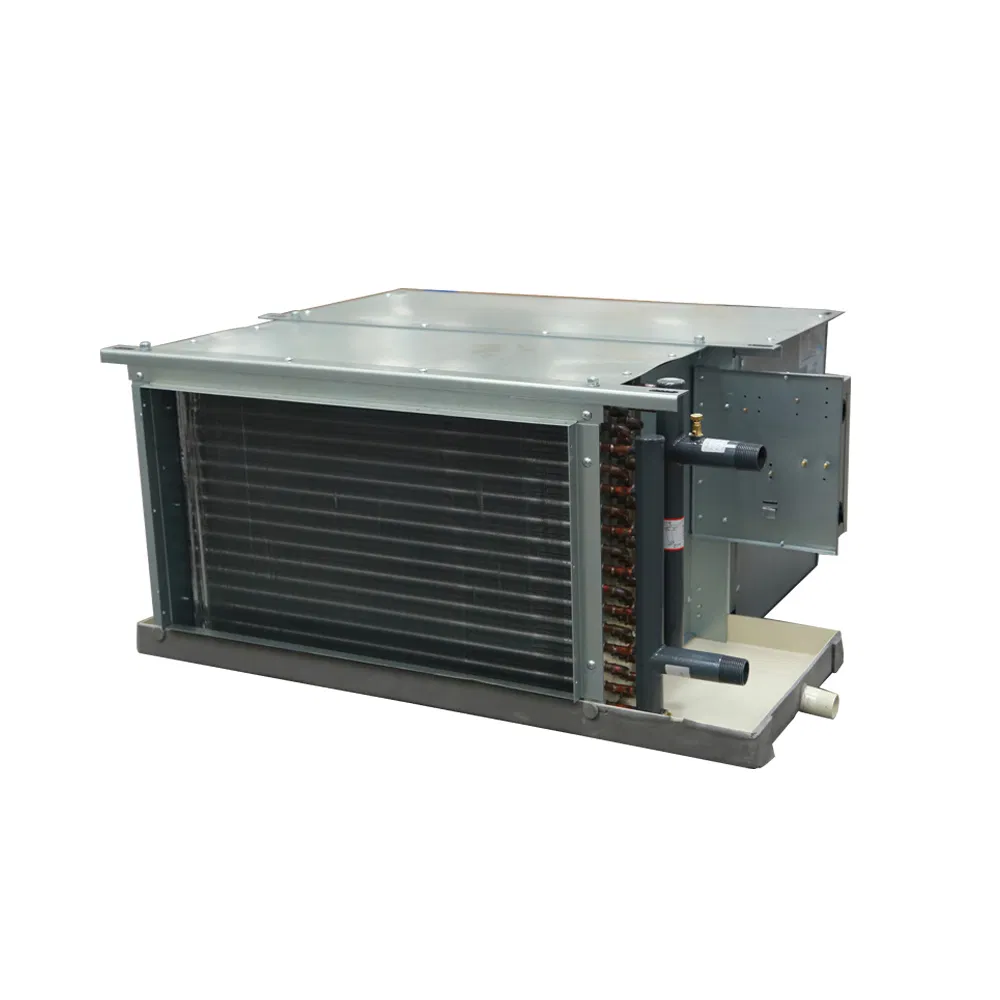

High Static Pressure Ceiling Concealed

High Pressure Ceiling (TFM)

800-3000 CFM

Specification
Name Power Air Flow (CFM) Cooling Capacity (W) Heating Capacity (W) ESP
TCR/TCRQ Concealed 220V-1Ph-50/60Hz 200-1400 / 200-1200 1635~13000 / 1635~11250 3900~22100 / 3500~18800 12/30/50
TFM High Pressure 220V-1Ph-50Hz 800-3000 5300~34410 7910~55990 80/130/180
TC Ceiling & Floor 220V-1Ph-50Hz 200-1400 1380~10500 2200~16800 /
TKM Cassette Type 220V-1Ph-50/60Hz 300-1200 2140~10800 4050~17000 /
TWM Wall Mounted 220V-1Ph-50Hz 200-800 1800~7200 1800~7200 /
Our Advantages
Advantages of our FCU
Why Choose Us
Technology Cooperation
1. United Technologies TICA has established a global strategic joint venture with United Technologies Corporation (UTC) whose businesses include Pratt & Whitney Aircraft Engines, Carrier, and Otis.
2. Market Share No.1 air side products provider with 14.1% of market share. Consecutive 8 years of No.1 AHUs provider in China.
3. Export Ability Products are exported to more than 50 countries including Russia, Central Asia, Eastern Europe, Argentina, and Southeast Asia.
4. Choice of International Brands Serving over 3000 GMP-Certified Pharmaceutical facilities and over 6000 Grade-A hospitals.
Certifications & Projects
Certifications
Product Packaging
Packaging method
Prestigious Projects

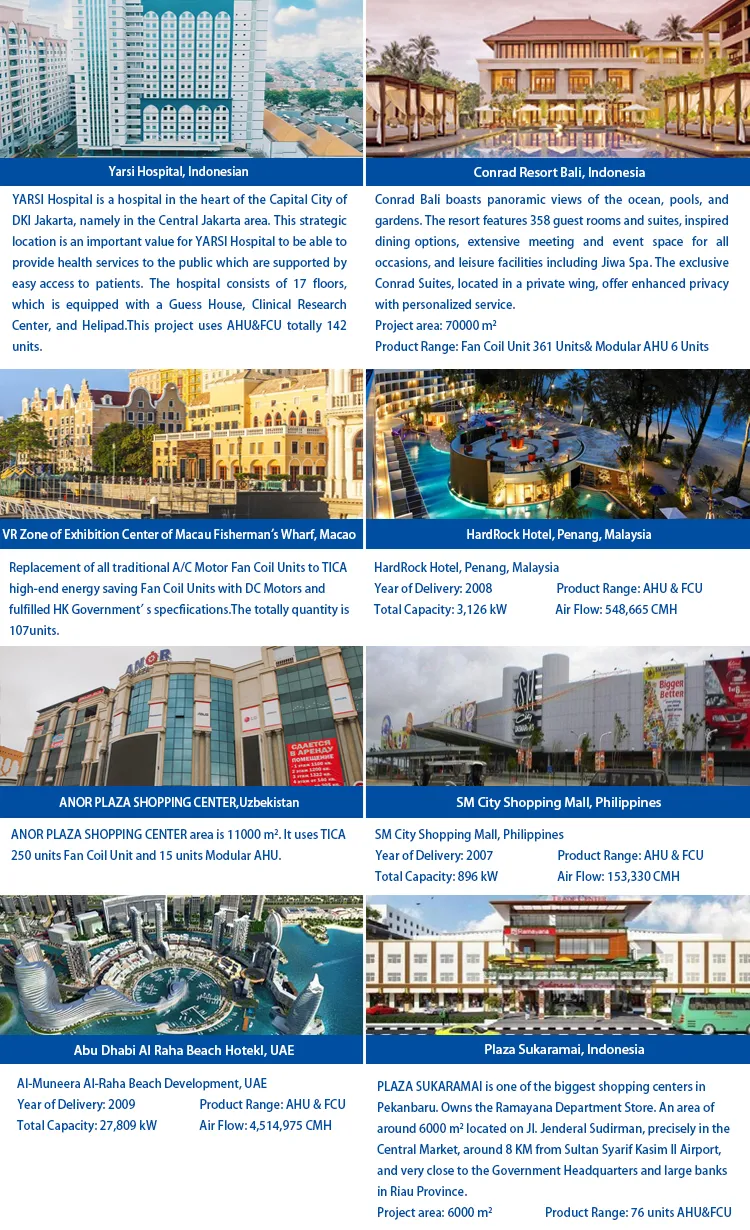

Global Projects
Frequently Asked Questions
1. Can you provide drawing design services?
Yes, we have professional HVAC engineers to help you design the entire FCU application project, air duct lengths, and provide optimized solutions.
2. Can you provide installation accessories along with equipment?
Yes. We can calculate and quote installation accessories including corrugated pipes, Y strainers, valves, and wired controllers for unified shipping.
3. Do you provide customized services?
Our FCUs offer optional functions like wet film humidification, control boxes, multiple filter grades, heating coils, and oil mist filters to meet project needs.
4. What is the delivery time for units?
For standard units, the delivery time is approximately 35-40 days.
5. What is the guarantee for the Fan Coil Units?
Lifespan for proper use is 5-10 years. We also provide 1% free spare parts for maintenance and after-sales support.
6. Is technical support available?
We have a professional technical team available 24/7 to answer questions, and detailed user manuals are included in every package.
